IS200EHPAG1D General Electric EX2100 EHPA Board

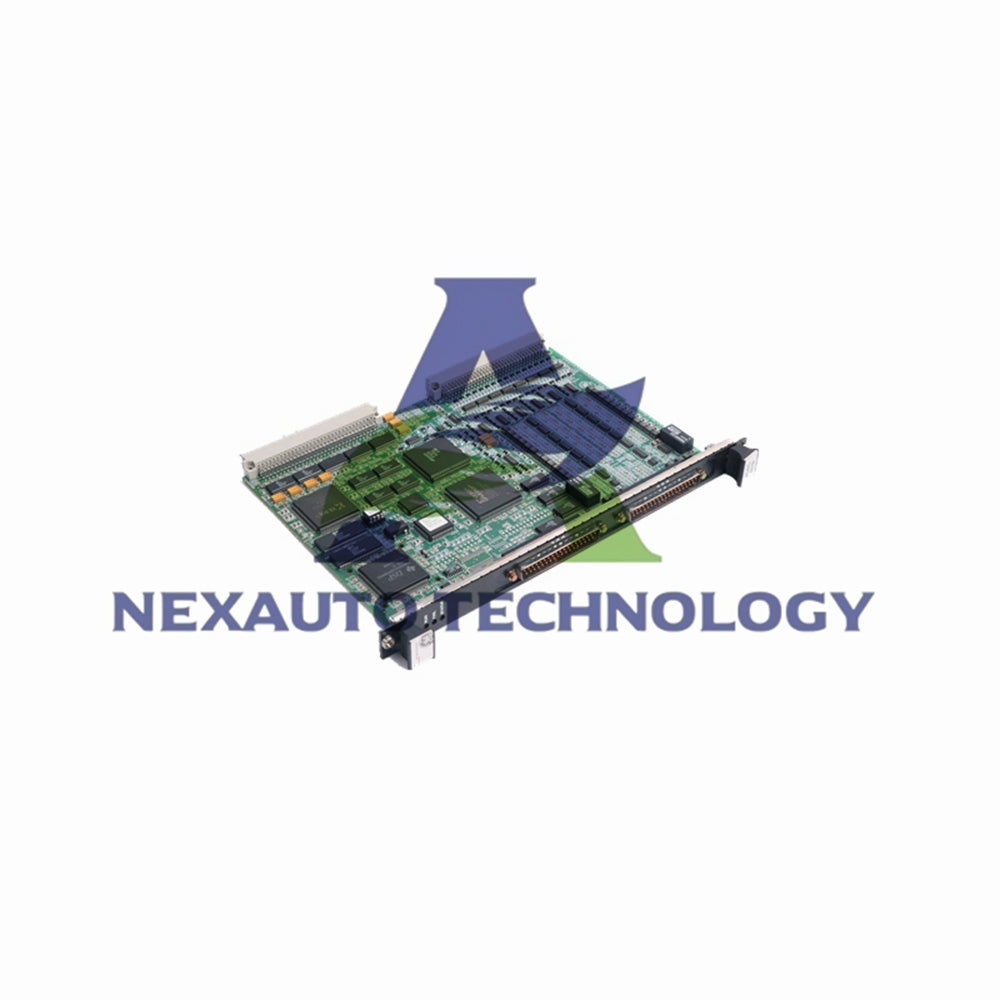

GE IS200EHPAG1D Exciter Gate Pulse Amplifier – EX2100 Series

General Electric IS200EHPAG1D functions as an Exciter Gate Pulse Amplifier Board (EHPA) within the EX2100 Excitation Control System. This board processes gate commands from the ESEL to fire up to six SCRs on the power bridge. Engineers trust IS200EHPAG1D for reliable SCR gating and comprehensive bridge monitoring.

Core Technical Specifications

• Brand: General Electric (GE)
• Model: IS200EHPAG1D
• Series: EX2100 Excitation Control
• Functional Acronym: EHPA
• Product Type: Exciter Gate Pulse Amplifier Board
• Microprocessor: Intel Celeron 650 MHz
• Memory: 128 MB SDRAM
• Operating System: QNX
• SCR Drivers: 6 independent Gate Pulse Amplifiers
• Input Voltage Range: 14 to 32 V DC
• Maximum Lead Resistance: 15 Ω
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +80°C
• Dimensions: 16.2 cm x 8.6 cm
• Weight: 2 lbs
• Technology: Surface mount
• Manual: GEI-100532A
• Repair: 3-7 day turnaround

Gate Command Input Architecture

• Receives six gate commands from ESEL via shielded twisted-pair cable. Differential pair transmission ensures signal integrity.
• Optical isolation on all gate command inputs. Protects low-voltage control circuits from bridge transients.
• Filtering and AC coupling condition incoming signals. Eliminates noise before amplification.
• Each SCR has a dedicated Gate Pulse Amplifier. Independent operation enables per-SCR fault isolation.
• Galvanic isolation between individual SCR gates. Prevents cross-talk and improves firing accuracy.

Power Supply and DC/DC Conversion

• Powered by 125 V DC nominal source from EPDM. Wide input range accommodates system variations.
• Onboard DC/DC converter supports full input voltage range. Maintains SCR gating power from 14 to 32 V DC.
• EHPA power supply health monitored by status LED. Immediate visual confirmation of power integrity.
• QNX operating system runs on Intel Celeron 650 MHz. Real-time performance for critical firing tasks.
• 128 MB SDRAM provides ample processing headroom. Handles complex firing algorithms without latency.

Bridge Current and Sensor Monitoring

• Monitors conduction currents across all three bridge input phases. Complete visibility of power bridge performance.
• Interfaces with Hall Effect sensors on EXCS boards. Supplies power to EXCS and receives current feedback signals.
• J9 and J10 connectors receive EXCS feedback. Indicates current flow status through each phase.
• Processed bridge status transmitted to system controller. Enables closed-loop excitation control.
• Bridge current monitoring supports predictive maintenance. Early detection of SCR conduction degradation.

Temperature Monitoring and Configuration

• Bridge temperature monitored via RTD (thermistor) input. Standard for new EX2100 exciter installations.
• Jumper-selectable temperature switch inputs for retrofits. Compatible with existing bridge temperature switches.
• RTD input disabled via jumpers when using temperature switches. Flexible configuration for legacy equipment.
• Both input types connect through J13 connector. Single interface point for all temperature sensors.
• Temperature status visible via bridge temperature LED. Alerts operator to overtemperature conditions.

Airflow and Fan Monitoring

• Airflow sensors detect loss of bridge cooling fans. Prevents SCR overheating and premature failure.
• One fan connects directly to EHPA through J12. Simplified wiring for critical cooling components.
• Accepts pulsed or dry-contact normally open sensor inputs. Compatible with various fan manufacturers.
• Berg jumper JP2 configures signal detection mode. Field-selectable without component changes.
• Cooling fan operation status indicated by LED. Immediate notification of fan failure or airflow loss.

Status Indicators and Diagnostics

• Multiple LEDs provide comprehensive visual feedback. Front-panel status at a glance.
• EHPA power supply health LED. Confirms DC/DC converter output valid.
• Input gate command LEDs from ESEL. Verifies signal arrival from selector board.
• SCR output signal LEDs. Indicates successful gate pulse delivery.
• Bridge current status LEDs. Visual confirmation of phase conduction.
• Line filter status LED. Monitors AC line filter health.
• Cooling fan operation LED. Real-time airflow status.
• Bridge temperature alarm LED. Overtemperature warning.
• Fault condition LED. General system fault indicator.

Packaging and Delivery

• Each IS200EHPAG1D ships in anti-static shielded packaging. ESD foam protects all connectors and components.
• Package includes one GE EHPA gate pulse amplifier board. No cables, sensors, or mounting hardware included.
• Direct drop-in replacement for existing EHPA modules. Identical form factor and backplane pinout.
• We ship via FedEx, UPS, or DHL. Tracking information provided within 24 hours of dispatch.
• International export packaging available. Double-boxed with moisture barrier for air freight.
• Repair service available: 3-7 day turnaround. Factory-trained technicians restore to original specifications.

Contact Information

• Email inquiries: sales@nex-auto.com
• WhatsApp support: +86 153 9242 9628
• Response time: Same business day for all technical and commercial questions.

Frequently Asked Questions

Q: What is the difference between IS200EHPAG1D and earlier EHPA revisions?
A: G1D is the current production revision with enhanced QNX firmware and full RTD temperature input support. It supersedes all previous EHPA variants.

Q: How many SCRs can this board fire simultaneously?
A: IS200EHPAG1D drives up to six SCRs, each with a dedicated Gate Pulse Amplifier and galvanic isolation.

Q: Can I use this board with an existing bridge that has temperature switches?
A: Yes. Configure jumpers to disable the RTD input and enable the two temperature switch inputs on J13.

Q: What is the function of berg jumper JP2?
A: JP2 configures the fan sensor input mode: pulsed output or dry-contact normally open. Set according to your fan manufacturer specifications.

Q: What voltage does the EHPA require to operate?
A: The board accepts 14 to 32 V DC from the EPDM supply. Nominal input is 125 V DC stepped down externally.

Q: How do I verify gate pulses are reaching the SCRs?
A: Observe the SCR output signal LEDs on the front panel. Illumination confirms successful gate pulse delivery.

Q: What is the typical lead time for IS200EHPAG1D?
A: In-stock orders ship within 48 hours. Volume orders typically ship within 5 business days.

Partner: AutoNex Controls Limited – Authorized GE EX2100 parts supplier.
