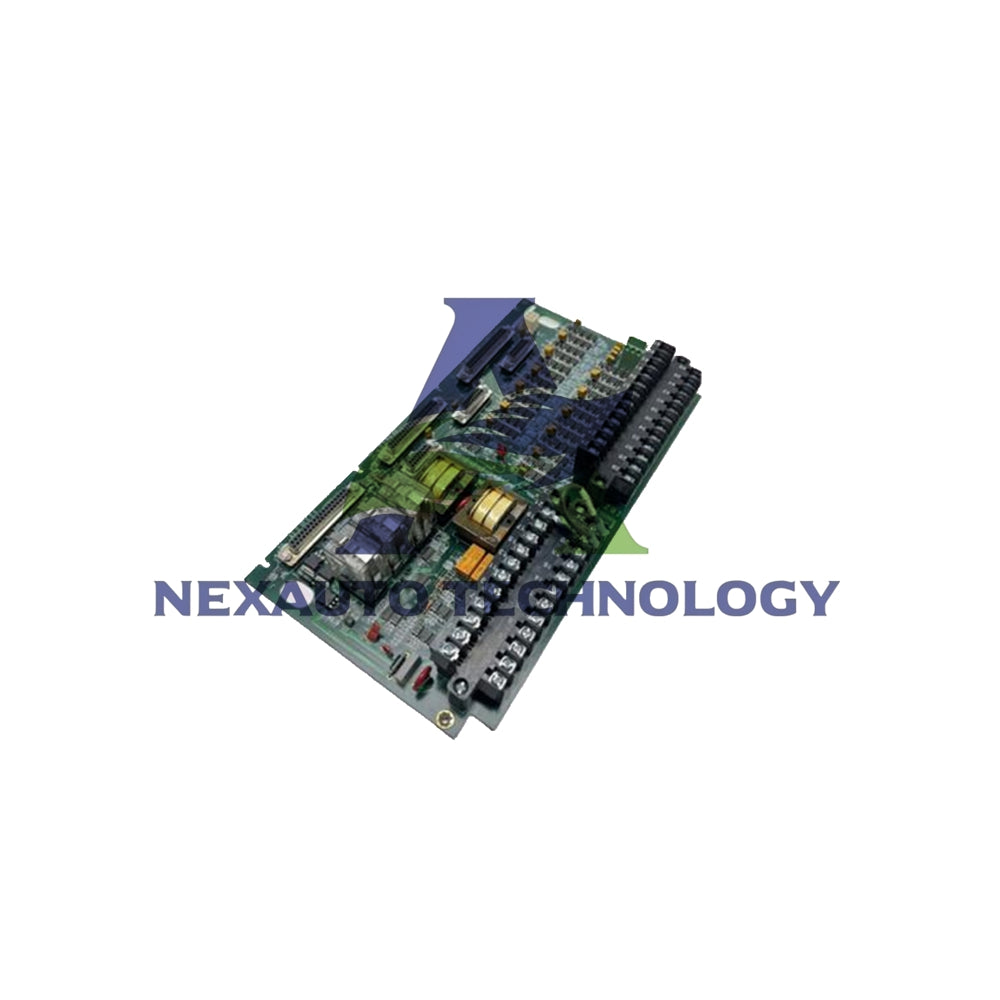

IS200TPROH1CAA General Electric Mark VIe TPRO Board

GE IS200TPROH1CAA Turbine Protection Board – Mark VIe Series

General Electric IS200TPROH1CAA functions as a Turbine Protection Board (TPRO) within the Mark VIe control system. This board operates independently to provide emergency overspeed and synchronization protection signals. Engineers trust IS200TPROH1CAA for reliable turbine safety and seamless integration with VPRO emergency trip systems.

Core Technical Specifications

• Brand: General Electric (GE)
• Model: IS200TPROH1CAA
• Series: Mark VIe Control System

Functional Acronym:

• TPRO
• Product Type: Turbine Protection Board
• Thermocouple Channels: 24
• Thermocouple Types: E, J, K, S, T
• Analog Inputs: 3 current inputs (4-20 mA or voltage selectable)
• Speed Signal Output: To VPRO for emergency overspeed protection
• Generator Signals: Backup synchronization check protection
• Operating Temperature: -30°C to +65°C
• Dimensions: 17.8 cm x 33.02 cm
• Country of Origin: United States (USA)

VPRO Emergency Trip System Integration

• VPRO system provides primary emergency trip control. Triple redundant boards coordinate trip solenoids through TREx terminals.
• IS200TPROH1CAA supplies speed signals to VPRO. Enables emergency overspeed detection and response.
• VPRO controls up to three trip solenoids between TREx and TRPx terminals. Provides necessary voltage for solenoid operation.
• Sophisticated voting mechanism utilizes 12 relays on TREG board. Ensures redundancy and reliability in emergency trip functions.
• System expansion supports second TREG board via J4. Driven from VPRO for enhanced redundancy and functionality.

TREx Terminal Functions

• TREG, TREL, and TRES terminals control trip solenoids. Critical interface between protection boards and trip hardware.
• TREx terminals ensure safety and integrity of turbine operations. Direct control path for emergency shutdown.
• Coordination with TRPx terminals provides complete solenoid control. Redundant voltage paths prevent single-point failures.
• Protection system operates autonomously from turbine control. Separate module configuration eliminates common-cause failures.
• Triple redundant board arrangement maximizes fault tolerance. Single board failure does not compromise trip capability.

Input Signal Management

• 24 thermocouple inputs dedicated to exhaust over-temperature protection. Precise monitoring for gas turbine temperature anomalies.
• Supports E, J, K, S, and T thermocouple types. Compatible with standard turbine temperature sensors.
• Three analog current inputs for exhaust over-temperature monitoring. Early detection and prevention of overheating issues.
• JP1A and JP1B jumpers configure analog input type. Select 4-20 mA or voltage input per application requirements.
• VPRO supplies 28 V DC power to energize analog transmitters. Ensures continuous and accurate monitoring of critical parameters.

Generator and Speed Monitoring

• Supplies generator signals for backup synchronization check protection. Detects synchronization faults with grid or power sources.
• Magnetic speed pickups connect to second terminal block. Provides vital feedback for rotating machinery speed measurement.
• Speed signals enable emergency overspeed protection. Rapid detection and response to hazardous overspeed conditions.
• Maintains turbine synchronization with grid. Prevents instability and inefficient operation.
• Generator and bus potential transformers wire to first terminal block. Essential sensors integrated for accurate monitoring and control.

Protection System Architecture

• Protection system operates in separate module from turbine control. Complete autonomy ensures safety functions remain independent.
• Triple redundant boards provide fault-tolerant operation. No single point of failure compromises turbine protection.
• TPRO and VPRO work in tandem for comprehensive protection. TPRO supplies signals and inputs; VPRO provides power and coordination.
• Emergency overspeed protection responds in milliseconds. Swift trip solenoid activation prevents turbine damage.
• System designed for GE gas, steam, and hydro turbines. Field-proven reliability across global generation fleets.

Installation and Configuration

• Wire generator and bus PTs, analog inputs, and thermocouples to first terminal block. Critical first step for sensor integration.
• Connect magnetic speed pickups to second terminal block. Essential for speed measurement and overspeed protection.
• Configure JP1A and JP1B jumpers for 4-20 mA or voltage input. Match sensor output type for accurate signal processing.
• Perform thorough verification and testing after wiring. Check connections, signal integrity, and sensor functionality.
• Integrate TPRO with overall control architecture. Ensure communication with control panels, DAS, or SCADA systems.
• Commission system with sensor calibration and alarm threshold configuration. Test under various operating conditions to validate performance.

Packaging and Delivery

• Each IS200TPROH1CAA ships in anti-static shielded packaging. ESD foam protects all connectors and components.
• Package includes one GE TPRO turbine protection board. No cables, terminal blocks, or mounting hardware included.
• Direct drop-in replacement for existing TPRO modules. Identical form factor and connector layout.
• We ship via FedEx, UPS, or DHL. Tracking information provided within 24 hours of dispatch.
• International export packaging available. Double-boxed with moisture barrier for air freight.

Contact Information

• Email inquiries: sales@nex-auto.com
• WhatsApp support: +86 153 9242 9628
• Response time: Same business day for all technical and commercial questions.

Frequently Asked Questions

Q: What is the difference between TPRO and VPRO systems?
A: TPRO supplies speed signals, generator signals, and thermocouple inputs to the protection system. VPRO provides emergency trip control, powers analog transmitters, and coordinates trip solenoids.

Q: How many thermocouple inputs does IS200TPROH1CAA support?
A: This board provides 24 thermocouple channels for E, J, K, S, and T types, primarily used for exhaust over-temperature protection on gas turbines.

Q: Can I configure the analog inputs for current or voltage?
A: Yes. Adjust jumpers JP1A and JP1B to select either 4-20 mA or voltage input on the first of three analog channels.

Q: How many trip solenoids can the system control?
A: Up to three trip solenoids can be connected between TREx and TRPx terminals. VPRO coordinates their operation through the TREG board's 12 relays.

Q: What voltage does VPRO supply to TPRO?
A: VPRO supplies 28 V DC power to energize the three analog input transmitters on the TPRO board.

Q: Is this board compatible with steam turbines?
A: Yes. IS200TPROH1CAA is designed for gas, steam, and hydro turbine applications within the Mark VIe control system.

Q: What is the typical lead time for IS200TPROH1CAA?
A: In-stock orders ship within 48 hours. Volume orders typically ship within 5 business days.

Partner: AutoNex Controls Limited – Authorized GE Speedtronic parts supplier.
