IS200VAICH1D Analog Input Processor Board General Electric

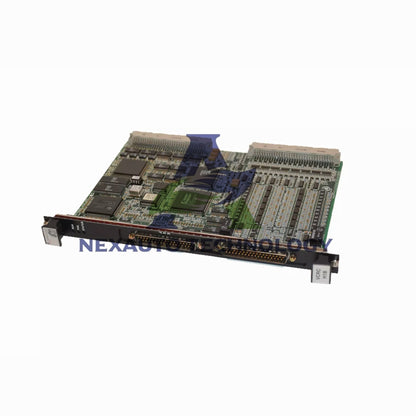

GE IS200VAICH1D VME Analog Input Card

The IS200VAICH1D is a VME-based analog input processor board designed for General Electric's Mark VI Speedtronic turbine control system. This high-precision I/O card digitizes and conditions analog signals from sensors like RTDs and thermocouples for use in both TMR and simplex control architectures.

Technical Specifications

• Brand & Model: General Electric (GE) IS200VAICH1D
• Product Type: VME Analog Input Card (VAIC Functional Acronym)
• System Platform: GE Mark VI Speedtronic Turbine Control System
• System Grouping: Group 1 Mark VI Series
• Architecture: Usable in TMR (Triple Modular Redundant) or Simplex systems
• PCB Coating: Conformal Coating for environmental protection
• Revision: D-rated primary functional revision

Processing & Signal Capabilities

• Processor: High-speed CPU with digital filtering capabilities
• Data Format: 32-bit floating-point for high-resolution data
• Sensor Library: Built-in sensor characteristic library for RTD and thermocouple linearization
• Configuration: Software-configurable while the unit is online and operating
• Associated Hardware: Works in conjunction with two TBAI (Terminal Board Analog Input) terminal boards

Physical Design & Indicators

• Form Factor: Single-width VME board
• Faceplate: Narrow front plate with a retaining clip at each end
• LED Indicators: Three LEDs on the faceplate for status, run, and fail conditions
• Backplane Connectors: Two connectors (typically 37-pin) on the rear edge for rack communication
• All components are marked with reference designators on the board surface

Board Components & Hardware

• Major ICs: Processor chips and other integrated circuits
• Discrete Components: Relays, resistors, transistors, and diodes
• Identification: Components are marked with original manufacturer part numbers for reference
• Design: Based on the original IS200VAICH1 design, with this model representing the "D" revision

System Integration & Application

• Serves as an I/O processor, bridging analog field sensors to the digital Mark VI controller
• Critical for monitoring temperature, pressure, and other analog parameters in turbine systems
• Integral part of GE's patented Speedtronic control technology
• Applications span gas, steam, and wind turbine control systems
• Important: Ensure you order the correct board version (TMR or Simplex) for your specific system architecture

Typical Applications

• Gas turbine temperature and pressure monitoring
• Steam turbine control loop feedback
• Wind turbine sensor interfacing
• Industrial process control requiring high-accuracy analog input

Packaging & Shipping

• The IS200VAICH1D VME card ships as an individual unit.
• Packaged with ESD protection to safeguard sensitive electronics.
• Worldwide express shipping via FedEx, UPS, and DHL available.

Frequently Asked Questions (FAQ)

• What does VAIC stand for? It is the functional acronym for VME Analog Input Card.
• What sensors does it support? It has built-in libraries for linearizing RTDs (Resistance Temperature Detectors) and thermocouples, among other analog signals.
• Can it be used in a TMR system? Yes, but you must ensure you procure the specific board version manufactured for TMR (Triple Modular Redundant) or Simplex use.
• What are the TBAI boards? Terminal Board Analog Input (TBAI) boards are the field wiring interfaces that connect to this VAIC processor card.
• What do the three LEDs indicate? They provide visual status for board operation (RUN), fault conditions (FAIL), and general status updates.
• What is the advantage of 32-bit floating point? It provides very high resolution and wide dynamic range for accurate measurement of analog signals.
• What is the "D" revision? It indicates this is a later revision of the original IS200VAICH1 board, potentially incorporating design improvements or fixes.
