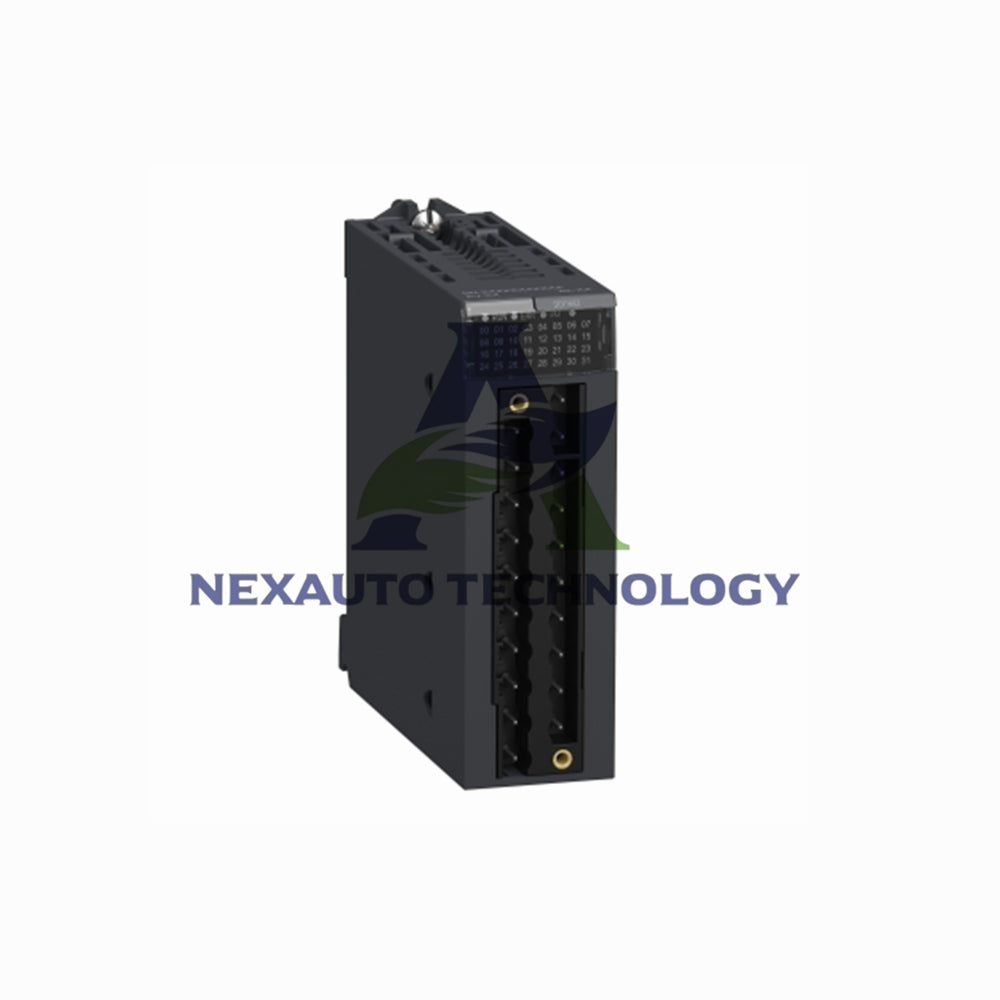

Introducing the Schneider Electric BMXDAO1605 Discrete Output Module

The BMXDAO1605 is a sixteen-channel Triac output module for Modicon X80 systems. This module switches AC loads in industrial control applications. It provides reliable output control for AC devices like solenoids, contactors, and indicator lights.

Core Technical Specifications & Performance

• Brand & Model: Schneider Electric BMXDAO1605
• Output Configuration: 16 Triac outputs for AC load switching
• Voltage Range: Wide 100-240 Volts AC operation
• Current per Channel: Each channel rated for 0.6 Amps continuous current
• Inrush Capacity: Handles 20 Amps inrush current for motor starts
• Common Current: Maximum 2.4 Amps per output common group
• Protection: Requires external fast-blow fuse for circuit protection
• Module Weight: Lightweight at 0.50 lbs (0.23 kg)

Robust Design & Safety Features

• Protection Rating: IP20 enclosure for basic dust and contact protection
• Operating Temperature: Reliable performance from 0°C to 60°C
• Status Indication: Integrated LEDs for each channel status monitoring
• Installation Environment: Designed for indoor industrial applications
• Safety Compliance: Meets industrial control standards for AC output modules
• Mounting: Compatible with Modicon X80 rack system installation

Packaging & Shipping Information

• Package Includes: One (1) BMXDAO1605 discrete output module
• Shipping Methods: Global shipping via FedEx, UPS, and DHL
• Standard Packaging: Protective packaging for industrial electronic modules

Installation & Wiring Guide

• Install this module in your Modicon X80 PLC rack system
• Connect AC power sources within the 100-240V AC specified range
• Wire AC loads to the sixteen Triac output channels
• Install external fast-blow fuses as required for circuit protection
• Ensure total common current does not exceed 2.4 Amps per group
• Use status LEDs for quick visual diagnosis of output states

Frequently Asked Questions (FAQ)

What types of loads can this module control?

The BMXDAO1605 controls AC loads like solenoids, small motors, contactor coils, indicator lamps, and heating elements within its current rating.

What is the purpose of the high inrush current rating?

The 20A inrush capacity allows the module to handle initial surge currents when switching inductive loads like motor starters without damage.

Is external protection required?

Yes, you must install external fast-blow fuses as specified to protect the Triac outputs from short circuits and overload conditions.

Can this module switch DC loads?

No, this is specifically an AC output module using Triac technology. For DC loads, consider a transistor output module instead.

What is the advantage of Triac outputs?

Triac outputs provide solid-state AC switching with no moving parts, offering longer life and faster switching than mechanical relays for AC applications.
