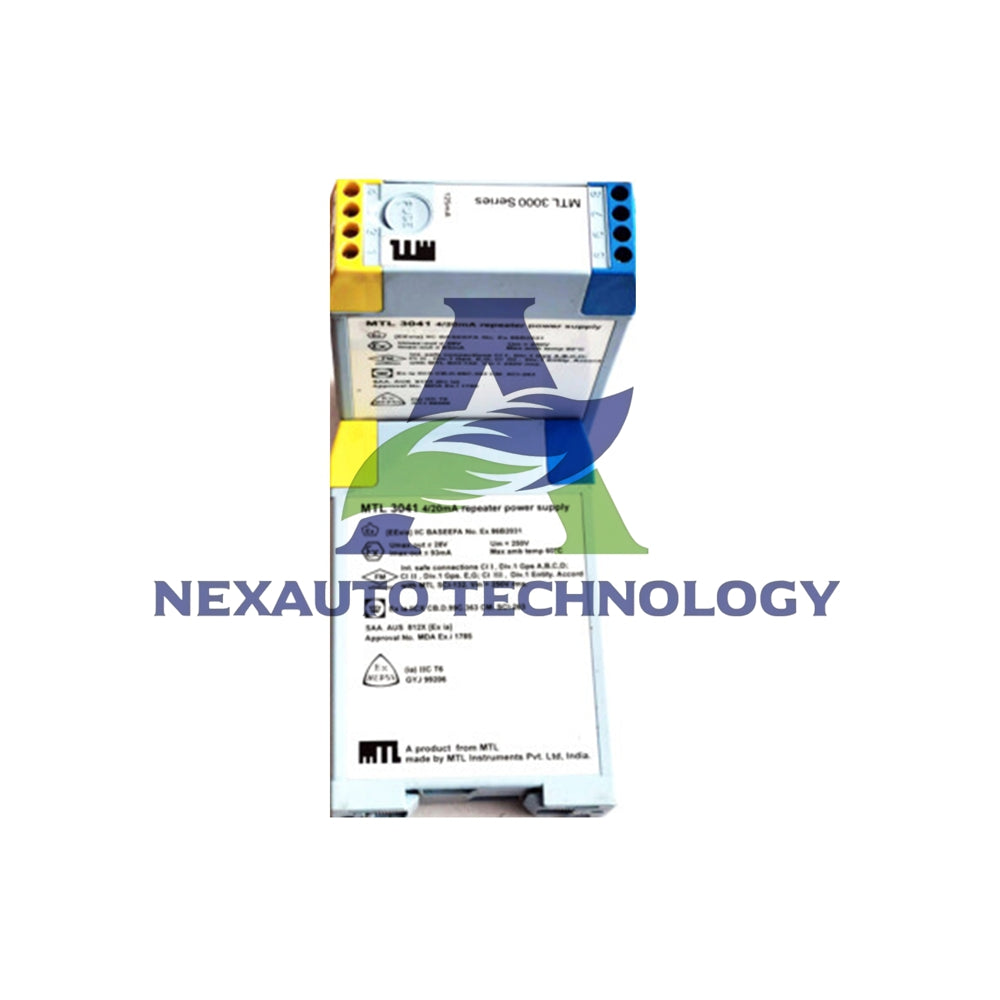

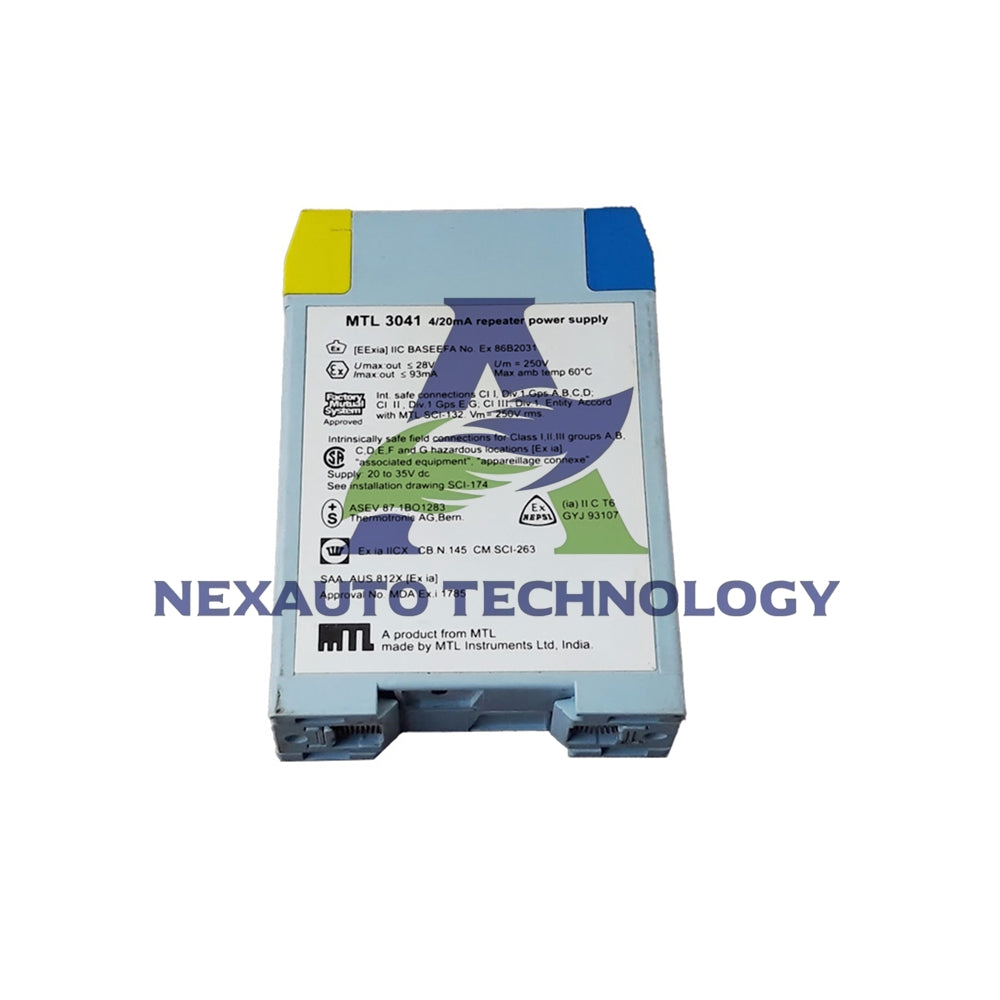

MTL | Repeater Power Supply | MTL3041

Product Introduction

The MTL3041 provides a fully-floating DC supply for 2-wire 4-20mA transmitters in hazardous areas. Its 17.5V output (at 20mA) powers most transmitter loops while maintaining complete electrical isolation.

This barrier accurately replicates current in a separate floating circuit for safe-area loads. The floating design permits field cable grounding without affecting performance, solving common measurement errors in shared cable systems.

Key Features

• Transformer-coupled circuit ensures exceptional long-term stability
• Eliminates voltage drop errors in control systems
• Compatible with earth-referenced control computers
• No need for high-stability resistors

Technical Specifications

• Channels: Single fully floating
• Certification: Zone 0, IIC, T4-6 / Div 1, Group A
• Output Voltage: 17.5V min at 20mA (28V max open-circuit)
• Signal Range: 4-20mA (0-20mA full range)
• Load Resistance: 0-800Ω
• Accuracy: Better than 20μA at 20°C
• Response Time: 60ms to 10% of final value
• Power Consumption: 100mA typical at 24V

Safety Information

• FM Entity Parameters: Voc=28V, Isc=93mA
• Fuse: 125mA semi-time-lag
• Weight: 160g

Note: For smart transmitters, consider the MTL3046B model instead.
