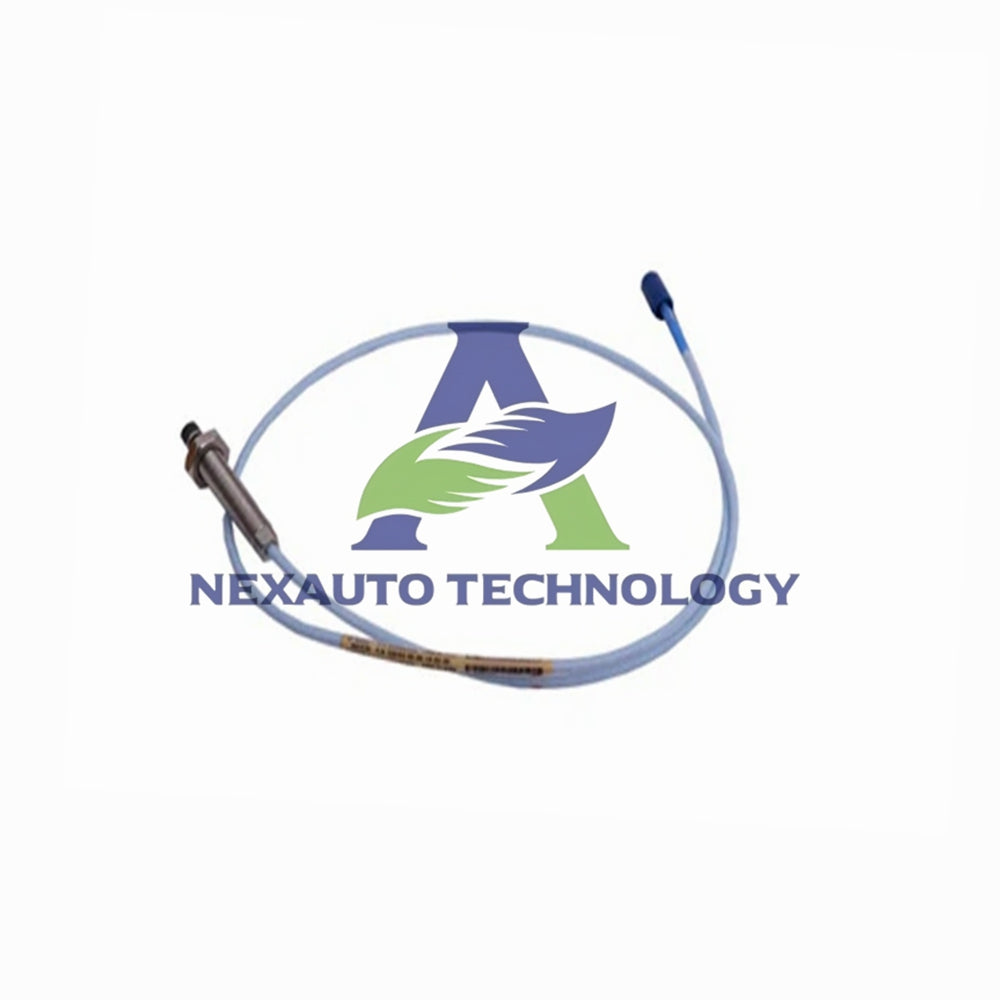

Probe | Bently Nevada 330103-13-23-05-02-00

Long-Reach 8mm Probe for Deep Mounting Applications

The Bently Nevada 330103-13-23-05-02-00 belongs to the trusted 3300 XL series. We design this extended-tip 8mm probe for accurate displacement and vibration measurements in deep housing or through-hole installations. The 130mm unthreaded length reaches past obstacles before threads engage. It operates within a 2mm (80 mils) linear range, starting at 0.25 mm from the target. For radial vibration monitoring, we recommend a gap setting of -9 Vdc, which equals approximately 1.27 mm.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330103-13-23-05-02-00.
• Product Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread, no armor.
• Dimensions: 130mm unthreaded length, 230mm overall case length, and 0.5 meter (1.6 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• DC Resistance: Nominal probe resistance measures 7.45 ± 0.50 Ω for 0.5m length.
• Weight: Probe weighs 323 g/m (11.4 oz/ft).
• Approvals: Agency approval option 00 means no specific hazardous location certification.

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Humidity: Average Scale Factor changes less than 3% after 56 days in 93% humidity.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Standard Configuration: This model ships without agency certifications for general industrial use.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 15 mm for M10x1 case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.
• Deep Mount Tip: The 130mm smooth section lets you pass through bearings or housings before threading.

Package Includes

• One Bently Nevada 330103-13-23-05-02-00 3300 XL 8 mm Probe.
• Factory-attached ClickLoc connector and 0.5m standard cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

When to use 130mm unthreaded length?

Use this probe when you need to reach through deep bearing housings or thick machine casings before threads start.

What does approval option 00 mean?

This model has no hazardous area certifications. Suitable for general industrial environments without explosion risk.

Compatible with 3300 XL systems?

Yes. This 330103-13-23-05-02-00 works with all Bently Nevada 3300 XL proximitors and monitors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm). This centers probe within linear range.

Can I use this in hazardous areas?

No, this version lacks certifications. Choose model with approval code 05 for CSA/ATEX/IECEx certified version.
