Processor Module - Status Indicators ICS Triplex T9110

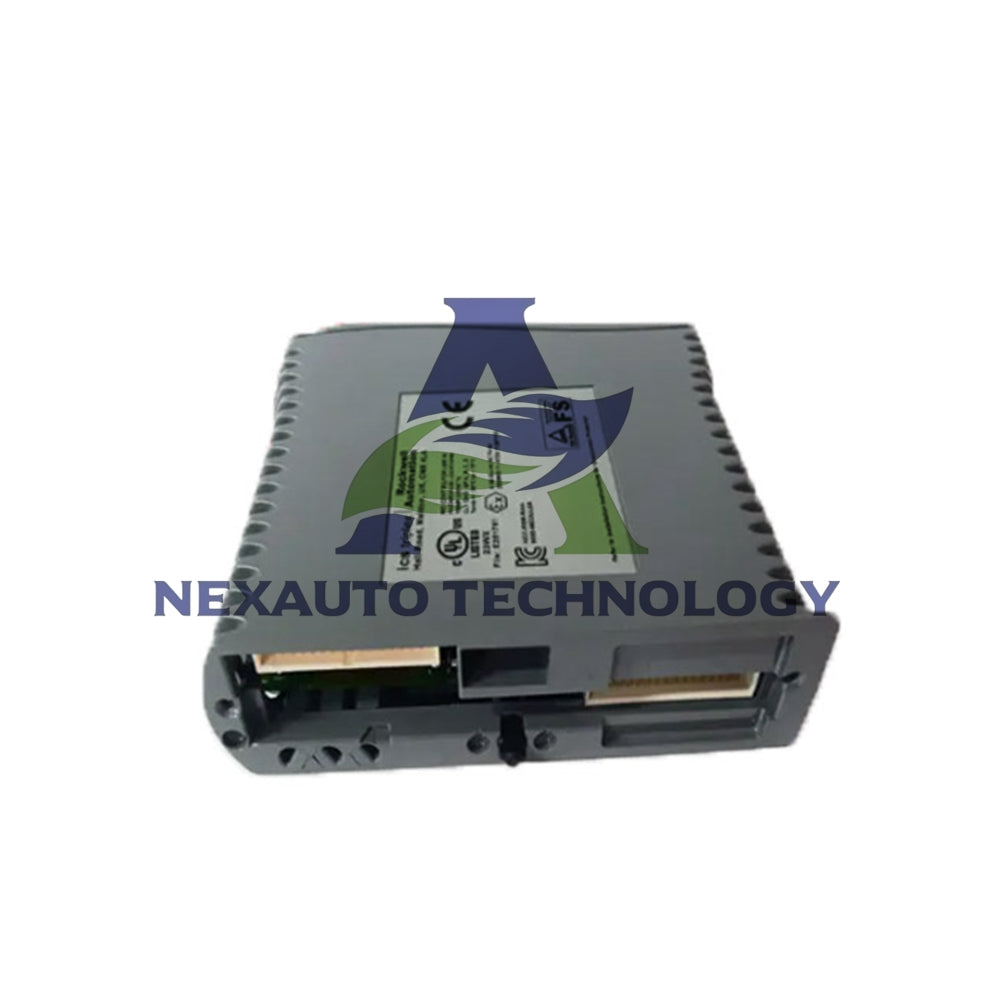

ICS Triplex T9110 Processor Module

The T9110 processor module provides reliable control system performance. It features multiple status indicators for easy monitoring and diagnostics. The module operates within a wide voltage range and dissipates minimal heat.

Status Indicators & Diagnostics

• Ready Indicator: Red during boot-up, flashing green during education, solid green when synchronized
• Run Indicator: Green when application is running, red when not educated or in shutdown
• System Healthy: Green indicates no faults, red shows system or module faults present
• Force Indicator: Green with no forced variables, amber when variables are locked or forced
• Serial Ports 1 & 2: Red for transmit activity, green for receive, amber for both Tx and Rx
• Ethernet Ports 1 & 2: Green shows link present, amber indicates network activity
• Healthy LED: Green when operational, red flashes during boot-up then indicates faults

Installation Procedure

• Always examine new modules for physical damage before installation
• Record module location and label details before installation
• Ensure all processor modules have identical firmware builds
• Verify coding pegs on T9100 base unit match module sockets
• Position module on coding pegs with locking screw slot vertical
• Push module firmly until connectors fully mate
• Use 9mm flat blade screwdriver to turn locking screw clockwise

Technical Specifications

• Weight: 430 grams
• Power Consumption: 8.0W (27.3 BTU/hr)
• Heat Dissipation: 8.0W
• Voltage Range: 18-32V DC
• Maximum Current: 380mA
• Maximum Operating Temperature: 60°C
• Boot-up Time: 10-20 seconds

Battery & Clock Maintenance

• Recommended Battery: T9905 BR2032 Lithium Coin Battery
• Battery Voltage: 3V nominal
• Battery Capacity: 190mAh
• Battery Temperature Range: -30°C to +80°C
• Real-time clock requires manual setting in single-controller systems
• Use RTC Control variables for clock reading and writing operations
• Set Year, Month, Day, Hours, Minutes, Seconds, and Milliseconds separately

Frequently Asked Questions (FAQ)

• What does a solid red Ready indicator mean?
  The module is booting up, not educated, not synchronized, or in shutdown state.
• How do I know if the module is running properly?
  Both Ready and Run indicators should be solid green when operational.
• What battery should I use for replacement?
  Use the official T9905 battery or equivalent BR2032 3V lithium coin cell.
• How long does boot-up take?
  The module typically boots within 10 to 20 seconds after power application.
• What does amber Force indicator mean?
  Variables are being locked/forced or the module is in Recovery Mode.
