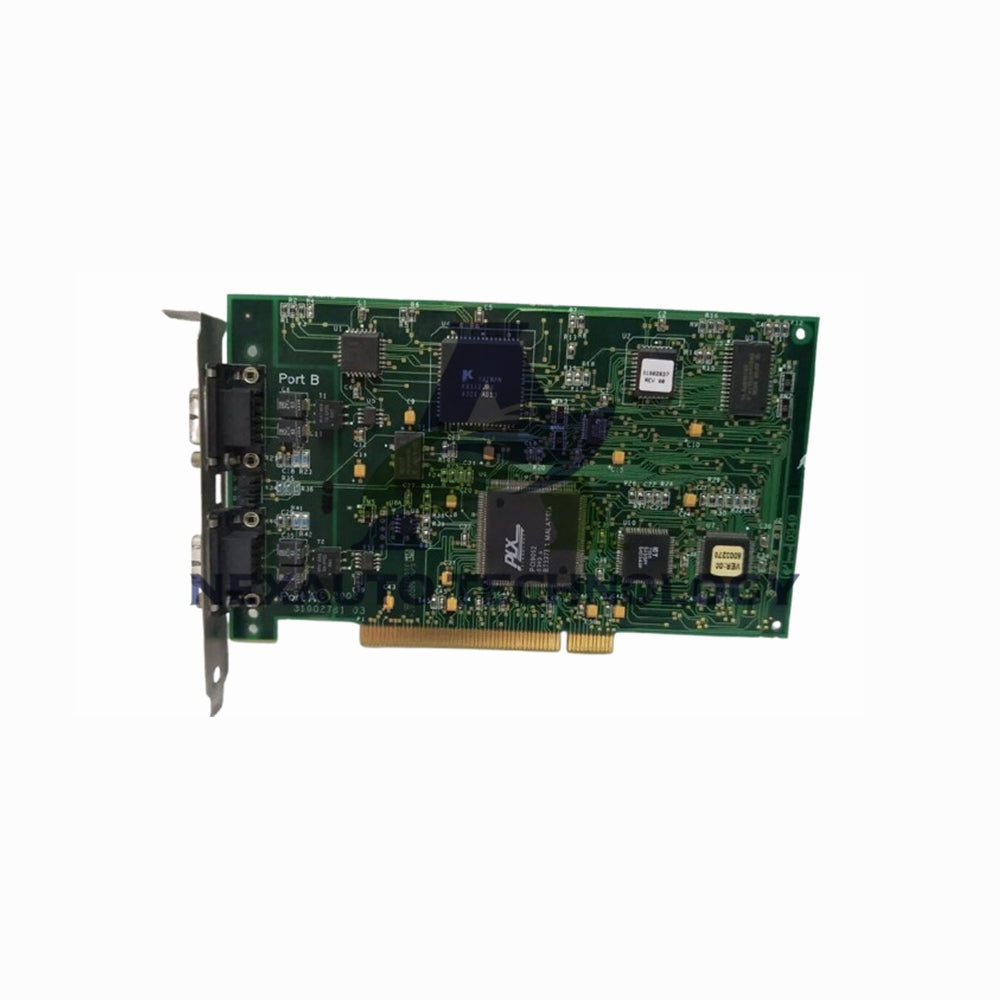

Schneider 416NHM30030 Modbus Plus PCI Adapter Card

Schneider Electric Modicon 416NHM30030 Modbus Plus PCI Adapter Card

Key Technical Specifications

• Manufacturer: Schneider Electric, part of the Modicon product line.
• Product Name: Modbus Plus PCI Adapter Card for industrial communication.
• Interface Type: Features Modbus Plus protocol via PCI bus connection.
• Operating Voltage: Requires 5 V DC supply for normal operation.
• Port Configuration: Includes a single Modbus Plus port for network connectivity.
• Plug-and-Play Support: Yes, enables automatic system configuration upon installation.
• Operating Temperature: Functions reliably from 0°C to 50°C environments.
• Compatible Systems: Works with Modicon PLCs and standard industrial PCs.
• Environmental Requirement: Designed for areas with no corrosive gases present.
• Physical Dimensions: Measures 168 mm in width and 120 mm in height.
• Product Weight: Weighs only 0.25 lbs (0.11 kg) for easy handling.

Hardware and Compatibility Features

• Bus Interface: Utilizes PCI slot for integration into industrial computers.
• Network Protocol: Supports Modbus Plus for deterministic industrial networking.
• System Integration: Connects directly with Modicon Quantum and Premium PLCs.
• Driver Support: Compatible with standard industrial operating systems.
• LED Indicators: Provides visual status for network activity and connection.
• Installation Type: Simple card insertion into available PCI expansion slot.
• Power Consumption: Draws minimal power from the 5 V DC supply rail.

Frequently Asked Questions (FAQ)

• What is the 416NHM30030 used for?
  The 416NHM30030 connects Modicon PLCs to industrial PCs via Modbus Plus networks.
• What voltage does this adapter card require?
  It requires a 5 V DC power supply from the PCI bus slot.
• Is the 416NHM30030 plug-and-play compatible?
  Yes, it supports plug-and-play for automatic system recognition and configuration.
• What is the operating temperature range?
  It operates reliably between 0°C and 50°C in industrial environments.
• What systems are compatible with this card?
  It works with Modicon PLCs and standard industrial PCs with PCI slots.
• Do you have the 416NHM30030 in stock?
  Yes, we have brand new original units available for immediate shipment.
• How do you ship the 416NHM30030?
  We ship globally via FedEx, UPS, or DHL within 5 business days.
• Can I return this card if it doesn't meet my needs?
  Yes, we offer a 30-day return policy from the delivery date.
