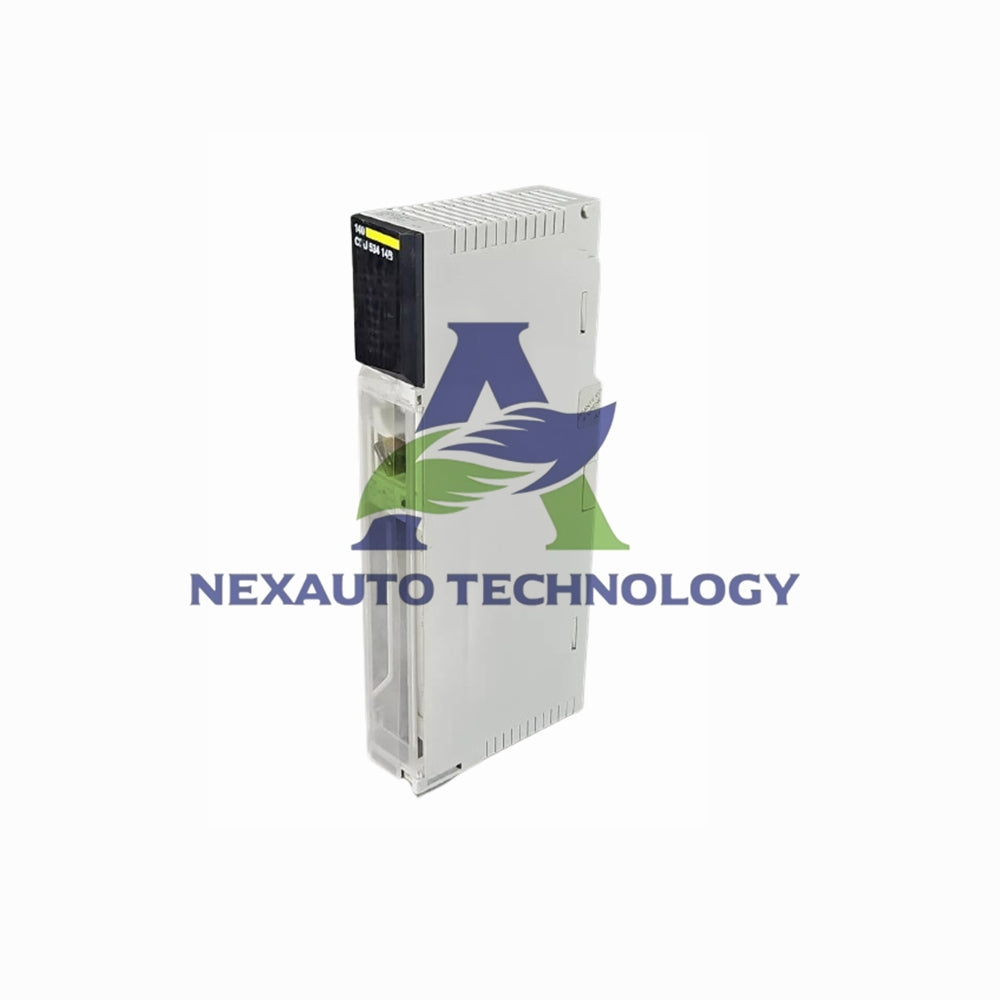

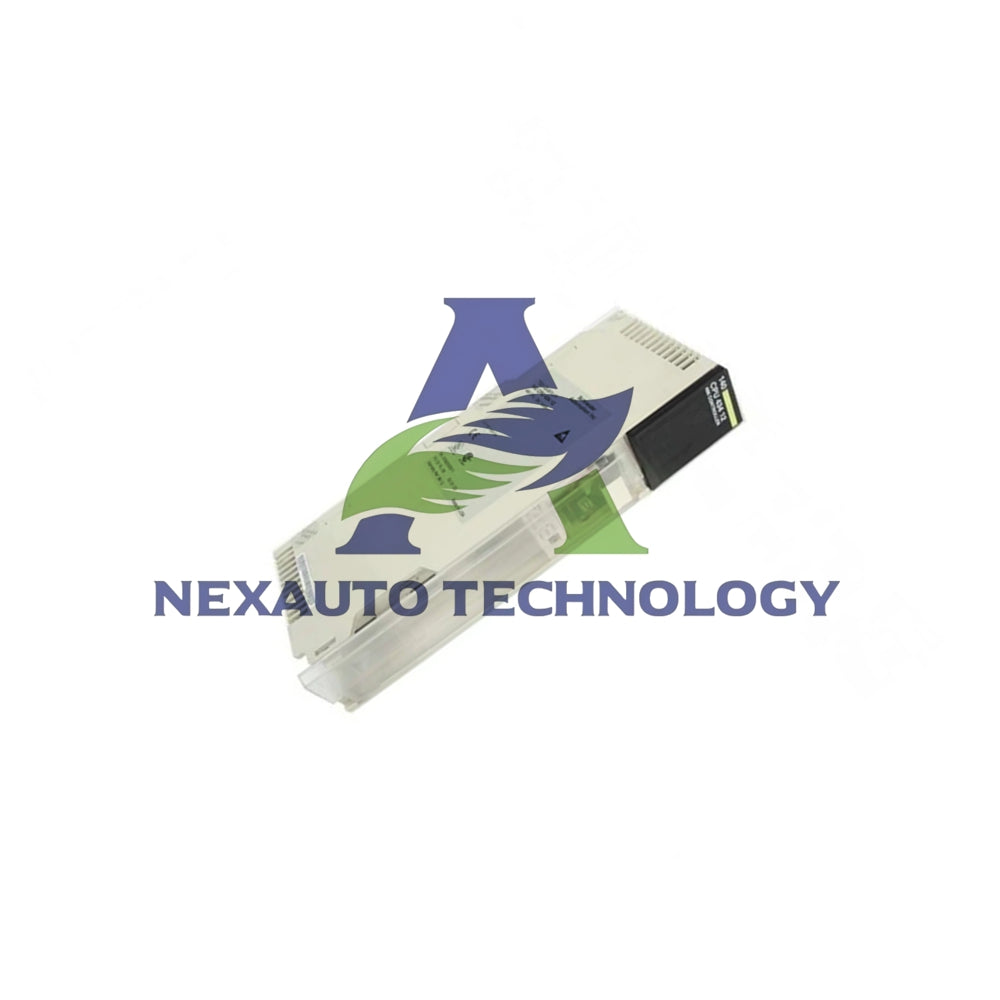

Schneider Electric 140CPU53414BC Modicon Quantum Processor

Product Overview

The 140CPU53414BC is a high-performance processor manufactured by Schneider Electric for the Modicon Quantum automation platform. This industrial controller features a 100MHz 80486 processor with substantial memory and robust I/O capabilities for demanding automation applications.

Technical Specifications

• Manufacturer: Schneider Electric
• Part Number: 140CPU53414BC
• Product Type: Quantum Series Processor
• Product Line: Modicon Quantum Automation Platform
• Processor Type: 80486 with Mathematical Coprocessor
• Clock Frequency: 100 MHz Operating Speed
• Internal RAM: 2972 kB Memory Capacity
• Watchdog Timer: 250 ms System Monitoring
• Instruction Time: 0.1-0.5 ms per 1K LL984 Instructions
• Bus Current: 1250 mA Power Requirement
• Battery Type: Lithium Backup Battery
• Battery Capacity: 1.2 Ah with 10-Year Life
• Net Weight: 0.85 kg (1.87 lb)
• GTIN: 3595863917093
• Country of Origin: France (FR)

Processor Architecture

• CPU Core: Intel 80486 Industrial Processor
• Co-processor: Integrated Mathematical Coprocessor
• Clock Stability: ±8 Seconds/Day Drift (0-60°C)
• Processing Power: High-Speed Industrial Computation
• Real-Time Performance: Optimized for Control Applications
• System Architecture: Quantum Platform Optimization

Memory Configuration

• RAM Capacity: 2972 kB Internal Memory
• Memory Type: Industrial-Grade RAM Components
• Data Storage: Program and Variable Storage
• Performance: Fast Access and Processing
• Reliability: Industrial Environment Designed

I/O & Network Capabilities

• Distributed I/O Words: 500 Input/500 Output per Network
• Local I/O Capacity: 64 Input/64 Output Maximum
• Remote I/O Capacity: 64 Input/64 Output Maximum
• Network Drops: 63 Distributed Drops Supported
• Remote Drops: 31 Remote Drop Capability
• Network Support: 2 Remote, 3 Distributed Networks
• System Expansion: Comprehensive I/O Integration

Software Compatibility

• Programming Software: ProWORX 32 Development Environment
• Control Language: LL984 Instruction Set
• Configuration: Quantum Platform Tools
• Development: Industrial Control Programming
• Integration: Modicon System Compatibility

Physical Characteristics

• Module Format: Standard Quantum Module Size
• Switch Function: Key Switch for Secure Operation
• Markings: CE Certification Compliance
• Protective Treatment: Conformal Coating Humiseal 1A33
• Construction: Industrial-Grade Components

Environmental Specifications

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 95% Maximum (Non-Condensing)
• Operating Altitude: ≤ 5,000 m (16,404 ft)
• ESD Protection: 4 kV Contact, 8 kV Air Discharge
• EMC Resistance: 9.1 V/m (10 V/m) 80-2000 MHz

Certifications & Standards

• Safety Standards: UL 508 Industrial Control
• Canadian Standard: CSA C22.2 No 142
• Hazardous Location: FM Class 1 Division 2
• European Compliance: cUL Certification
• Quality Standards: Schneider Electric Specifications

Battery System

• Battery Type: Lithium Long-Life Battery
• Current Range: 10 µA to 420 µA Discharge
• Capacity: 1.2 Ah Energy Storage
• Life Expectancy: 10 Years Typical Service
• Backup Function: Memory Retention During Power Loss
• Reliability: Long-Term Data Protection

Package & Shipping

• Category: 18150-QUANTUM CONTROLLERS,HSBY,COMM.
• Discount Schedule: PC21
• Package Type: Single Unit Package
• Units per Package: 1 Processor per Box
• Package Dimensions: 31.5 × 16.5 × 5.0 cm (12.4" × 6.5" × 2.0")
• Package Weight: 634.0 g (22.4 oz)
• Return Policy: Non-Returnable Item

Key Features

• 100 MHz 80486 Processor with Math Coprocessor
• 2972 kB Internal RAM for Program Storage
• 500 Input/500 Output Words per Network
• 250 ms Watchdog Timer for System Reliability
• 10-Year Lithium Battery Backup System
• ProWORX 32 Software Compatibility
• Multiple International Certifications (UL, CSA, FM)

Application Areas

• Industrial Process Control Systems
• Manufacturing Automation Control
• Building Management Systems
• Energy Distribution Control
• Water and Wastewater Treatment
• Infrastructure Automation

Frequently Asked Questions

What processor does this controller use?
The 140CPU53414BC features an Intel 80486 processor running at 100 MHz with an integrated mathematical coprocessor for industrial control applications.

How much memory is available?
This processor includes 2972 kB of internal RAM for program storage and data processing in Modicon Quantum systems.

What I/O capacity does it support?
It supports up to 500 input and 500 output words per network, with 63 distributed drops and 31 remote drops for extensive system expansion.

What software is required for programming?
The controller is programmed using Schneider Electric's ProWORX 32 software environment with LL984 instruction set compatibility.

What certifications does it have?
It carries multiple certifications including UL 508, CSA C22.2 No 142, FM Class 1 Division 2, and cUL for international compliance.
