Schneider Electric 140NOA62200C Quantum Interbus Module

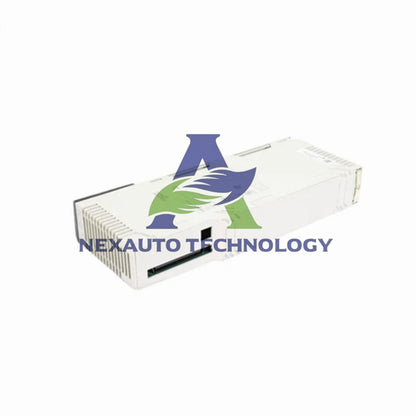

140NOA62200C Schneider Electric Modicon Quantum Interbus Master Module

The 140NOA62200C is an Interbus master module from Schneider Electric's Modicon Quantum automation platform. Engineered for reliable performance in severe industrial environments it facilitates high speed communication. This module supports twisted pair cabling and connects Quantum PLCs to Interbus networks.

Core Specifications and Identification

• Manufacturer and Model: This is a Schneider Electric module from the Modicon Quantum series.
• Part Number: The specific catalog number is 140NOA62200C.
• Product Type: Functions as an Interbus master module Generation 4.
• Module Profile: Complies with PCP V2.0 profile.
• Application: Designed specifically for use in severe environments.

Communication and Network Details

• Communication Protocol: Uses Interbus RS485 isolated at 500 kbit/s conforming to DIN 66020.
• Cable Type: Requires twisted pair cabling.
• Maximum Cable Distance: Supports up to 20 meters between devices.
• Method of Access: Operates as the network master.
• Electrical Connection: Equipped with two SUB D 9 pin connectors one for Interbus link.

Memory and System Integration

• Memory Capacity: Includes 128 kB + 256 kB firmware EPROM 2 kB dual port RAM 256 kB + 32 kB data RAM and 64 kB Interbus command EEPROM.
• Software Compatibility: Works with Concept and ProWORX 32 software V 2.5 SR2.
• CPU Compatibility: Compatible with Quantum CPUs including 140CPU53414B 140CPU43412A and 140CPU11303.
• Rack Type: Installs in a local rack.

Physical and Electrical Specifications

• Bus Current Requirement: Draws 800 mA from the Quantum backplane.
• Power Dissipation: Rated at 4 Watts.
• Net Weight: Approximately 0.9 kg.
• Module Format: Standard Quantum module size.

LED Indicators and Diagnostics

• Local Signalling: Features 11 status LEDs including green LEDs for ACTIVE RUN and IS B RUN and red/yellow LEDs for fault conditions processor memory bus and segment status.

Environmental and Safety Ratings

• Operating Temperature: Functions from 0°C to 60°C.
• Storage Temperature: Can be stored from -40°C to 85°C.
• Operating Altitude: Suitable for use up to 5000 meters.
• Relative Humidity: Up to 95% non condensing.
• Certifications: Holds CE UL and CSA approvals.
• EMC Resilience: Resists electrostatic discharge 4 kV contact 8 kV air and electromagnetic fields 10 V/m 80 1000 MHz.

Packaging and Shipping

• Package Contents: Includes the 140NOA62200C Interbus master module.
• Shipping Methods: Available for international delivery via FedEx UPS and DHL services.

Frequently Asked Questions FAQ

• What is the main function of this module? The 140NOA62200C allows a Modicon Quantum PLC to act as the master controller on an Interbus network connecting to remote I/O blocks drives and other Interbus slaves.
• What does "for severe environments" mean? It indicates the module is designed with enhanced durability and EMC protection for reliable operation in electrically noisy or harsh industrial settings.
• How many devices can it support on the Interbus? The module can manage a local rack configuration with up to 6 compatible CPUs or other specified combinations as per its compatibility list.
• What software is needed to configure it? Configuration is done using Schneider Electric's Concept or ProWORX 32 programming software.

The 140NOA62200C provides a robust and high performance gateway for integrating Modicon Quantum controllers into Interbus networks. Its extensive diagnostic LEDs and rugged design ensure reliable operation in critical applications. This Schneider Electric module is a key component for building distributed control systems with Interbus technology.
