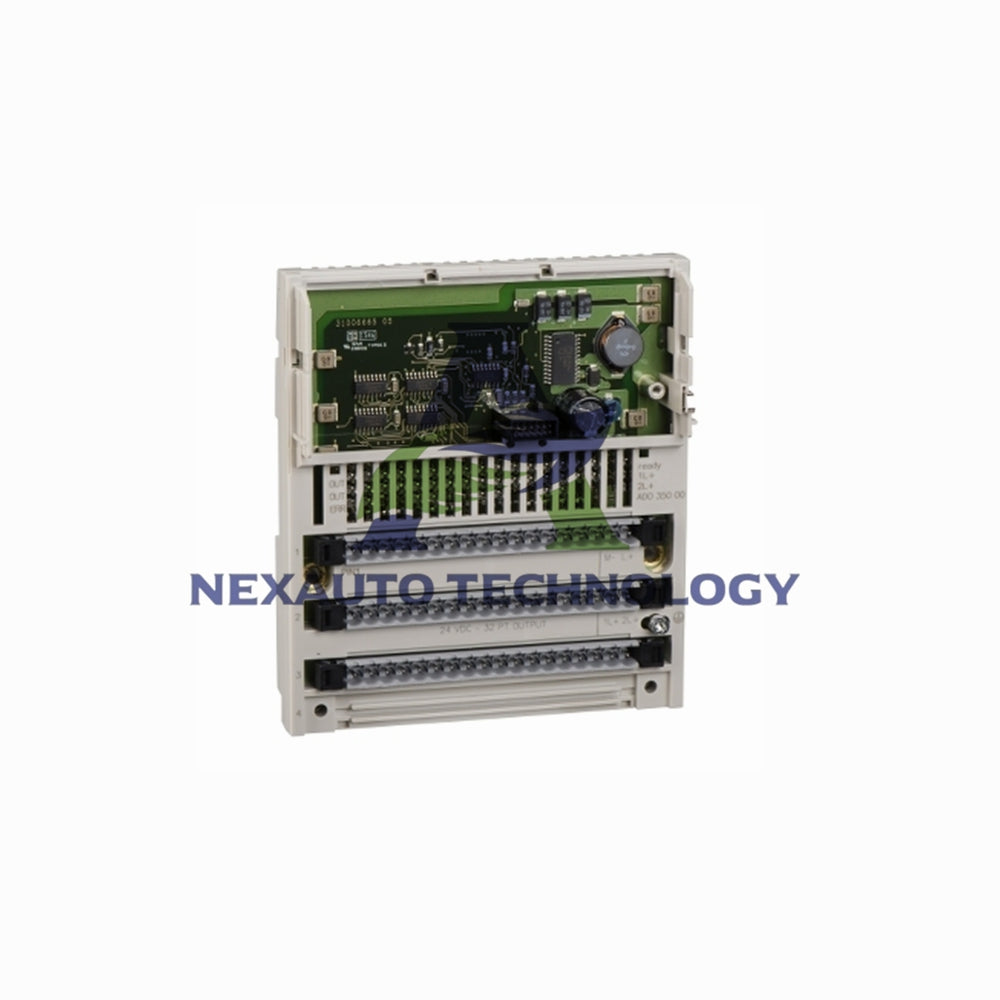

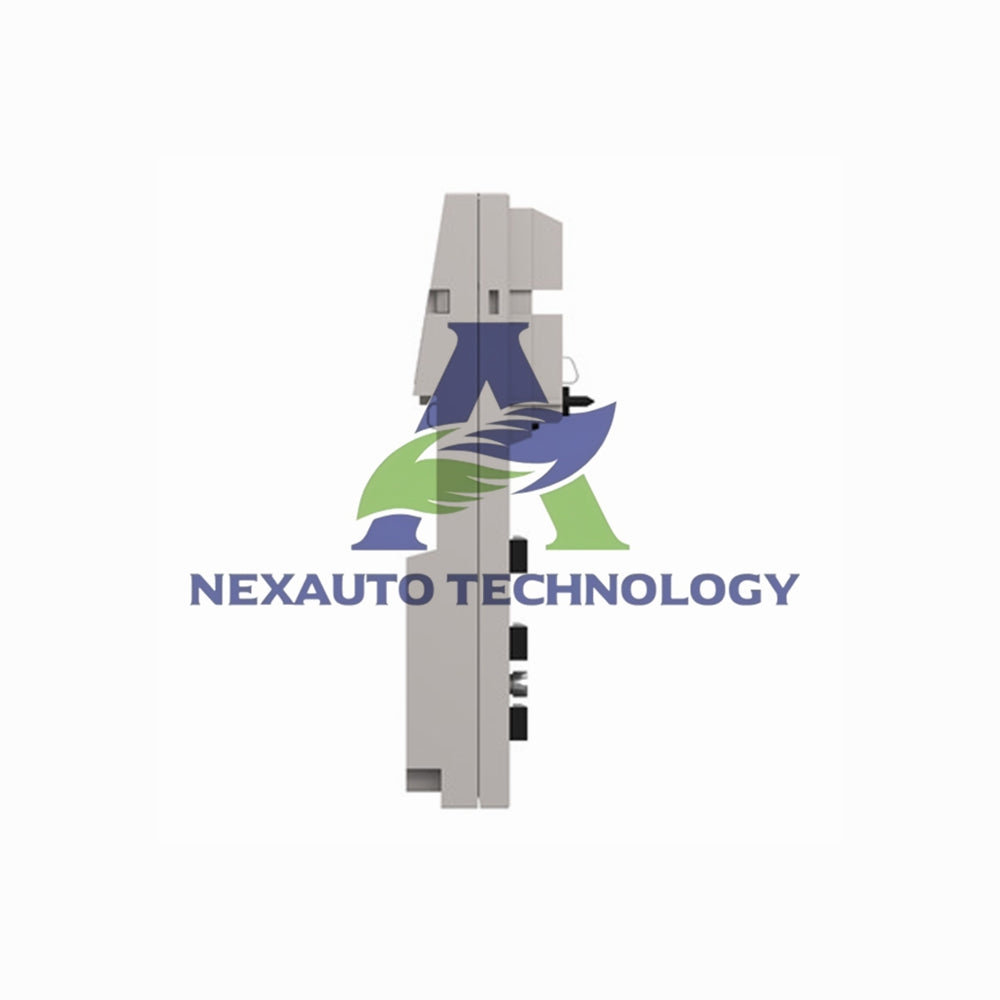

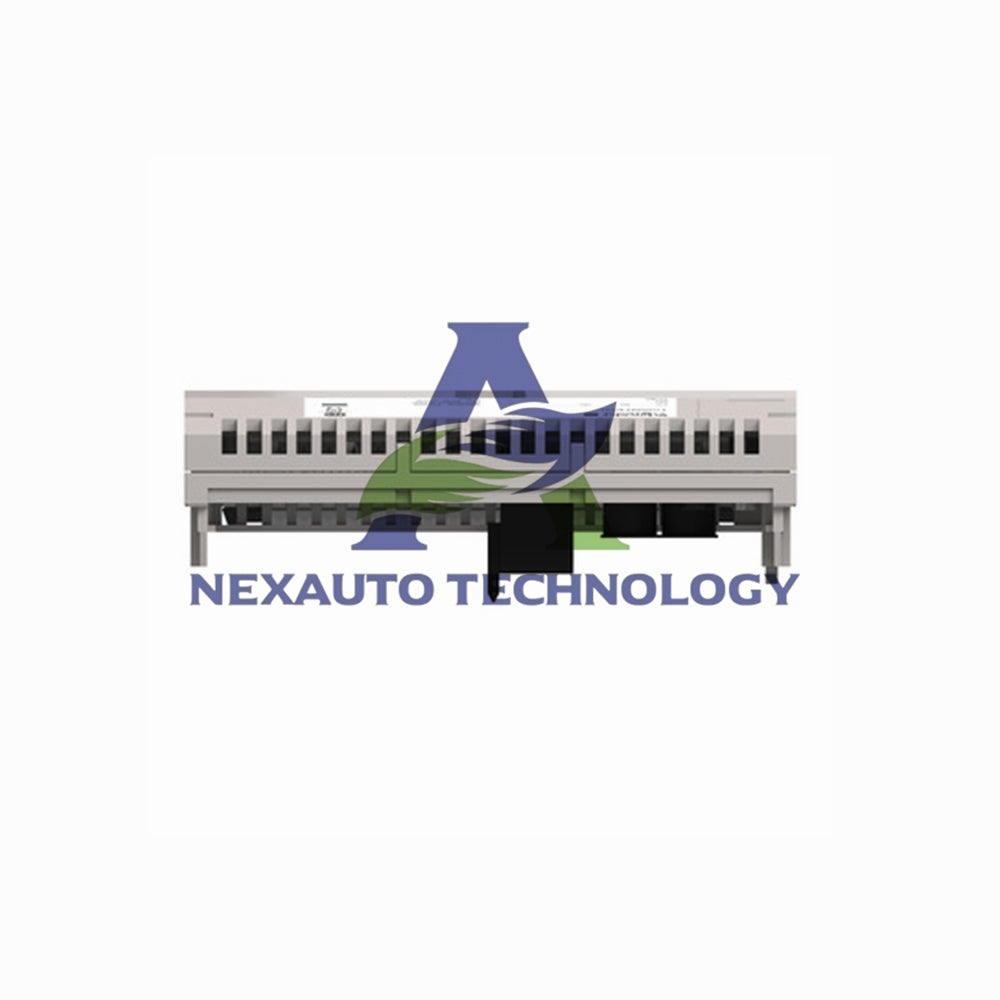

Schneider Electric 170ADM35015 Discrete I/O Module

Schneider Electric 170ADM35015 Discrete I/O Module

The Schneider Electric 170ADM35015 is a high-density mixed discrete I/O module. It combines 16 digital inputs and 16 solid-state DC outputs for flexible machine control.

Technical Specifications

• Manufacturer & Model: Schneider Electric | 170ADM35015
• Product Series: Modicon Momentum
• Input Channels: 16 discrete DC inputs (IEC 1131-2 Type 1)
• Output Channels: 16 discrete solid-state DC outputs
• Input Voltage: 3 to 30 V DC (sinking logic)
• Output Voltage: Up to 30 V DC (24 V nominal, sourcing logic)
• Output Current: 0.5 A per point (8 A max for module)
• Input Response: 2.2 ms (ON), 3.3 ms (OFF)
• Output Response: < 0.1 ms (extremely fast)
• Isolation: 500 V AC between channels and bus
• Power Dissipation: ≤ 8 W
• Operating Temperature: 0°C to 60°C
• Weight: 0.50 lbs (0.23 kg)

Installation & Wiring

• Mount the module on a standard 35mm DIN rail in your control panel.
• Connect field input devices (e.g., sensors, switches) to the 16 input channels using sinking wiring.
• Connect output loads (e.g., solenoids, indicators) to the 16 output channels using sourcing wiring.
• Observe the group current limits (4A per group) to avoid overload.
• Ensure the operating environment remains within the 0-60°C temperature range.

Packaging & Shipping

• Includes one Schneider Electric 170ADM35015 discrete I/O module.
• All necessary mounting hardware is provided.
• We ship orders globally via FedEx, UPS, and DHL.
• Tracking information is provided for every shipment.

Frequently Asked Questions (FAQ)

• How many input and output points are there? It provides 16 digital inputs and 16 digital outputs.
• What is the output current rating? Each output can switch up to 0.5 Amps.
• What is the logic type for wiring? Inputs are sinking, outputs are sourcing.
• How fast are the outputs? Outputs switch in less than 0.1 millisecond.
• What is the operating temperature? It functions from 0°C to 60°C.

Applications

• High-speed machine sequencing and automation control.
• Monitoring multiple sensors and controlling numerous actuators in one module.
• Packaging machinery, material handling systems, and assembly line control.
• Applications requiring fast response times and high I/O point density.
