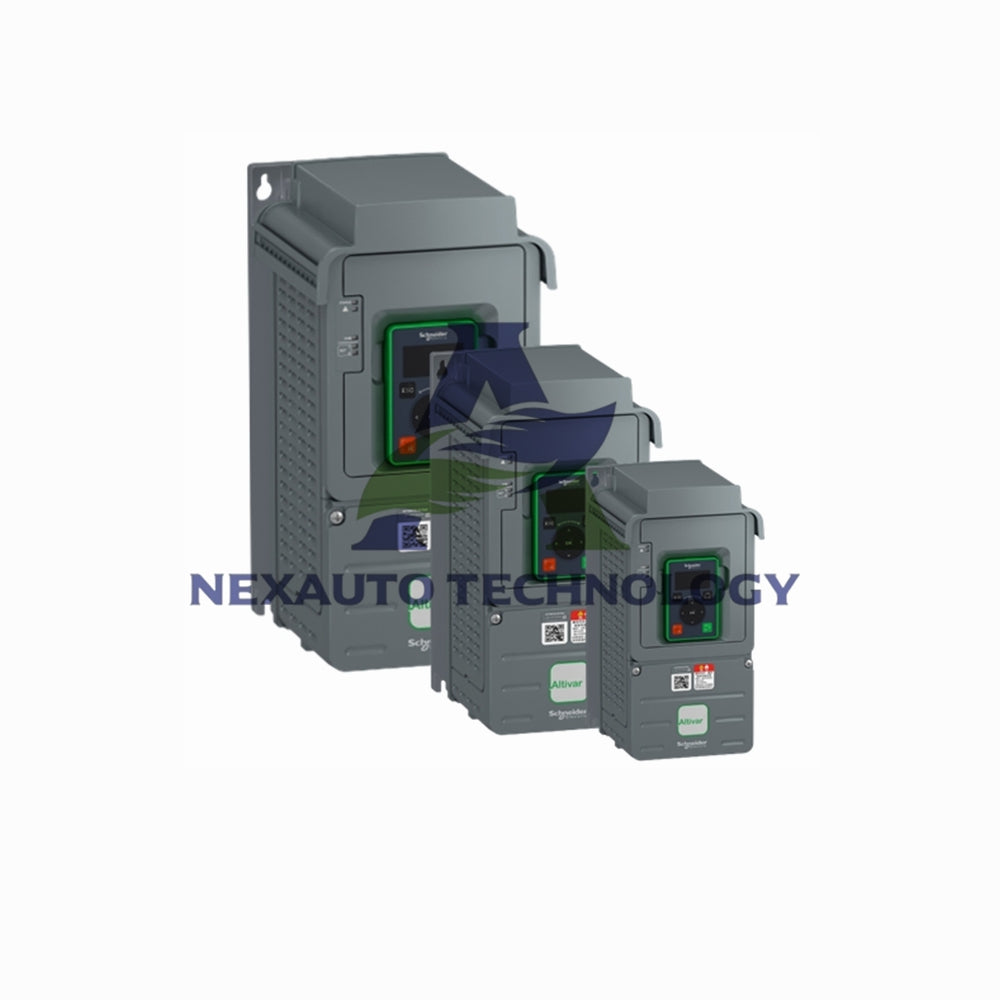

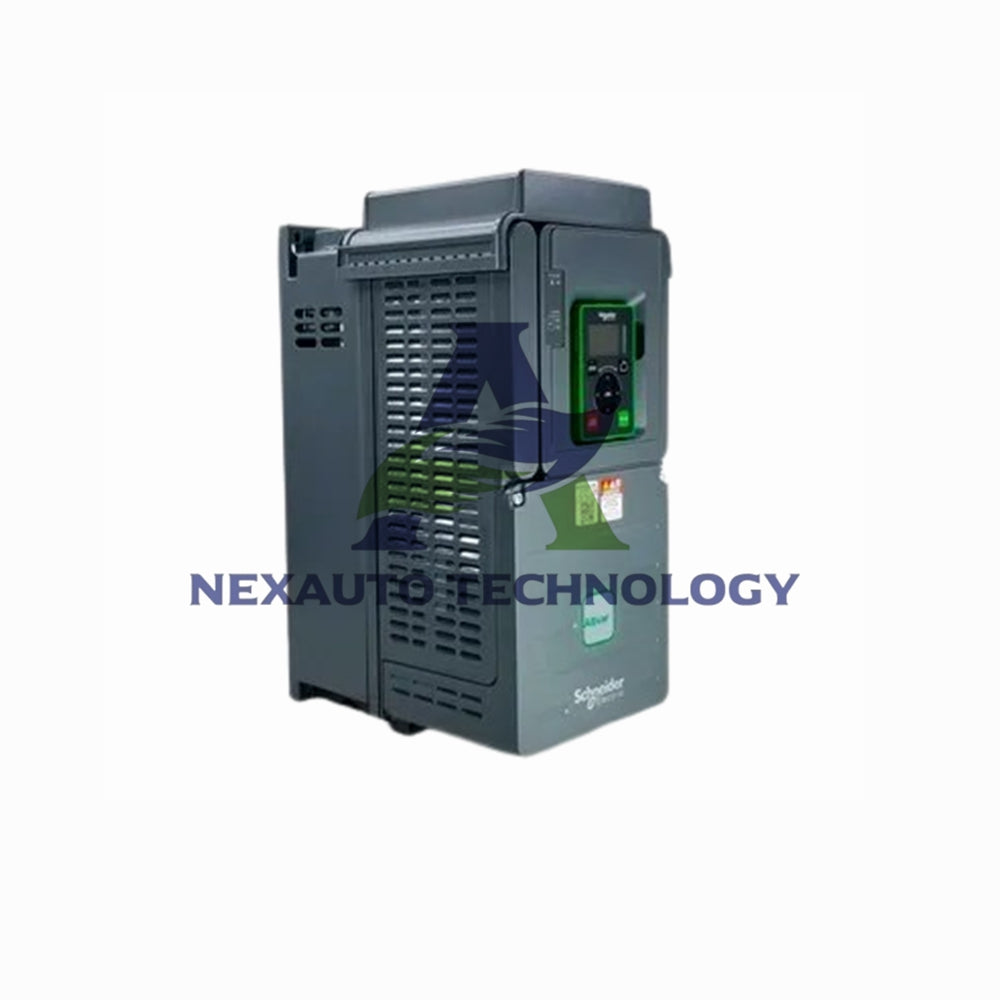

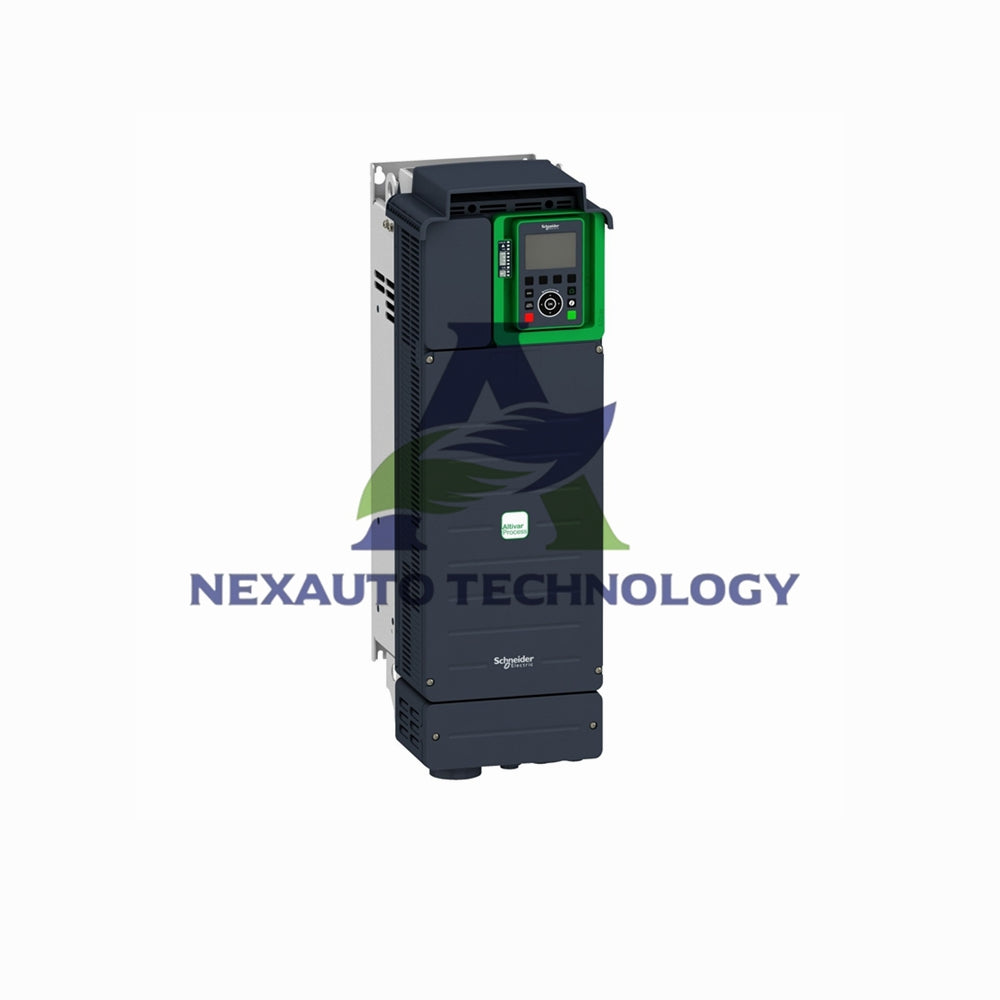

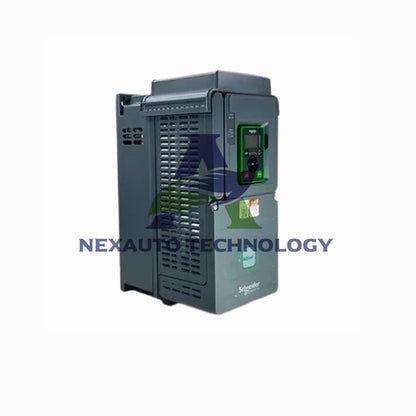

Schneider Electric ATV930D37N4 Variable Speed Drive

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
Only 10 units left
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Schneider Electric ATV930D37N4 Technical Specifications

Product Identification

  • Brand & Model: Schneider Electric ATV930D37N4
  • Product Type: Variable Speed Drive, Altivar Process ATV900 Series
  • Drive Series: ATV930 Process Drive
  • Power Rating: 37 kW Normal Duty / 30 kW Heavy Duty
  • Protection Rating: IP21, UL Type 1

Electrical Specifications

  • Supply Voltage: 380-480V AC 3-phase (-15%/+10%)
  • Motor Power: 37 kW (50 HP) Normal Duty / 30 kW (40 HP) Heavy Duty
  • Continuous Output Current: 74.5 A at 4 kHz Normal Duty / 61.5 A Heavy Duty
  • Maximum Output Frequency: 599 Hz
  • Switching Frequency: 2-16 kHz adjustable (4-16 kHz with derating)
  • Nominal Switching Frequency: 4 kHz
  • Power Dissipation: 106 W natural convection / 796 W forced convection at 380V

Control & Communication

  • Communication Protocols: Modbus TCP, Modbus Serial, EtherNet/IP
  • Transmission Rate: 10/100 Mbit/s Ethernet, 4.8-19.2 kbit/s Modbus Serial
  • Option Card Slots: 3 slots for communication/I/O/encoder modules
  • Discrete Inputs: 10 programmable (DI1-DI8 + STOA/STOB safe torque)
  • Analog Inputs: 3 software-configurable (0-10V/0-20mA/4-20mA)
  • Analog Outputs: 2 software-configurable (0-10V/0-20mA)
  • Relay Outputs: 3 configurable relays

Mechanical Specifications

  • Dimensions: 226 × 673 × 271 mm (W × H × D)
  • Weight: 28.2 kg
  • Mounting: Wall mount, vertical ±10°
  • Electrical Connections: Screw terminals (control: 0.5-1.5mm², power: 25-50mm²)
  • Braking Unit: Integrated brake chopper

Environmental & Safety

  • Operating Temperature: -15°C to +50°C (without derating), 50-60°C with derating
  • Operating Altitude: ≤1000m without derating, 1000-4800m with 1%/100m derating
  • Safety Functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
  • Certifications: CE, TÜV, CSA, UL
  • Standards: EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61508, IEC 13849-1

Packaging

  • Package Type: PCE (Processor Communication Expansion)
  • Units per Package: 1
  • Package Dimensions: 84.5 × 34.5 × 50 cm
  • Package Weight: 22.2 kg
