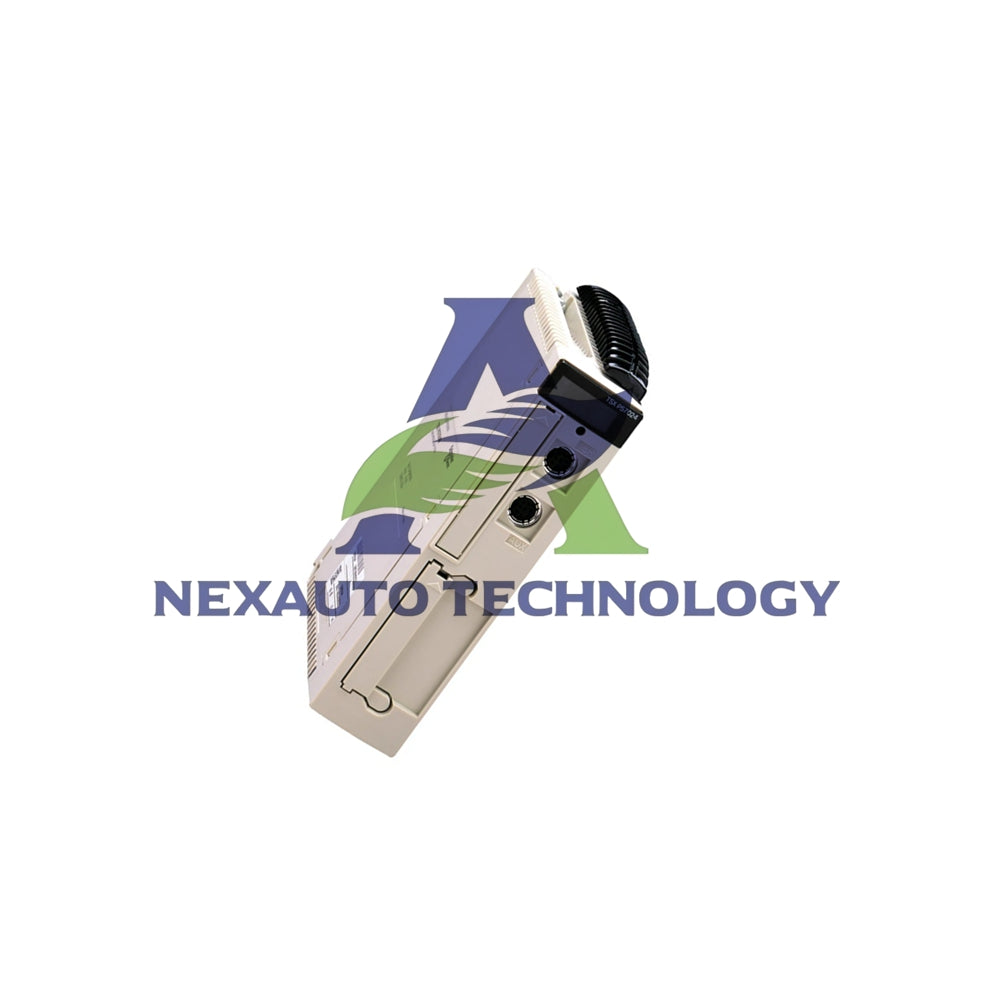

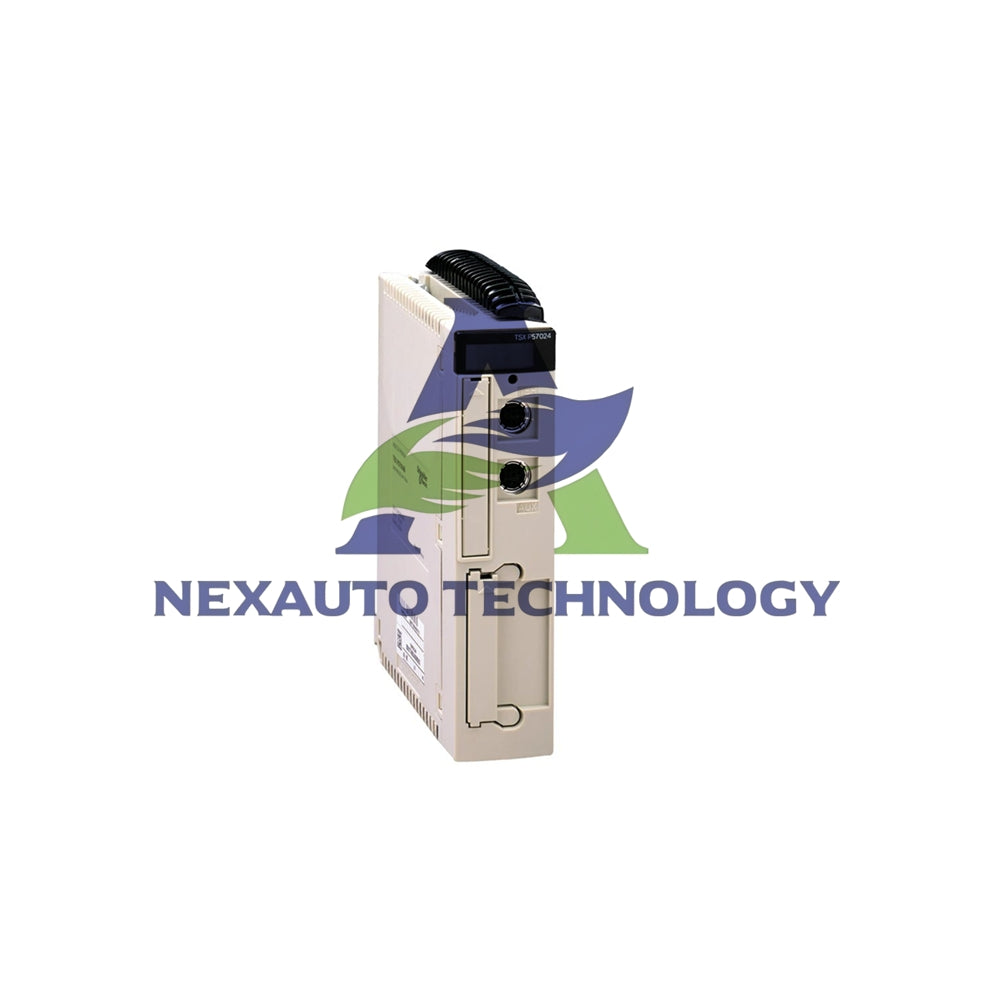

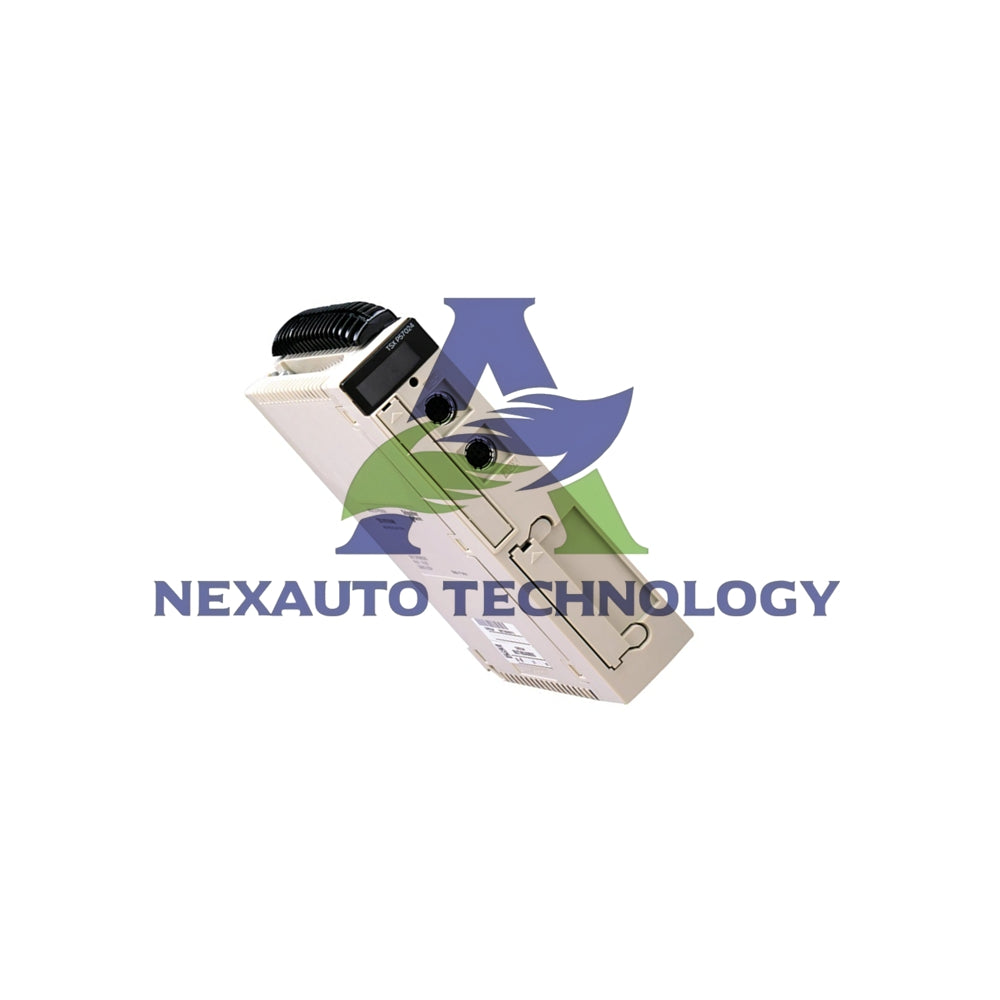

Schneider Electric TSXP57104M Unity Processor

Core Product Overview

• The Schneider Electric TSXP57104M is a compact Unity processor.
• This controller provides reliable automation for mid-range applications.
• It serves as a central processor for the Modicon Premium platform.

Key Technical Specifications

• Brand & Model: Schneider Electric TSXP57104M
• I/O Capacity: 512 discrete I/O and 24 analog I/O points
• Memory: 224 kB program memory with PCMCIA card (96 kB without)
• Processing Speed: 0.19 µs Boolean instruction execution time
• Rack Configuration: Supports 2 racks (12 slots) or 4 racks (4/6/8 slots)
• Communication: Two RS485 serial ports at 19.2 kbit/s
• System Tasks: 1 master, 1 fast, and 32 event task capability

Performance & Memory Features

• Instruction Throughput: Up to 4.76K instructions per ms
• PCMCIA Expansion: 256 kB additional data storage card slot
• Data Memory: 96 kB internal RAM for data storage
• Object Areas: 32 kB for unlocated internal data management
• Task Management: Fast task overhead of only 0.3 ms
• Programming Software: Designed for Unity Pro programming

System Configuration & Connectivity

• Total Slots: Configures for 16, 24, or 32 total I/O slots
• Communication Modules: Supports 1-2 communication modules
• Serial Ports: Dual non-isolated RS485 mini-DIN ports
• Application Channels: 8 channels for specific functions
• LED Indicators: Run, I/O fault, system fault, and terminal activity
• Power Consumption: 850 mA at 5 V DC from backplane

Environmental & Safety Ratings

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 10-95% non-condensing for operation
• Certifications: CE, UL, CSA, and marine (ABS, DNV, GL, LR)
• Protection Class: IP20 rating for basic environmental protection
• Altitude: Suitable for operation up to 2000 meters

Installation & Integration

• Install the TSXP57104M processor in your TSX PLC rack
• Connect serial devices to the two RS485 communication ports
• Add PCMCIA memory card for expanded program storage if needed
• Configure I/O modules across available rack slots
• Program logic using Schneider Electric Unity Pro software

Packaging & Delivery

• One Schneider Electric TSXP57104M Unity processor module
• Includes user manual and technical documentation
• Shipping via FedEx, UPS, or DHL express delivery
• Package dimensions: 10.2" x 7.09" x 2.2" (26x18x5.5 cm)
• Net weight: 0.84 lb (0.38 kg)

Frequently Asked Questions

What is the I/O capacity of this processor?

The TSXP57104M handles up to 512 discrete I/O and 24 analog I/O points.

How much program memory does it have?

It provides 224 kB with a PCMCIA card or 96 kB without the card.

What communication ports are available?

It features two RS485 serial communication ports.

Can I expand the rack configuration?

Yes, it supports multiple rack configurations up to 32 total slots.

What programming software is required?

It is programmed using Schneider Electric's Unity Pro software.
