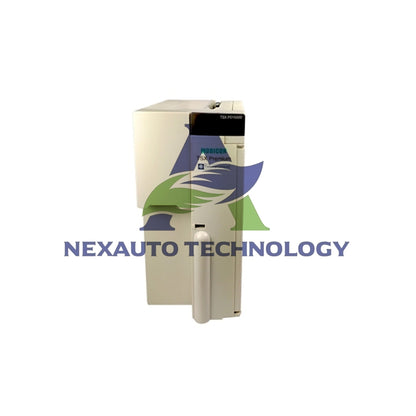

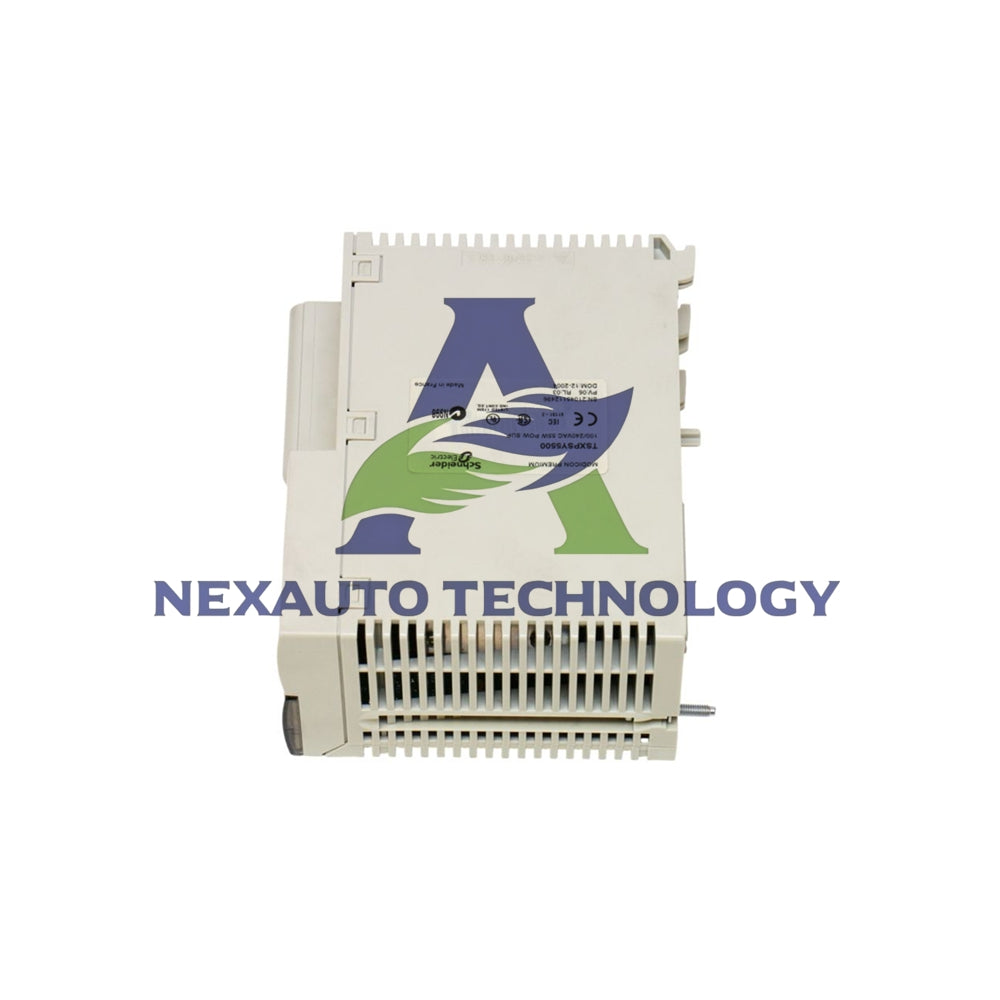

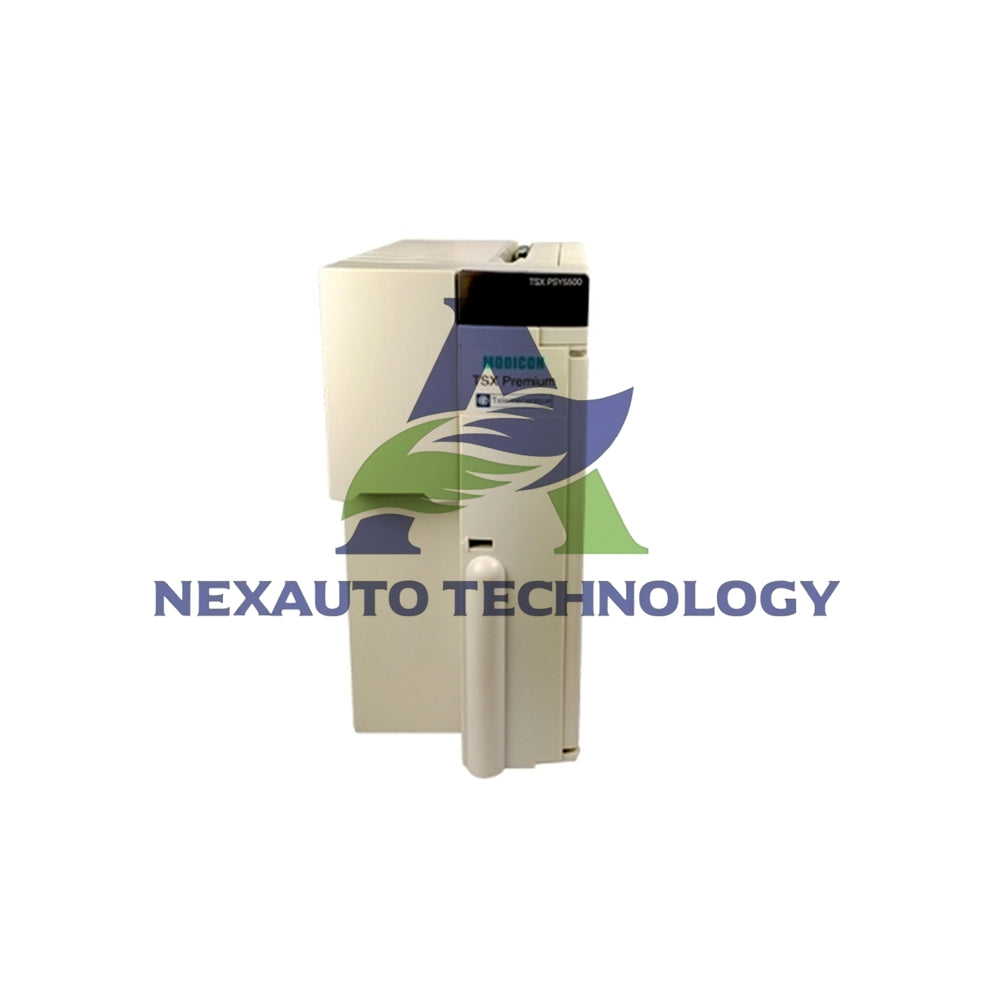

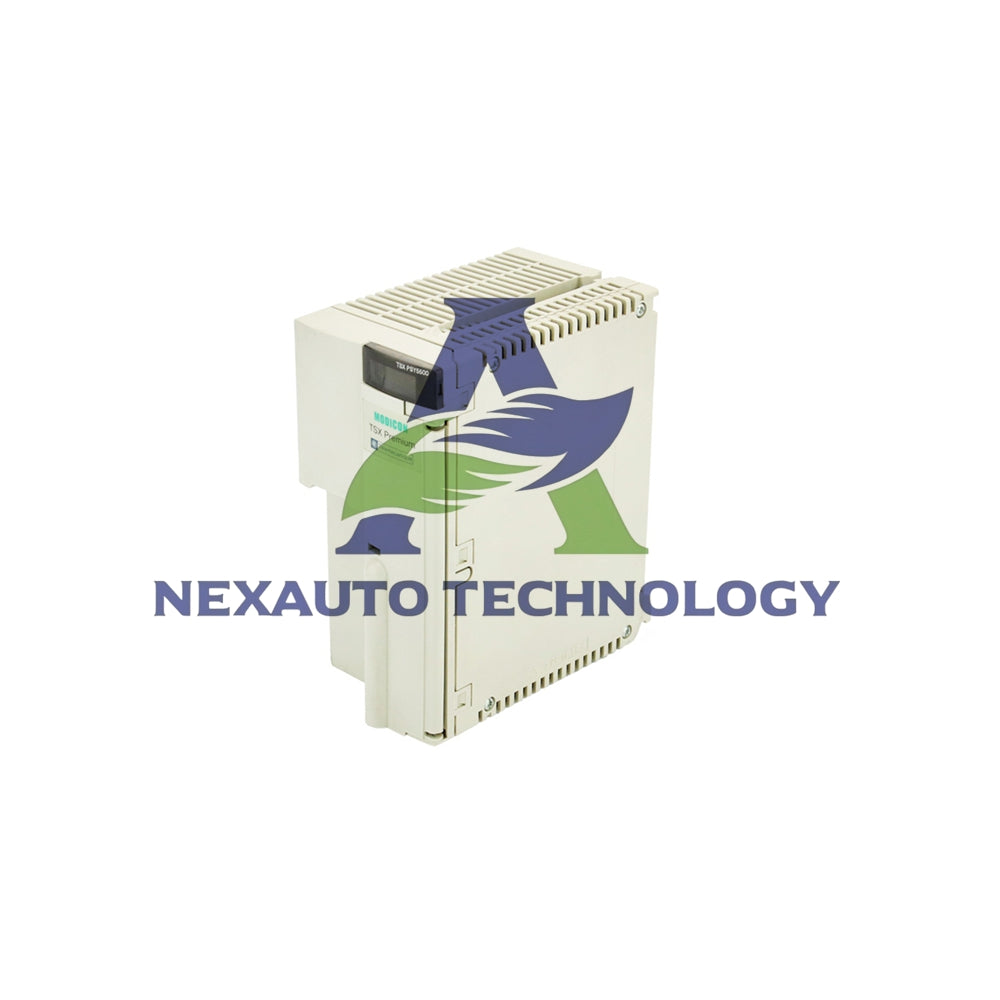

Schneider Electric TSXPSY5500M AC Power Supply Module

Schneider Electric TSXPSY5500M AC Power Supply Module

The TSXPSY5500M from Schneider Electric provides flexible AC power for TSX Micro PLC systems. This dual-voltage module supports global power standards with robust performance for industrial automation applications.

Technical Specifications

• Brand & Model: Schneider Electric TSXPSY5500M
• Primary Voltage: Dual range 100-120 V AC (85-140 V) and 200-240 V AC (190-264 V)
• Network Frequency: 50/60 Hz nominal, operating range 47-63 Hz
• Total Output Power: 50 Watts maximum useful secondary power
• Secondary Outputs: 7 A at 5 V DC and 0.8 A at 24 V DC for sensors/relays
• Input Current: 500 mA at 240 V / 1700 mA at 100 V

Protection & Safety Features

• Internal time-delayed fuse rated at 4 A (5 x 20 mm) on primary circuit
• Comprehensive overload, overvoltage, and short-circuit protection on all outputs
• High dielectric strength: 2000 V between primary/earth and primary/secondary
• Excellent immunity to power micro-breaks lasting up to 10 milliseconds
• Insulation resistance ≥ 100 MOhm for primary to ground and secondary circuits

Power Performance Details

• Secondary Power Distribution: 35 W at 5 V DC and 19 W at 24 V DC
• Inrush Current Handling: 38 A maximum at both 100 V and 240 V input
• Current Output: 0.8 A at 24 V DC for sensor supply and relay supply
• Double Module Format: Designed for expanded power requirements in TSX racks

Environmental Durability

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Humidity Range: 10-95% non-condensing for operation, 5-95% for storage
• Operating Altitude: Up to 2000 meters (6562 feet) above sea level
• Protection Rating: IP20 enclosure with Pollution Degree 2 rating

Design & Monitoring

• Three LED indicators for instant status monitoring
• Green LED for sensor voltage presence (24V)
• Green LED for main power presence (OK)
• Red LED for battery fault alerts (BAT)
• Net weight of 0.62 kg (1.37 lb) for the double module format

Packaging & Shipping Information

• Each TSXPSY5500M module ships as one complete unit (PCE).
• Package Dimensions: 26.0 cm L x 18.0 cm W x 9.5 cm H (10.2 x 7.09 x 3.7 in).
• Total Package Weight: 971.0 g (34.3 oz).
• Worldwide shipping available via FedEx, UPS, and DHL express services.
• Module connects directly to TSX Micro PLC rack power supply slot.

Frequently Asked Questions (FAQ)

• What voltages does this module support? It automatically handles both 100-120V and 200-240V AC inputs without manual switching.
• How much power can it deliver? The total useful secondary power is 50W, split between 5V and 24V outputs.
• What does the sensor voltage LED indicate? The green 24V LED shows when sensor power is active and available.
• Is this compatible with all TSX Micro PLCs? Yes, it works with the TSX Micro and Modicon Premium automation platforms.
• What protection does it offer? Multiple protections include fuse, overload, overvoltage, and short-circuit safety features.
