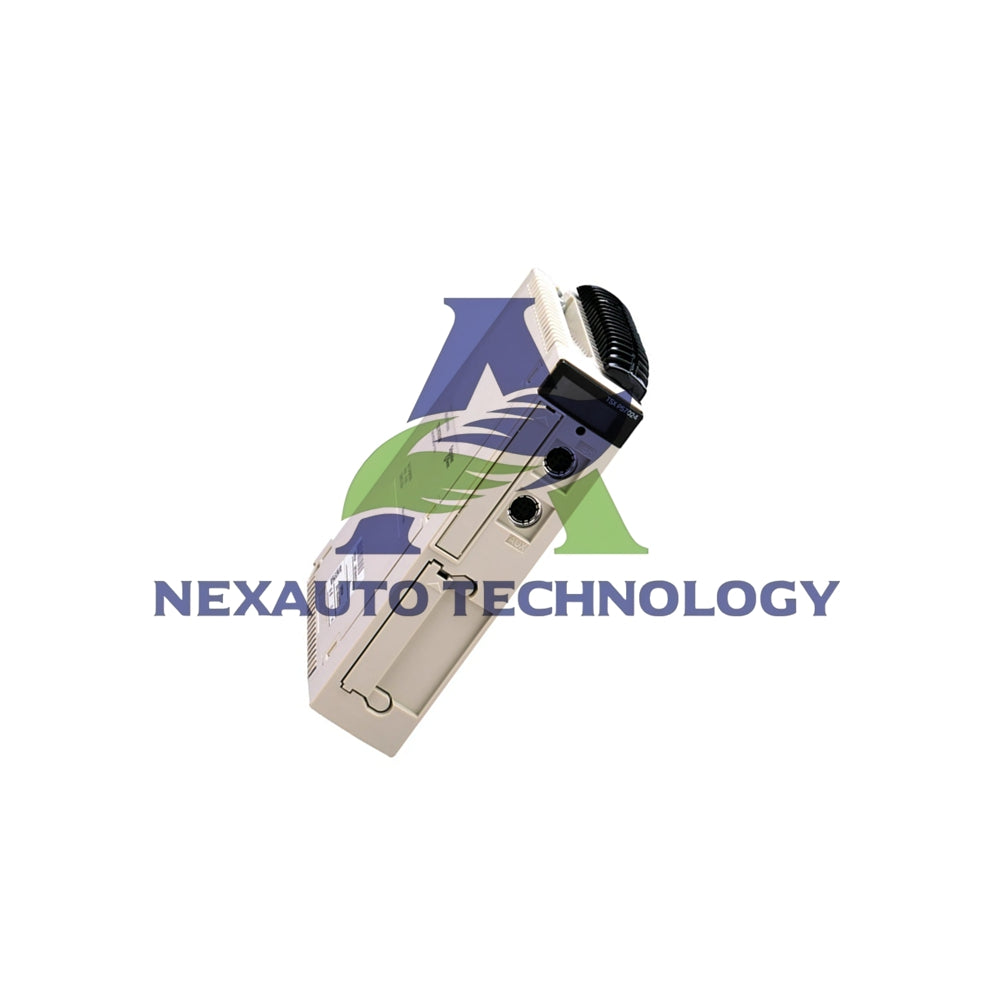

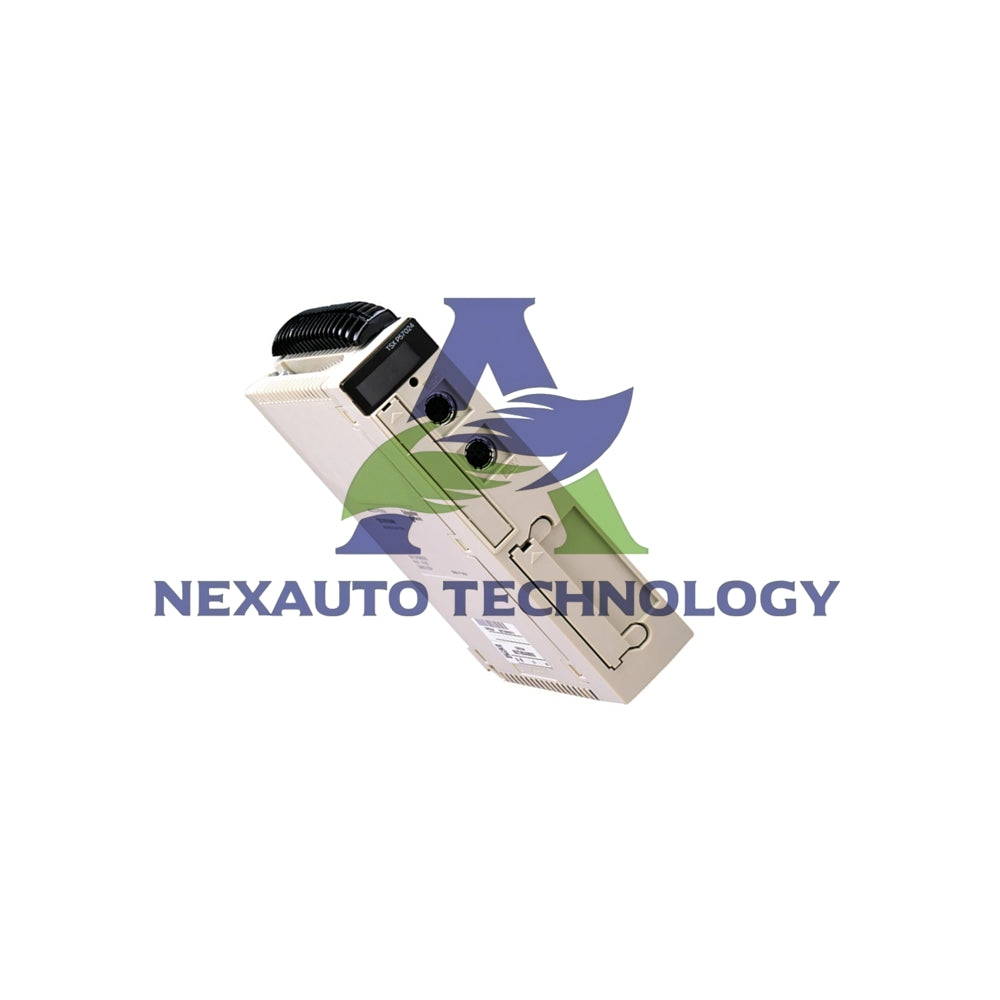

Schneider Electric TSXPSY5520MC Modicon Power Supply 24-48V DC

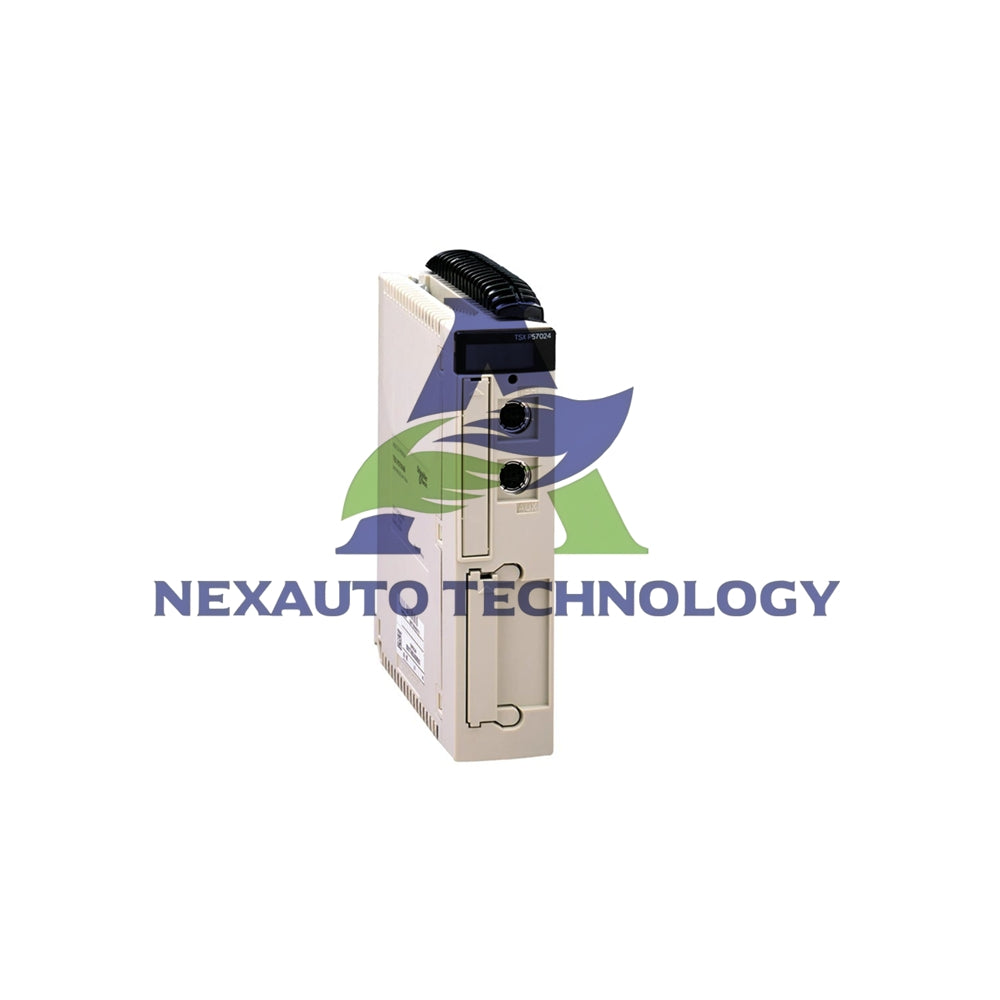

Schneider Electric Modicon TSXPSY5520MC Power Supply Module Overview

Key Technical Specifications

• Manufacturer: Schneider Electric engineers this TSXPSY5520MC as part of the Modicon Premium automation platform.
• Primary Voltage: It accepts 24...48 V DC and 19.2...60 V input ranges for flexible installation options.
• Input Current: The module draws ≤3000 mA at 24V and ≤1500 mA at 48V during normal operation.
• Total Output Power: It delivers 50 W total useful secondary power for connected devices.
• Secondary Voltages: Outputs include 7 A at 5 V DC and 0.8 A at 24 V DC for relay power supply.
• Protection Features: Built-in safeguards include fuse, overload, overvoltage, and short-circuit protection.
• Inrush Current: It limits inrush to 15 A at both 24V and 48V inputs for system stability.
• I²t on Activation: Values measure 50 A².s at 24V and 55 A².s at 48V for reliable startup performance.

Environmental and Physical Characteristics

• Temperature Range: It operates in ambient temperatures from -10°C to 60°C, suitable for industrial floors.
• Humidity Tolerance: The module functions in 10-95% relative humidity without condensation during operation.
• Protection Class: With an IP20 rating, it protects against solid objects larger than 12.5 mm.
• Insulation Resistance: It maintains ≥10 MOhm between primary/ground and primary/secondary circuits for safety.
• Dielectric Strength: It withstands 2000 V between primary/earth and primary/secondary for electrical isolation.
• Weight: The TSXPSY5520MC weighs 1.96 lb(US) (0.89 kg), allowing easy handling during cabinet installation.
• Module Format: It features a double-width format compatible with Modicon Premium rack systems.

Protection and Immunity Features

• Microbreak Immunity: It recovers from power interruptions within 1 ms, minimizing process disruptions.
• Internal Fuse: A 5 A time-delay fuse (5 x 20 mm) protects the primary circuit against overcurrent conditions.
• Secondary Protection: Overload, overvoltage, and short-circuit protection guard downstream components effectively.
• Local Signaling: Green LED indicates voltage presence (OK), while red LED signals battery fault (BAT) for quick diagnostics.
• Conformal Coating: Humiseal 1A33 protective treatment enhances resistance to harsh environmental factors.

Frequently Asked Questions (FAQ)

• What input voltages does the TSXPSY5520MC support?
  It supports primary voltages of 24...48 V DC and 19.2...60 V, providing flexibility for various DC power sources.
• What protection features does this Modicon power supply include?
  It includes internal fuse protection, overload protection, overvoltage protection, and short-circuit protection for comprehensive safety.
• Can this module withstand brief power interruptions?
  Yes, it offers immunity to microbreaks up to 1 ms, ensuring continuous operation during short power disturbances.
• What is the operating temperature range for the TSXPSY5520MC?
  It operates reliably in ambient temperatures from -10°C to 60°C, suitable for most industrial environments.
• Is this product brand new and original?
  Yes, we supply 100% brand new original Schneider Electric products with full manufacturer warranty.
• Do you have the TSXPSY5520MC in stock?
  Yes, we maintain stock availability for immediate dispatch upon order confirmation.
• What are the return terms for this power supply module?
  We accept returns within 30 days, provided the item remains in original condition.
