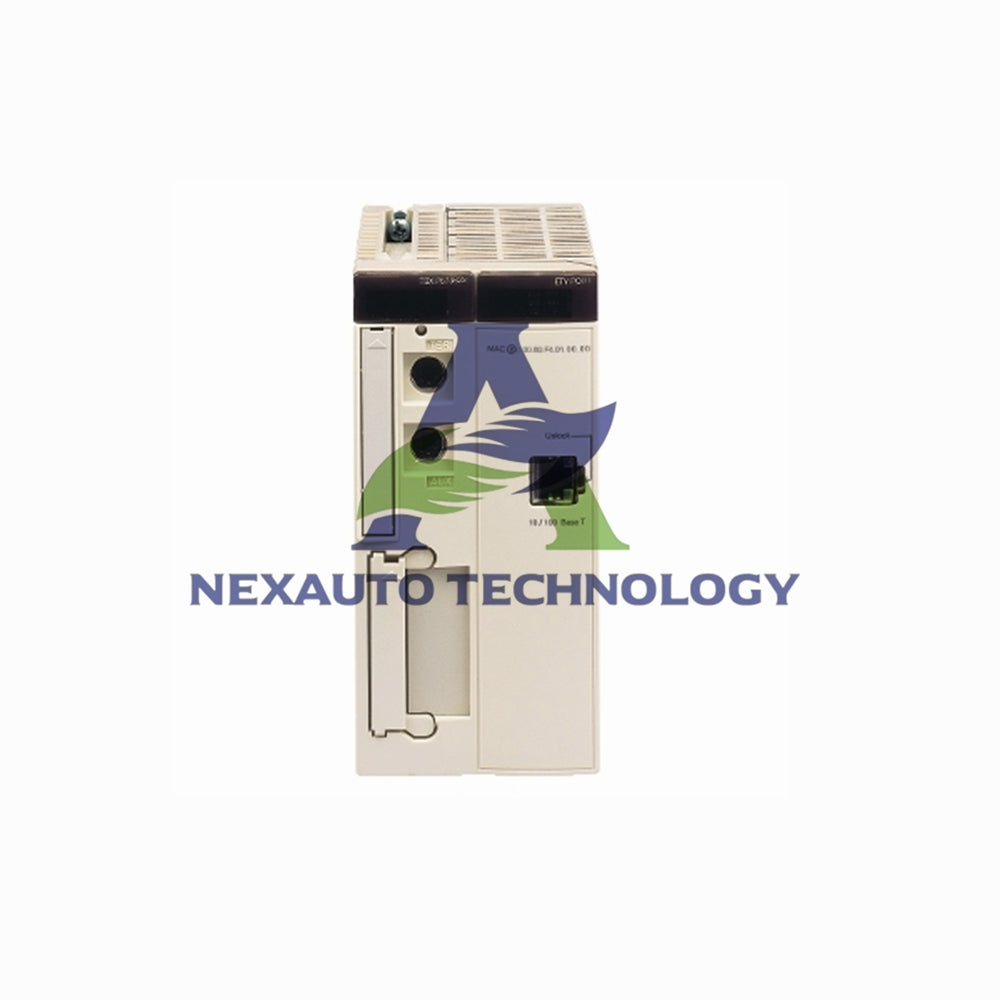

Schneider TSX-P57-204M Modicon Premium Processor

Schneider Electric TSX-P57-204M Modicon Premium Unity Processor

Core Technical Specifications and Capacity

• The TSX-P57-204M supports up to 16 racks with configurations of 4, 6, or 8 slots, or 8 racks with 12 slots. It handles a maximum of 96, 128, or 64 slots depending on the rack setup.
• This processor features a discrete I/O capacity of 1024 points and an analog I/O capacity of 80 points for comprehensive process control.
• It includes 24 application-specific channels and up to 10 process control channels, managing up to 30 simple control loops efficiently.
• The unit communicates via a non-isolated serial link (RS485) on a female Mini DIN connector, operating at 19.2 kbit/s.
• Internal RAM provides 160 kB for data and 768 kB for program when using a PCMCIA card, with additional data storage up to 16384 kB on the card.

Performance, Memory, and Application Structure

• The TSX-P57-204M executes Boolean instructions in just 0.19 µs without a PCMCIA card, ensuring rapid system response.
• It performs word or fixed-point arithmetic in 0.25 µs and floating-point operations in 1.75 to 2.6 µs, depending on the memory configuration.
• The application structure includes 1 master task, 1 fast task, and 64 event tasks for optimized processing priority.
• System overhead measures only 0.3 ms for the fast task and 1 ms for the master task, minimizing delays.
• It offers dedicated memory areas including 64 constant words (%KWi) and 64 internal words (%MWi) for efficient data management.

Environmental Ratings, Certifications, and Mounting

• The Schneider Electric TSX-P57-204M carries an IP20 protection degree, safeguarding against solid objects larger than 12 mm, requiring installation in a suitable enclosure.
• It operates reliably in ambient temperatures from 0 to 60 °C (32 to 140 °F) and withstands storage temperatures from -25 to 70 °C (-13 to 158 °F).
• The unit holds multiple certifications including UL 508, CSA C22.2, and IEC 61131-2, complying with major international standards.
• This double-format module consumes 850 mA at 5 V DC and has a net weight of 0.52 kg (1.15 lb) for easy handling.
• Visual indicators include LEDs for run status (green), I/O fault (red), processor error (red), and terminal activity (yellow).

Frequently Asked Questions (FAQ)

• Q: Is the TSX-P57-204M processor new or used?
  A: We supply this TSX-P57-204M as brand new, original stock from Schneider Electric, ensuring authenticity and reliability.
• Q: How many racks does the TSX-P57-204M support?
  A: The processor supports up to 16 racks using 4/6/8-slot configurations, or 8 racks using a 12-slot configuration.
• Q: What is the execution speed for Boolean logic?
  A: It executes Boolean instructions in just 0.19 microseconds without a PCMCIA card, providing rapid processing for control tasks.
• Q: What are the shipping options and delivery time?
  A: We ship within 5 days using FedEx, UPS, or DHL, depending on the fastest and most reliable option for your region.
• Q: What is the discrete I/O capacity of this processor?
  A: The TSX-P57-204M supports a total of 1024 discrete I/O points for extensive field device integration.
