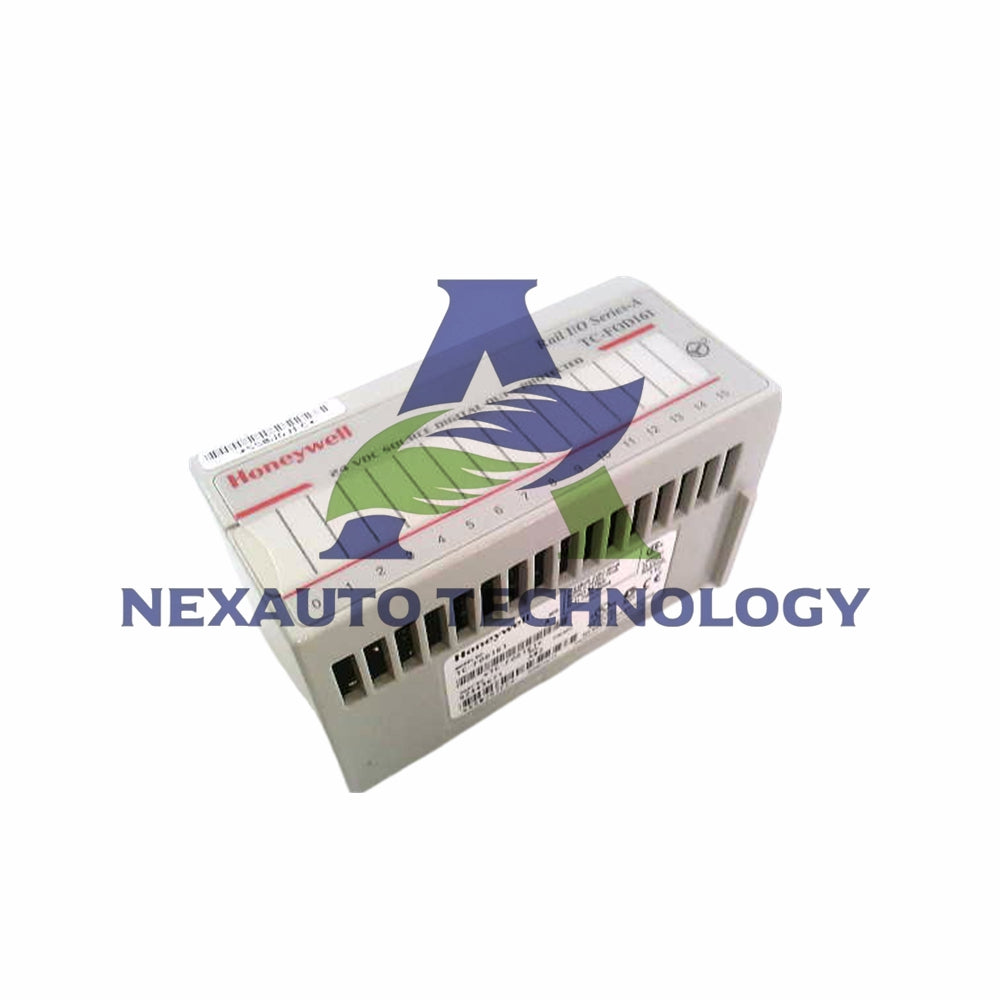

TC-FID161 Honeywell 16-Channel Digital Input Module

Honeywell TC-FID161 24Vdc Sinking Digital Input Module Overview

Key Input Specifications

• Number of Channels: 16 channels in 1 non-isolated group (sinking type).
• Module Location: DIN-rail mounted for easy panel integration.
• ON-State Voltage: 10V dc minimum; 24V dc nominal; 31.2V dc maximum.
• ON-State Current: 2mA minimum; 8.8mA nominal at 24V dc; 12.1mA maximum.
• OFF-State Voltage: 5.0V dc maximum for reliable off detection.
• OFF-State Current: 1.5mA minimum for clear off-state definition.
• Input Impedance: 2.5kΩ for standard signal compatibility.
• Dielectric Withstand: 100% tested at 1900V dc for 1s between user and system.
• Channel Isolation: No isolation exists between individual channels.

Filter Times and Performance

• OFF to ON Filter Times: 256µs, 512µs, 1ms, 2ms, 4ms, 8ms, 16ms, or 32ms.
• ON to OFF Filter Times: 256µs, 512µs, 1ms, 2ms, 4ms, 8ms, 16ms, or 32ms.
• Default Filter Setting: 256µs for both OFF to ON and ON to OFF transitions.
• Filter Configuration: Selectable through the output image table.
• Flexbus Current: 25mA maximum for system backplane communication.
• Power Dissipation: 6.1W maximum at 31.2V dc.
• Thermal Dissipation: 20.8 BTU/hr maximum at 31.2V dc.
• Indicators: 16 yellow channel status LEDs for visual diagnostics.

Environmental and Physical Characteristics

• External DC Power: 19.2-31.2V dc (with 5% ac ripple tolerance).
• Dimensions (HxWxD): 69mm x 94mm x 80mm (2.72 x 3.7 x 3.2 inches).
• Operational Temperature: 0 to 55°C (32 to 131°F).
• Storage Temperature: -40 to 85°C (-40 to 185°F).
• Relative Humidity: 5 to 95% non-condensing.
• Shock (Operating): 30g peak acceleration with 11ms pulse.
• Shock (Non-Operating): 50g peak acceleration with 11ms pulse.
• Vibration: Tested to 5g @ 10-500Hz per IEC 68-2-6.
• Wire Size: 12 gauge (4mm²) stranded wire maximum.
• Insulation Rating: 3/64 inch (1.2mm) max, 90°C minimum temperature rating.
• Terminal Screw Torque: 4-7 inch-pounds for secure connections.
