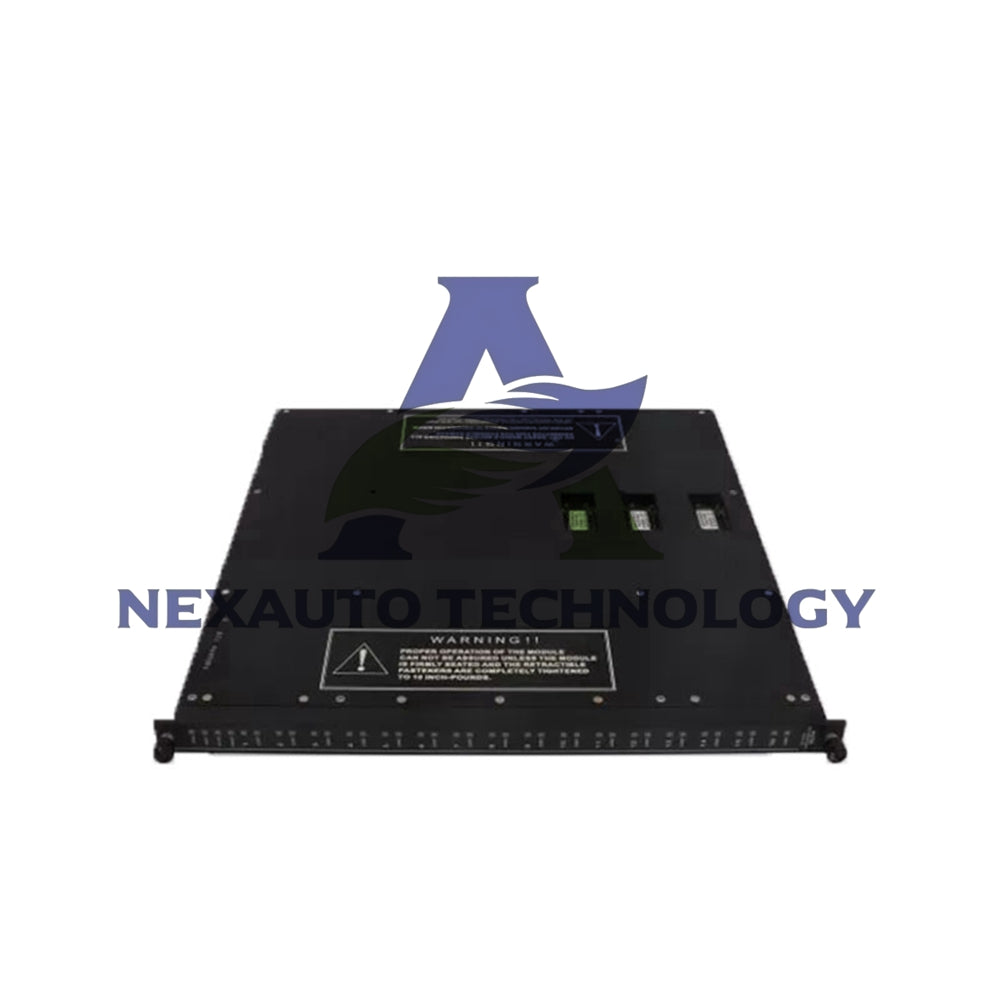

Triconex 3805E Analog Output Module | 8-Channel TMR AO

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (12 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Triconex 3805E Analog Output Module

The Triconex 3805E is a reliable analog output module for industrial control systems. This TMR module provides 8 current outputs with high precision. It delivers stable 4-20mA signals for process control applications.

Technical Specifications

  • Output range: 4-20 mA (+6% overrange)
  • Channels: 8 outputs with common return
  • Resolution: 12 bits for precise control
  • Weight:4 kg
  • Accuracy: <0.25% of FSR (0° to 60°C)
  • External loop power: +24 VDC nominal
  • Over-range protection: +42.5 VDC continuous
  • Failure switch time: <10 ms typical

Output Load Requirements

  • 250Ω load: >20 VDC (1A min)
  • 500Ω load: >25 VDC (1A min)
  • 750Ω load: >30 VDC (1A min)
  • 1000Ω load: >35 VDC (1A min)

Key Features

  • TMR (Triple Modular Redundant) architecture
  • DC coupled outputs with common return
  • Pea green color coding for easy identification
  • Compatible with Basic Term Panel 9853-610F
  • Multiple status indicators: PASS, FAULT, ACTIVE
  • Power status indicators: LOAD, PWR1, PWR2

Shipping & Delivery

  • Product: Triconex 3805E Analog Output Module
  • Shipping carriers: FedEx, UPS, DHL
  • Same-day shipping available
  • International shipping supported

FAQ

  • Output type? - 8 channels of 4-20mA current output
  • Isolation? - Common return, not isolated
  • Resolution? - 12-bit for smooth control
  • Failure response? - <10 ms switch time on leg failure
