TSXCDP203 2-Meter HE20 Cable Schneider Electric Modicon Series

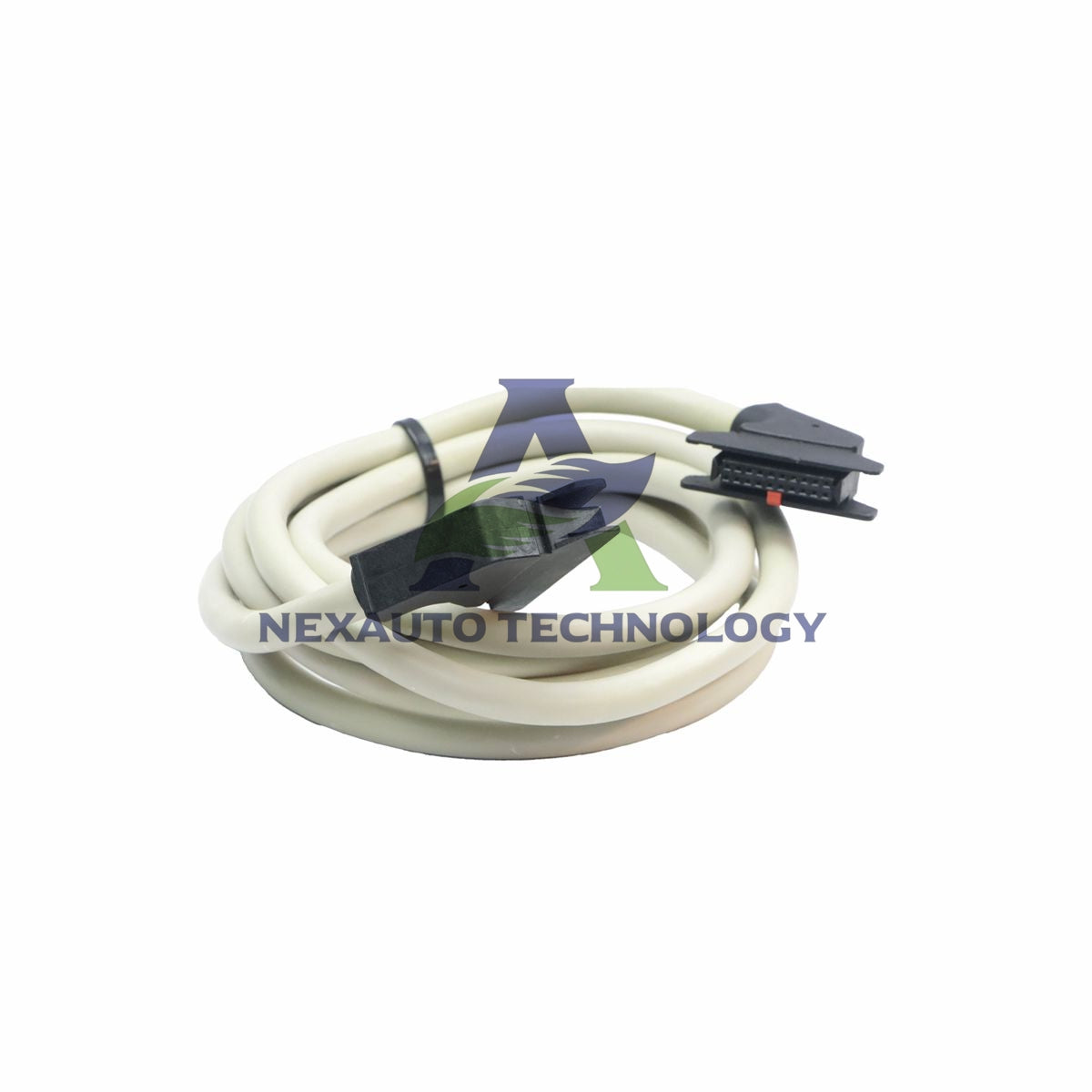

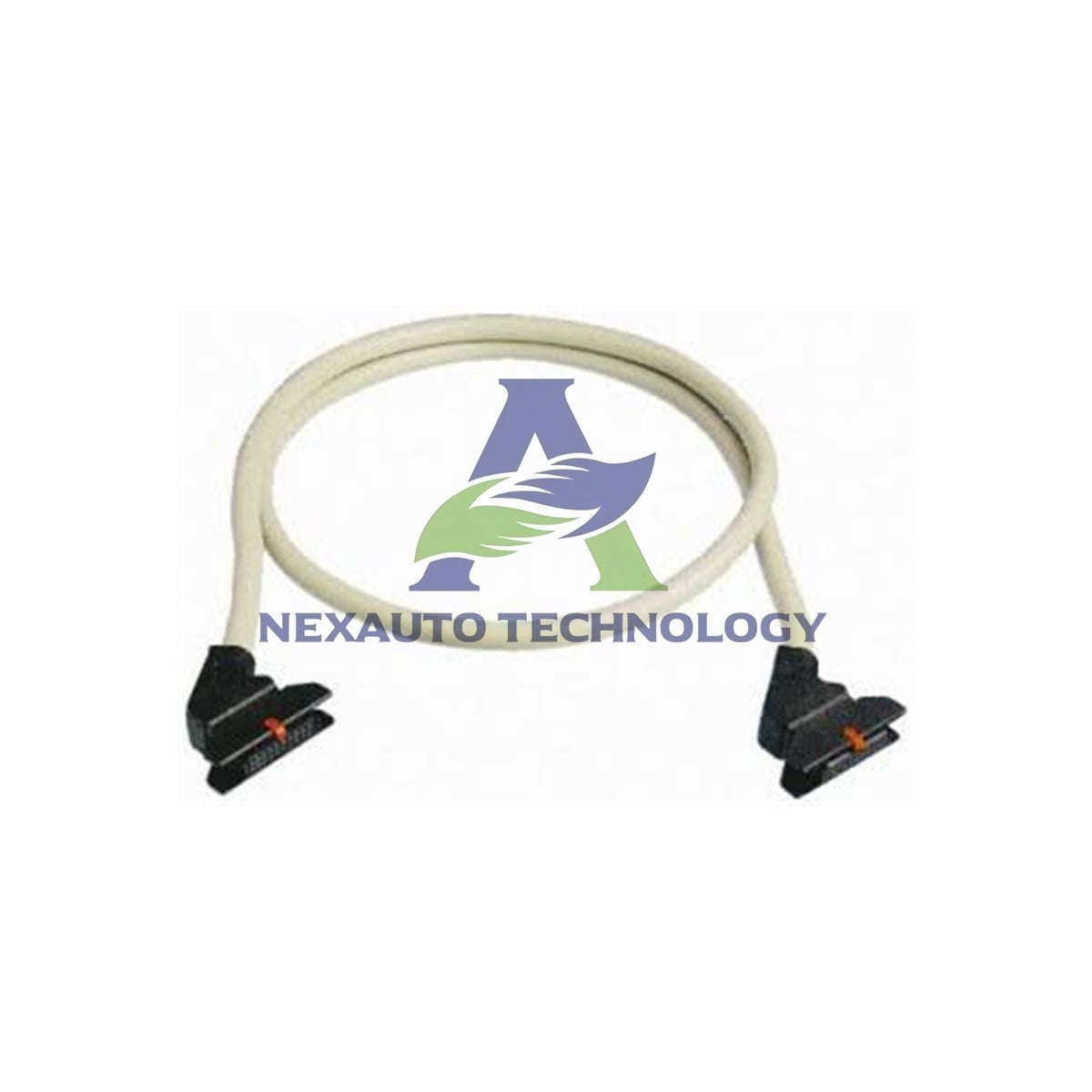

Schneider Electric Modicon TSXCDP203 Connecting Cable Overview

Key Technical Specifications

• Manufacturer: Schneider Electric, part of the Modicon Premium product range.
• Product Type: The TSXCDP203 is a dedicated connecting cable for automation systems.
• Cable Length: Measures exactly 2 meters for flexible installation between devices.
• Connector Type: Equipped with HE10 20-way connectors on both module and PLC sides.
• Wire Section: Uses 0.324 mm² wire, equivalent to AWG 22 gauge.
• Voltage Rating: Supports up to 250V AC for industrial power applications.
• Current Capacity: Handles a maximum current of 5A for reliable signal transmission.
• Temperature Range: Operates effectively from -10°C to 60°C in various conditions.
• Operating Humidity: Functions at up to 80% RH without condensation risk.
• Storage Humidity: Maintains integrity at 80% RH maximum during storage.
• Shielding Type: Features an unshielded design suitable for many standard setups.
• Compatibility: Works with TSXCFY11, TSXCAY, TSXCFY21, TSXCTY2C, and TSXCTY4A modules.

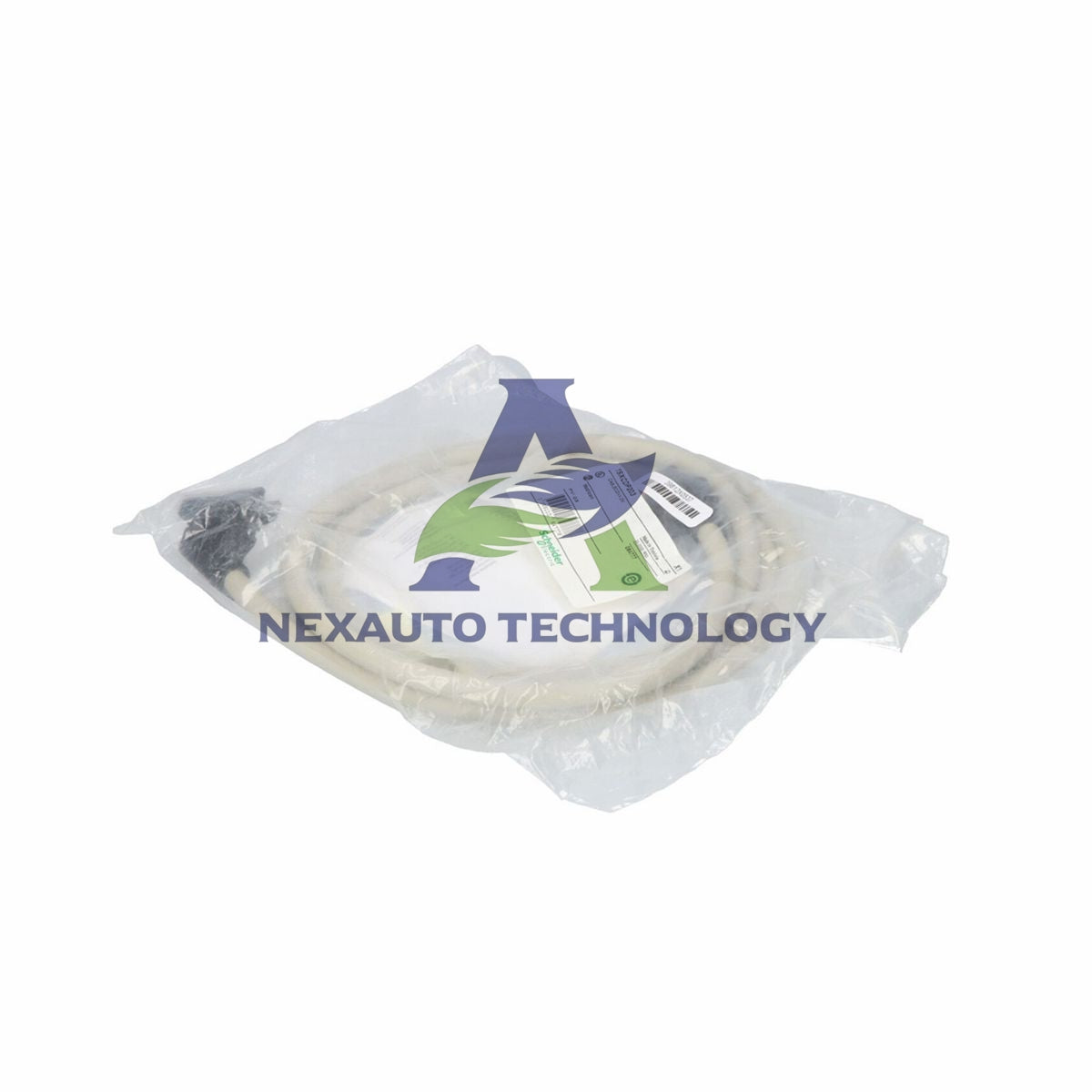

• Packaging: Ships in an individual package for easy handling and inventory.

Physical Characteristics and Dimensions

• Net Weight: The cable weighs only 0.62 lbs (0.28 kg) for lightweight handling.
• Package 1 Dimensions: Measures 9.843 x 9.843 x 1.575 inches (25 x 25 x 4 cm).
• Package 1 Weight: Individual package weighs 11.464 oz (325 g).
• Package 2 Configuration: Bulk case contains 10 units for larger orders.
• Package 2 Dimensions: Bulk case measures 15.748 x 11.811 x 5.906 inches (40 x 30 x 15 cm).
• Package 2 Weight: Total bulk weight reaches 7.981 lbs (3.62 kg).
• Destination Compatibility: Connects specifically to sub-base ABE7H16R20.
