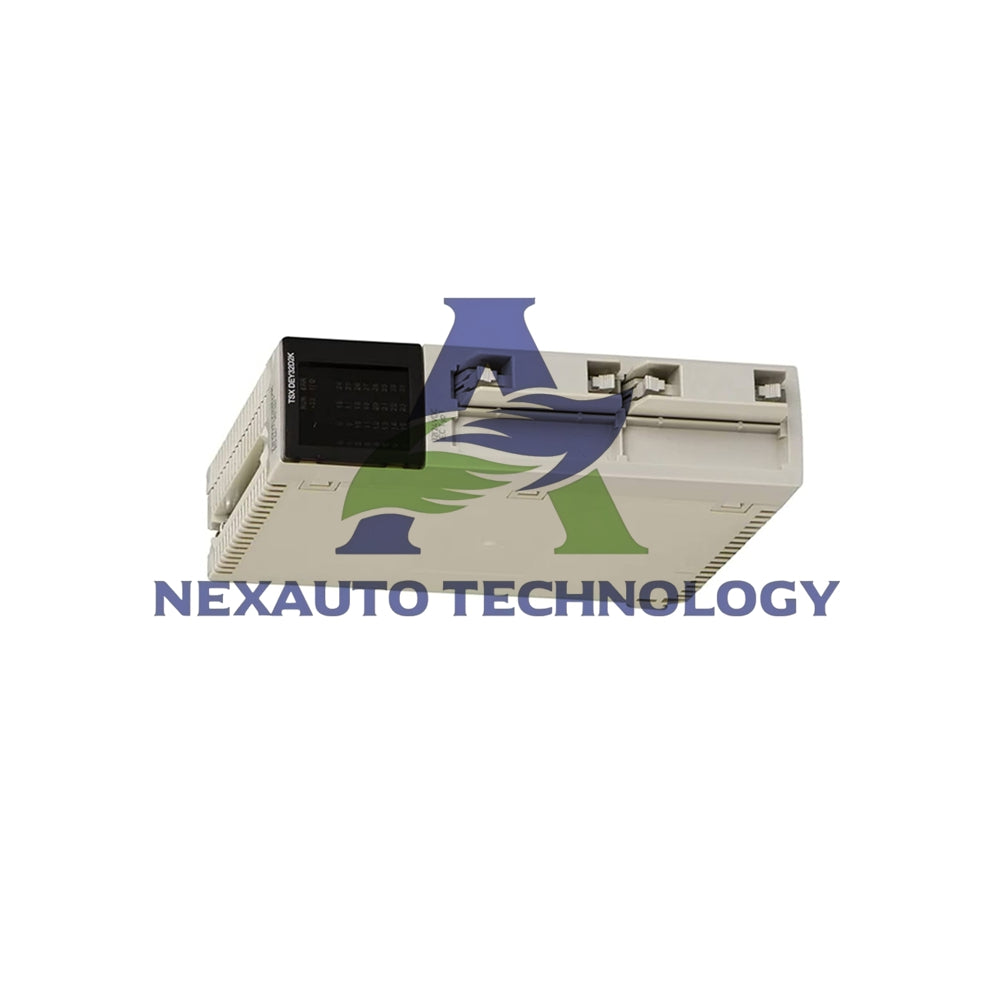

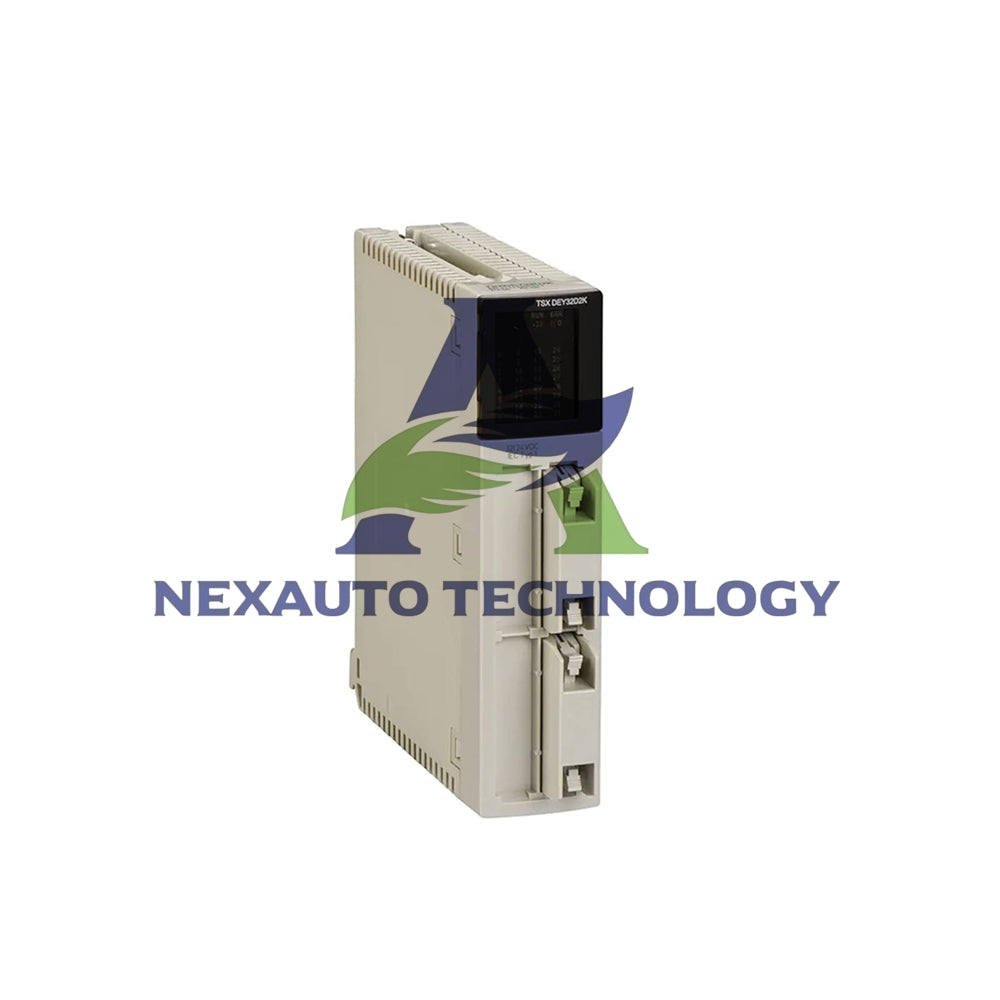

TSXDEY32D2K Digital Input Module Schneider Electric

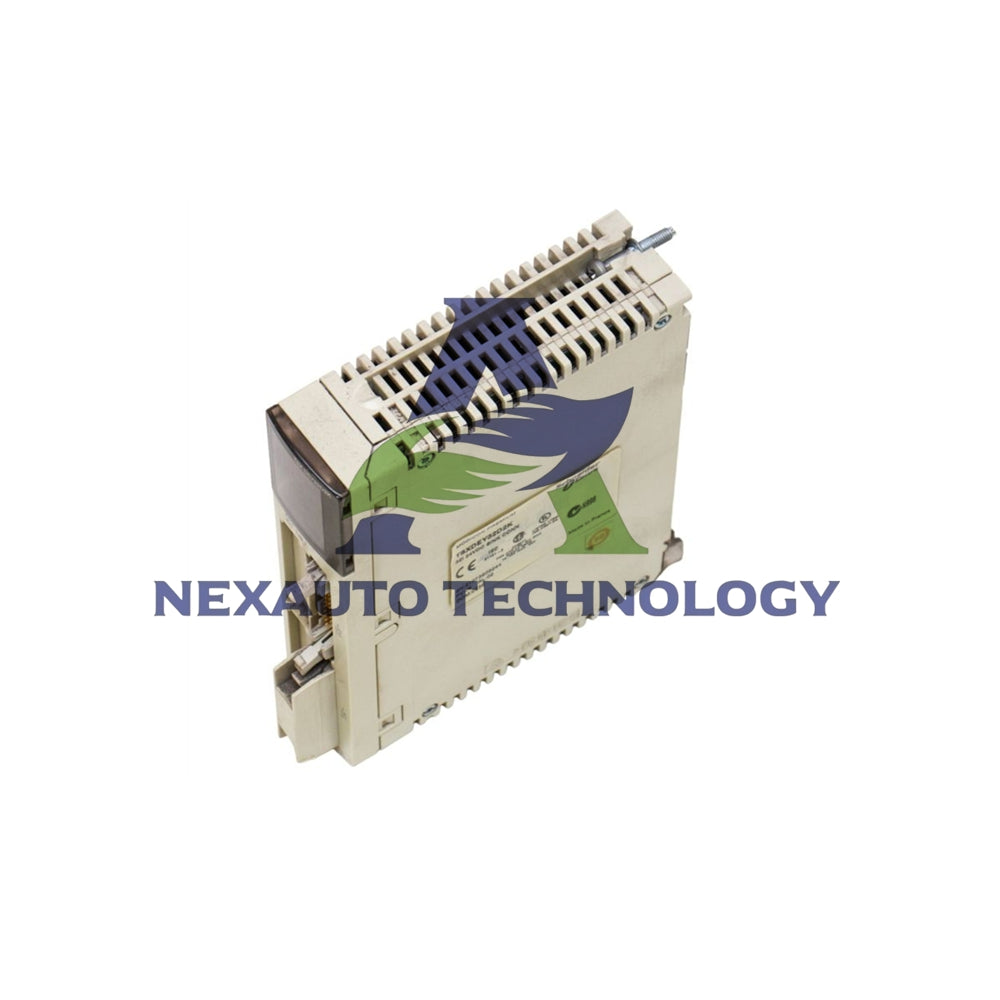

Schneider Electric TSXDEY32D2K Digital Input Module

The TSXDEY32D2K from Schneider Electric provides high-density digital input capability for TSX Micro PLC systems. This 32-channel module delivers reliable signal acquisition for industrial automation and control applications.

Technical Specifications

• Brand & Model: Schneider Electric TSXDEY32D2K
• Module Type: Digital Input Module for discrete signals
• Number of Inputs: 32 isolated channels, current sink type
• Input Voltage: 24 V DC nominal (19-30 V DC sensor supply range)
• Input Current: 3.5 mA per channel typical consumption
• Logic Thresholds: State 1: ≥11V/≥3mA, State 0: ≤5V/≤1.5mA
• Response Time: Fast ≤1 ms typical, ≤7 ms maximum

Electrical Characteristics

• Input Impedance: 6300 Ohm minimum at logic state 1
• Isolation: 500 V AC between channels and PLC logic
• Dielectric Strength: 1500 V AC at 50/60 Hz tested
• Isolation Resistance: < 10 MOhm at 500 V DC
• Power Consumption: 135 mA at 5 V DC + 160 mA at 24 V DC from rack
• Power Dissipation: 1 W + 0.1 W per active channel

Performance & Response

• High-speed scanning for real-time control applications
• EN/IEC 61131-2 Type 1 input specifications for industrial compatibility
• Designed for reliable operation with push buttons, sensors, and switches
• Consistent performance across all 32 input channels

Environmental Durability

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Humidity Range: 10-95% non-condensing for operation
• Operating Altitude: Up to 2000 meters (6562 feet)
• Protection Rating: IP20 enclosure with Pollution Degree 2
• Protective Treatment: TC specification for industrial environments

Design & Connectivity

• Module Format: Standard format for TSX Micro PLC racks
• Electrical Connection: HE-10 connector for reliable field wiring
• Mounting: Standard DIN rail installation
• Net Weight: Lightweight at only 0.3 kg (0.7 lb)
• Compact dimensions: 125 mm L x 32 mm W x 90 mm H

Certifications & Standards

• Compliant with UL 508, IEC 61131-2, and EN/IEC 60664
• CSA Class I Division 2 Groups A, B, C, D hazardous location certification
• CE marked for European market compliance
• Marine certifications: LR, GL, BV, DNV, ABS, RINA, RMRS

Packaging & Shipping

• Each TSXDEY32D2K module ships as one complete unit (PCE).
• Package Dimensions: 26.0 cm L x 18.0 cm W x 5.5 cm H (10.2 x 7.09 x 2.2 in).
• Package Weight: 412.0 g (14.5 oz).
• Fast global delivery via FedEx, UPS, and DHL express services.
• Direct shipment from our warehouse for immediate project needs.

Frequently Asked Questions (FAQ)

• What type of signals can this module read? It reads standard 24V DC digital signals from sensors, switches, and push buttons.
• What is the response time? The module responds within 1 ms typically, with a maximum of 7 ms per channel.
• Are the channels isolated? Yes, channels feature 500 V AC isolation from each other and from the PLC logic.
• What connector does it use? It uses a standard HE-10 connector for reliable field wiring connections.
• Is it suitable for harsh environments? With its IP20 rating and wide temperature range, it is designed for industrial panel use.
• How is it powered? It draws both 5V and 24V power directly from the TSX PLC rack's backplane.
• What PLC is it compatible with? It is designed for the TSX Micro PLC series within the Modicon Premium platform.
