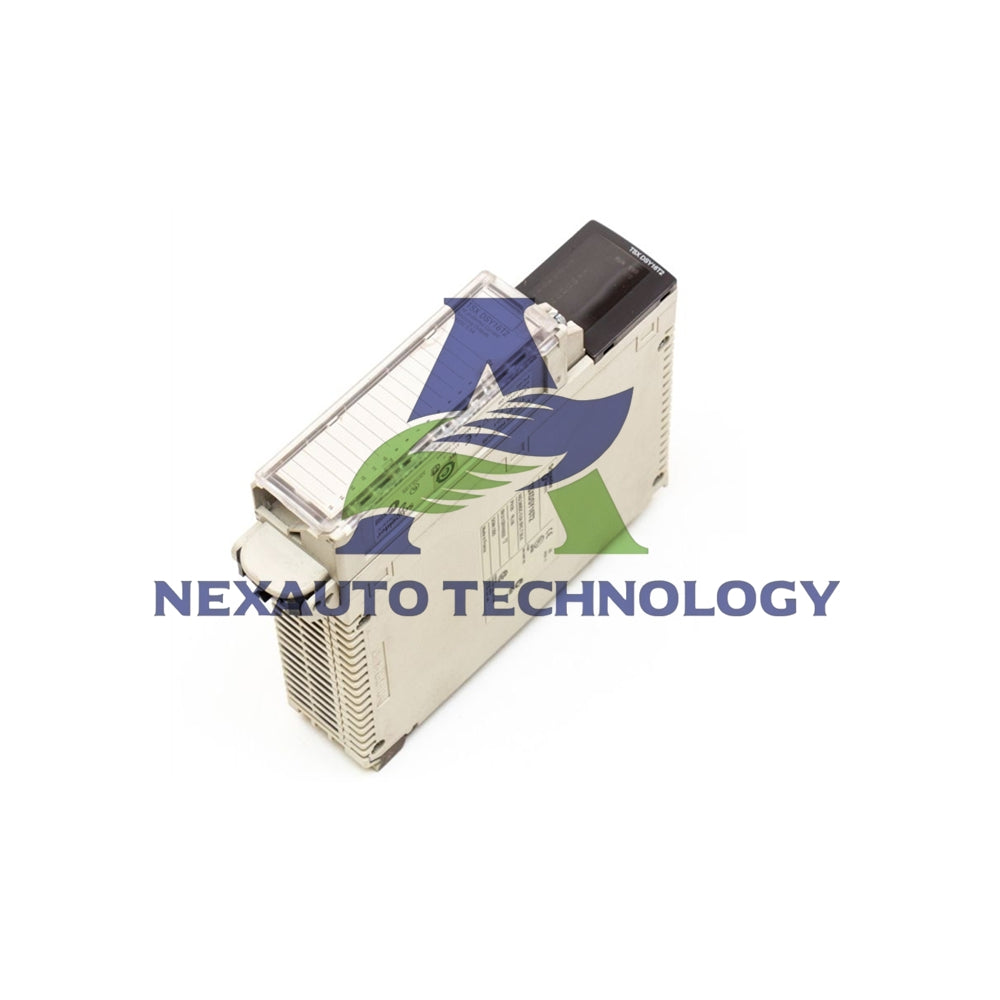

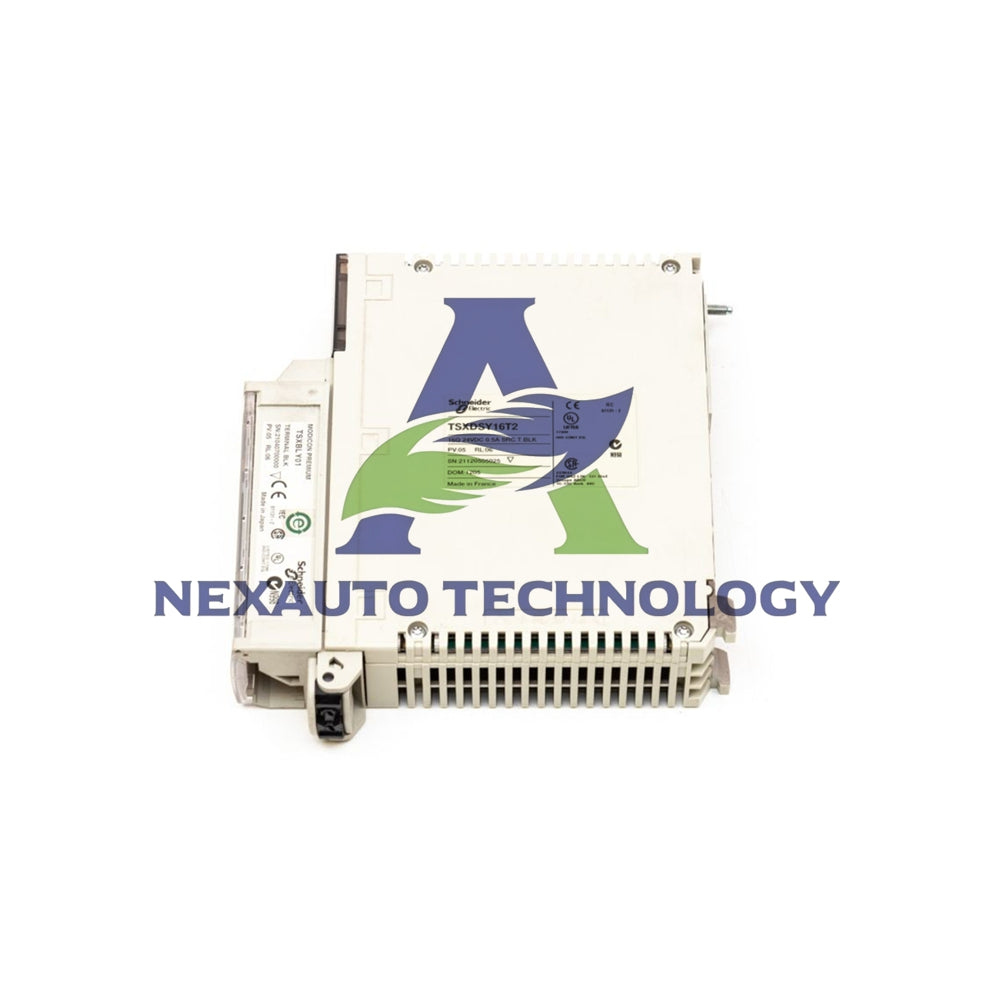

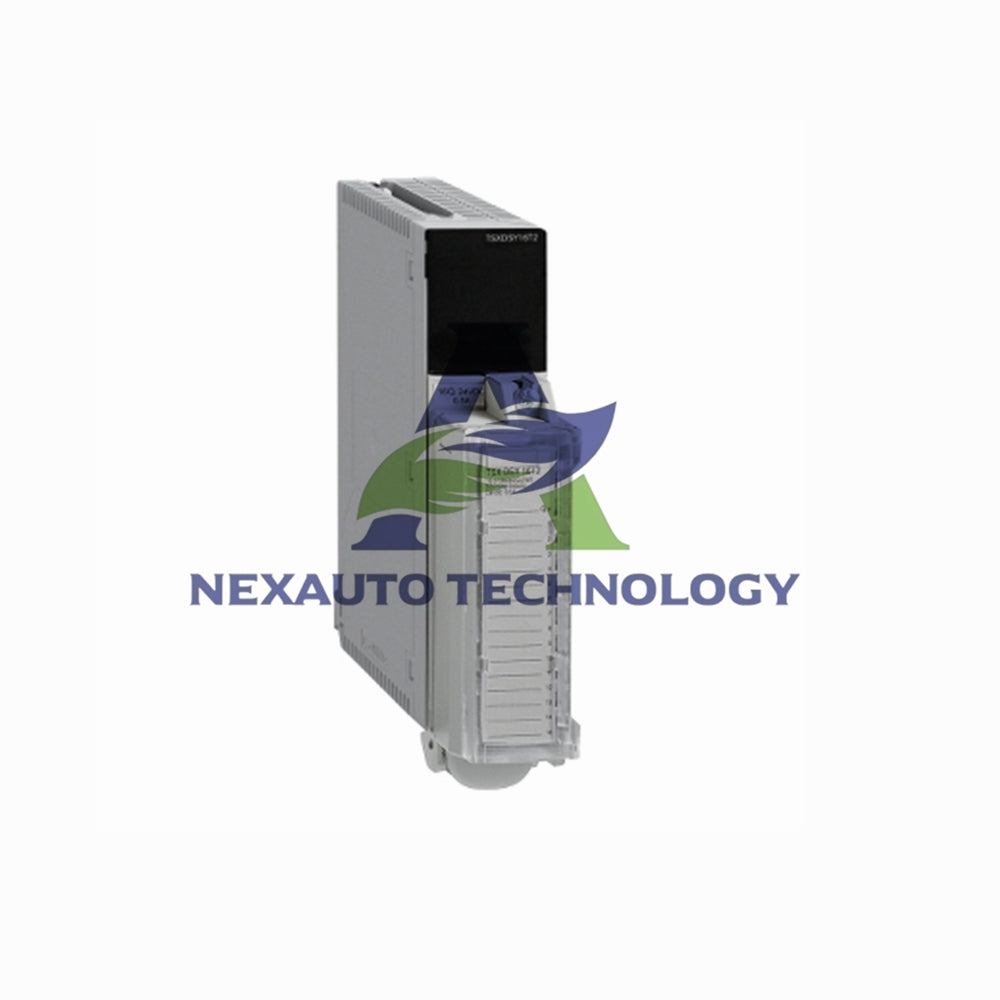

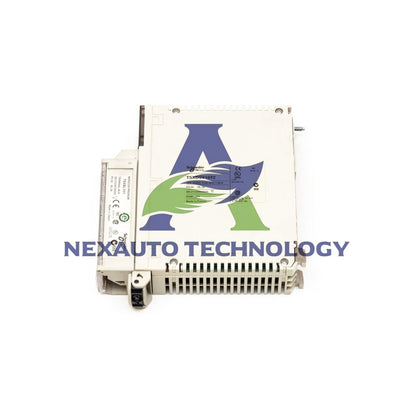

TSXDSY16T2 Schneider Electric - 16-Channel Output Module

Schneider Electric TSXDSY16T2 Discrete Output Module

The TSXDSY16T2 from Schneider Electric is a reliable 16-channel solid-state output module for TSX Micro PLC systems. This module delivers robust switching performance for controlling actuators, solenoids, and indicators in industrial automation.

Technical Specifications

• Brand & Model: Schneider Electric TSXDSY16T2
• Module Type: Discrete Output Module (Solid-State)
• Number of Outputs: 16 independent channels
• Output Voltage: 24 V DC positive (19-30 V range per EN/IEC 61131-2)
• Output Current: 0.5 A per channel continuous rating
• Maximum Module Current: 7 A total (all channels combined)
• Current per Channel Max: 0.625 A peak

Electrical Characteristics

• Response Time: Fast 1.2 ms switching response
• Residual Voltage [Ures]: Low < 1.2 V in the ON state
• Leakage Current: Minimal < 0.5 mA when output is OFF
• Switching Frequency: 0.5/LI² Hz for inductive load handling
• Minimum Load Impedance: 48 Ω to ensure proper operation
• Preactuator Detection: Voltage threshold at 16 V

Comprehensive Protection Features

• Short-Circuit Protection: Electronic tripping with automatic reactivation
• Overload Protection: Electronic tripping protects against excessive current
• Overvoltage Protection: Integrated transil diode safeguards outputs
• Reverse Polarity Protection: Reverse-mounted diode prevents damage from wiring errors
• Isolation: High isolation resistance > 10 MOhm at 500 V
• Dielectric Strength: 1500 V AC for 60 seconds tested

Power & Thermal Management

• Current Consumption: 80 mA at 5 V DC from the rack supply
• Power Dissipation: Calculated as (1.1 W + 0.75 W x Number of active outputs x current)
• Efficient design minimizes heat generation in control panels
• Solid-state technology ensures long service life without contact wear

Environmental Specifications

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Humidity Range: 10-95% non-condensing for operation
• Operating Altitude: Up to 2000 meters (6562 feet)
• Protection Rating: IP20 enclosure, Pollution Degree 2
• Protective Treatment: TC specification for industrial environments

Design & Connectivity

• Electrical Connection: Screw terminal block for secure field wiring
• Module Format: Standard format for TSX Micro PLC racks
• Net Weight: Lightweight at 0.34 kg (0.75 lb)
• Compact design for efficient use of panel space

Certifications & Standards

• Compliant with UL 508, IEC 61131-2, and EN/IEC standards
• CSA Class I Division 2 Groups A, B, C, D for hazardous locations
• CE marked for the European market
• Marine certifications: DNV, RMRS, GL, BV, ABS, RINA, LR

Packaging & Shipping

• The TSXDSY16T2 module ships as one complete unit.
• Protected in industrial-grade packaging to prevent damage.
• Worldwide express delivery via FedEx, UPS, and DHL available.
• Direct shipment from stock for quick project integration.

Frequently Asked Questions (FAQ)

• What type of outputs does this module have? It features 16 solid-state (transistor) outputs for switching 24V DC loads.
• What loads can it drive? It is designed to drive resistive and inductive loads like solenoids, small relays, and indicator lamps up to 0.5A each.
• How does the short-circuit protection work? The electronic protection trips the output in case of a short and automatically attempts to reactivate it.
• What is the advantage of solid-state outputs? They offer faster switching, longer life, and no moving parts compared to relay outputs.
• What does "reverse polarity protection" mean? A built-in diode protects the module if the 24V supply is accidentally connected backwards.
• Is it suitable for high-speed switching? With a 1.2 ms response time, it is suitable for many industrial control cycles.
• How is it powered? It draws 80 mA at 5V from the PLC rack's backplane; the 24V for the loads is supplied externally to the terminal block.
