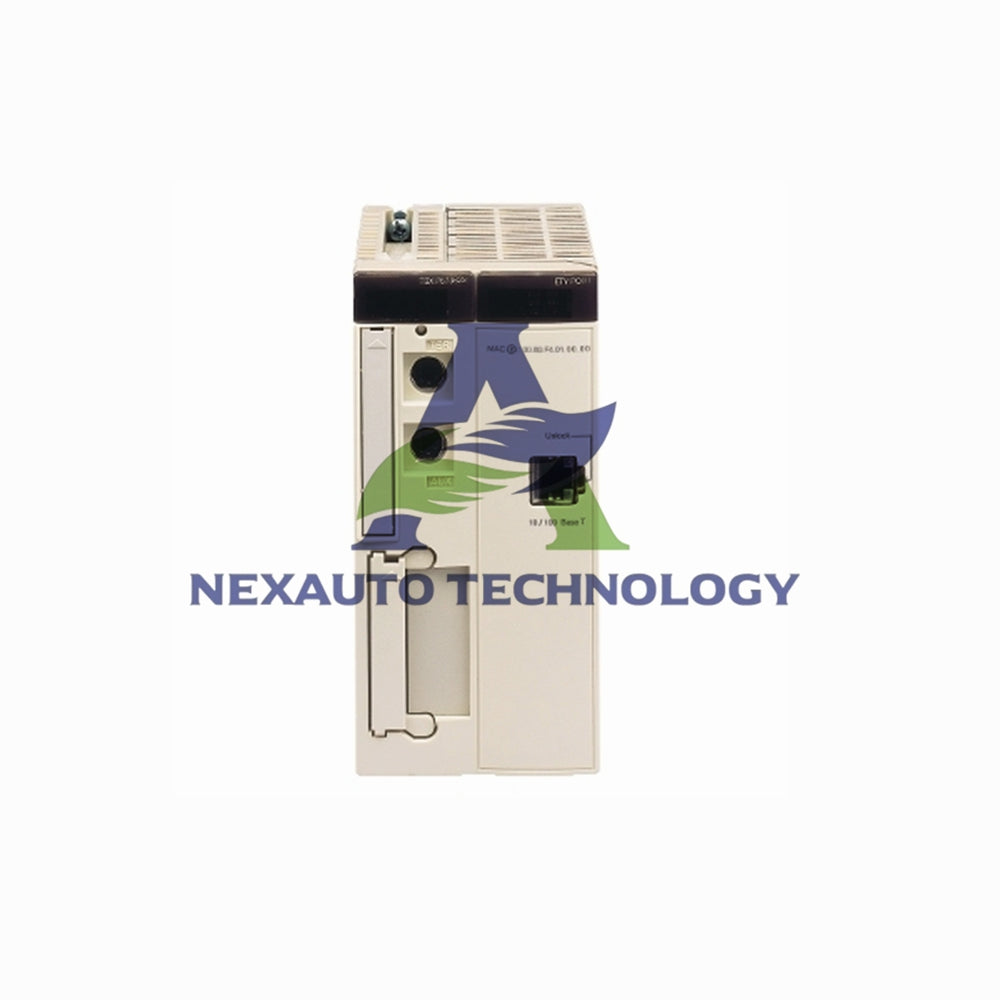

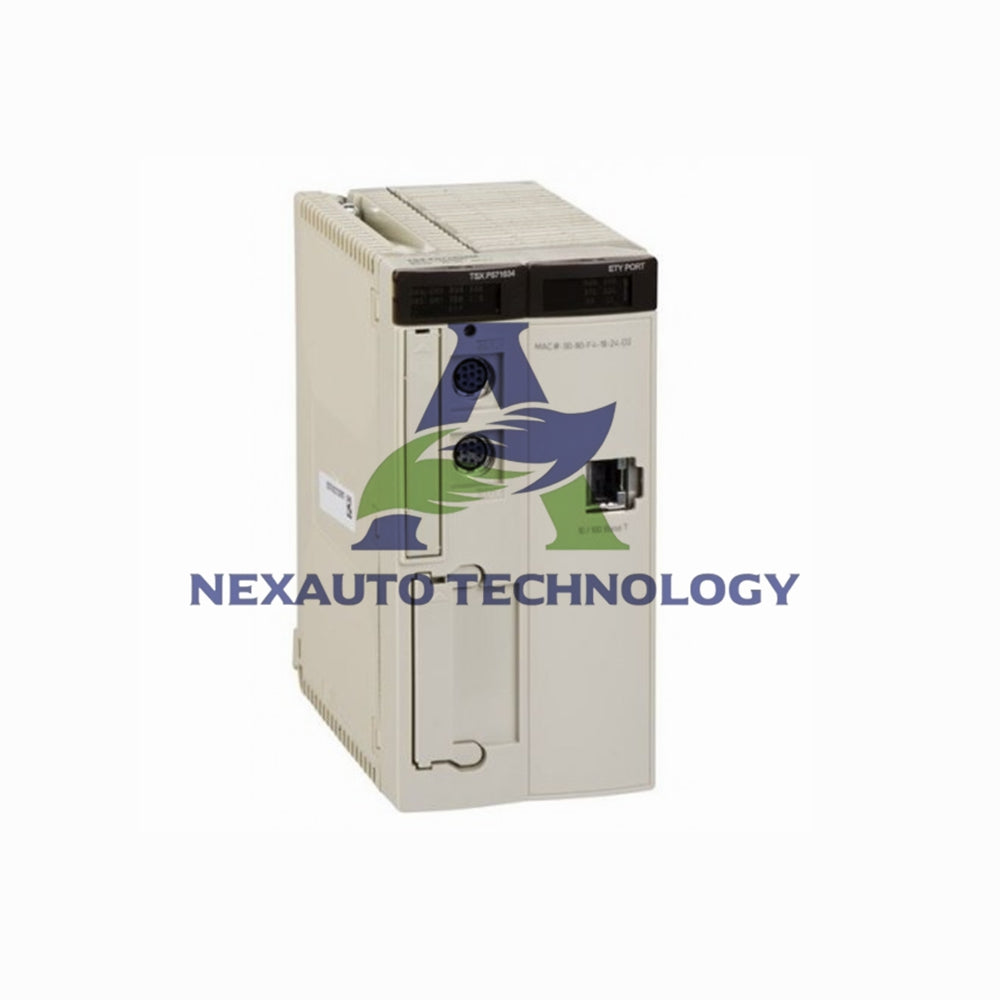

TSXP571634M Schneider Unity Processor with Ethernet

Schneider Electric TSXP571634M Unity Processor

The TSXP571634M is a versatile Unity processor from Schneider Electric for the Modicon Premium platform. This controller combines robust processing power with integrated communication ports for mid-range industrial automation applications.

Technical Specifications

• Brand & Model: Schneider Electric TSXP571634M
• Product Type: Unity Processor for Modicon Premium PLC
• Software Platform: Programmed with Unity Pro software
• System Architecture: Supports 2 racks (12 slots) or 4 racks (4/6/8 slots)
• Total I/O Capacity: Up to 512 discrete I/O and 24 analog I/O points
• Current Consumption: 1650 mA at 5 V DC from rack supply

Processing Performance

• Boolean Execution: Fast 0.19 µs per instruction (without PCMCIA)
• Fixed-Point Arithmetic: 0.25 µs per instruction
• Floating Point: 1.75-2.6 µs per arithmetic operation
• Instruction Throughput: Up to 4.76 K instructions/ms (100% Boolean, no PCMCIA)
• System Overhead: Fast task: 0.3 ms, Master task: 1 ms
• Number of Tasks: 1 fast task, 1 master task, and 32 event tasks

Memory Configuration

• Internal RAM (without PCMCIA): 96 kB for program and data
• Internal RAM (with PCMCIA): 224 kB program + 96 kB data
• PCMCIA Expansion: Adds 256 kB additional data storage
• Object Areas: 4096 %Mi internal bits, 64 %KWi constant words, 64 %MWi internal words
• Unlocated Data: 32 kB for elementary data, 64 kB for function blocks (DFB/EFB)

Integrated Communication Ports

• Ethernet TCP/IP: RJ45 port, 10/100 Mbit/s for network connectivity
• Serial Ports: Two RS485 ports via mini-DIN connectors at 19.2 kbit/s
• Communication Capacity: Supports 2 additional communication modules
• Application Channels: 8 dedicated channels for specific functions

System Configuration & Capacity

• Maximum Slots: Configurations support 16, 24, or 32 total slots
• Discrete I/O: Manages systems with up to 512 digital points
• Analog I/O: Controls up to 24 analog input/output signals
• Flexible rack configuration for customized system design

Status Indicators & LEDs

• RUN LED (Green): Processor running and Ethernet port ready status
• ERR LED (Red): Processor/system fault and Ethernet port fault
• I/O LED (Red): Module or configuration fault indication
• COL LED (Red): Network collision detection
• Multiple Yellow LEDs: TER/AUX activity, Ethernet diagnostics, RX/TX activity

Environmental Specifications

• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Humidity Range: 10-95% non-condensing for operation
• Operating Altitude: Up to 2000 meters (6562 feet)
• Protection Rating: IP20 enclosure, Pollution Degree 2
• Protective Treatment: TC specification for industrial use

Certifications & Standards

• Compliant with UL 508, IEC 61131-2, and CSA standards
• CSA Class I Division 2 Groups A, B, C, D for hazardous locations
• CE marked for European market requirements
• Marine certifications: GL, RMRS, LR, ABS, DNV, RINA, BV

Physical Specifications

• Module Format: Double-width module for TSX Premium racks
• Net Weight: 0.74 kg (1.63 lb)
• Designed for standard TSX Micro/Premium rack installation

Packaging & Shipping

• The TSXP571634M processor ships as one complete unit.
• Includes the processor module ready for rack installation.
• Protected in secure industrial packaging.
• Worldwide express shipping via FedEx, UPS, and DHL available.

Frequently Asked Questions (FAQ)

• What communication ports are included? It has one Ethernet port and two RS485 serial ports built-in.
• How many I/O points can it handle? It supports systems with up to 512 digital and 24 analog I/O points.
• Can I add more communication interfaces? Yes, it has capacity for 2 additional communication modules.
• What is the difference with/without a PCMCIA card? The card expands program memory to 224 kB and adds 256 kB data storage.
• How fast is the processor? It executes Boolean instructions in 0.19 microseconds, suitable for many control applications.
• What software is needed? It is programmed using Schneider Electric's Unity Pro software.
• Is it compatible with existing TSX systems? Yes, it uses the double module format for TSX Micro/Premium racks.
