Honeywell CC-PCNT02 51454551-275 C300 Controller Module: Smart Control Made Simple This controller is perfect for industrial automation. It helps machines run smoothly. It is reliable and easy to use. What Is This Product? The Honeywell CC-PCNT02 is a core module for the C300 control...

Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC Controller Controller Power & Physical Specs Input Power 24V DC Power Consumption 40W Dimensions 160mm W x 90mm H x 87mm D Weight 2.4 pounds/1.089kg Operating Temperature 0 to 55°C Input & Output Capabilities Standard DC Inputs 10 points...

Allen-Bradley 1785-L46B PLC-5/46 Controller This robust industrial controller delivers secure and reliable automation for medium to large-scale applications. The Allen-Bradley 1785-L46B features protected memory and extensive communication capabilities. Technical Specifications Processor Type: PLC-5/46 with Protected Memory Memory Capacity: 48K Words (Expandable to 100K) I/O...

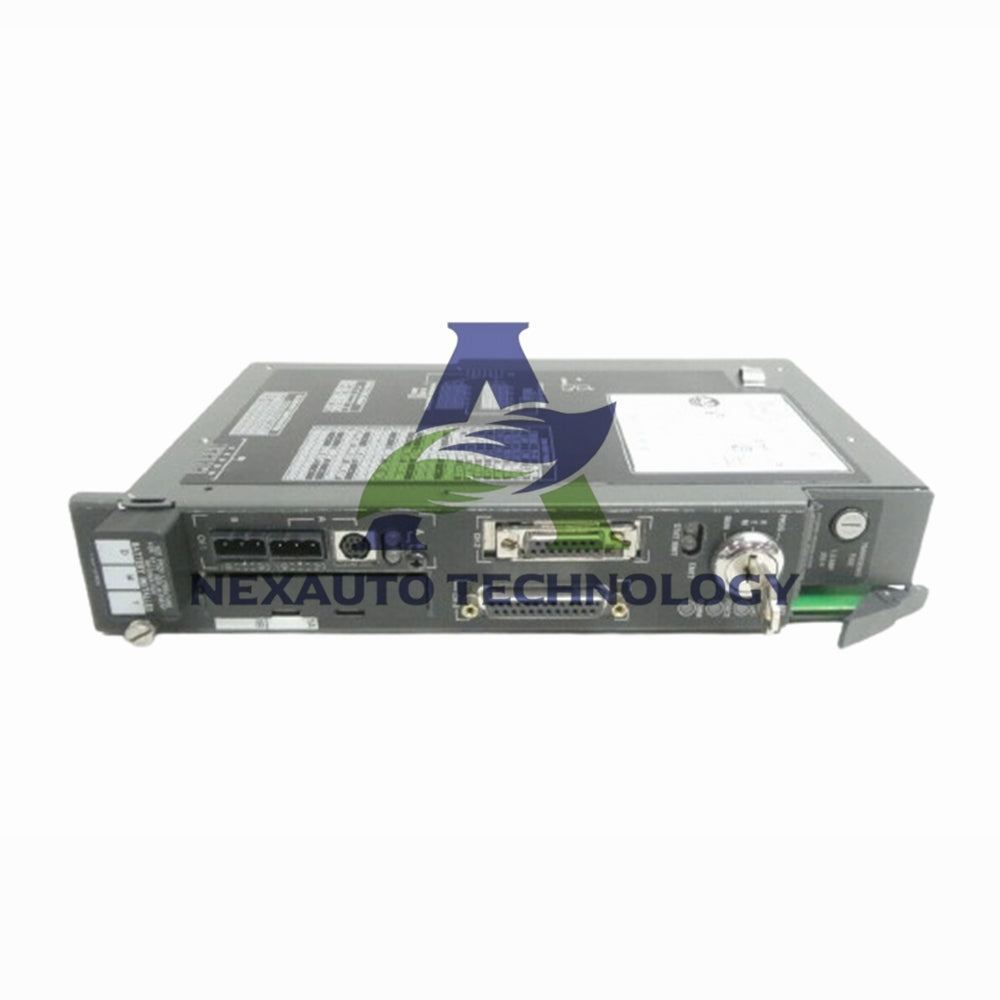

1785-L30B PLC-5/30 Controller Core Specifications 32KWords user memory (expandable) Handles 1024 I/O points (any mix) 2.3A backplane current at 5V DC 12W power dissipation Weight:1.36kg Communication Features 2 DH+/RIO combo ports (configurable) 1 RS-232/422 serial port (Channel 0) Supports DF1, ASCII protocols DH+ network...

1785-L86B Enhanced PLC-5/86 Controller Core Specifications 100KWords protected memory with battery backup. Handles 3072 I/O points (any mix). 3.3A backplane current at 5V DC. 17.3W power dissipation.Weight:1.36kg Performance Features 10ms I/O scan time (57.6Kbps). Supports 93 total chassis (32 remote per link). Voltage isolation...

Allen-Bradley 1785-L80C15 ControlNet Programmable Controller This high-performance programmable controller delivers advanced ControlNet capabilities for large-scale industrial automation. The Allen-Bradley 1785-L80C15 provides extensive I/O capacity and deterministic network performance. Core Specifications User Memory: 100KWords with battery backup I/O Capacity: 3072 points (any mix) Chassis Support:...

Allen-Bradley 1785-L80B PLC-5/80 Enhanced Controller This high-performance PLC controller delivers robust automation control for large-scale industrial applications. The Allen-Bradley 1785-L80B offers extensive I/O capacity and advanced communication capabilities. Key Features 100KWords embedded memory capacity 3072 I/O points maximum (any mix) Four DH+/RIO communication ports...

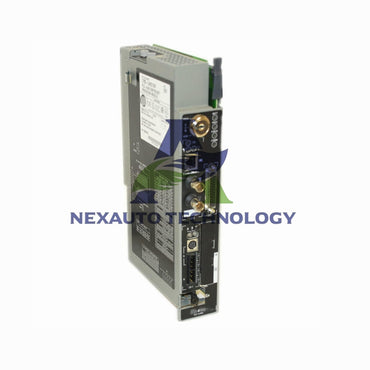

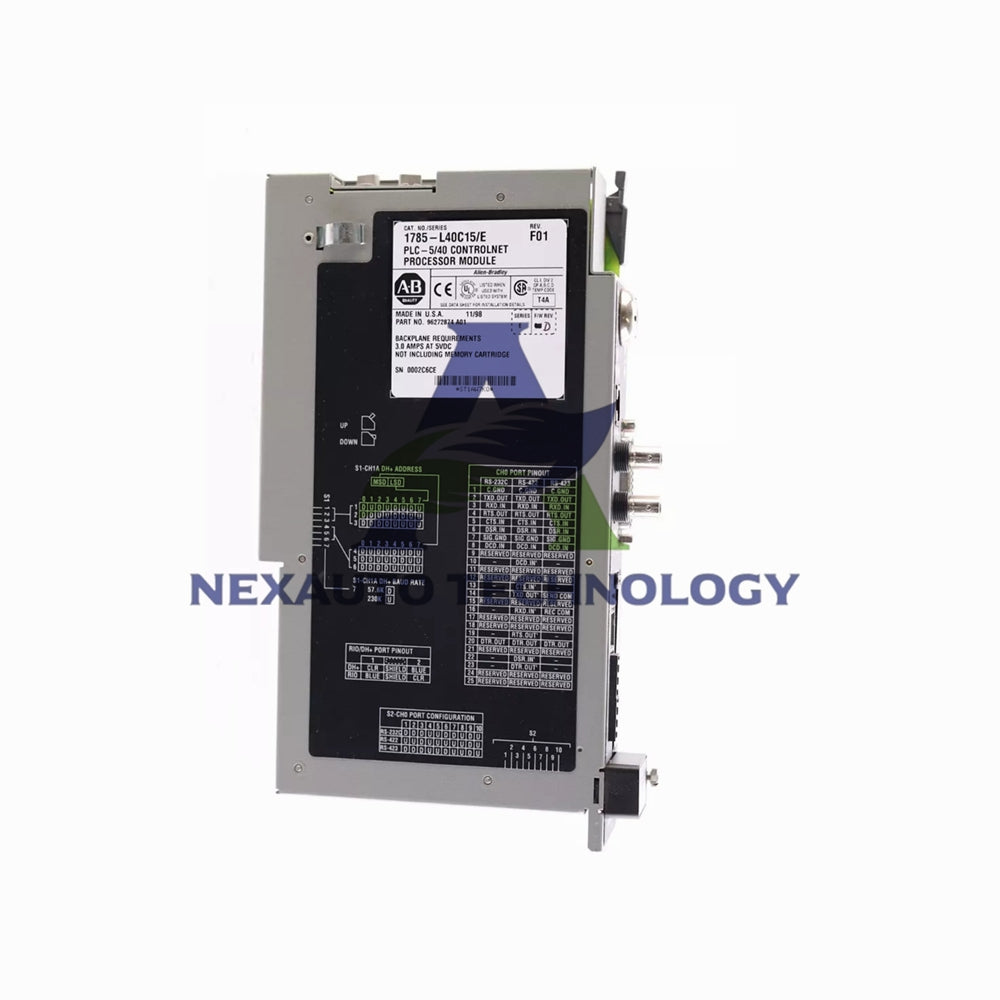

Allen-Bradley 1785-L40C15 ControlNet PLC-5/40C Controller Core Specifications Processor Type PLC-5/40C ControlNet Memory Capacity 48K words (expandable with EEPROM modules) I/O Capacity 2048 total (any mix) or 2048 Input/2048 Output Weight 1.36kg Scan Times 0.5ms/K-word (bit logic), 2ms/K-word (typical) Communication Ports ControlNet Ports 2 (supports...

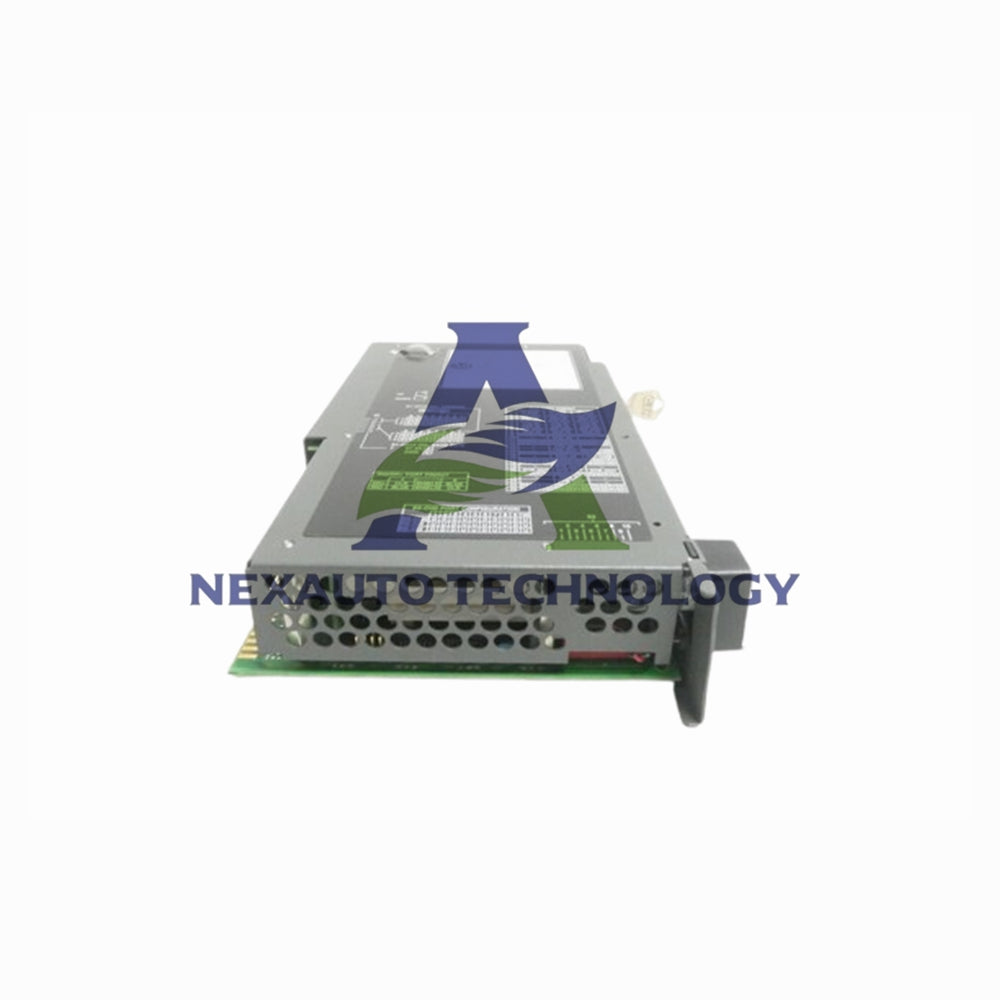

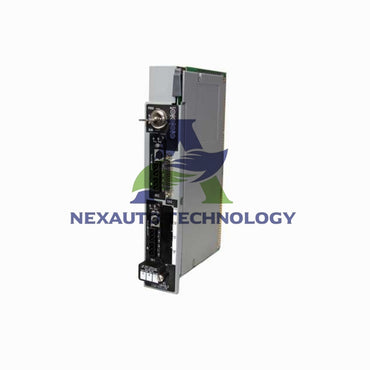

Allen-Bradley 1785-L40B PLC-5/40 Controller High-Performance Control • 48K words user memory capacity • Handles up to 2048 I/O points (any combination) • Supports 2048 inputs + 2048 outputs (complementary) • Ideal for medium to large automation applications Technical Specifications • Backplane current: 3.3A @...

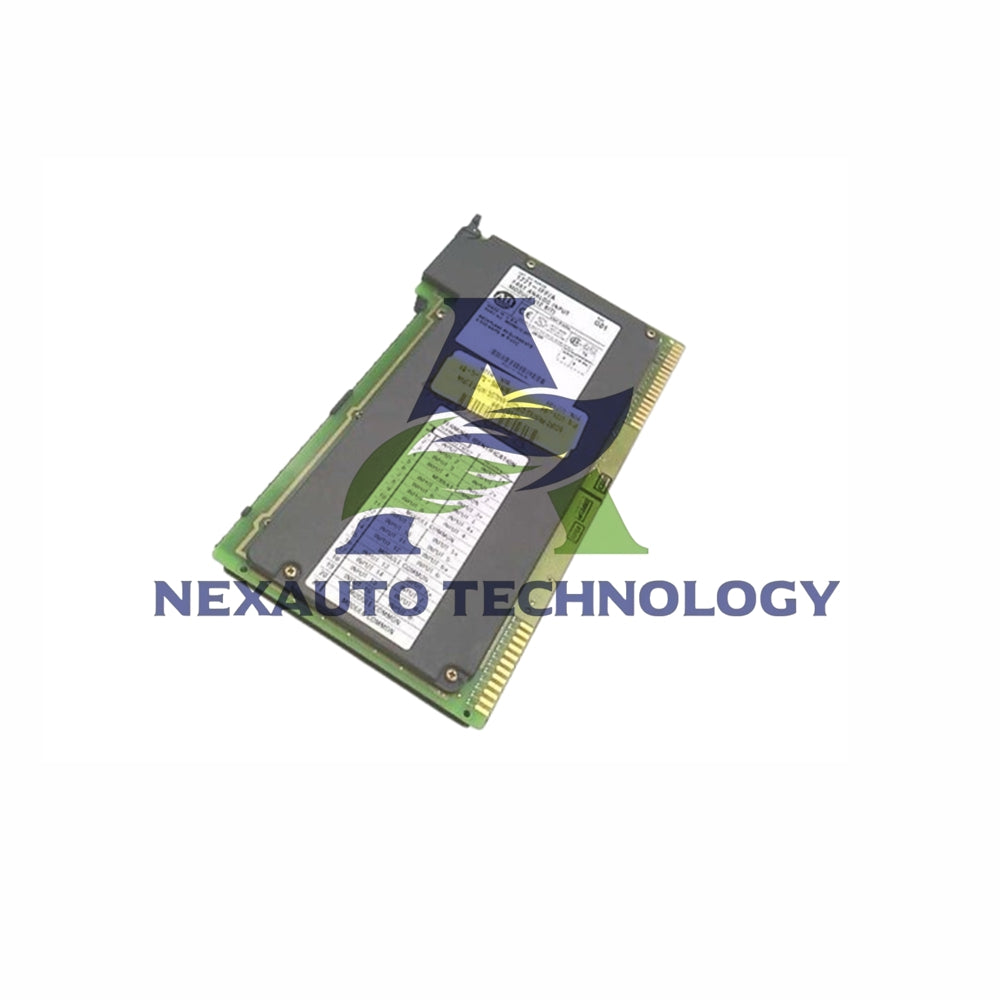

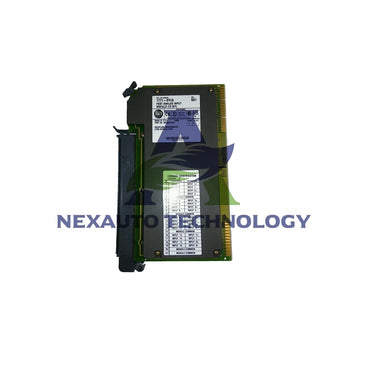

Allen-Bradley 1771-HSARS IMC 120AR Servo Controller Module Technical Parameters Part number 1771-HSARS Module type Servo Controller (IMC-120AR) Series PLC-5 Voltage rating 120V AC fuse Max input frequency 250 kHz (differential) Analog output ±10V DC command signal Backplane current draw 1.7 Amps Module update time...

Allen-Bradley 1771-HSAR IMC Servo Controller Module Technical Parameters Model number 1771-HSAR Module type IMC Servo Controller Module Power supply 120/220V AC via 1771-PS7 Backplane current draw 1.7 Amps Output signal ±10V DC analog command Max input frequency 250 kHz differential Pulse capture time 50–9.999...

Allen-Bradley 1771-HS3CR 3-Axis Servo Controller Module Technical Parameters Model number 1771-HS3CR Module type 3-Axis Servo Controller Power supply 1771-PS7 (120V AC, 1 Amp) Backplane current draw 1.7 Amps Output signal ±10V DC analog command Max input frequency 250 kHz differential Pulse capture time 50–9.999...

1768-L45S CompactGuardLogix Controller Technical Specifications SIL 3 / PL e safety rating Architecture 1oo2 Standard Memory 3 MB Safety Memory 1 MB Backplane Current 2.1 A at 24 V DC Power Consumption 50.4 W Power Dissipation 9.5 W Isolation Voltage 30 V DC continuous...

Allen-Bradley 1766-L32BXBA MicroLogix 1400 Controller Core Technical Data Power: 24 V DC ±10 % Fast inputs: 12 × 24 V DC, 100 kHz response Normal inputs: 8 × 24 V DC, 20 kHz response Analog inputs: 2 × 0–10 V DC, ±0.2 % FS,...

Allen-Bradley 1766-L32BXB MicroLogix 1400 Controller Core Technical Specs Power: 24 V DC ±10 % Fast digital inputs: 12 × 24 V DC, 100 kHz Normal digital inputs: 8 × 24 V DC, 20 kHz Relay outputs: 6 SPDT, 3 A @ 30 V DC...

Allen-Bradley 1766-L32BWAA MicroLogix 1400 Controller Core Technical Data Power: 100–240 VAC, 47–63 Hz Digital inputs: 20 × 120 VAC, 4 × 0–10 VDC analog Analog input accuracy: ±0.5 % full scale, 12-bit Analog output range: 0–10 VDC, 12-bit unsigned Input impedance: 100 kΩ (analog)...

Allen-Bradley 1766-L32BWA MicroLogix 1400 Controller Key Technical Specs Power input: 100–240 VAC, 47–63 Hz Digital inputs: 12 fast 24 V DC (100 kHz), 8 normal 24 V DC Relay outputs: 12 SPDT, 2 A @ 30 V DC Operating temperature: –20 °C to 60...

Allen-Bradley 1766-L32AWAA MicroLogix 1400 Programmable Logic Controller Key Features 120/240V AC Power Supply 20 × 120V AC Digital Inputs 12 × Relay Outputs 2 × Analog Inputs (0–10V DC) 2 × Analog Voltage Outputs Integrated Real-Time Clock (RTC) Supports up to 7 × 1762...

Allen-Bradley 1766-L32AWA MicroLogix 1400 Programmable Logic Controller Key Features 32 Total I/O: 20 Digital Inputs (120V AC), 12 Relay Outputs 3 Communication Ports: Ethernet, RS-232/RS-485 combo, and RS-232 Built-in LCD screen and real-time clock Expandable with up to 7x 1762 I/O modules Memory: 20...

Allen-Bradley 1763-L16BBB MicroLogix 1100 PLC Controller Main Features Power Supply: 24V DC (-15% to +10%) Class 2 SELV Digital Inputs: 10 x 24VDC (4 High-Speed Inputs) Analog Inputs: 2 channels, 0-10VDC, 10-bit resolution Outputs: 2 Relay outputs (AC/DC), 4 FET outputs (24VDC) Communication Ports:...
