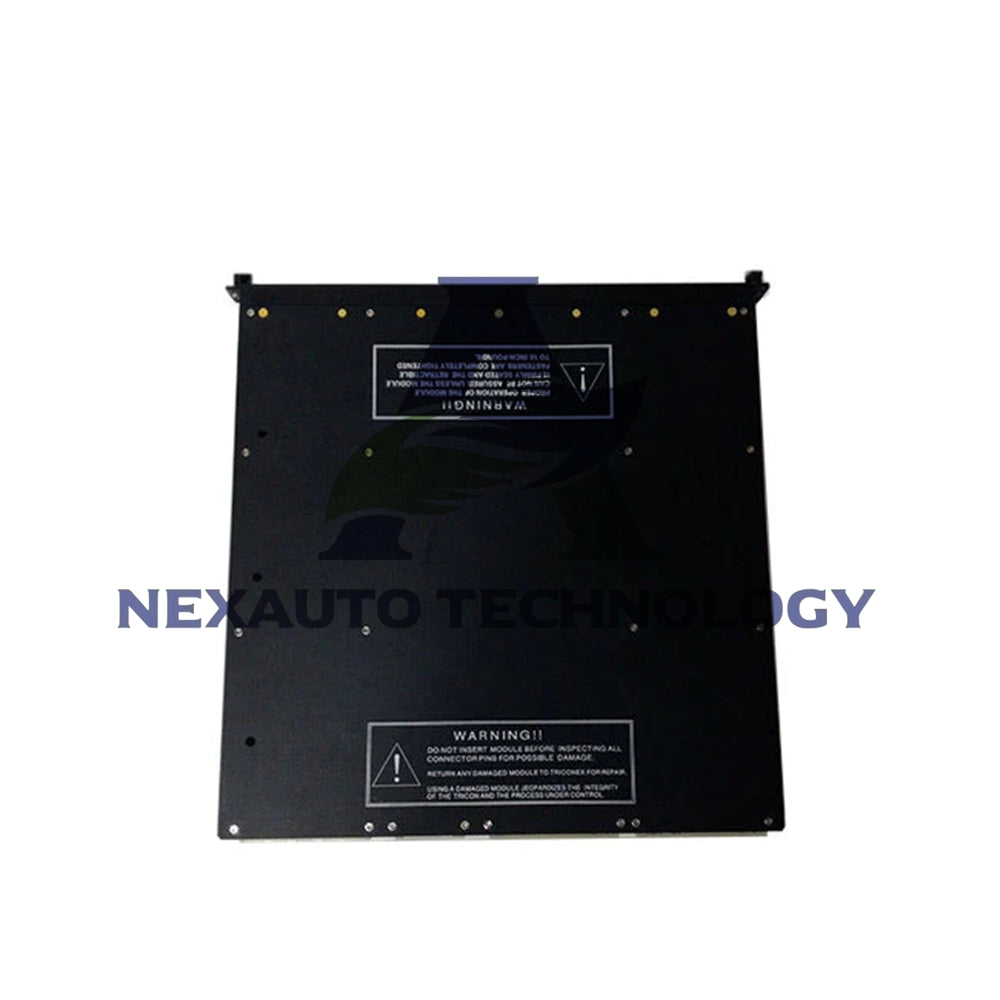

Triconex 3720 Analog Input Module | 64-Channel TMR AI

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
Only 6 units left
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

À propos du produit

Triconex 3720 Analog Input Module

The Triconex 3720 is a high-density analog input module for industrial control systems. This TMR module provides 64 single-ended inputs with excellent accuracy. It offers flexible resolution options and fast update rates for real-time monitoring.

Technical Specifications

  • Input channels: 64 single-ended points
  • Voltage range: 0-5 VDC, +6% overrange
  • Resolution: 12-bit or 14-bit programmable
  • Weight:1.24kg
  • Update rate: 10 ms for all channels
  • Accuracy: <0.15% of FSR (0° to 60°C)
  • Input resistance: 10 MΩ minimum
  • Leg-to-leg isolation: 420 kΩ typical

Input Protection & Ranges

  • Overrange protection: 150 VDC/115 VAC continuous
  • Current input: 0-20 mA with 250Ω shunt resistor
  • Overrange capability: +6% on current range
  • Power-off resistance: 140 kΩ typical
  • Normal mode rejection: -17 dB @ 60Hz

Key Features

  • TMR (Triple Modular Redundant) architecture
  • 64 single-ended isolated input points
  • Programmable 12-bit or 14-bit resolution
  • Fast 10 ms update rate for all channels
  • Yellow color coding for easy identification
  • Comprehensive diagnostic indicators

Diagnostics & Status

  • Module status: PASS, FAULT, ACTIVE, FIELD
  • Continuous channel monitoring
  • Real-time fault detection
  • Visual status indicators for quick troubleshooting

Application Use

  • High-density analog signal acquisition
  • Process monitoring and control systems
  • Industrial automation applications
  • Safety-critical control environments
  • Compatible with Triconex control systems

Shipping & Delivery

  • Product: Triconex 3720 Analog Input Module
  • Shipping carriers: FedEx, UPS, DHL
  • Same-day shipping available
  • International shipping supported

FAQ

  • Input type? - 64 single-ended analog inputs
  • Voltage range? - 0-5 VDC with +6% overrange
  • Resolution options? - Programmable 12-bit or 14-bit
  • Update speed? - 10 ms for all 64 channels
