1756-OF6VI Analog Output Module - Allen-Bradley

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (14 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

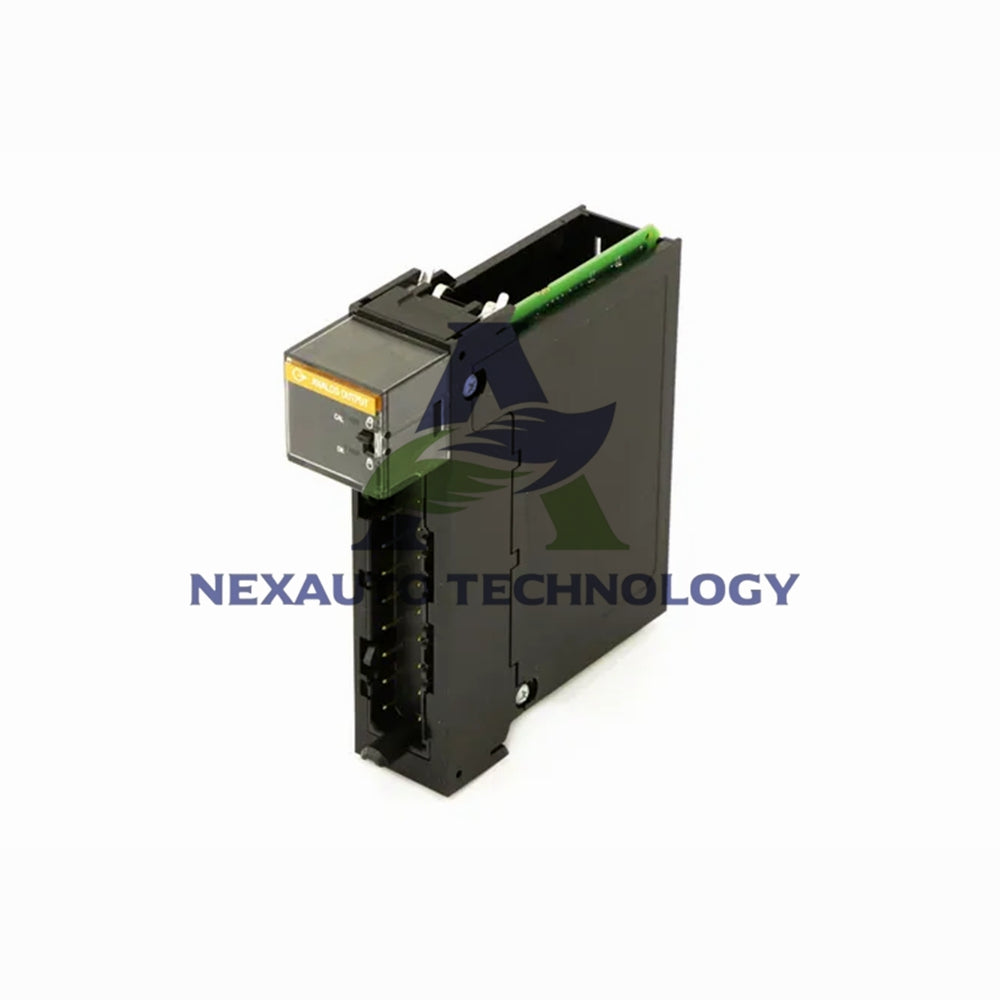

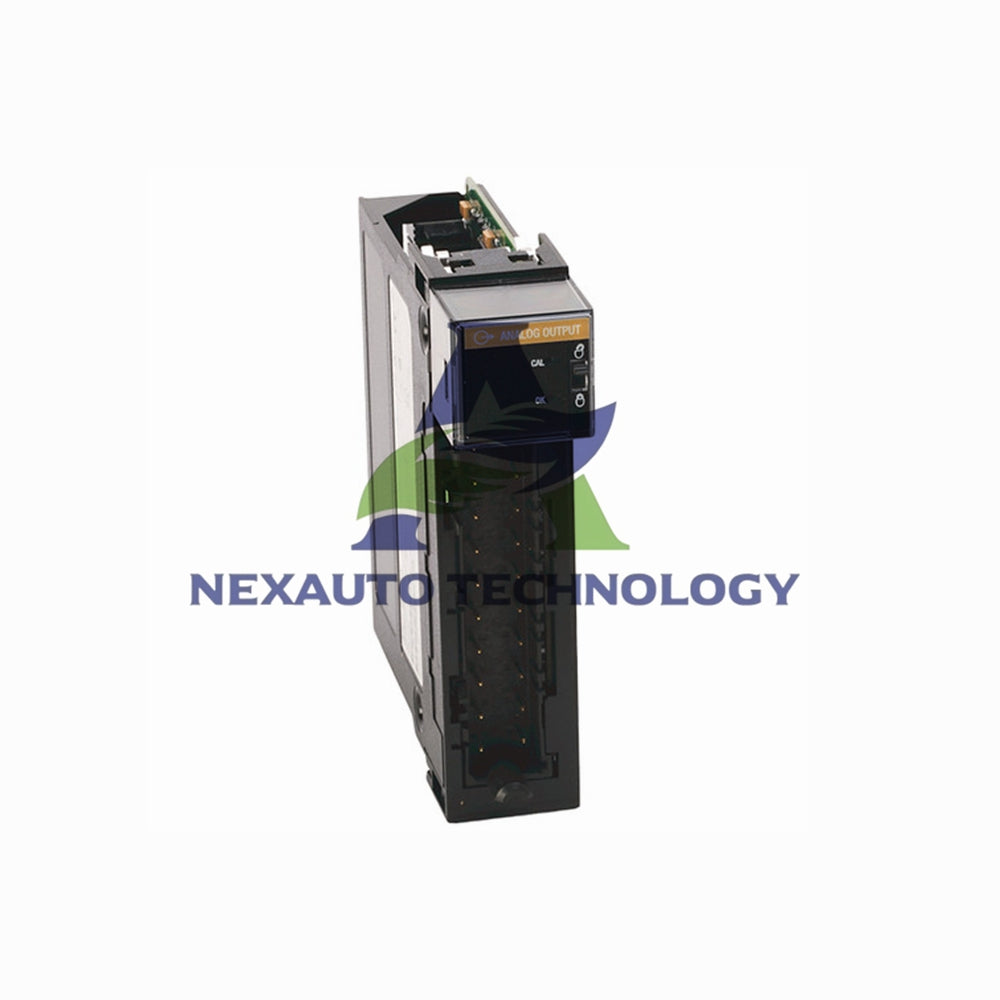

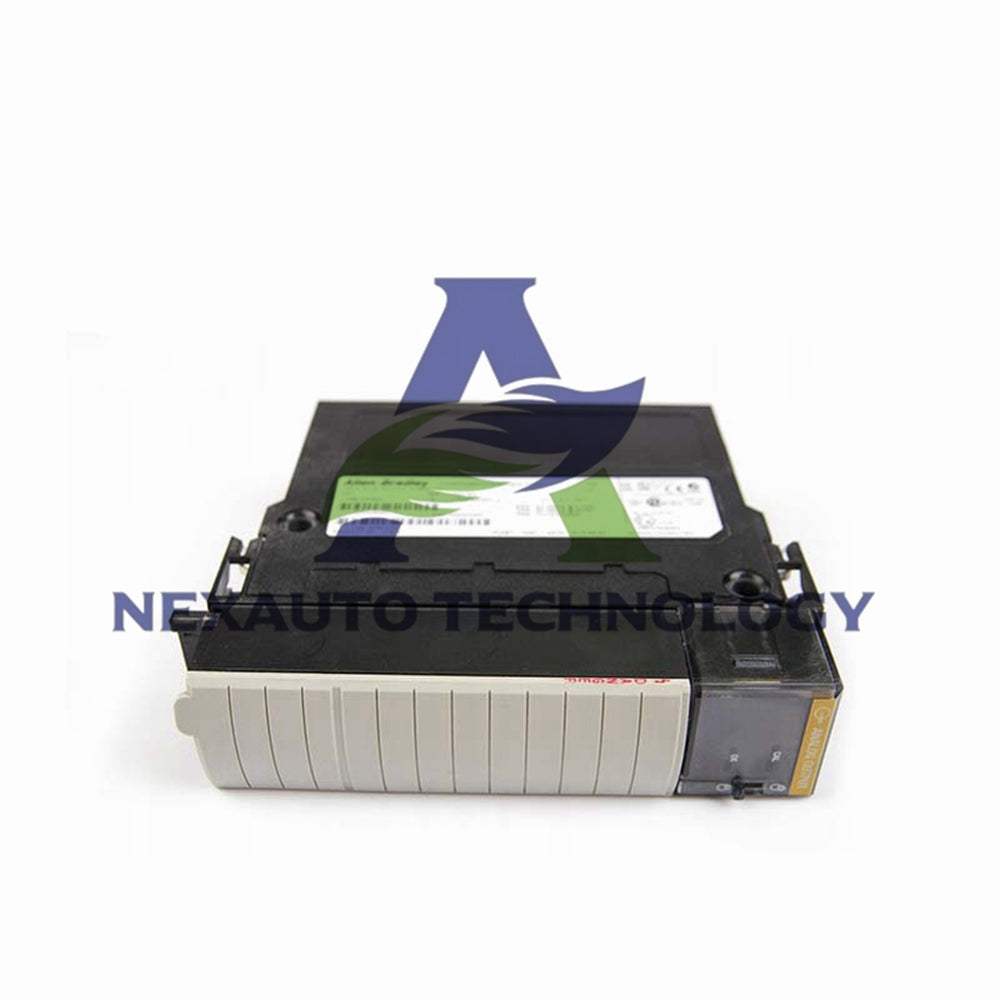

Allen-Bradley 1756-OF6VI Analog Output Module - Precision Voltage Control

MODULE HIGHLIGHTS

6-channel isolated voltage output

±10VDC output range per channel

14-bit high resolution (1.3mV)

0.5% full-scale accuracy

IEEE 32-bit floating point data

PERFORMANCE DATA

Conversion speed: <2ms settling time

Output impedance: 1 Ohm

Load capacity: >1000Ω @ 10mA

Overvoltage protection: ±24VDC

Short-circuit protection: Electronic current limiting

POWER REQUIREMENTS

Backplane current:
• 250mA @ 5.1VDC
• 175mA @ 24VDC

Power dissipation: 4.9W @ 60°C

Thermal output: 16.54 BTU/hr

CONNECTION OPTIONS

Removable terminal blocks:
• 1756-TBNH (20-pin)
• 1756-TBSH (screw clamp)

Isolation: 250V channel-to-channel

Wiring: 16-22 AWG recommended

INDUSTRIAL APPLICATIONS

Process control valve positioning

Test equipment calibration

Machine tool speed control

Analog actuator control

Precision motion systems

SYSTEM INTEGRATION

Studio 5000 configurable

On-board data alarming

Real-time channel sampling

Engineering unit scaling

Fits any ControlLogix chassis slot

CERTIFICATIONS

CE, c-UL-us, ATEX/IECEx

T4 temperature code rated

30G operational shock resistant

2G vibration resistance (10-500Hz)

MAINTENANCE

6-month calibration cycle

60µV/°C offset drift

80ppm/°C gain drift

Field-replaceable terminals

  • Quick Quotes: Receive pricing and availability fast from our dedicated customer service team.
  • Delivery: Expedited, freight, and international shipping available worldwide.
  • Warranty: NexAuto offers a 12-month warranty on all parts purchased from us, in addition to any manufacturer coverage.
  • Returns: 30-day return policy for defective or mismatched parts, ensuring peace of mind.
  • Payment: Flexible options including major credit cards, PayPal, and bank transfers.
  • Custom Calibration: Provide your specifications, and we’ll handle the rest with precision.
