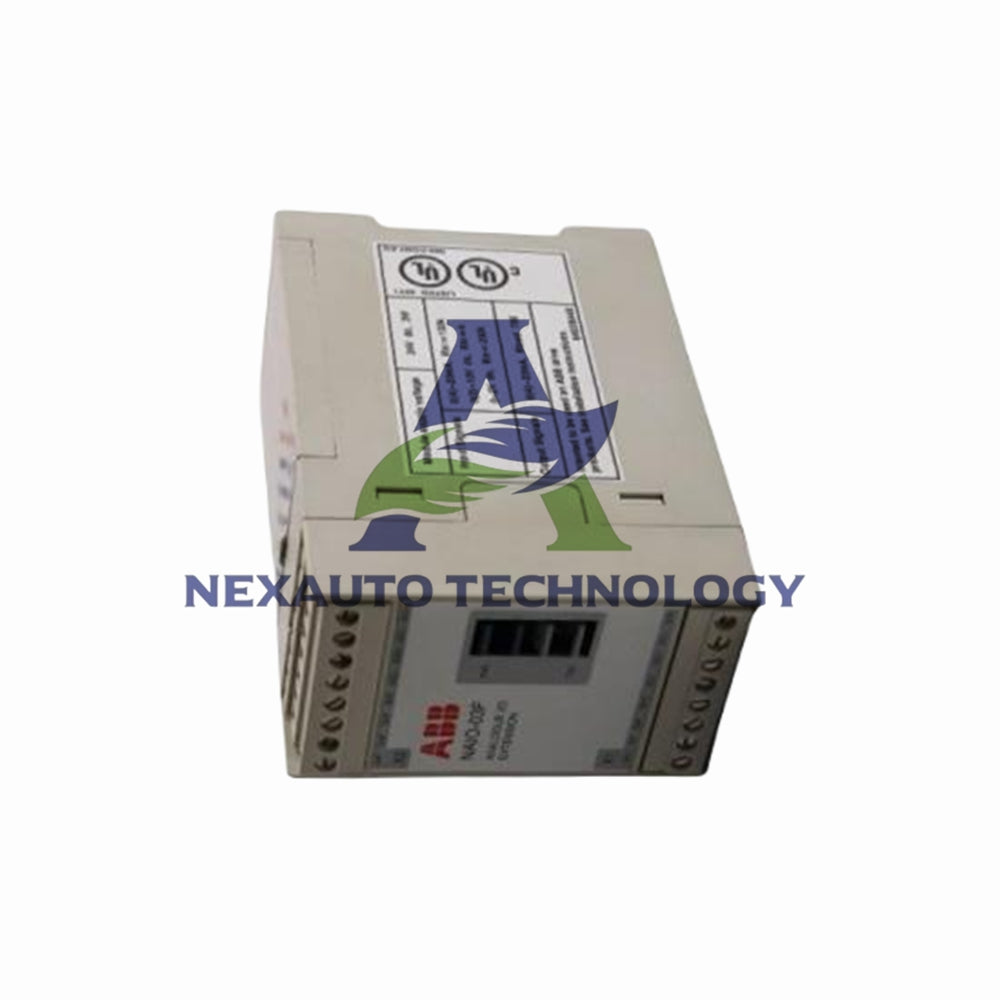

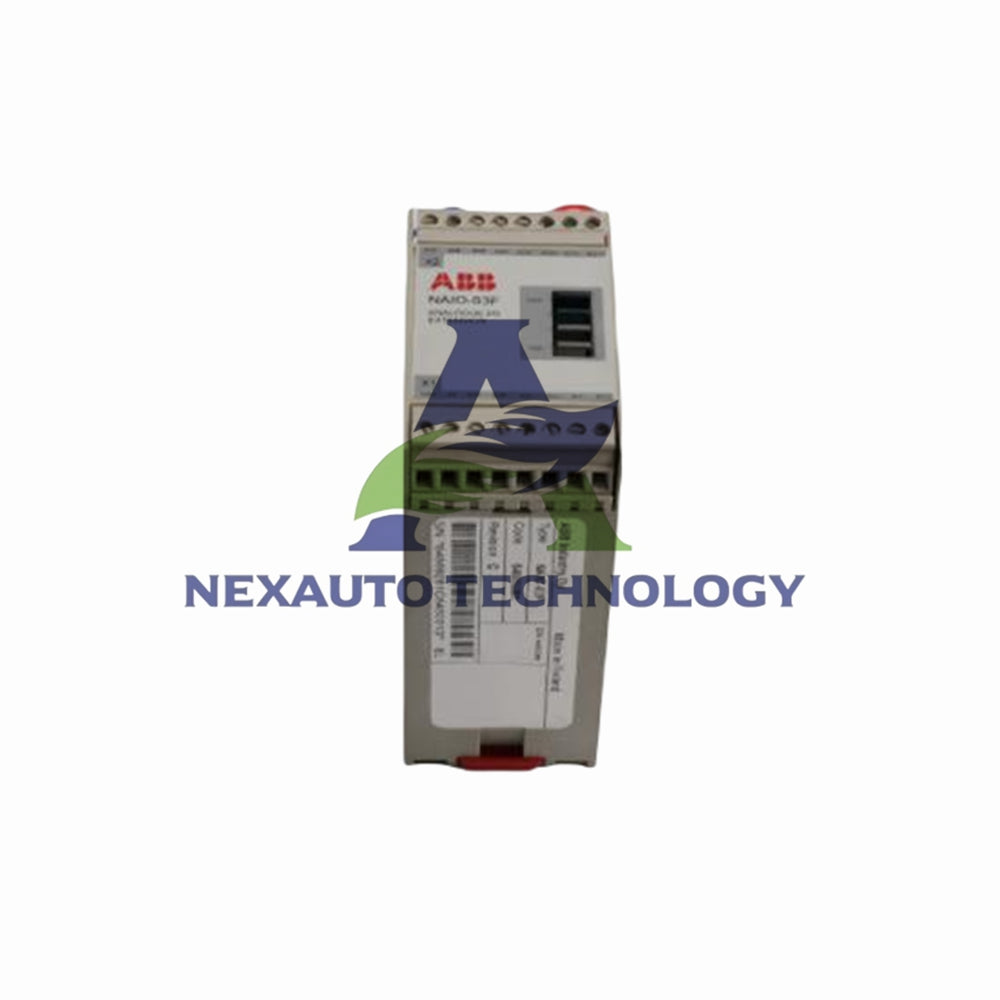

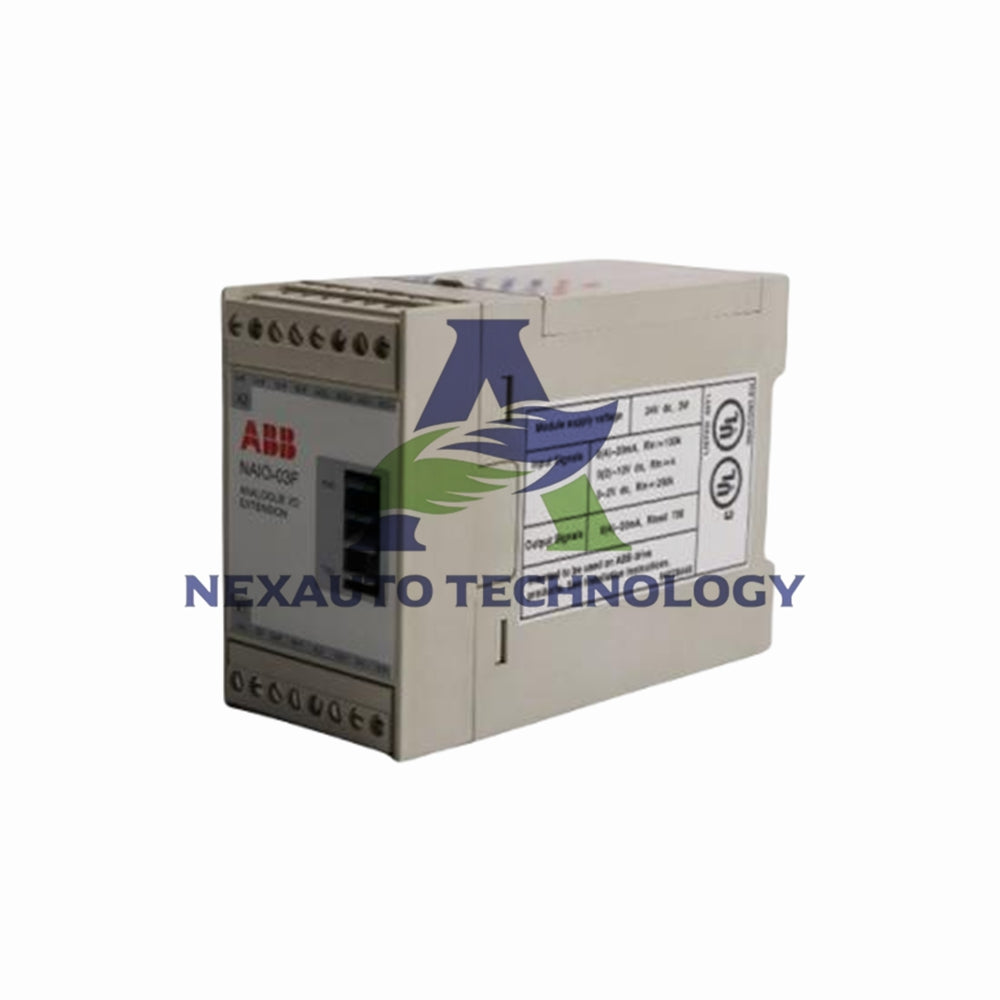

NAIO-03 ABB Modul Sambungan I/O Analog

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (1000 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Spesifikasi Teknikal

Parameter Spesifikasi
Bahan Perumahan Plastik
Dimensi 45 mm x 75 mm x 105 mm
Penggunaan Kuasa 160 mA pada 24 V d.c.
Sijil Bahan Semua bahan disahkan UL/CSA.
Ketahanan Transien Pantas (IEC 801-4) 4 kV 5/50 ns
Pancaran Elektromagnet Mematuhi EN 55022 B
Pemancar dan Penerima Optik Penyambung umum yang serasi dengan Hewlett-Packard untuk sambungan ACS 600.
Blok Terminal Dua blok terminal Phoenix Contact MVBSTW 2.5/8-ST-5.08 untuk menyambung isyarat I/O analog dan bekalan kuasa.
Seksi Silang Wayar yang Diterima 0.5 hingga 2.5 mm²
Input Analog (1 dan 2) - Jenis Isyarat Input: 0(4) hingga 20 mA, 0(2) hingga 10 V, 0 hingga 2 V
Impedans Input 100 Ω (mod arus), 200 kΩ (mod voltan)
Resolusi Mod Unipolar: 0.024% (data 12-bit), Mod Bipolar: 0.048% (data 11-bit + bit tanda)
Ketepatan ±0.5% daripada skala penuh pada 25°C
Pekali Suhu Maksimum +100 ppm/°C
Pengasingan Terasing dari bekalan kuasa dan bumi
Voltan Ujian 1.5 kV a.c. selama 1 minit
Voltan Mod Biasa +15 V
Masa Penapisan Perkakasan Kira-kira 2 ms
Output Analog (1 dan 2) - Jenis Isyarat Output: 0(4) hingga 20 mA
Impedans Beban Maksimum 700 Ω
Resolusi 0.024% (12-bit)
Ketepatan ±0.5% daripada skala penuh pada 25°C
Pekali Suhu Maksimum +100 ppm/°C
Pengasingan Terasing dari bekalan kuasa dan bumi
Voltan Ujian 1.5 kV a.c. selama 1 minit
