1771-ID Input Module | Allen-Bradley

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
Only 10 units left
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7
  • Vendor:

    Allen-Bradley

  • Type:

    Input Module

  • Tags Input module

About the Product

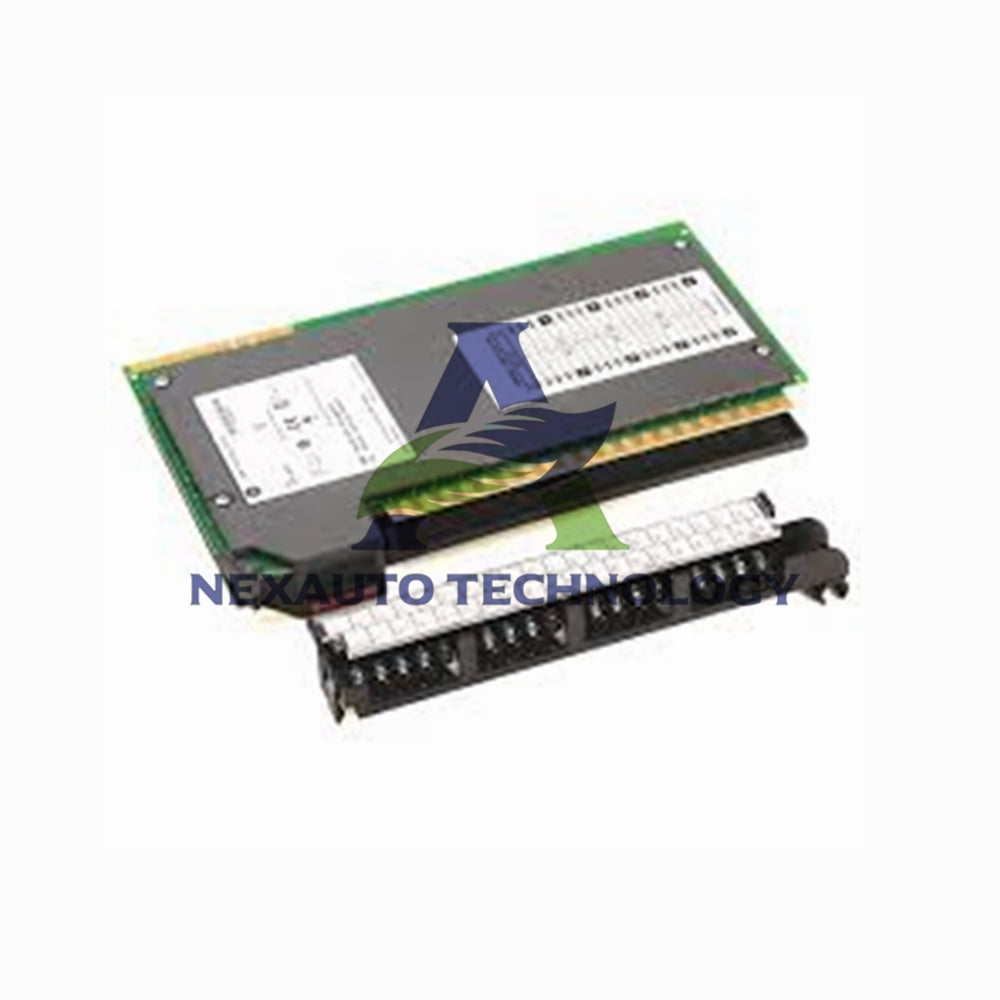

Allen-Bradley 1771-ID Isolated AC/DC Input Module – 6 Inputs, 92-138 V AC/DC

Key Technical Specifications

Number of Inputs: 6 isolated channels

Operating Voltage Range: 92 to 138 Volts AC or DC

AC Frequency Range: 47 to 63 Hz

Nominal Input Current: 8 mA at 120 V AC or DC

Backplane Current Draw: 74 mA

Signal Delay (AC): 24 ± 10 ms (On/Off)

Signal Delay (DC): On 10 ± 4 ms, Off 20 ± 9 ms

Power Dissipation: 0.4 to 4.4 Watts

Thermal Dissipation: 1.3 to 15.0 BTU/hr

Dimensions: 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm)

Weight:0.8kg

Operating Temperature: 0 to 60°C (32 to 140°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Humidity: 5-95% non-condensing

Field Wiring Arm: Catalog No. 1771-WD

Wire Size: 14 AWG stranded or solid copper, max insulation 3/64"

  • Quick Quotes: Receive pricing and availability fast from our dedicated customer service team.
  • Delivery: Expedited, freight, and international shipping available worldwide.
  • Warranty: NexAuto offers a 12-month warranty on all parts purchased from us, in addition to any manufacturer coverage.
  • Returns: 30-day return policy for defective or mismatched parts, ensuring peace of mind.
  • Payment: Flexible options including major credit cards, PayPal, and bank transfers.
  • Custom Calibration: Provide your specifications, and we’ll handle the rest with precision.
