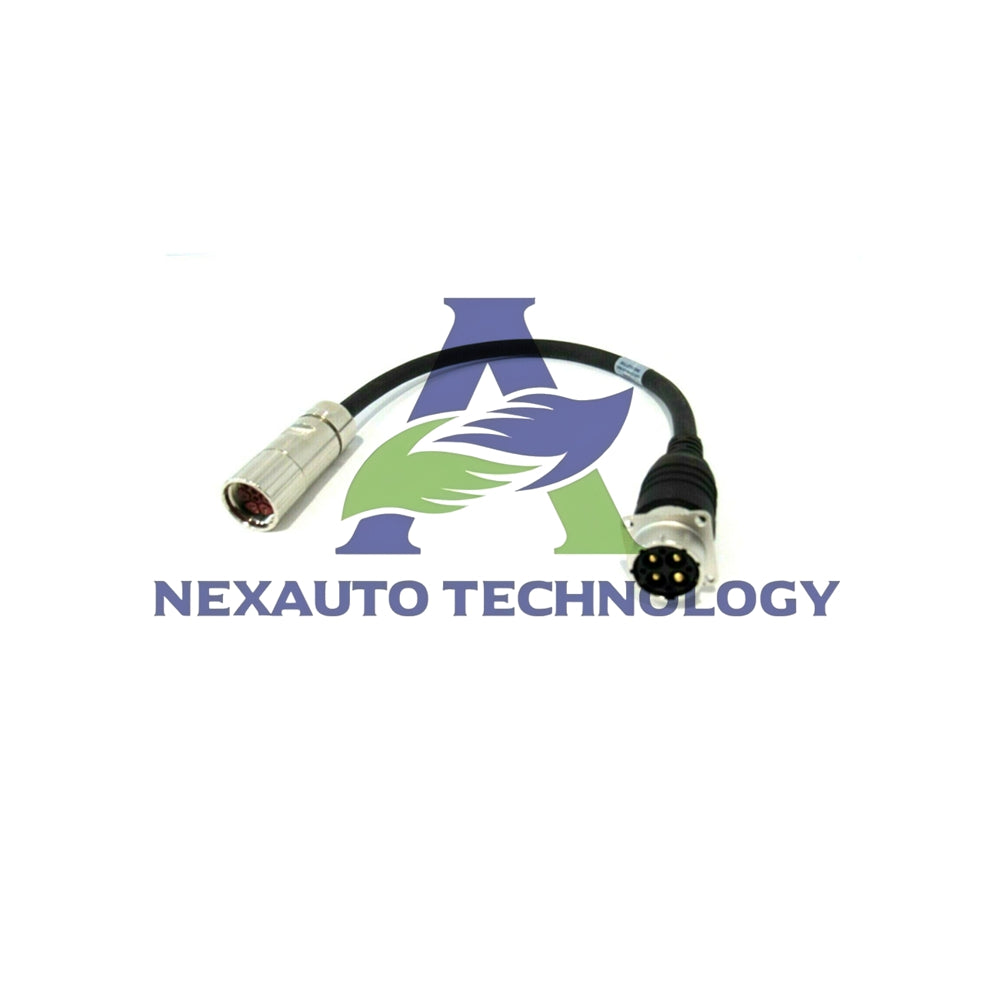

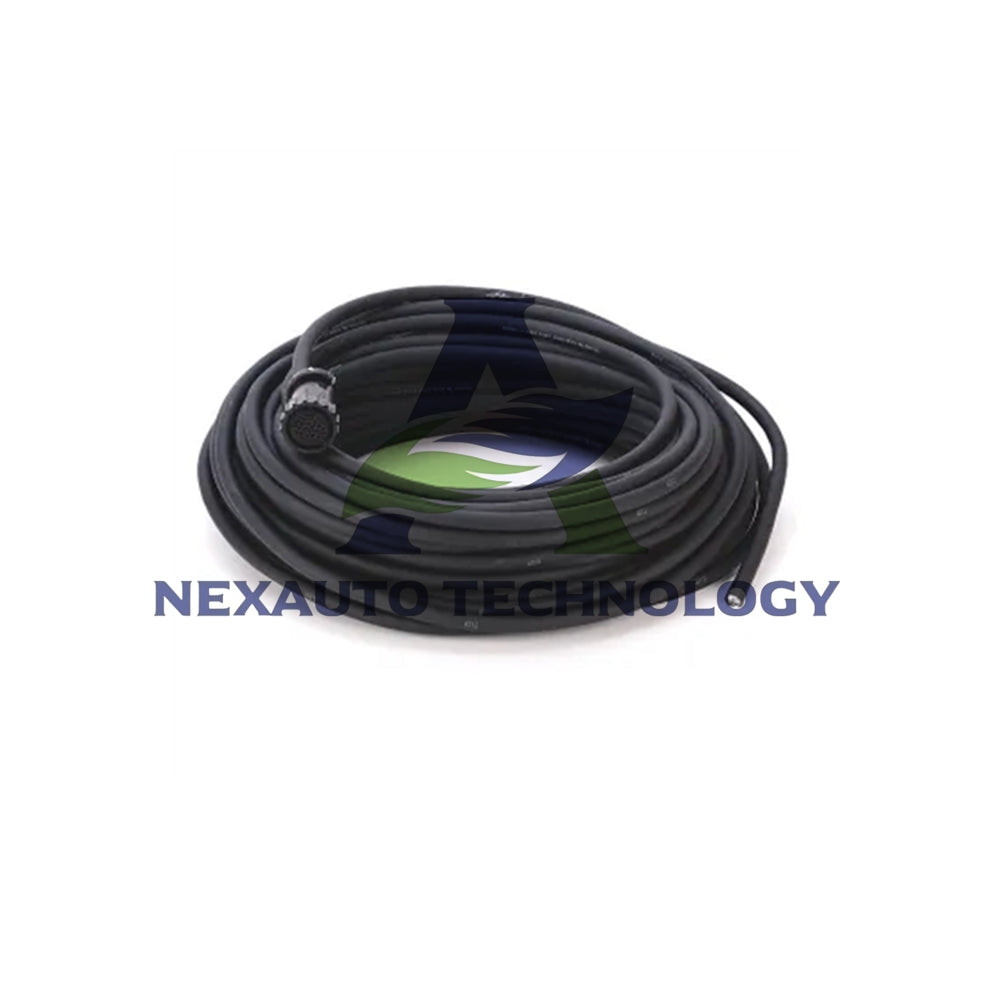

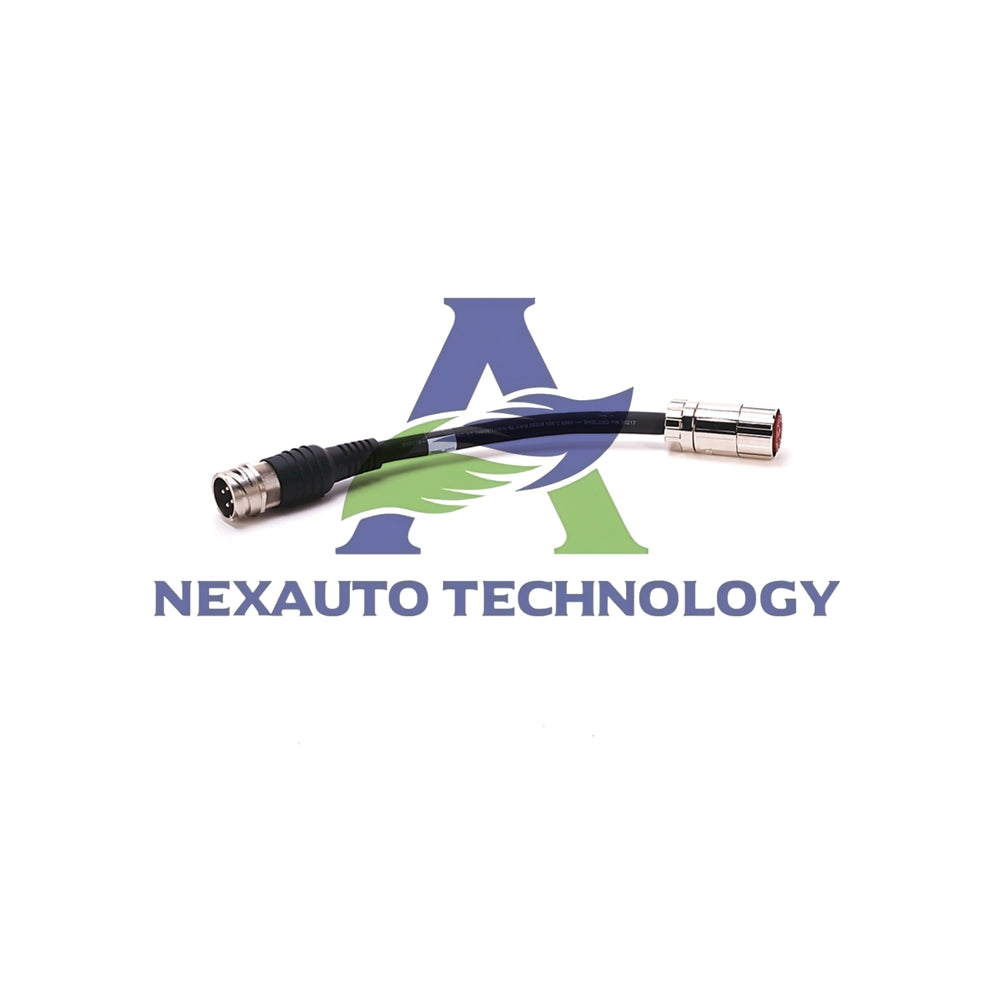

2090-CPBM4DF-10AF12 Allen-Bradley Servo Cable 10m

Allen-Bradley 2090-CPBM4DF-10AF12 Servo Cable – 10 m Continuous-Flex Cable for Kinetix Drives

Technical Specifications

• Brand: Allen-Bradley
• Model: 2090-CPBM4DF-10AF12
• Series: 2090 servo cable family
• Category: Continuous-flex servo cable with brake conductors
• Length: 10 meters (32.8 ft)
• Conductor count: 4 power conductors plus 2 brake conductors
• Voltage rating: 600 V
• Temperature range: -20 °C to +80 °C (fixed) / -10 °C to +80 °C (flexing)
• Minimum bend radius: 7.5 × cable diameter for continuous flex
• Jacket material: Polyurethane (TPU), oil-resistant and flame-retardant
• Shielding: Tinned copper braid, 85% coverage
• Insulation resistance: ≥ 20 MΩ·km
• Nominal conductor cross-section: 4 × 1.5 mm² power + 2 × 1.0 mm² brake
• Capacitance: ≤ 120 pF/m (conductor to conductor)
• Inductance: ≤ 0.65 µH/m
• Environmental resistance: Resists oil, coolant, UV, and abrasion
• Noise immunity: Braided shield reduces EMI and crosstalk
• Connector type: Factory-molded M23 and M8 connectors (drive end and motor end)
• Compatibility: Kinetix 5500, 5700, 6000, and 6500 drives

Installation Guide

• Route the cable away from high-voltage power lines to lower electrical noise.
• Respect the 7.5 × diameter bend radius to prevent conductor fatigue.
• Secure the cable every 300 mm on moving axes to avoid stress on connectors.
• Align the keyway on the M23 connector before you tighten the coupling nut.
• Do not pull the cable by its connectors during installation or removal.
• Check shield continuity from drive end to motor end after wiring.
• Keep the cable clear of sharp edges and hot surfaces above 80 °C.

FAQ

• Q: What drives work with the 2090-CPBM4DF-10AF12?
  A: It pairs with Kinetix 5500, 5700, 6000, and 6500 drives that use M23 and M8 connectors.
• Q: Can I use this cable in a continuous-flex drag chain?
  A: Yes. The TPU jacket and 7.5 × diameter bend radius support continuous flexing.
• Q: What is the maximum voltage for this servo cable?
  A: The cable carries a 600 V rating for power conductors and brake pairs.
• Q: Does the shield block electrical noise from the drive?
  A: Yes. The 85% tinned copper braid lowers EMI and crosstalk in noisy cabinets.
• Q: What temperature range does the cable handle?
  A: It works from -20 °C to +80 °C when fixed and -10 °C to +80 °C when flexing.
• Q: How fast can you ship this item?
  A: We ship in-stock items within 5 business days by FedEx, UPS, or DHL.
• Q: Can I return the cable if it does not fit?
  A: Yes. We accept returns within 30 days for unused items in original packaging.
