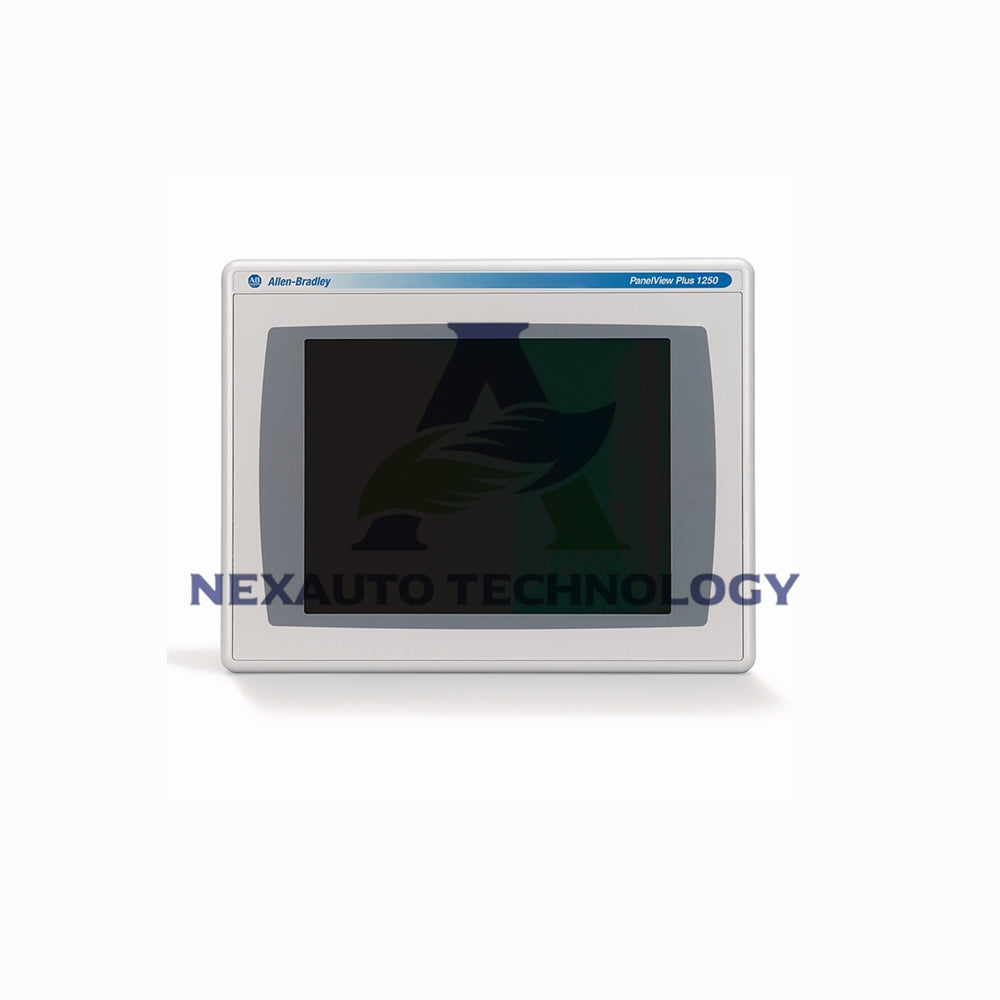

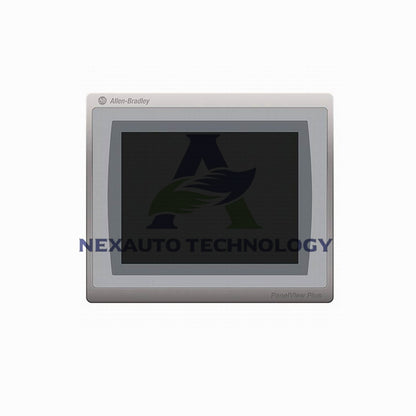

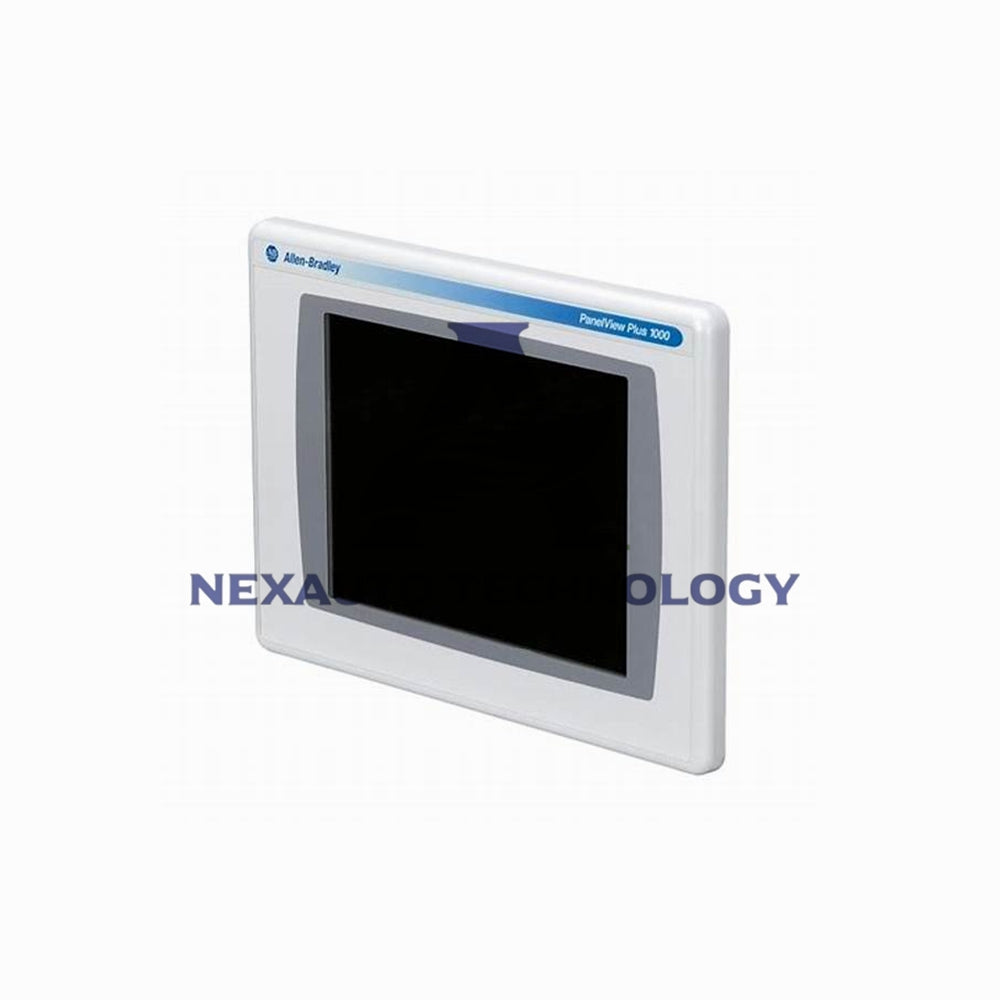

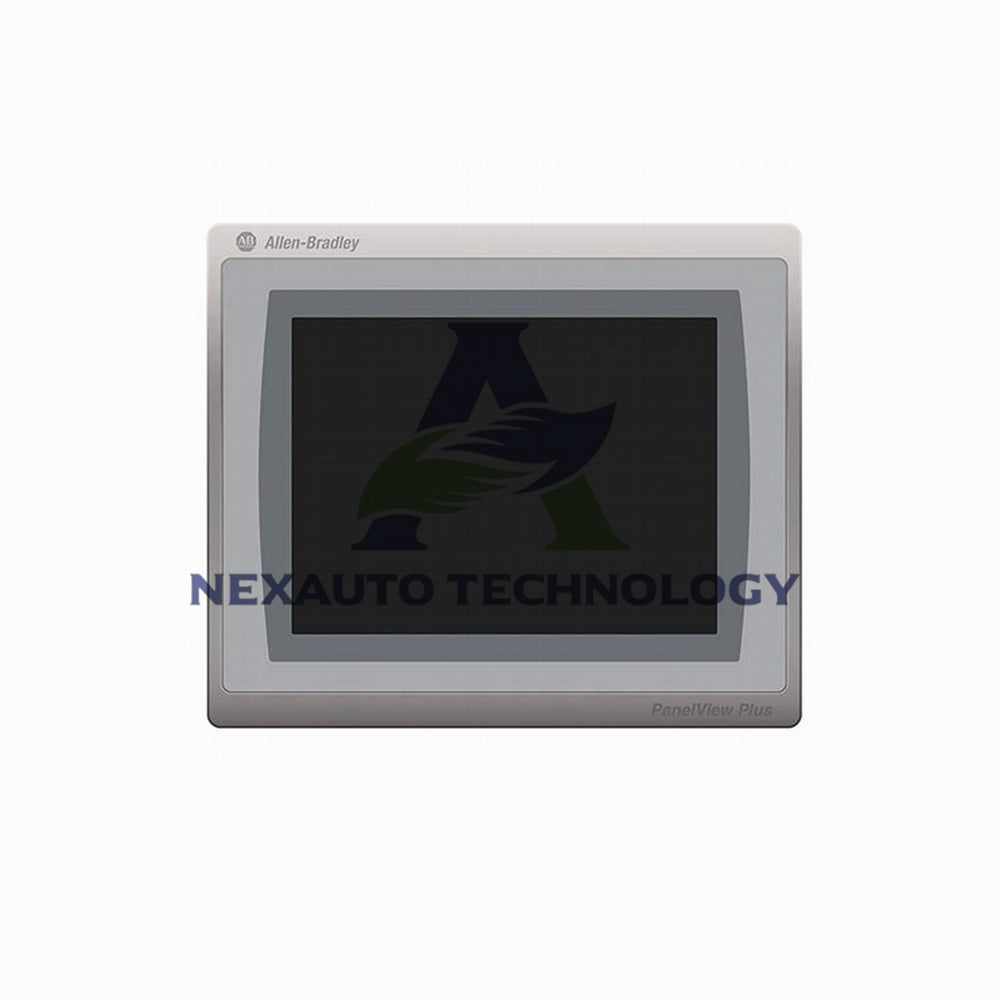

Allen-Bradley 2711P-T12C4D8K PanelView Plus 6 Operator Terminal

The Allen-Bradley 2711P-T12C4D8K represents industrial excellence in operator interface technology. This PanelView Plus 6 terminal combines robust construction with advanced features for reliable performance in demanding industrial environments.

Core Technical Specifications

• Manufacturer: Allen-Bradley
• Product Series: PanelView Plus 6
• Model Number: 2711P-T12C4D8K
• Display Type: 12.1 inch TFT Color Touchscreen
• Screen Resolution: 800 x 600 pixels SVGA
• Power Requirements: 18-32V DC, 70W maximum
• Memory Capacity: 512 MB DRAM
• Communication Interfaces: Ethernet, USB
• Physical Weight: 3.2 kilograms
• Environmental Rating: IP65 front panel

Display Performance Features

• High-resolution 12.1 inch display ensures excellent visibility
• Resistive touchscreen technology provides reliable operation
• Wide viewing angles maintain clarity from different positions
• Bright backlighting supports use in various lighting conditions
• Durable glass surface resists scratches and impacts

Connectivity and Communication

• Integrated Ethernet port for network connectivity
• Multiple USB ports for peripheral connections
• Support for industrial protocols including EtherNet/IP
• Easy integration with Allen-Bradley control systems
• Flexible network configuration options

Environmental Specifications

• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity range: 5% to 95% non-condensing
• Maximum altitude: 1000 meters (3280 feet)
• Vibration resistance: 5g operational rating

Installation and Mounting

• Panel cutout dimensions: 308 x 238 mm (12.13 x 9.37 inches)
• Standard industrial mounting for control panels
• Front panel IP65 rating for dust and water protection
• Easy access to communication and power terminals
• Tool-less installation for quick setup

Application Benefits

• Enhanced operator interface for industrial automation
• Reliable performance in harsh industrial environments
• Easy integration with existing control systems
• Reduced training time with intuitive touch interface
• Minimal maintenance requirements
• Long service life with robust construction

Package Contents

• Allen-Bradley 2711P-T12C4D8K operator terminal
• Installation and mounting hardware kit
• Comprehensive user documentation
• Factory calibration certificates
• Regulatory compliance documentation

Shipping and Delivery Information

• Carefully packaged for industrial equipment protection
• Worldwide shipping via FedEx, UPS, and DHL
• Fast order processing and dispatch
• Real-time tracking information provided
• Professional logistics handling
