330102-00-12-90-02-05 9m Armored Probe Bently Nevada

9-Meter Armored 8mm Probe with Full Hazardous Area Approvals

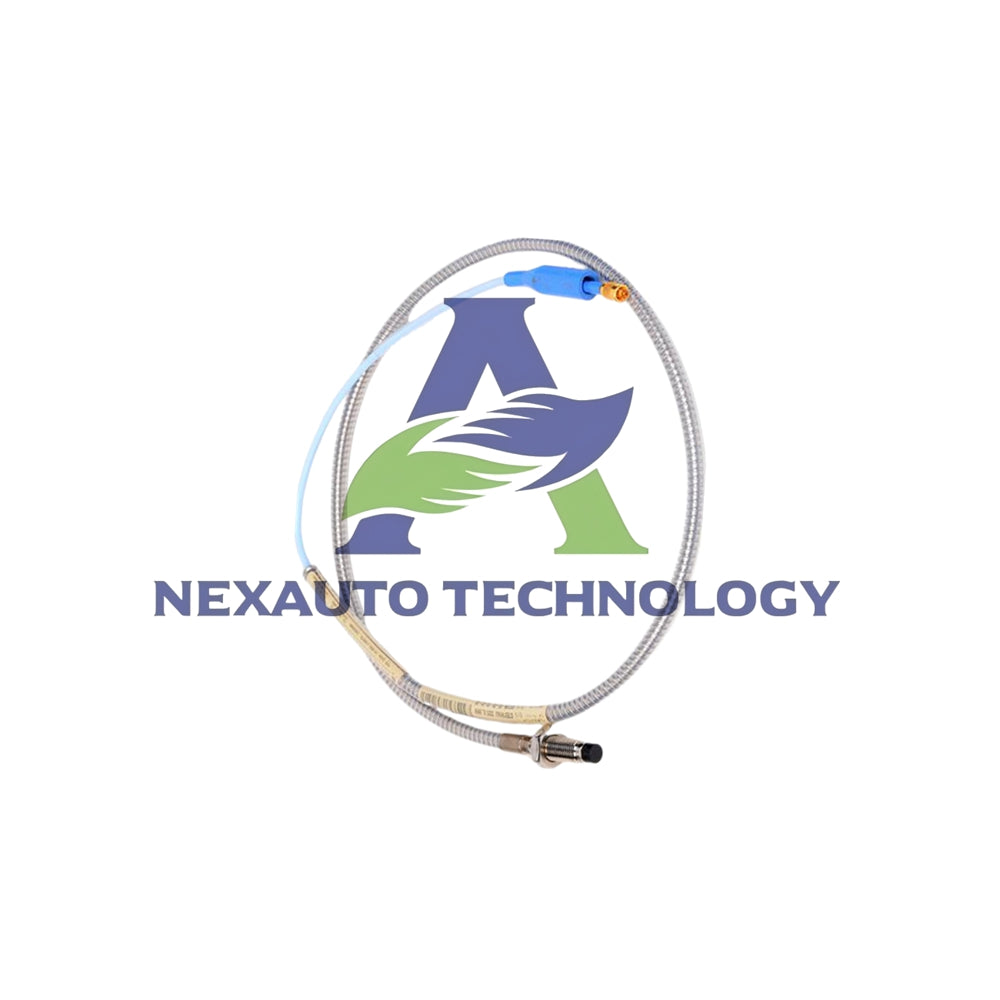

The Bently Nevada 330102-00-12-90-02-05 belongs to the trusted 3300 XL series. Made in U.S.A., we design this long-cable armored 8mm probe for accurate displacement and vibration measurements in remote monitoring applications requiring hazardous area certification. The flush zero-inch tip (0.0 in) allows threads to start immediately at the probe face. The 9.0 meter (29.5 feet) total length enables installation far from the proximitor. It carries CSA, ATEX, and IECEx approvals for explosive atmospheres worldwide. It features a 3/8-24 UNF thread for inch-series mounting.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330102-00-12-90-02-05. Made in U.S.A.
• Product Type: 3300 XL 8 mm Proximity Probe with 3/8-24 UNF thread, with armor.
• Dimensions: Zero unthreaded tip (flush mount), 1.2 inch (30mm) overall case length, and 9.0 meter (29.5 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• DC Resistance: Nominal probe resistance measures 9.87 ± 0.50 Ω for 9.0m length.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• Approvals: CSA, ATEX, IECEx for hazardous area installation.
• Power Requirement: -17.5 Vdc to -26 Vdc with 12 mA maximum consumption.
• Output Resistance: 50 Ω.

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Armor Protection: Cable armor resists mechanical damage in high-wear installations.
• Hazardous Locations: Certified for Class I, Zone 0 and Zone 2 environments with appropriate barriers.
• Altitude: Tested at maximum 2000 meters altitude.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 0.563 inch (14.3 mm) for 3/8-24 UNF case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.
• Safety Barrier Required: Install with intrinsic safety barriers per drawing 141092 for Zone 0 applications.
• Flush Mount Design: Zero tip length allows probe face to sit at or near mounting surface.
• 9-Meter Compatibility: Designed for use with 9 meter Proximitor sensor only.

Package Includes

• One Bently Nevada 330102-00-12-90-02-05 3300 XL 8 mm Probe with armor.
• Factory-attached ClickLoc connector and 9.0m armored cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

What is special about 9-meter length?

This 9.0m probe works exclusively with 9 meter Proximitor sensors. Enables remote mounting far from monitoring location.

What approvals does this probe have?

This model carries CSA, ATEX, and IECEx certifications. Suitable for hazardous areas worldwide.

What does flush mount mean?

Zero unthreaded tip means threads start immediately. Probe face sits at or near mounting surface.

Compatible with 3300 XL systems?

Yes. This 330102-00-12-90-02-05 works with Bently Nevada 3300 XL 9m Proximitor sensors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm or 50 mils). This centers probe within linear range.
