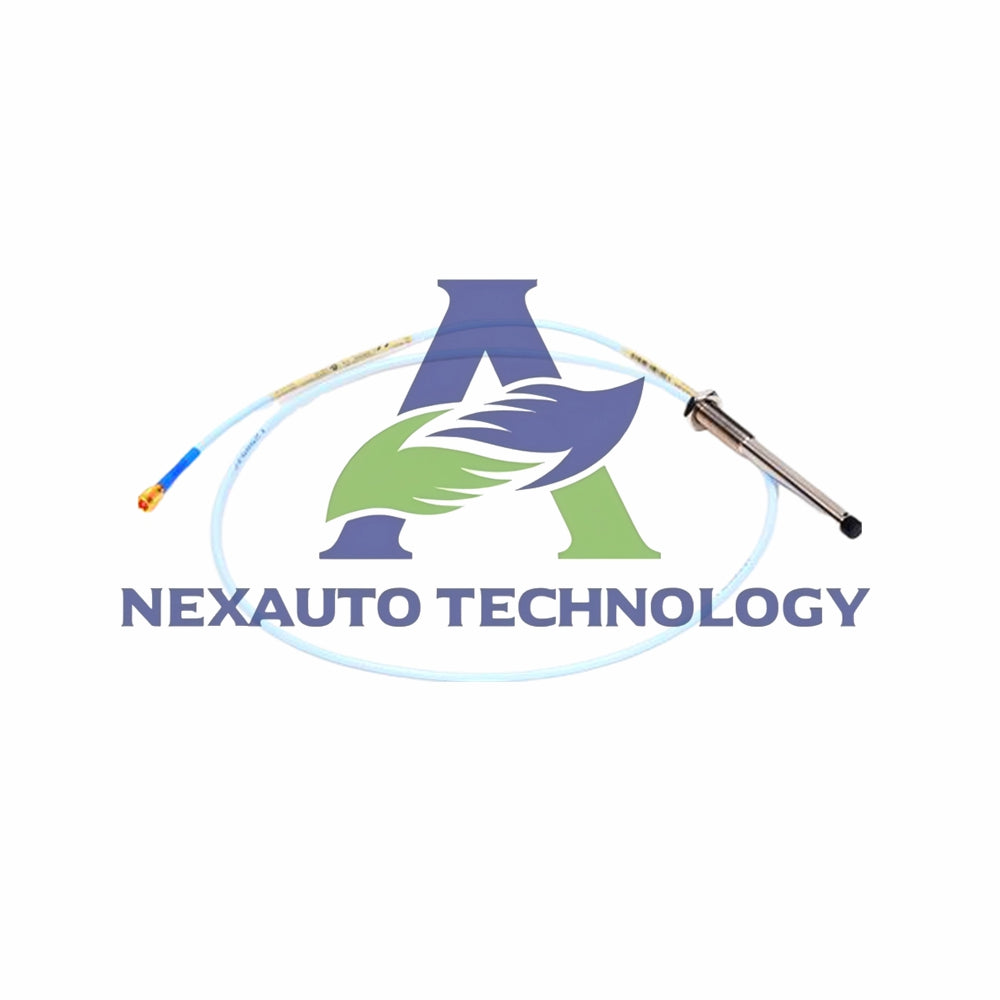

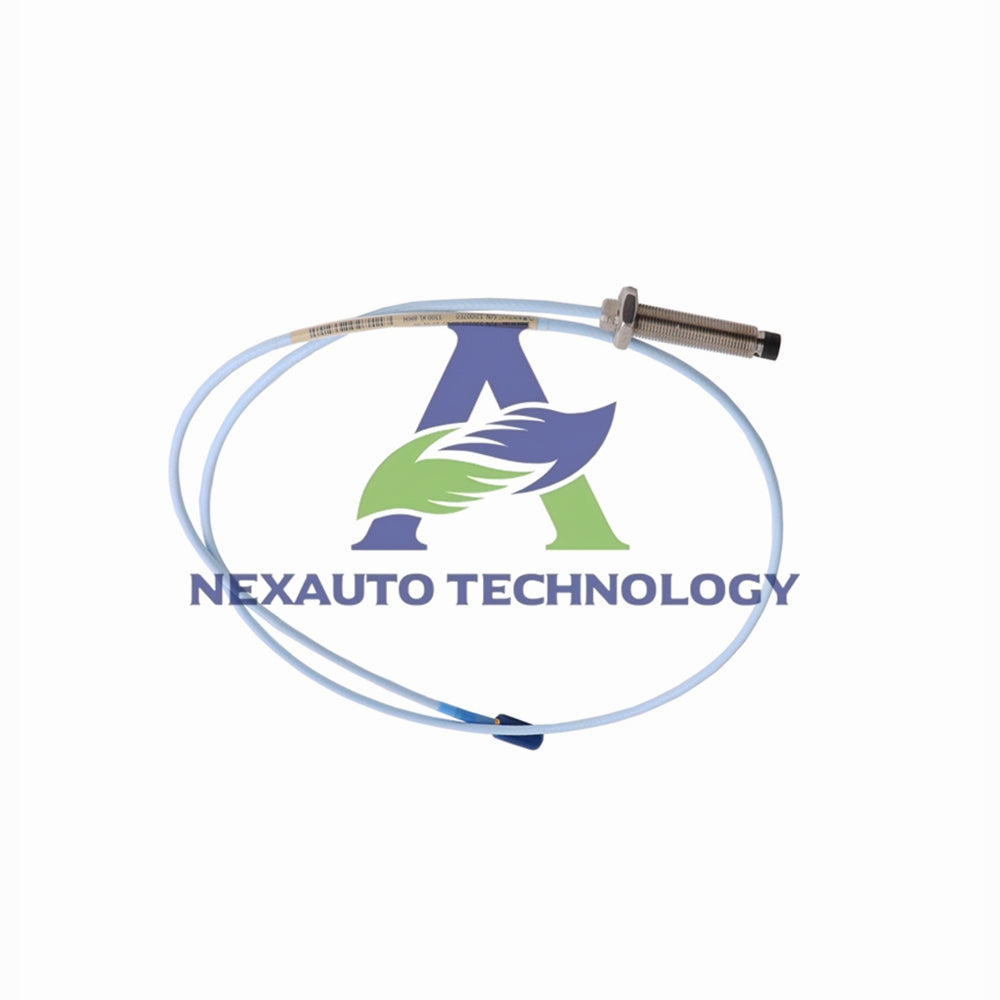

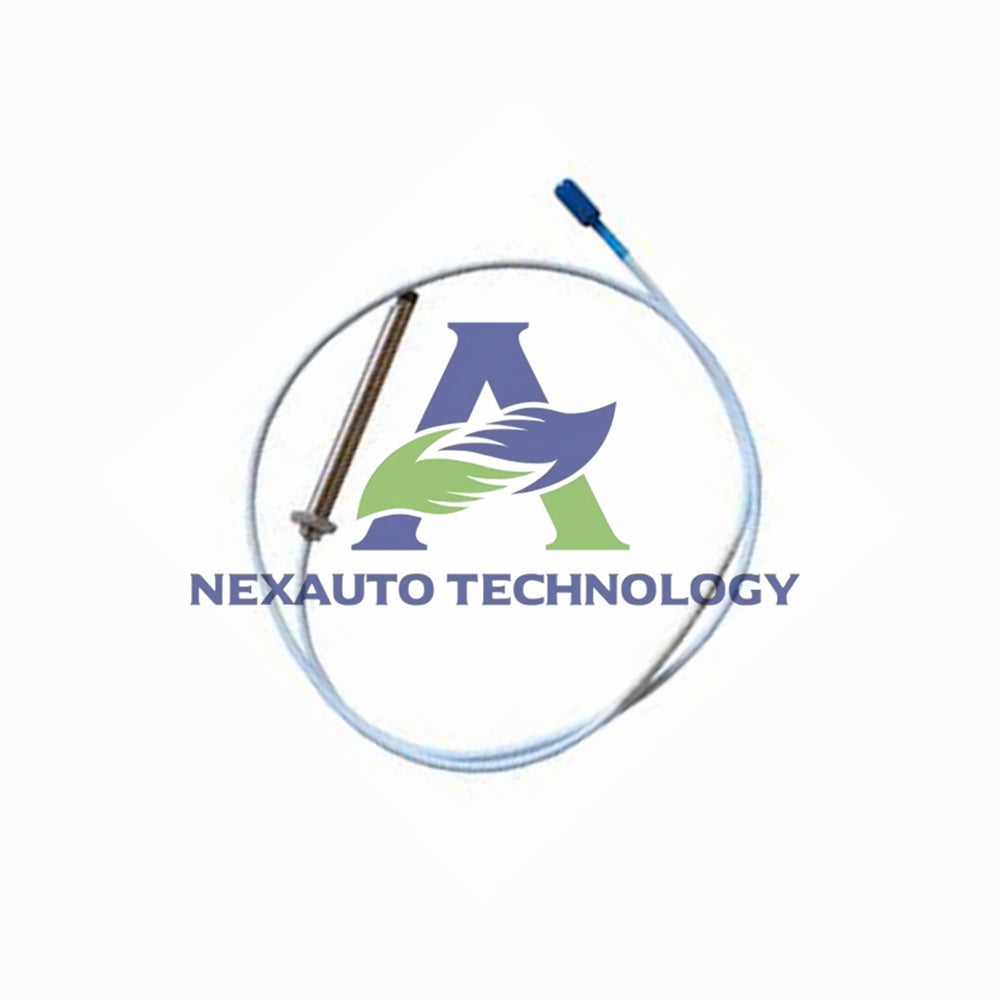

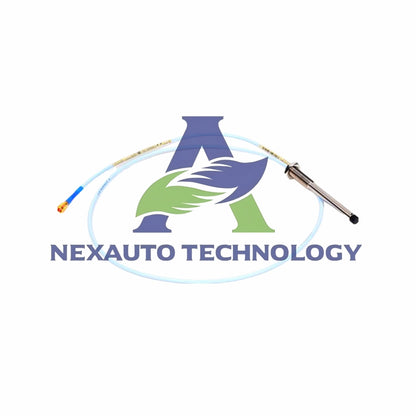

330103-00-05-05-01-CN Proximity Probe Bently Nevada

Compact 8mm Proximity Probe for Tight Installations

The Bently Nevada 330103-00-05-05-01-CN belongs to the trusted 3300 XL series. We design this short 8mm probe for accurate displacement and vibration measurements in space-constrained locations. It operates within a 2mm (80 mils) linear range, starting at 0.25 mm from the target. For radial vibration monitoring, we recommend a gap setting of -9 Vdc, which equals approximately 1.27 mm. This sensor provides reliable data for protecting turbines, compressors, and other rotating equipment.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330103-00-05-05-01-CN.
• Product Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread, no armor.
• Dimensions: Zero unthreaded length, 50mm overall case length, and 0.5 meter (1.6 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with connector protector and standard cable.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• DC Resistance: Nominal probe resistance measures 7.45 ± 0.50 Ω for 0.5m length.
• Weight: Probe weighs 323 g/m (11.4 oz/ft).

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Humidity: Average Scale Factor changes less than 3% after 56 days in 93% humidity.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Connector Protector: Added protection keeps ClickLoc connection secure in harsh conditions.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 15 mm for M10x1 case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.

Package Includes

• One Bently Nevada 330103-00-05-05-01-CN 3300 XL 8 mm Probe.
• Factory-attached ClickLoc connector with protector and 0.5m standard cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

Why choose this short probe?

The 50mm case length fits tight spaces where longer probes won't work. Ideal for compact machinery.

What is the connector protector?

It shields the ClickLoc connection from debris and accidental impact. Adds durability in harsh environments.

Compatible with 3300 XL systems?

Yes. This 330103-00-05-05-01-CN works with all Bently Nevada 3300 XL proximitors and monitors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm). This centers probe within linear range.

Standard cable vs FluidLoc?

This model uses standard cable. Choose FluidLoc version for wet or oil-rich environments.
