3500/32 125712-01 | 4 Channel Relay Module Bently Nevada

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
Only 7 units left
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

4 Channel Relay Module 3500/32 125712-01

Environmental Specifications

  • ▶ Operating Temperature: -30°C to +65°C (-22°F to +150°F)
  • ▶ Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • ▶ Humidity Tolerance: 95% RH (non-condensing)
  • ▶ Vibration Resistance: Up to 7.5g peak (15Hz to 2000Hz)

Performance Highlights

  • ⚡ Max Switching Speed: 10ms (ON/OFF response)
  • ⚡ Contact Resistance: ≤100mΩ initial value
  • ⚡ Isolation Resistance: >100MΩ (500Vdc test)
  • ⚡ Mechanical Endurance: 10 million operations

Electrical Ratings

  • 🔌 DC Load Capacity: 5A @ 30Vdc (120W max)
  • 🔌 AC Load Capacity: 5A @ 250Vac (600VA max)
  • 🔌 Minimum Switching Current: 10mA @ 5Vdc
  • 🔌 Dielectric Strength: 1500Vac (50/60Hz, 1min)

Physical Dimensions

  • 📏 Main Module: 241×24.4×242mm (9.50×0.96×9.52in)
    Weight: 0.7kg/1.6lb
  • 📏 I/O Module: 241×24.4×99.1mm (9.50×0.96×3.90in)
    Weight: 0.4kg/1.0lb
  • 📏 Mounting Torque: 0.5-0.6Nm (4.4-5.3lb-in)

Enhanced Features

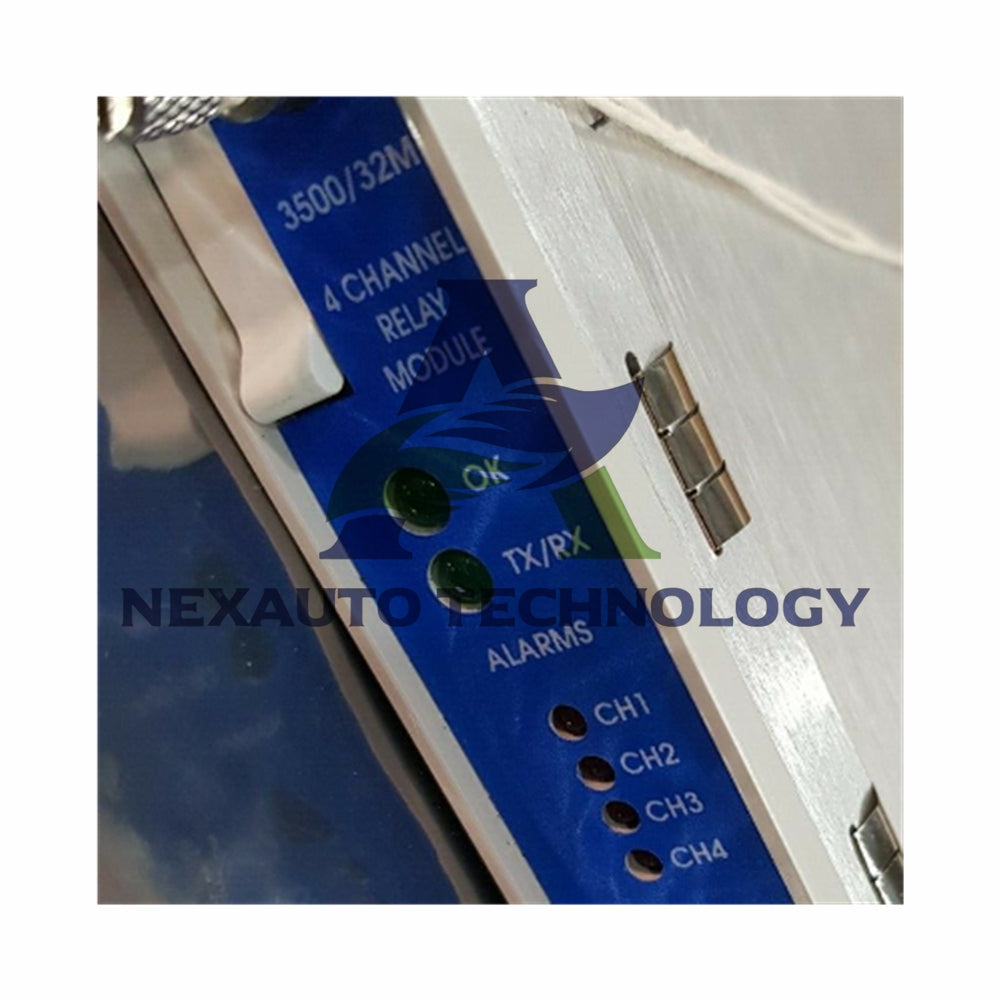

  • ✅ LED Status Indicators: 4-channel independent monitoring
  • ✅ Surge Protection: 4kV contact-to-coil transient suppression
  • ✅ Safety Certifications: UL/CUL, CE, RoHS compliant
Technical Support: sales@nex-auto.com | Response Time: ≤2 business hours
Compatibility: Works with 3500/33, 3500/42 series monitors
