3500/94M-07-12-01 Bently Nevada | VGA Module

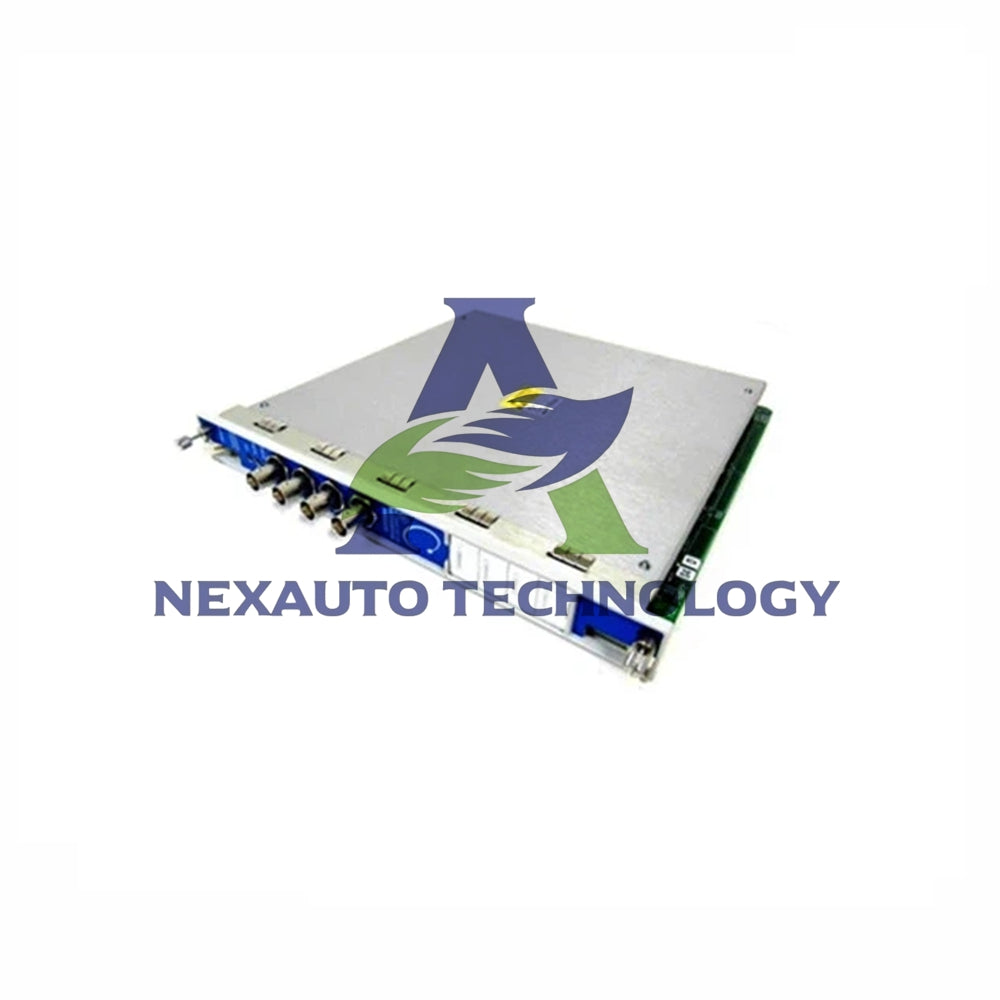

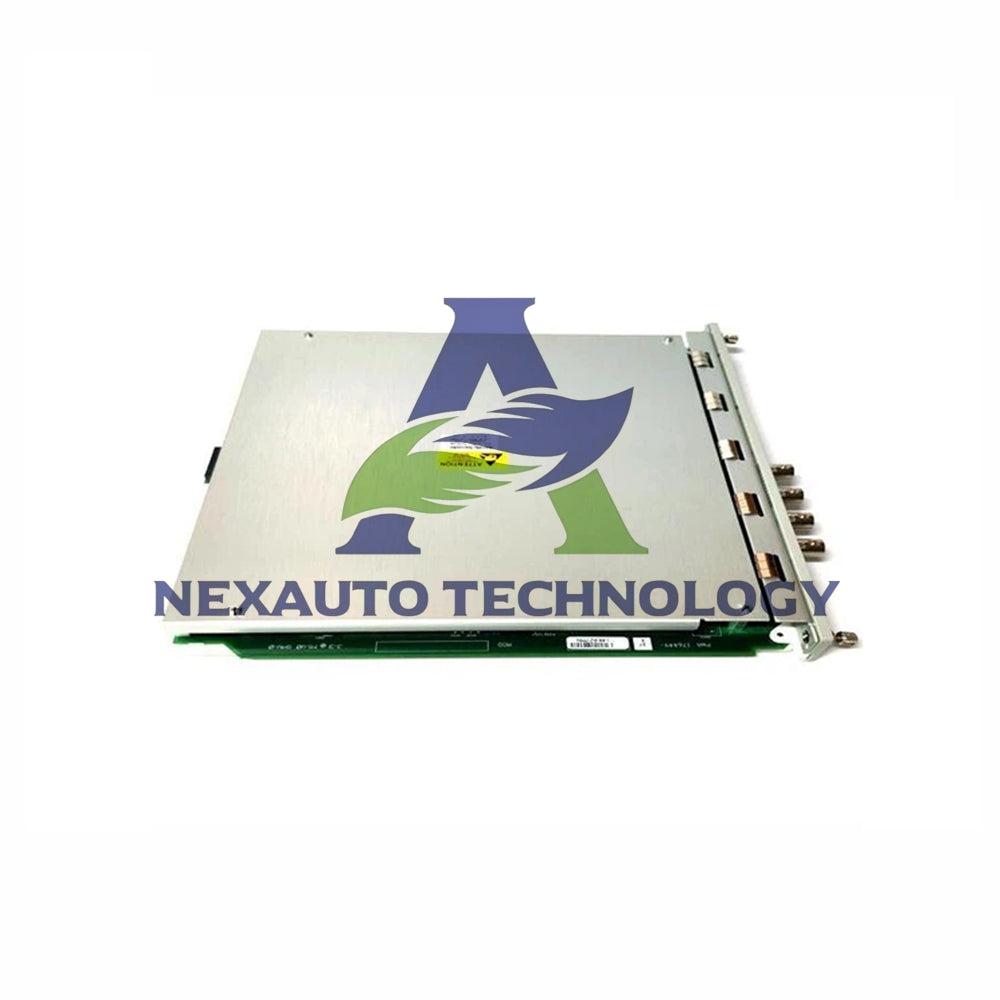

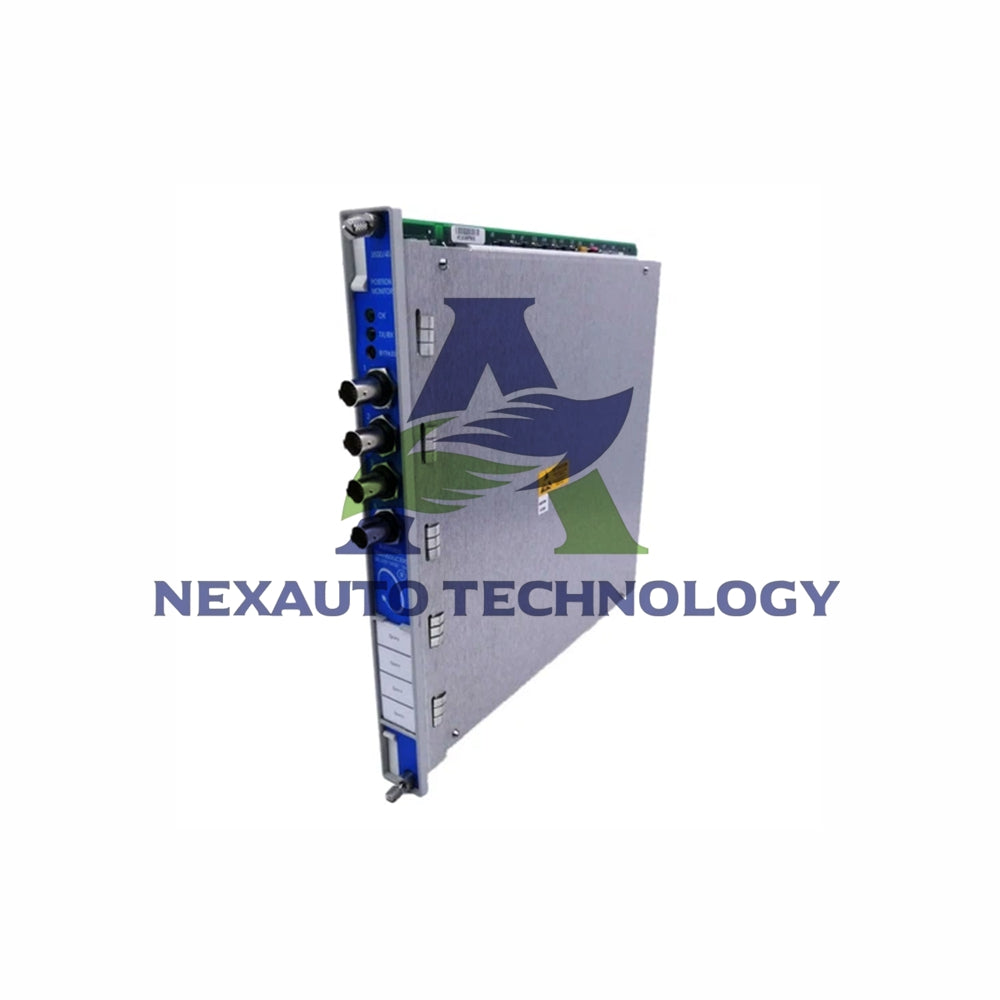

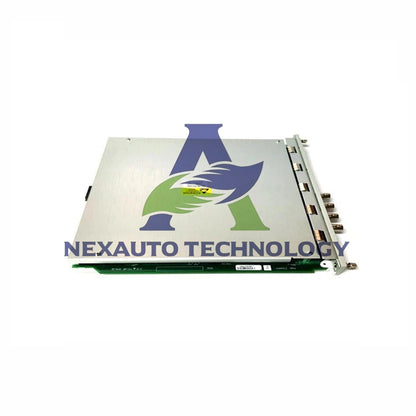

Bently Nevada 3500/94M-07-12-01: VGA Display Module with CSA Class I Div 2

Bently Nevada delivers reliable machinery protection. The 3500/94M-07-12-01 VGA Display Module shows real-time vibration data. This configuration uses a router box with no display. It includes a 20 ft (6m) cable for flexible installation. The module operates from -20°C to +65°C. Use it for continuous monitoring in power plants, oil refineries, and factories. Made in U.S.A.

Ordering Information

• Model Code: 3500/94M-AA-BB-CC
• AA - Display Size and Mounting: 07 = Router box, no display
• BB - KVM Extender and Display Router Box Cables: 12 = Display Router Box cable 20 ft (6m)
• CC - Agency Approval Option: 01 = CSA/NRTL/C (Class I, Division 2)
• Total Weight: 1.07 kg

Key Features

• Power Consumption: 4.6 watts max, very efficient.
• High-Speed Network: Monitors status, data, and values.
• RS232 Port: Handles touch controller data.
• OK LED: Indicates proper module operation.
• TX/RX LED: Shows communication with other system modules.
• VGA Port: Outputs analog red, green, blue, and sync signals.
• Front Port: Provides 24 Vdc power out, VGA signal out, and touch commands in.

Environmental Limits

• Operating Temperature: -20°C to 65°C (-22°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95%, non-condensing

Compliance and Certifications

• FCC Part 15: This device may not cause harmful interference. This device must accept any interference received.
• EMC Standards: EN 61000-6-2, EN 61000-6-4, Directive 2014/30/EU
• Electrical Safety Standards: CSA C22.2 61010-1, UL EN 61010-1, Directive 2014/35/EU
• RoHS: Directive 2011/65/EU
• Hazardous Area Approval: CSA/NRTL/C (Class I, Division 2)

Physical Characteristics

• 3500/94M VGA Display Module: 241.3 mm x 24.4 mm x 241.8 mm, weight 0.73 kg (1.6 lb)
• I/O Module: 241.3 mm x 24.4 mm x 99.1 mm, weight 0.34 kg (0.75 lb)
• 15" Advantech Display (FPM-8151): 422 mm x 338 mm x 68 mm, weight 8.5 kg (18.75 lb)
• Display Screen Diagonal: 381 mm (15 in)

Rack Space Requirements

• Monitor Module: 1 full-height front slot
• I/O Module: 1 full-height rear slot

Keyboard Video Monitor (KVM) Extender

• Mounting: Shelf top
• Power Input: 12 Vdc and 5 Vdc
• Agencies: UL certification for North America only
• Temperature Range: 0°C to 45°C (32°F to 113°F)
• Humidity: 80%, non-condensing
• Class I, Division 2: KVM Extender Receiver approved for hazardous areas. Transmitter requires a safe area or approved enclosure.
• NEMA 4X: Not approved

Advantech 15" Display (FPM-8151H)

• Screen Size: 15" diagonal
• Type: LCD with LED backlight
• Industrial Hardened: Yes
• Mounting Styles: 19" Rack Mount, Panel Mount
• Power: 24 Vdc power supply included. Permissible range 12 Vdc to 24 Vdc. Inrush current 2.62 A at 24 V (less than 500 µs). Operating current less than 500 mA.
• IP65: Yes
• Agencies: CE, UL
• Class 1, Div 2: Yes
• Temperature: 0°C to 60°C (32°F to 140°F). Minimum rating is 0°C. A heated enclosure is required below freezing.
• Humidity: 95% RH
• Touch Interface: Resistive
• Manufacturer: Advantech
• Dimensions: 422 mm x 338 mm x 68.0 mm. Panel cutout 396 mm x 296 mm.
• Shipping Weight: 8.5 kg (18.74 lb)
• Warranty: Two years
• Recommendation: Industrial use only. Not certified for hazardous locations.

Firmware, Software, and Hardware Requirements

• Required Module: 3500/22 TDI (Transient Data Interface)
• 3500/94M Firmware: 4.06 Rev C or newer
• 3500/22 Firmware (TDI): Rev 1.71 or newer
• 3500/01 Software (Rack Config): Rev 5.6 or newer
• 3500/02 Software (Op Display): Rev 2.21 or newer
• 3500/03 Software (Data Acquisition): Rev 1.22 or newer

3500/94M Display Router Box

• Power: 24 Vdc ± 6%, 4.7 watts max. Input range 22.5 to 25.5 Vdc.
• VGA Inputs: Video image
• RS232 Inputs: Touch screen control data
• OK Status LED: Indicates proper operation
• VGA Output: Video image
• RS232 Output: Touch screen control data

Package Contents

• 3500/94M VGA display module
• I/O module for the 3500 rack
• Display router box (no display included)
• 20 ft (6m) cable for router box connection
• No KVM cables included

Shipping Information

• Total package weight: 1.07 kg
• VGA module weight: 0.73 kg
• I/O module weight: 0.34 kg
• We use FedEx, UPS, and DHL carriers
• Product origin: Made in USA

Frequently Asked Questions (FAQ)

• Does this model include a display screen?
  No. The 07 option means router box with no display. You supply your own display.
• What is the 01 agency approval option?
  01 means CSA/NRTL/C certification for Class I, Division 2 hazardous areas.
• What cable length comes with the 12 option?
  The 12 option includes a 20 ft (6m) Display Router Box cable.
• What firmware does the 3500/94M need?
  It needs firmware 4.06 Rev C or newer. The TDI requires Rev 1.71 or newer.
• Can the VGA module work in a hazardous area?
  Yes. The 01 approval certifies this module for Class I, Division 2 locations.
• Can the display work below freezing?
  The VGA module works at -20°C. The Advantech display needs 0°C or a heated enclosure.
• Is the KVM extender hazardous location rated?
  The receiver has Class I Div 2 approval. The transmitter needs a safe area or purged enclosure.
• My display shows no signal. What do I check?
  Check the VGA cable first. Verify the OK LED on the monitor module. Confirm you have a 3500/22 TDI in place.

Expert Buying Guide

• For hazardous area installations: Choose the 01 approval option. It gives you CSA/NRTL/C Class I, Division 2 certification.
• For outdoor or cold environments: Add a heated NEMA 4X enclosure. The display requires 0°C minimum.
• Need a KVM extender? Only buy it for distances over 10 meters. The receiver works in hazardous areas. The transmitter stays in a safe area.
• Power supply tip: Use 24 Vdc power. Do not exceed 25.5 Vdc on the router box input.
• Experience tip from field use: Verify firmware versions before installation. The TDI module is mandatory for operation.
