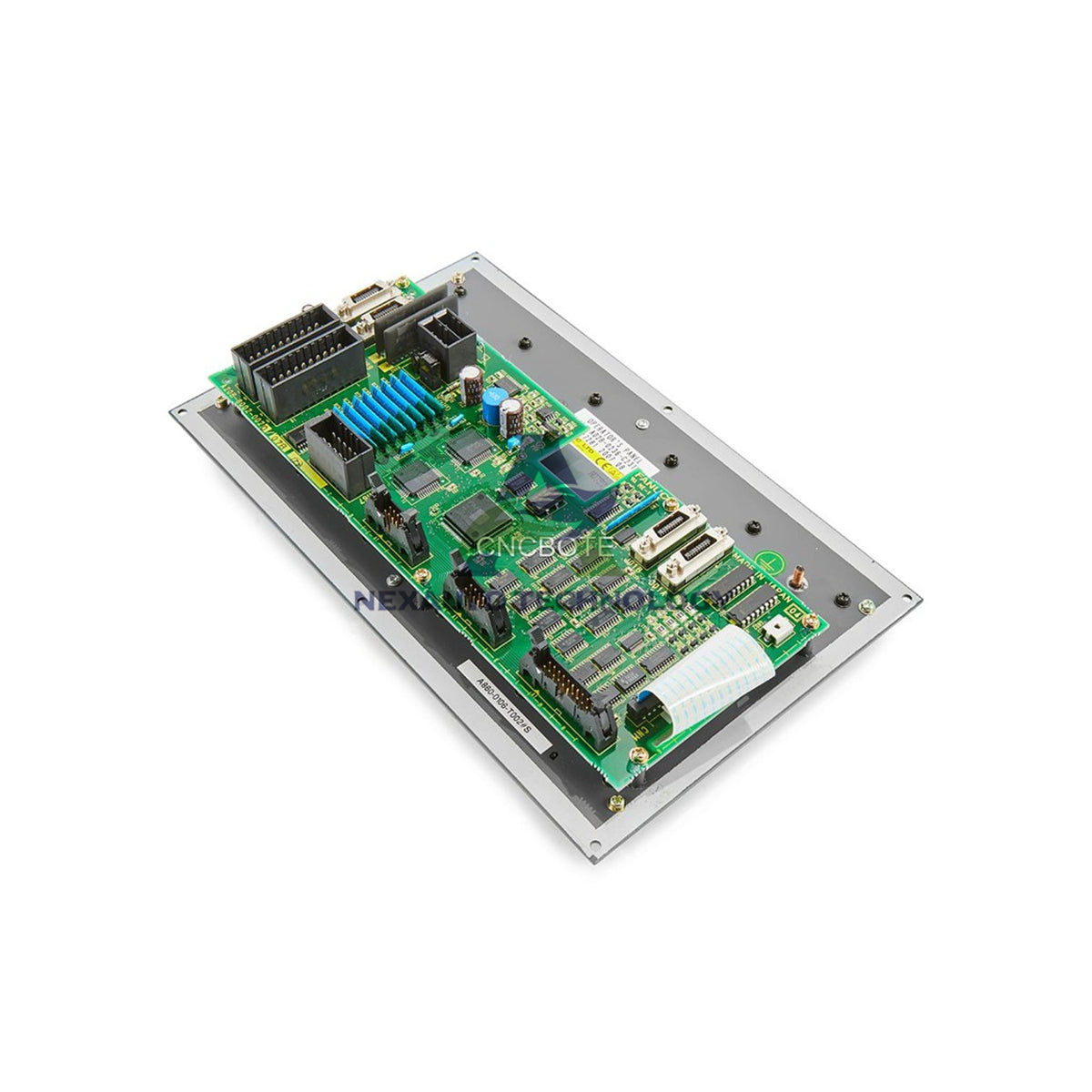

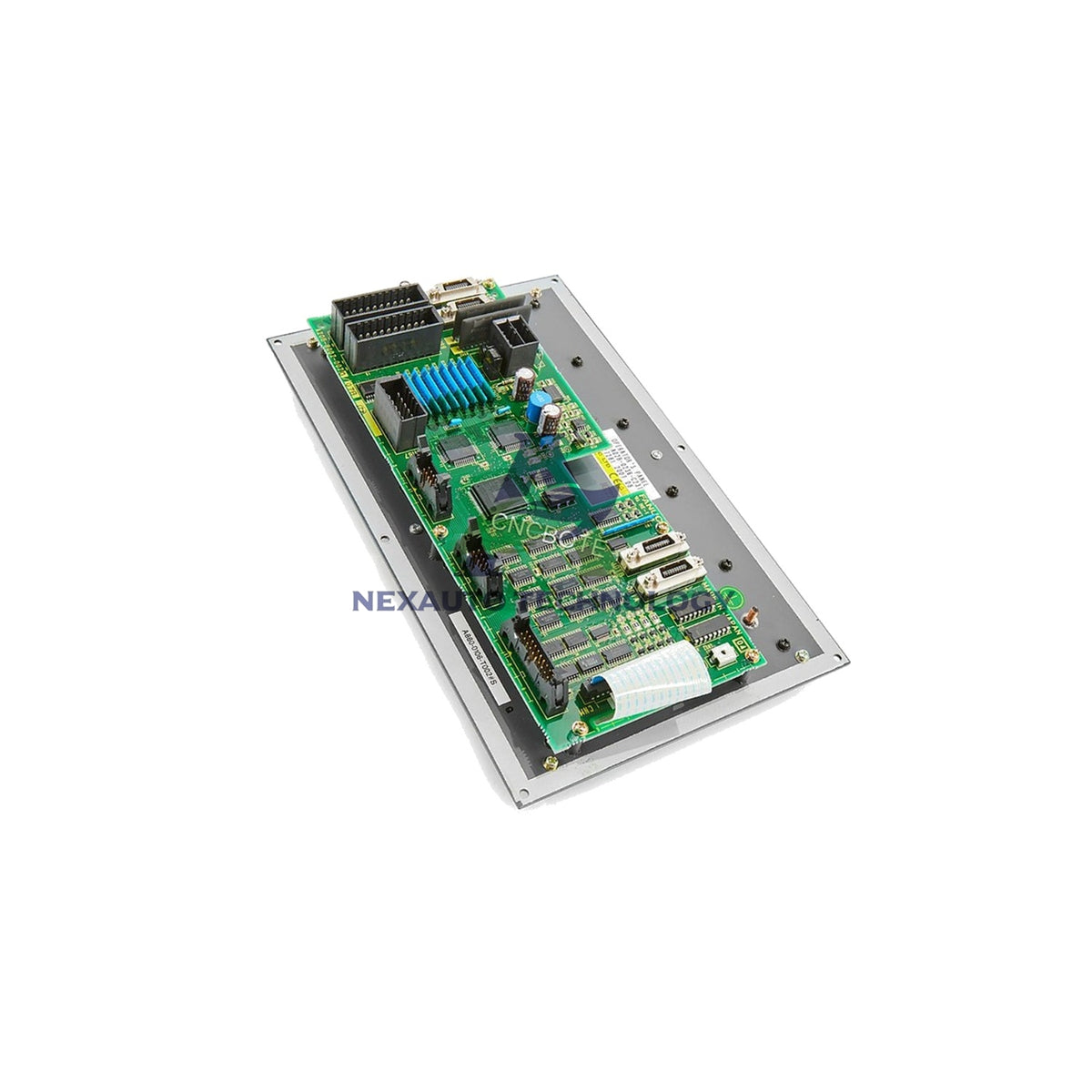

A02B-0047-C310 FANUC Operator Control Panel 7-Segment LED

A02B-0047-C310 FANUC Operator Control Panel with 7-Segment LED Indicators

Technical Specifications

• Brand: FANUC
• Model: A02B-0047-C310
• Series: FANUC System 3/5/6 CNC
• Category: Operator Control Panel
• Indicators: 7-segment LED displays (supplier-reported, multi-source consensus)
• Layout: Operator control panel (supplier-reported, multi-source consensus)
• Supply Voltage: Not published by manufacturer for this order code
• Power Consumption: 25 W (supplier-reported single source, DO Supply product page)
• Operating Ambient Temperature: 0 to 55 °C (family-level reference; per B-61393E p.112 for Series 0/00/0-Mate)
• Storage/Transport Ambient Temperature: −20 to 60 °C (family-level reference; per B-61393E p.112)
• Relative Humidity: 75%RH or less, no condensation
• Dimensions (H×W×D): Not published by manufacturer for this order code
• Weight: Not published by manufacturer for this order code
• Communication: Not applicable (passive component; no built-in communication ports)

Measurement Range, Frequency Response, Sensitivity, Linearity, and Resolution

• The A02B-0047-C310 does not function as a measurement instrument.
• It provides visual status indication through 7-segment LED displays.
• No frequency response, sensitivity, linearity, or resolution specs apply.
• This panel focuses on operator control and status readout for legacy CNC systems.
• Buyers should treat it as a display and control interface, not a sensor or meter.

Environmental Tolerance and Interference Resistance

• Operating temperature range reaches 0 to 55 °C under family-level references.
• Storage and transport temperature range reaches −20 to 60 °C.
• Relative humidity stays at 75%RH or less with no condensation.
• The unit follows early FANUC CNC design practices for industrial environments.
• No manufacturer-published EMC or interference resistance data exists for this order code.

Installation Guide

• Confirm the host CNC matches the FANUC System 3/5/6 CNC series.
• Disconnect power before mounting or replacing the operator control panel.
• Use the original mounting holes and hardware from the existing panel.
• Route cables away from high-voltage lines to reduce electrical noise.
• Check all 7-segment LED indicators after power-up for correct operation.
• Do not force connectors; early FANUC CNC connectors are keyed and fragile.

FAQ

• Q: Is the A02B-0047-C310 brand new and original?
  A: Yes, we supply this item as brand new and original.
• Q: Do you have the A02B-0047-C310 in stock?
  A: Yes, we keep this item in stock for immediate order processing.
• Q: How fast do you ship the A02B-0047-C310?
  A: We ship within 5 days using DHL, FedEx, or UPS.
• Q: Can I return the A02B-0047-C310 if it does not fit?
  A: Yes, we support returns within 30 days of delivery.
• Q: What is the power consumption of the A02B-0047-C310?
  A: A supplier reports 25 W for this operator control panel.
• Q: What temperature range does the A02B-0047-C310 support?
  A: Family-level data shows 0 to 55 °C operating and −20 to 60 °C storage.
• Q: Does the A02B-0047-C310 have communication ports?
  A: No, it works as a passive component without built-in communication ports.
• Q: Which CNC series does the A02B-0047-C310 fit?
  A: It belongs to the FANUC System 3/5/6 CNC series.
• Q: Is the A02B-0047-C310 still in production?
  A: It is a legacy item; FANUC has moved to i-series and 30i-B generations.
