AC Input Module | Allen-Bradley 5094-IA16

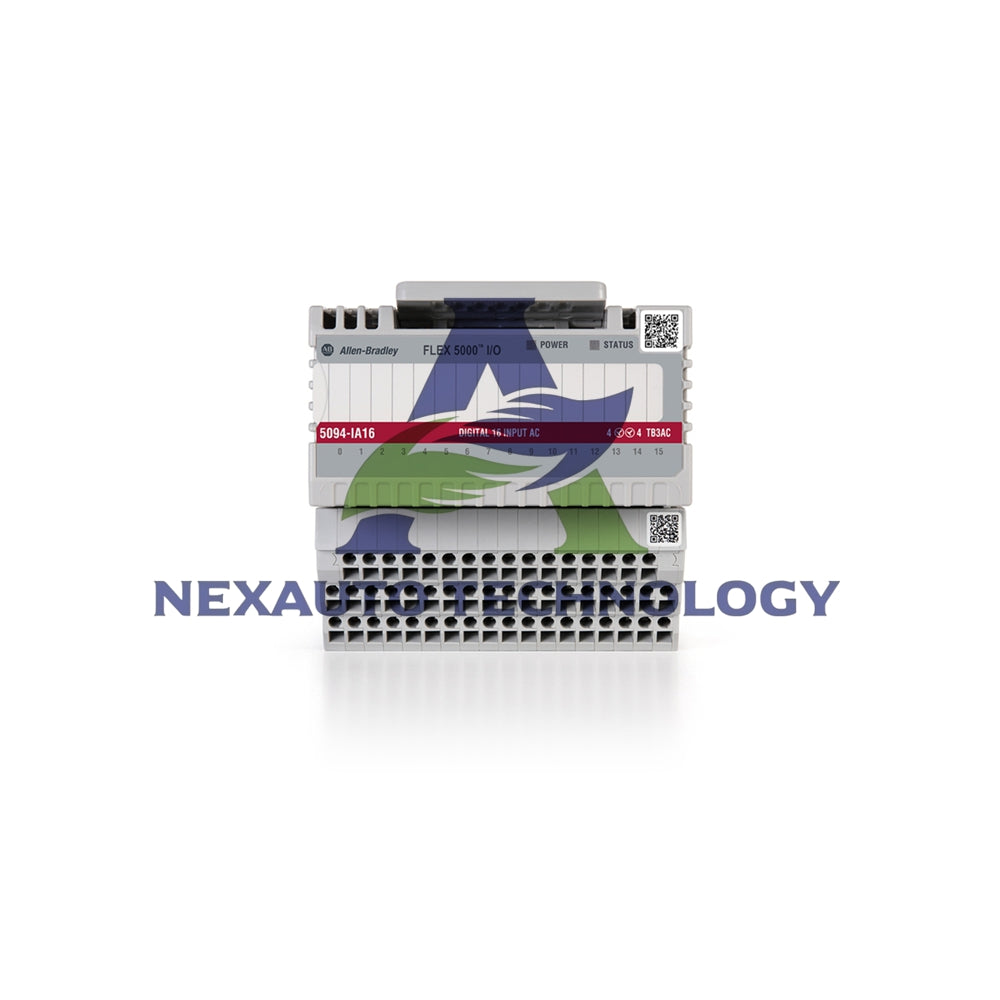

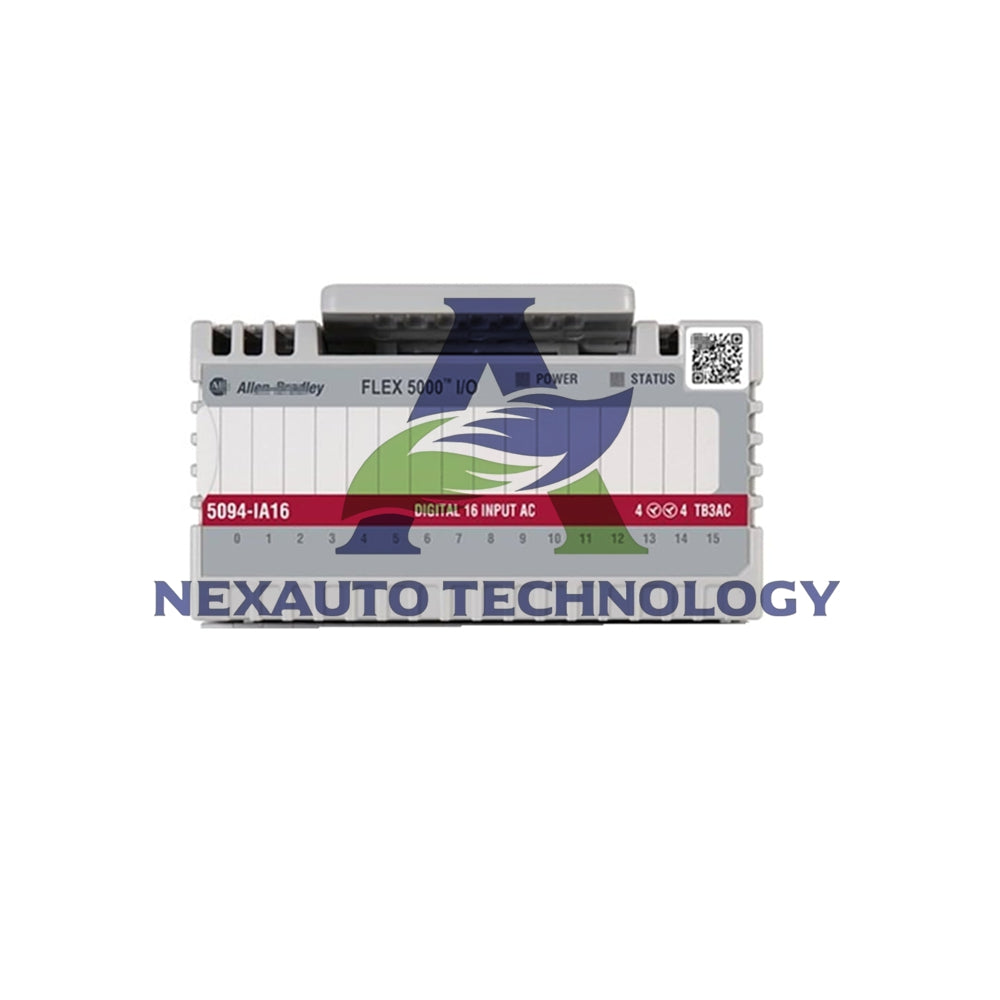

Allen-Bradley 5094-IA16 AC Input Module

Core Technical Specifications

Input Points: 16

Voltage Range: 74 to 132 Volts AC

Nominal Voltage: 120 Volts AC

Input Current: 5 to 15 milliamps

Input Impedance: 8.8 to 12 kiloohms

Power Dissipation: 3.5 Watts

Weight:0.136kg

Backplane Power: 15 Volts DC

Detailed Performance Data

On Delay Time: 15 milliseconds maximum

Off Delay Time: 25 milliseconds maximum

Operational Temperature: -20 to 70 degrees Celsius

Storage Temperature: -40 to 85 degrees Celsius

Isolation Voltage: 250 Volts AC continuous

Common Mode Rejection: 50 dB minimum

Controller Compatibility

Works with CompactLogix 5380 controllers

Works with ControlLogix 5580 controllers

Works with GuardLogix 5580 safety controllers

Needs Logix Designer software version 31 or newer

Industrial Applications

Machine control systems for packaging

Conveyor belt motor start monitoring

Pump and valve position feedback

High bay lighting status detection

Industrial oven temperature door switches

Wiring And Installation

Use 0.34 to 2.5 mm2 wire for signals

Use 2.5 mm2 multi strand wire for power

Connect to two power ports

Connect to two signal ports

Ensure power is off during installation

Shipping And Support

Fast worldwide shipping with Fedex UPS DHL

In stock ready to ship

24 hours technical support available

12 months product warranty
