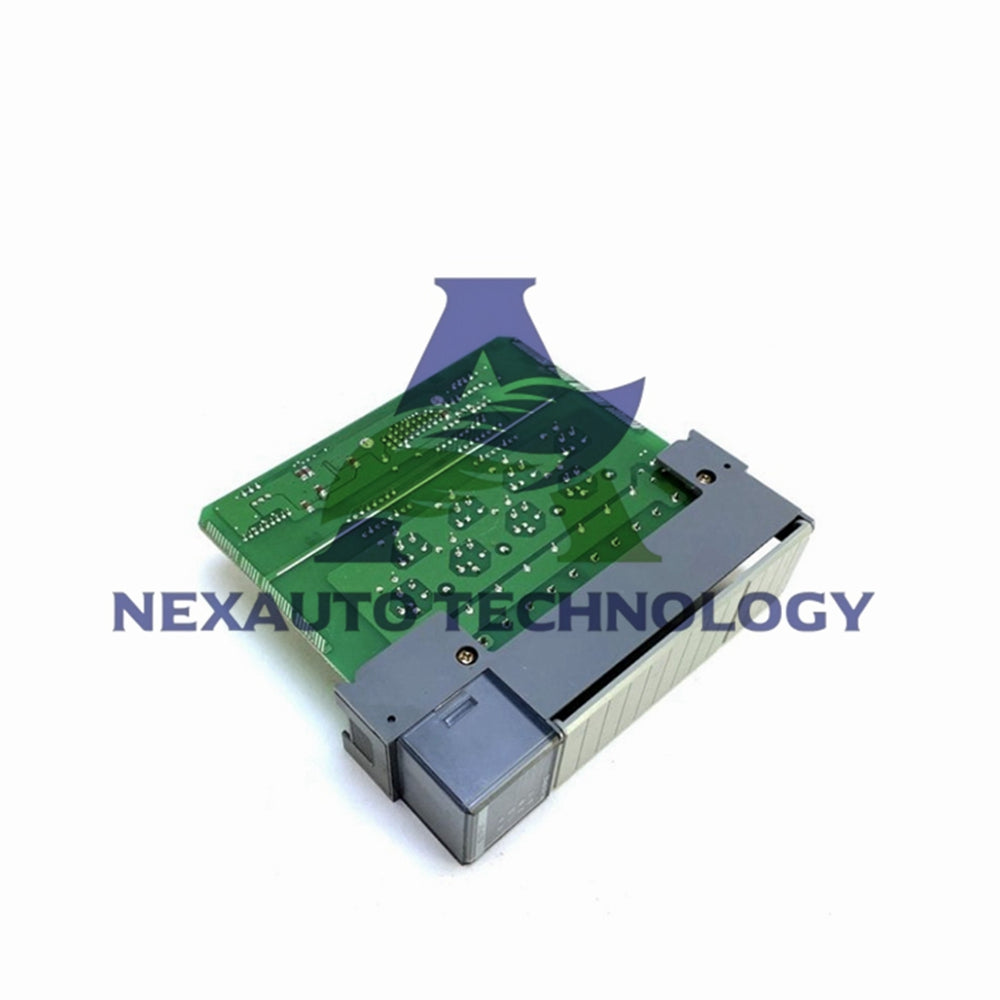

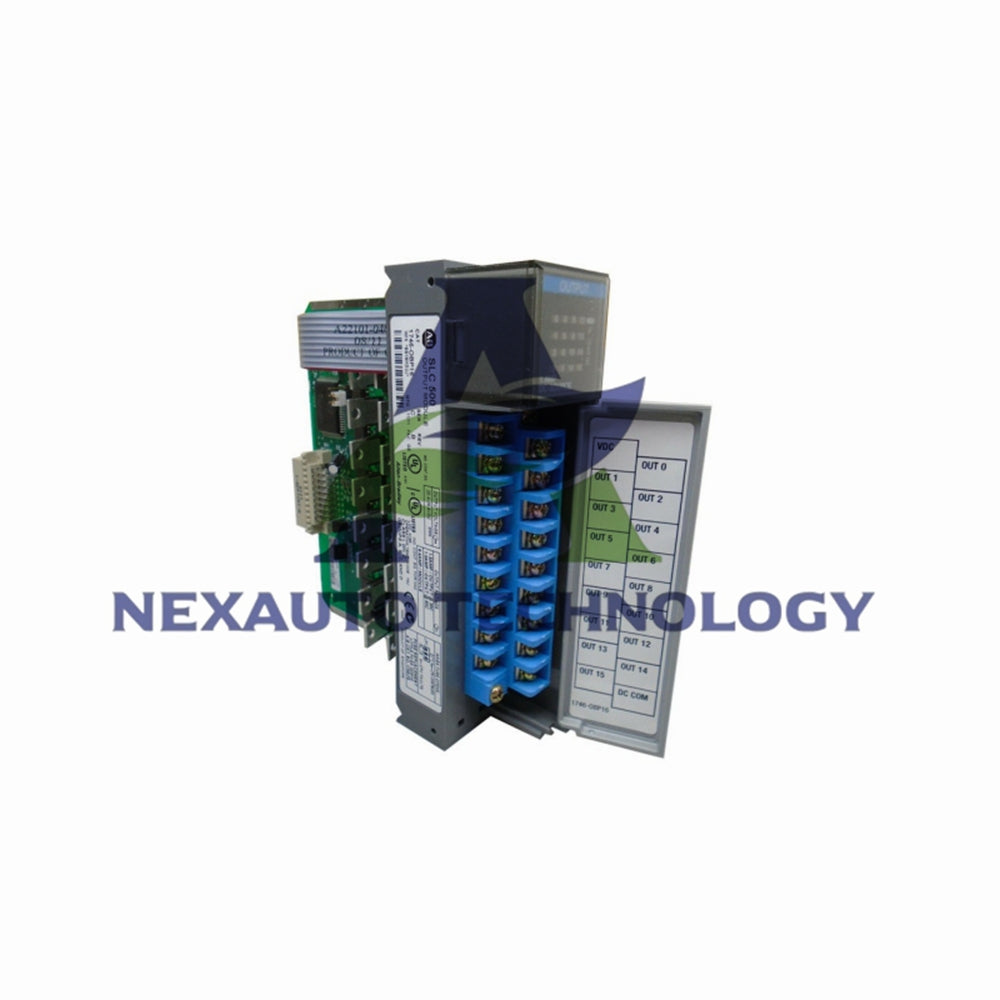

Allen-Bradley - 1746-OG16 Output Module

Bulk Orders & Fast Shipping

Instant 10% Discount On Winter Banks Credit/Debit Cards EMI and CreditCard

Fast & Reliable Worldwide Shipping – Ready to Dispatch from Stock
In stock (14 units), ready to be shipped
  • Fast shipping
  • Return Policy
  • Lowest Price
  • Help Center 24/7

About the Product

Allen-Bradley 1746-OG16 TTL Output Module

Quick Specifications

Channels: 16 TTL outputs

Voltage: 4.5-5.5VDC (5V nominal)

Current: 24mA per point (384mA total)

Speed: 0.25ms ON / 0.5ms OFF

Isolation: 1500V (output to backplane)

Detailed Features

Electrical Characteristics
  • TTL-compatible sinking outputs
  • Max ripple: 50mV peak-to-peak
  • Off-state leakage: <0.1mA
  • Backplane power: 180mA @5VDC
Environmental Ratings
  • Operating temp: -13°F to 140°F (-25°C to 60°C)
  • Storage temp: -40°F to 185°F (-40°C to 85°C)
  • 5-95% non-condensing humidity
  • 30G shock resistance

Typical Applications

• Laboratory test equipment interfaces

• Digital display drivers

• Logic analyzer triggering

• Semiconductor test systems

• Precision timing circuits

Important Notes

Inverted Logic: Requires NOT instruction in ladder logic

Power Requirement: External 5VDC power supply needed

Safety: Install in Pollution Degree 2 environments only

Compatibility

  • All SLC 500 processors (5/01 through 5/05)
  • Fixed or modular chassis configurations
  • Single-slot installation
  • Common +VDC terminal for all channels
