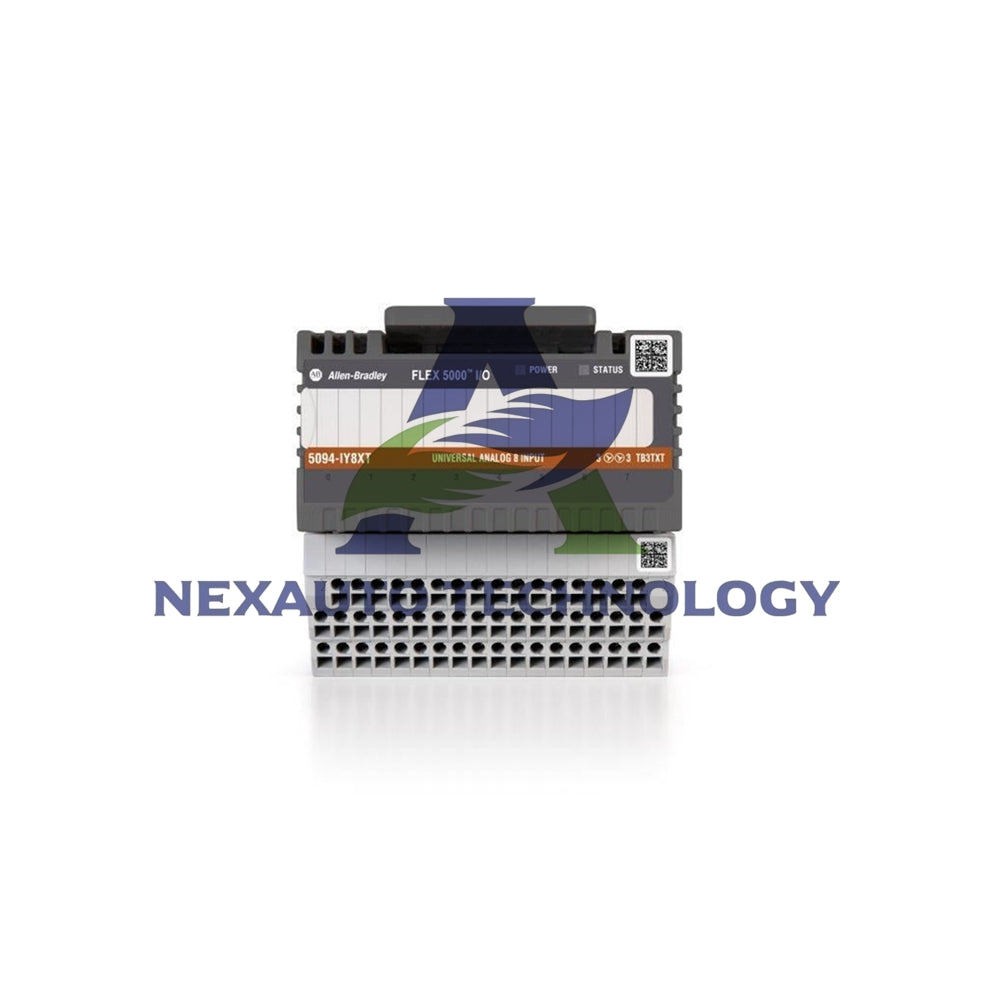

Allen-Bradley 5094-IY8XT 8-Channel Universal Analog Input Module

Key Technical Specifications

Input Channels: 8 configurable inputs

Input Types: Voltage, Current, RTD, Thermocouple

Voltage Ranges: ±10V, 0-10V, 0-5V

Current Ranges: 0-20mA, 4-20mA

RTD Types: 100-1000Ω platinum (α=385)

Resolution: 16-bit high precision

Data Format: IEEE 754 32-bit floating point

Accuracy: 0.05% full scale at 25°C

Weight:0.119kg

Detailed Input Ranges

Voltage Input: ±10.5V, 10.5V, 5V ranges

Current Input: 0-21mA range

RTD Resistance: 1-500Ω, 2-1000Ω, 4-2000Ω, 8-4000Ω

Voltage Resolution: 320μV/bit (±10V range)

Current Resolution: 320nA/bit (21mA range)

Thermocouple Compatibility

Type B Range: 21-1820°C, 68-3308°F

Type J Range: -210-1200°C, -346-2192°F

Type K Range: -270-1372°C, -454-2502°F

Type R/S Range: -50-1768°C, -58-3214°F

Type T Range: -270-400°C, -454-752°F

Type E Range: -270-1000°C, -454-1832°F

Type N Range: -270-1300°C, -454-2372°F

Type C Range: 0-2320°C, 32-4208°F

Electrical Characteristics

Drive Capability: 1000Ω min (voltage), 500Ω max (current)

Capacitive Load: 1μF max (voltage mode)

Inductive Load: 1mH max (current mode)

Open Circuit Detection: Current mode only

Short Circuit Protection: Voltage mode (limited to 16mA)

Controller Compatibility

Works with ControlLogix 5580 controllers

Compatible with CompactLogix 5380/5480

Logix 5000 platform integration

Producer/Consumer architecture support

Remote I/O module capability
