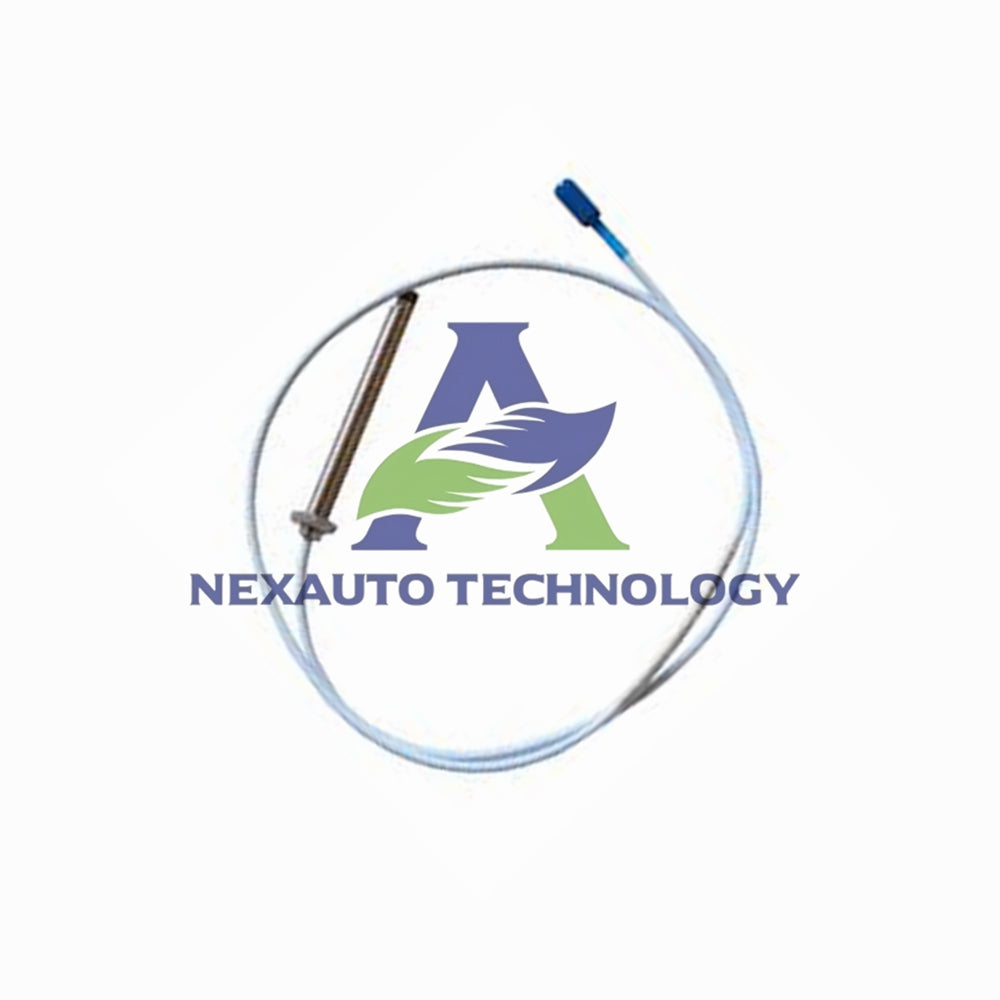

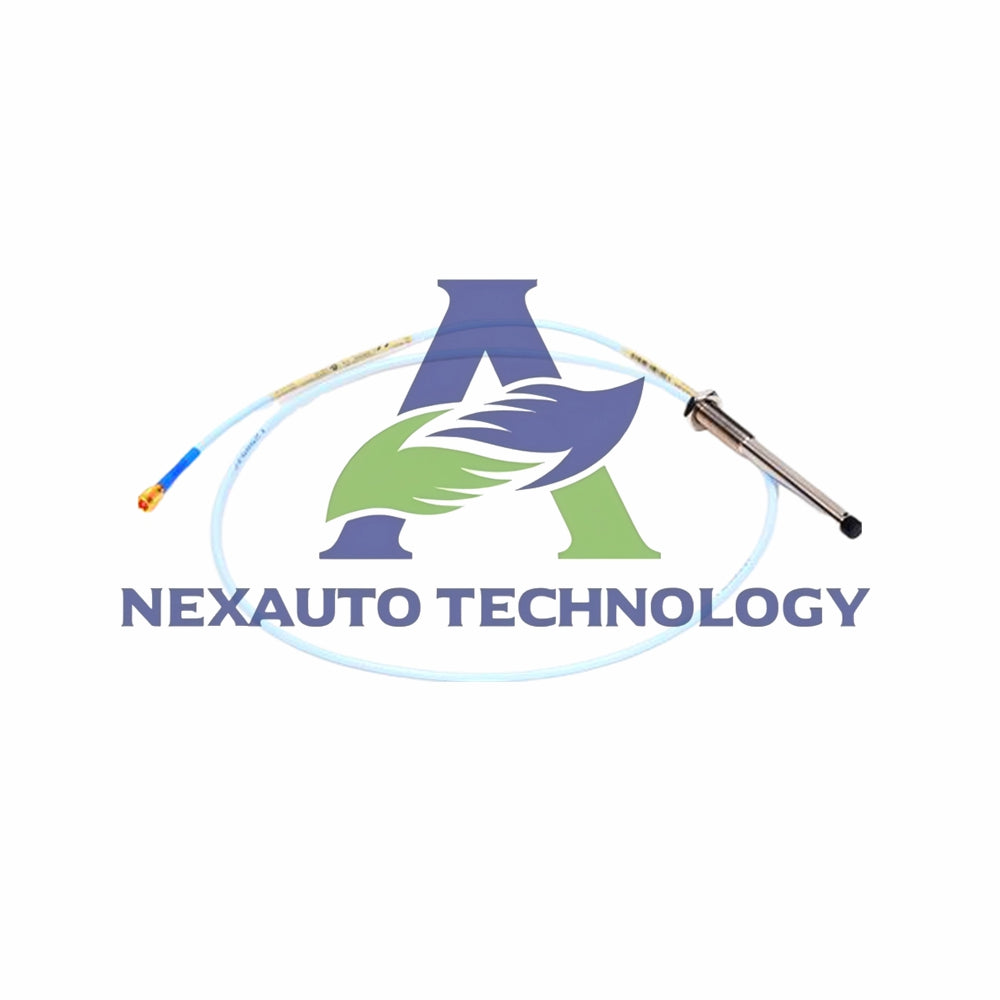

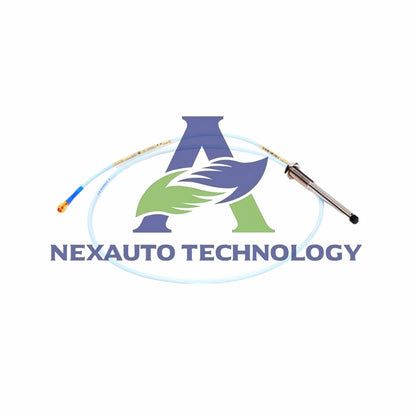

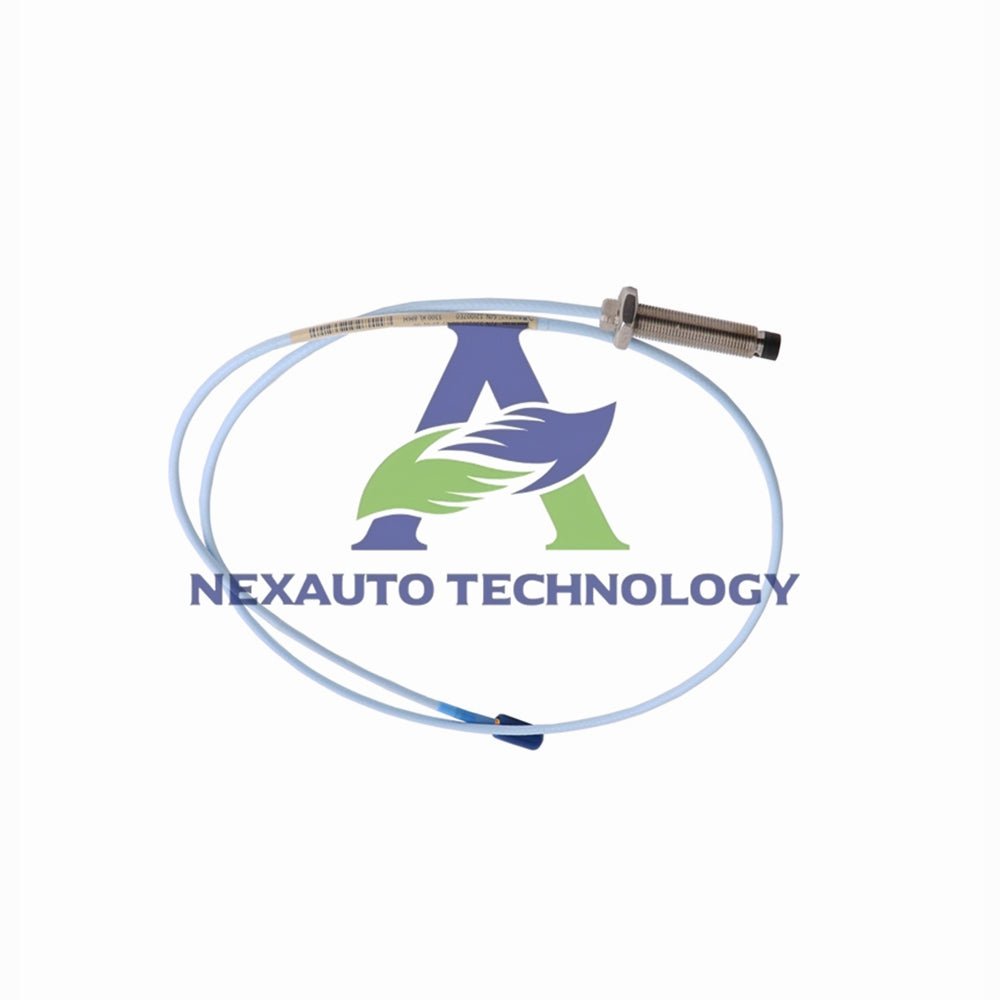

Bently Nevada 330103-05-05-10-02-00 8mm Probe

General Purpose 8mm Probe for Standard Industrial Applications

The Bently Nevada 330103-05-05-10-02-00 belongs to the trusted 3300 XL series. We design this versatile 8mm probe for accurate displacement and vibration measurements in general industrial environments. It features a 50mm unthreaded tip with 50mm case length for balanced mounting flexibility. The sensor operates within a 2mm (80 mils) linear range, starting at 0.25 mm from the target. For radial vibration monitoring, we recommend a gap setting of -9 Vdc, which equals approximately 1.27 mm.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330103-05-05-10-02-00.
• Product Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread, no armor.
• Dimensions: 50mm unthreaded length, 50mm overall case length, and 1.0 meter (3.3 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• DC Resistance: Nominal probe resistance measures 7.59 ± 0.50 Ω for 1.0m length.
• Weight: Probe weighs 323 g/m (11.4 oz/ft).
• Approvals: Agency approval option 00 means no hazardous location certification. For general industrial use only.

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Humidity: Average Scale Factor changes less than 3% after 56 days in 93% humidity.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Standard Configuration: This model ships without agency certifications for cost-effective general purpose monitoring.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 15 mm for M10x1 case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.
• Balanced Design: Equal 50mm unthreaded and case lengths provide predictable mounting in standard configurations.

Package Includes

• One Bently Nevada 330103-05-05-10-02-00 3300 XL 8 mm Probe.
• Factory-attached ClickLoc connector and 1.0m standard cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

What is the 50/50 configuration?

This probe has 50mm unthreaded tip and 50mm case length. Provides balanced reach for standard mounting holes.

What does approval option 00 mean?

No hazardous area certifications. Suitable for general industrial environments without explosion risk.

Compatible with 3300 XL systems?

Yes. This 330103-05-05-10-02-00 works with all Bently Nevada 3300 XL proximitors and monitors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm). This centers probe within linear range.

When to choose this model?

Select this for general purpose monitoring where hazardous area certifications are not required. Most cost-effective option.
