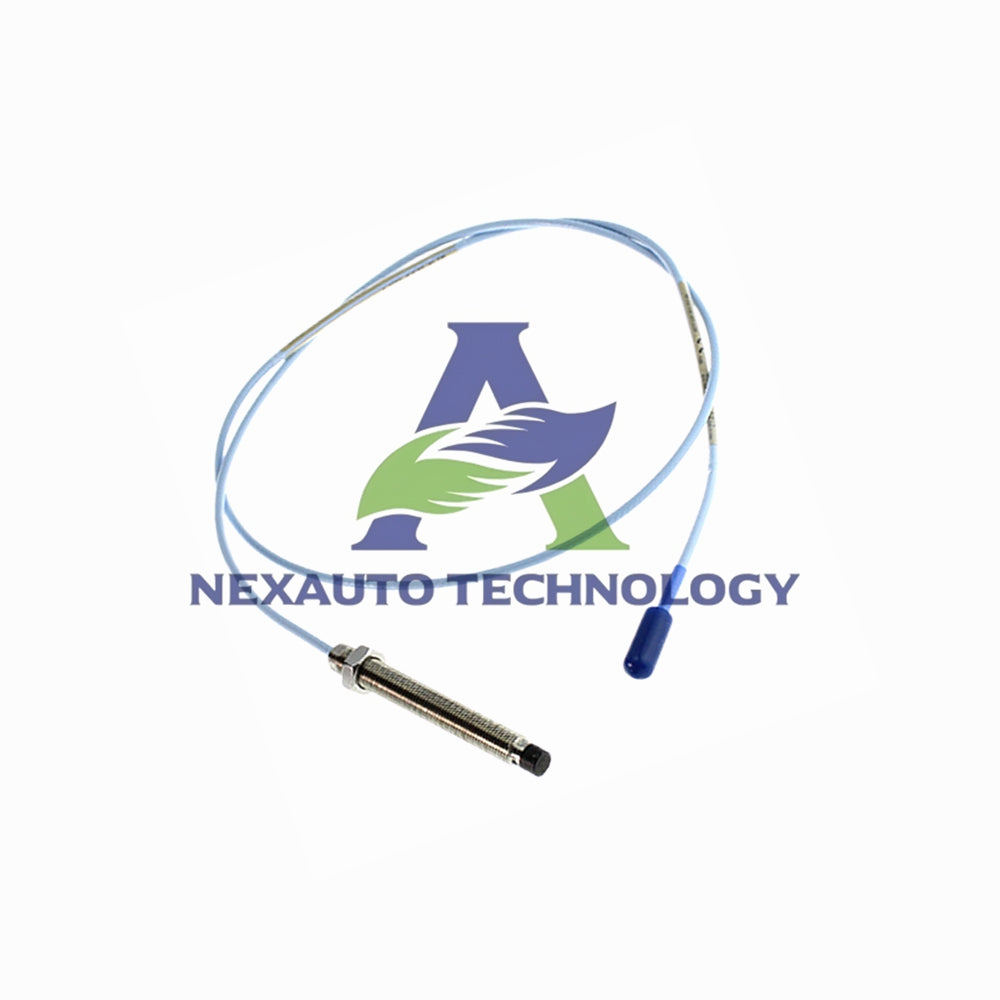

Bently Nevada 330103-05-10-10-12-05 3300 XL Probe

Bently Nevada 3300 XL 8 mm Proximity Probe
Model: 330103-05-10-10-12-05

• Manufacturer: Bently Nevada — 3300 XL series provides precision eddy-current vibration monitoring.
• Part number 330103-05-10-10-12-05 represents a fully configured 8 mm probe with M10 x 1 thread, unarmored, 50 mm unthreaded tip, 100 mm case length, and 1.0 m total cable.
• Critical approvals: CSA, ATEX, IECEx (option 05) for Zone 0/1 hazardous areas.
• Miniature coaxial ClickLoc connector with FluidLoc cable ensures reliable field installation.
• 330103-05-10-10-12-05 delivers 2 mm linear range and operates from -52°C to +177°C.

Key technical specifications

• Linear range: 2 mm (80 mils), from 0.25 to 2.3 mm target gap.
• Output signal: -1 to -17 Vdc, recommended vibration gap -9 Vdc (1.27 mm).
• Probe DC resistance: 7.59 Ω ± 0.50 (for 1.0 m length).
• Frequency response: supports field wiring up to 305 m with minimal signal roll-off.
• Tip material: Polyphenylene sulfide (PPS); case material AISI 303/304 stainless steel.
• Temperature range: standard -52°C to +177°C; extended cable version up to +260°C.
• Relative humidity: less than 3% ASF change after 56 days at 93% humidity.
• Pressure seal: Viton O-ring, differential pressure design.

Package contents

• One 330103-05-10-10-12-05 probe with integral FluidLoc cable and ClickLoc connector.
• Factory configuration: 50 mm unthreaded tip, 100 mm case thread, 1.0 m total length.
• Weight: 323 g per meter (11.4 oz per meter).
• Shipping: FedEx, UPS, or DHL express delivery.

Installation guidelines

• Use 3-conductor shielded triad field wire, 16 to 24 AWG (0.2 to 1.5 mm²).
• Maximum extension between probe and monitor: 305 meters (1000 feet).
• Thread engagement: maximum 15 mm for M10 x 1 case thread.
• For intrinsically safe use, install per drawing 141092 with zener barriers or galvanic isolators.
• Non-incendive installations follow drawing 140979 for Class I, Zone 2.

Frequently asked questions

What makes 330103-05-10-10-12-05 different from a standard 3300 XL probe?
This specific option includes CSA, ATEX, and IECEx approvals with the ClickLoc connector and 1.0 m cable. It fits installations needing hazardous-area certification.

Can I use this probe with existing 3300 XL monitors?
Yes, the 3300 XL 8 mm series is fully compatible with all 3300 XL Proximitor sensors.

How do I choose between standard and extended temperature range?
If probe tip exceeds 177°C, order the extended-range version. Our part 330103-05-10-10-12-05 is standard; contact us for -52°C to +218°C tip option.

Does the ClickLoc connector require special tools?
No, the mini coaxial ClickLoc snaps into place manually. It provides a positive lock without soldering.

What is the pressure seal limitation below -34°C?
Repeated exposure below -30°F may affect the Viton seal. For continuous low-temperature applications, request a pressure test prior to shipment.
