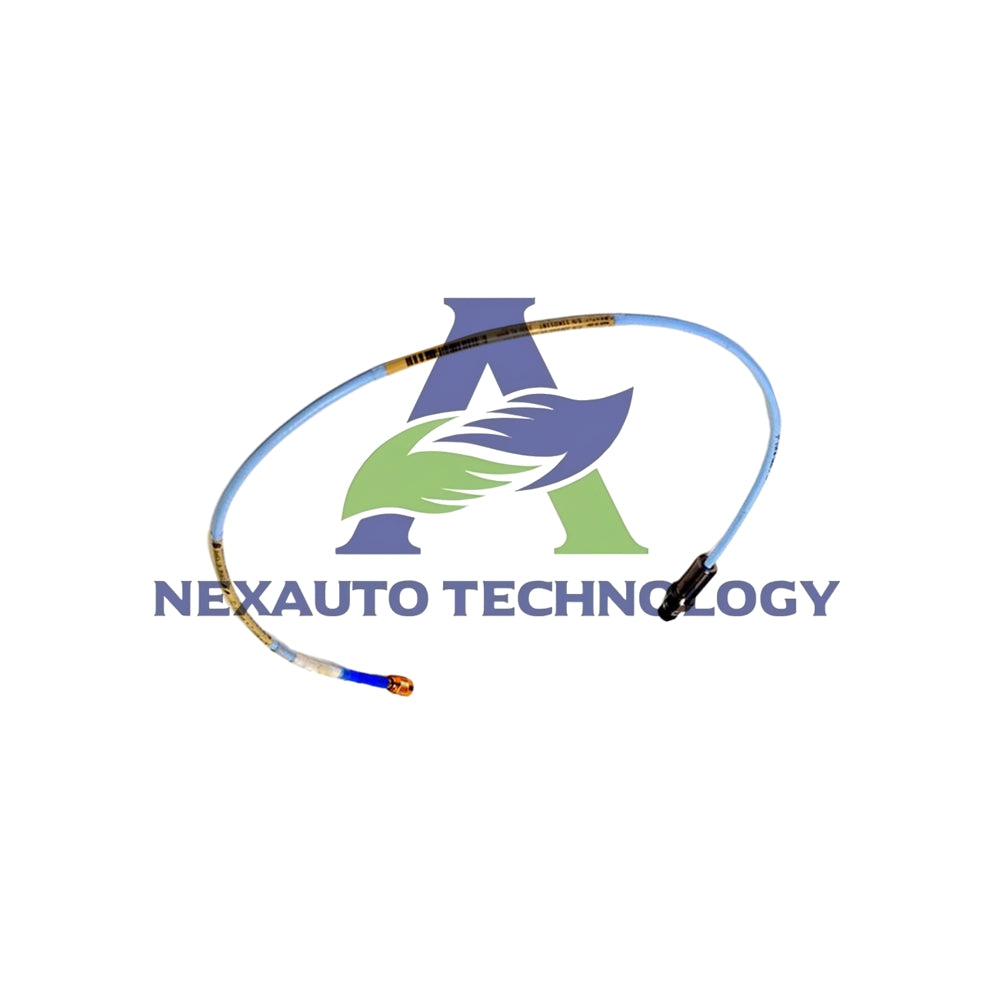

Bently Nevada 330103-10-14-10-02-05 | 8mm Probe

Hazardous Area 8mm Probe with 100mm Tip and Full Approvals

The Bently Nevada 330103-10-14-10-02-05 belongs to the trusted 3300 XL series. We design this 8mm probe for accurate displacement and vibration measurements in explosive atmospheres. It carries CSA, ATEX, and IECEx approvals for hazardous locations worldwide. The 100mm unthreaded tip reaches through medium-depth housings before threads engage. The sensor operates within a 2mm (80 mils) linear range, starting at 0.25 mm from the target. For radial vibration monitoring, we recommend a gap setting of -9 Vdc, which equals approximately 1.27 mm.

Key Technical Specifications

• Manufacturer: Bently Nevada. Model: 330103-10-14-10-02-05.
• Product Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread, no armor.
• Dimensions: 100mm unthreaded tip, 140mm overall case length, and 1.0 meter (3.3 feet) total length.
• Connector: Miniature coaxial ClickLoc connector with standard cable.
• Material: Probe tip uses Polyphenylene sulfide (PPS). Probe case uses AISI 303 or 304 stainless steel.
• DC Resistance: Nominal probe resistance measures 7.59 ± 0.50 Ω for 1.0m length.
• Weight: Probe weighs 323 g/m (11.4 oz/ft).
• Approvals: CSA, ATEX, IECEx for hazardous area installation.

Environmental and Operating Ranges

• Temperature (Standard): Operates and stores from -52°C to +177°C (-62°F to +350°F).
• Temperature (Extended): Probe tip reaches -52°C to +218°C (-62°F to +425°F). Cable and connector handle up to +260°C.
• Humidity: Average Scale Factor changes less than 3% after 56 days in 93% humidity.
• Pressure Seal: Uses Viton® O-ring to seal differential pressure between tip and case.
• Hazardous Locations: Certified for Class I, Zone 0 and Zone 2 environments with appropriate barriers.

Installation and Mounting Guide

• Thread Engagement: Maximum thread engagement length is 15 mm for M10x1 case thread.
• Torque (Forward Mount): Recommended torque is 11.2 N•m (100 in•lbf). Maximum rated torque is 33.9 N•m.
• Torque (First Three Threads): Use recommended torque of 7.5 N•m (66 in•lbf). Do not exceed 22.6 N•m.
• Field Wiring: Use 16-24 AWG wire. Maximum extension cable length is 305 meters (1,000 feet).
• Temperature Note: Avoid exposing probe below -34°C (-30°F) to protect pressure seal.
• Safety Barrier Required: Install with intrinsic safety barriers per drawing 141092 for Zone 0 applications.
• Medium Reach: The 100mm tip suits most standard machine casings and bearing housings.

Package Includes

• One Bently Nevada 330103-10-14-10-02-05 3300 XL 8 mm Probe.
• Factory-attached ClickLoc connector and 1.0m standard cable.
• Mounting instructions and product documentation.
• Shipping: We ship via FedEx, UPS, or DHL for fast global delivery.

Frequently Asked Questions

What approvals does this probe have?

This model carries CSA, ATEX, and IECEx certifications. Suitable for hazardous areas worldwide.

What is the tip length?

The 100mm unthreaded tip handles medium-depth installations. Ideal for standard turbine and compressor casings.

Compatible with 3300 XL systems?

Yes. This 330103-10-14-10-02-05 works with all Bently Nevada 3300 XL proximitors and monitors.

What gap setting for vibration?

Set initial gap to -9 Vdc (approximately 1.27mm). This centers probe within linear range.

Can I use this in Zone 0?

Yes, when installed with approved intrinsic safety barriers per drawing 141092. Meets Class I, Zone 0 requirements.
