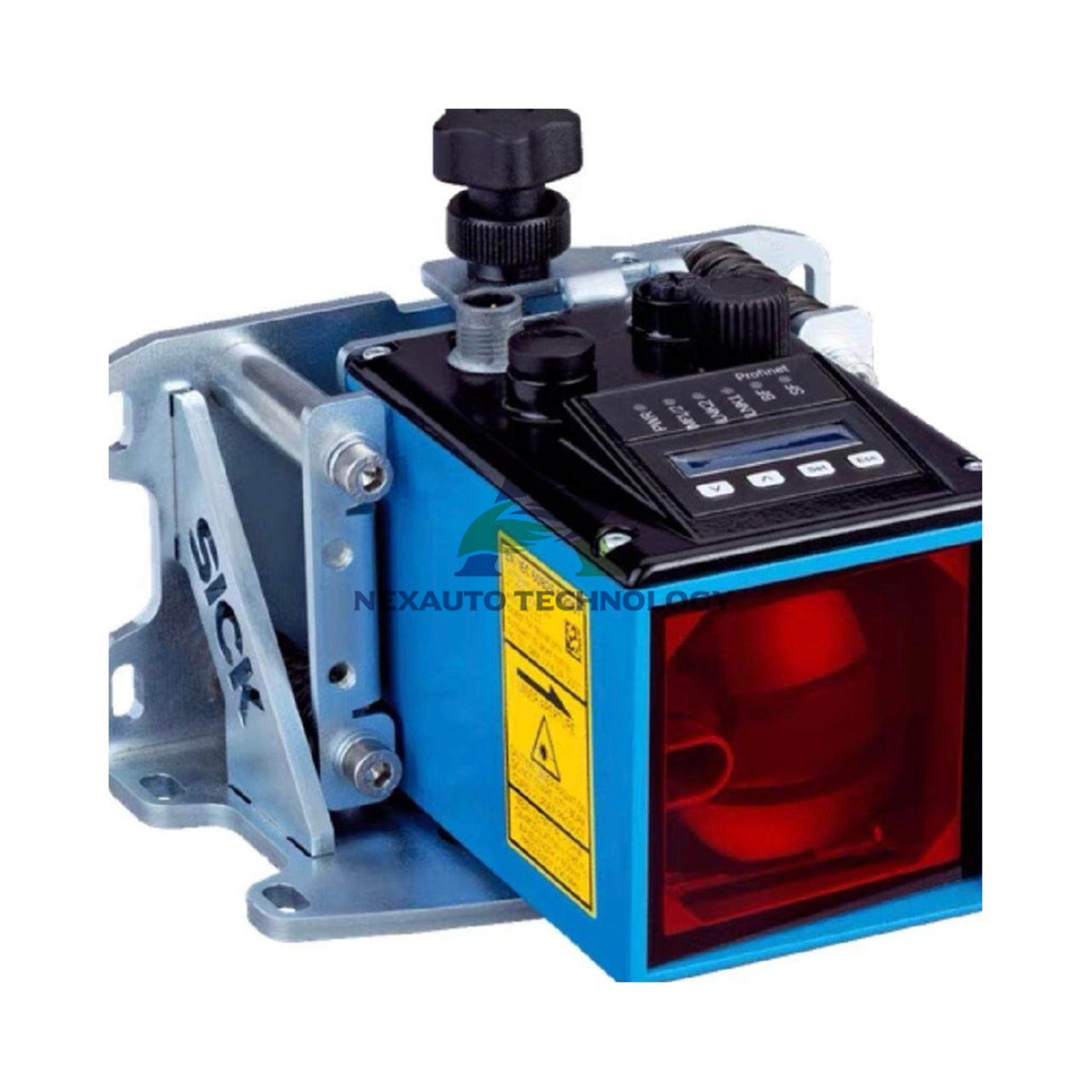

DL100-21AA2112 SICK Dx100 Time-of-Flight Sensor 100 m Range

SICK DL100-21AA2112 Dx100 Time-of-Flight Sensor – Precision Distance Measurement up to 100 m

Technical Specifications

• Brand: SICK
• Model: DL100-21AA2112
• Series: Dx100
• Category: Time-of-flight distance sensor
• Measuring range: 0.15 m to 100 m on "diamond grade" reflective tape
• Resolution: 0.1 mm, 0.125 mm, 1 mm, 10 mm, or 100 mm, freely adjustable
• Repeatability: 0.5 mm
• Measurement accuracy: ±2 mm
• Response time: 2 ms
• Measurement cycle time: 1 ms
• Output time: 1 ms
• Light source: Laser, red, visible; laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
• Typical light spot size: 5 mm + (2 mm × distance in m)
• Max. movement speed: 15 m/s
• Max. acceleration: ≤ 15 m/s²
• Interface: PROFINET
• Digital outputs: 2, push-pull PNP/NPN (distance switching output, speed output, service messages)
• Multifunctional input: 1 × MF1
• Maximum output current: ≤ 100 mA
• Supply voltage: DC 18 V to 30 V (limit values)
• Current consumption: < 250 mA at 24 V DC
• Ripple: 5 Vpp
• Initialization time: typically 1.5 s
• Display: 6-digit 5 × 7 dot matrix display with LEDs
• Enclosure rating: IP65
• Protection class: III
• Dimensions (W × H × D): 69.4 mm × 82.5 mm × 100.2 mm
• Housing material: Metal (aluminum die cast)
• Window material: Plastic (PMMA)
• Weight: approx. 800 g (approx. 1,600 g with mounting bracket)
• MTTFD: 101 years; DCavg: 0%

Environmental Tolerance and Immunity

• Operating temperature: –20 °C to +55 °C; –20 °C to +75 °C with cooling case
• Storage temperature: –40 °C to +75 °C
• Temperature drift: typically 0.1 mm/K
• Effect of air pressure: 0.3 ppm/hPa; effect of air temperature: 1 ppm/K
• Ambient light immunity: typically ≤ 100,000 lx
• Mechanical load: shock (EN 60068-2-27), sine vibration (EN 60068-2-6), noise (EN 60068-2-64)
• EMC: EN 61000-6-2 and EN 61000-6-4

Installation Guide

• Mount the sensor on a rigid bracket and align the laser beam perpendicular to the reflective tape.
• Keep the light spot fully inside the tape area at the maximum measuring distance.
• Connect the male connector to a DC 18 V to 30 V supply with ripple below 5 Vpp.
• Wire the push-pull outputs as PNP or NPN according to your controller input type.
• Configure PROFINET parameters and set the resolution and switching points through the interface.
• Avoid direct sunlight or strong ambient light above 100,000 lx on the receiver window.
• Clean the PMMA window with a soft cloth to prevent damping value overload.

Package List

• 1 × SICK DL100-21AA2112 sensor
• 1 × mounting bracket
• 1 × male connector (as configured)
• 1 × quick start guide

Shipping

• We ship worldwide by FedEx, UPS, and DHL.
• We dispatch stock items within 5 business days after order confirmation.

FAQ

• Q: What is the measuring range of the DL100-21AA2112?
  A: It covers 0.15 m to 100 m on "diamond grade" reflective tape.
• Q: How accurate is this Dx100 sensor?
  A: It achieves ±2 mm measurement accuracy with 0.5 mm repeatability.
• Q: Which interface does the sensor support?
  A: It supports PROFINET plus two push-pull PNP/NPN digital outputs.
• Q: What is the operating temperature range?
  A: It runs from –20 °C to +55 °C, or up to +75 °C with a cooling case.
• Q: Is the item new and in stock?
  A: Yes, we offer brand new original units and we hold stock for fast delivery.
• Q: What is the return policy?
  A: We accept returns within 30 days of delivery.
