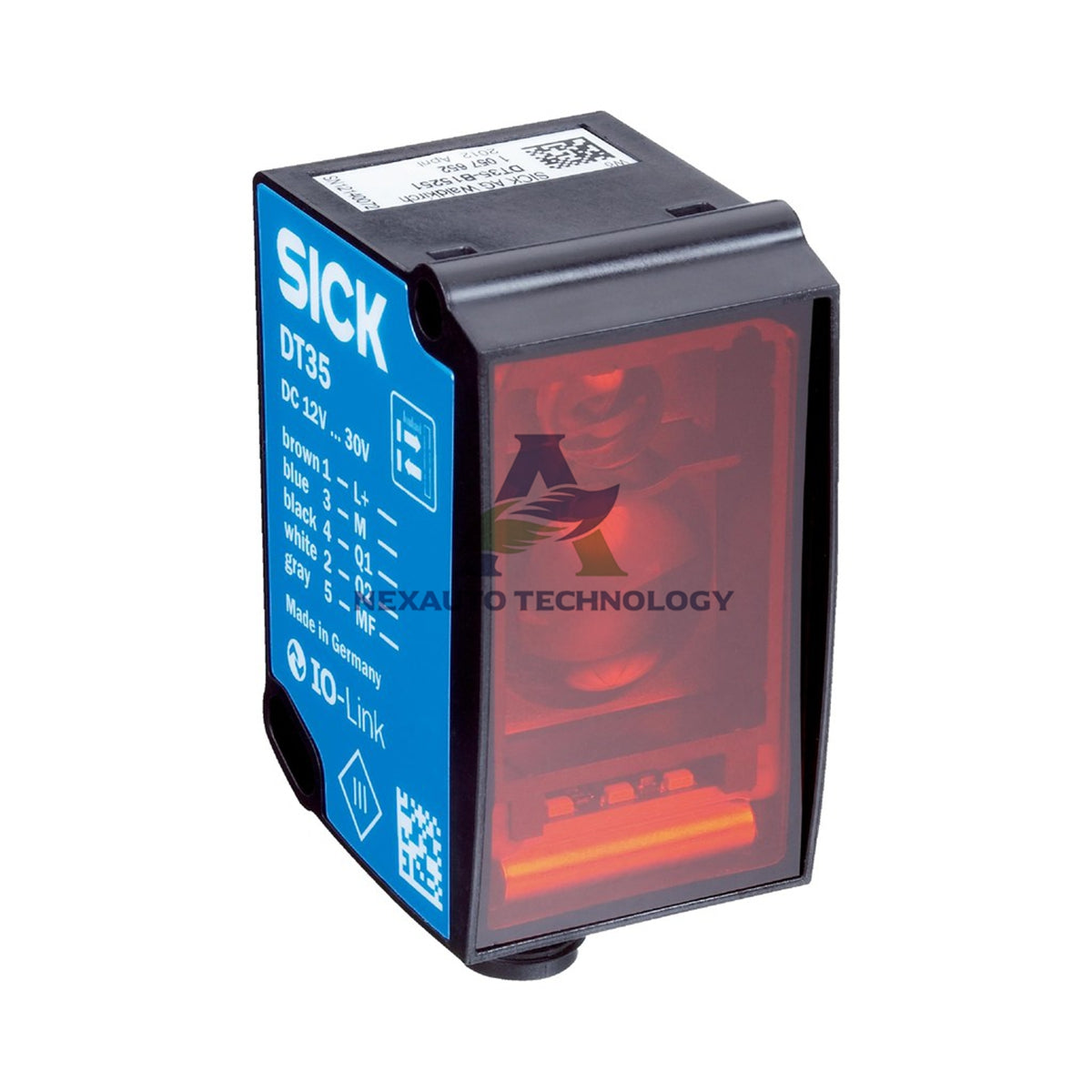

DL35-B15552 SICK Dx35 Mid-Range Distance Sensor

SICK DL35-B15552 Mid-Range Distance Sensor – Dx35 Series

Key Technical Specifications

• Measurement range: 200 mm to 35,000 mm on diamond grade reflective tape, with 0.1 mm resolution.
• Repeatability: ≥ 0.5 mm; measurement accuracy typically ± 15 mm.
• Response time: 2.5 ms to 96.5 ms, selectable in five steps (2.5, 6.5, 12.5, 24.5, 96.5 ms).
• Switching frequency: 333 Hz, 100 Hz, 50 Hz, 25 Hz, or 6 Hz, matching the selected response time.
• Output time: 1 ms to 32 ms, user-selectable (1, 2, 4, 8, 32 ms).
• Light source: Visible red laser, class 1 (IEC 60825-1:2014, EN 60825-1:2014), average service life 100,000 hours at 25 °C.
• Light spot size: 15 mm x 15 mm at 2 m distance.
• Analog output: 4–20 mA (≤ 450 Ω) or 0–10 V (≥ 50 Ω), 12-bit resolution, hysteresis 0–34,950 mm.
• Digital outputs: 1–2 push-pull (PNP/NPN), max 100 mA, short-circuit protected, Q2 adaptable.
• IO-Link: Version 1.1, 38.4 kbit/s, supports process data, parameterization, and diagnosis.
• Supply voltage: 12–30 V DC, power consumption ≤ 1.7 W, ripple ≤ 5 Vpp.
• Initialization and warm-up: ≤ 500 ms and ≤ 20 min respectively.
• Ambient temperature: –30 °C to +55 °C (operation, Uv ≤ 24 V); storage –40 °C to +75 °C.
• Enclosure rating: IP65 / IP67, protection class III, plastic housing (ABS/PC), PMMA window.
• Dimensions and weight: 32 x 58.67 x 42.7 mm, 65 g; M12 5-pin male connector.
• Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27.
• Brand: SICK; Model: DL35-B15552; Category: Time-of-Flight distance sensor.

Installation Guide

• Mount the sensor using the M12 5-pin male connector and secure it to a stable bracket.
• Align the visible red laser toward the diamond grade reflective tape within the 200 mm to 35,000 mm range.
• Keep the light path clear; the 15 mm x 15 mm spot at 2 m simplifies aiming and alignment.
• Connect supply voltage between 12 V and 30 V DC, keeping ripple at or below 5 Vpp.

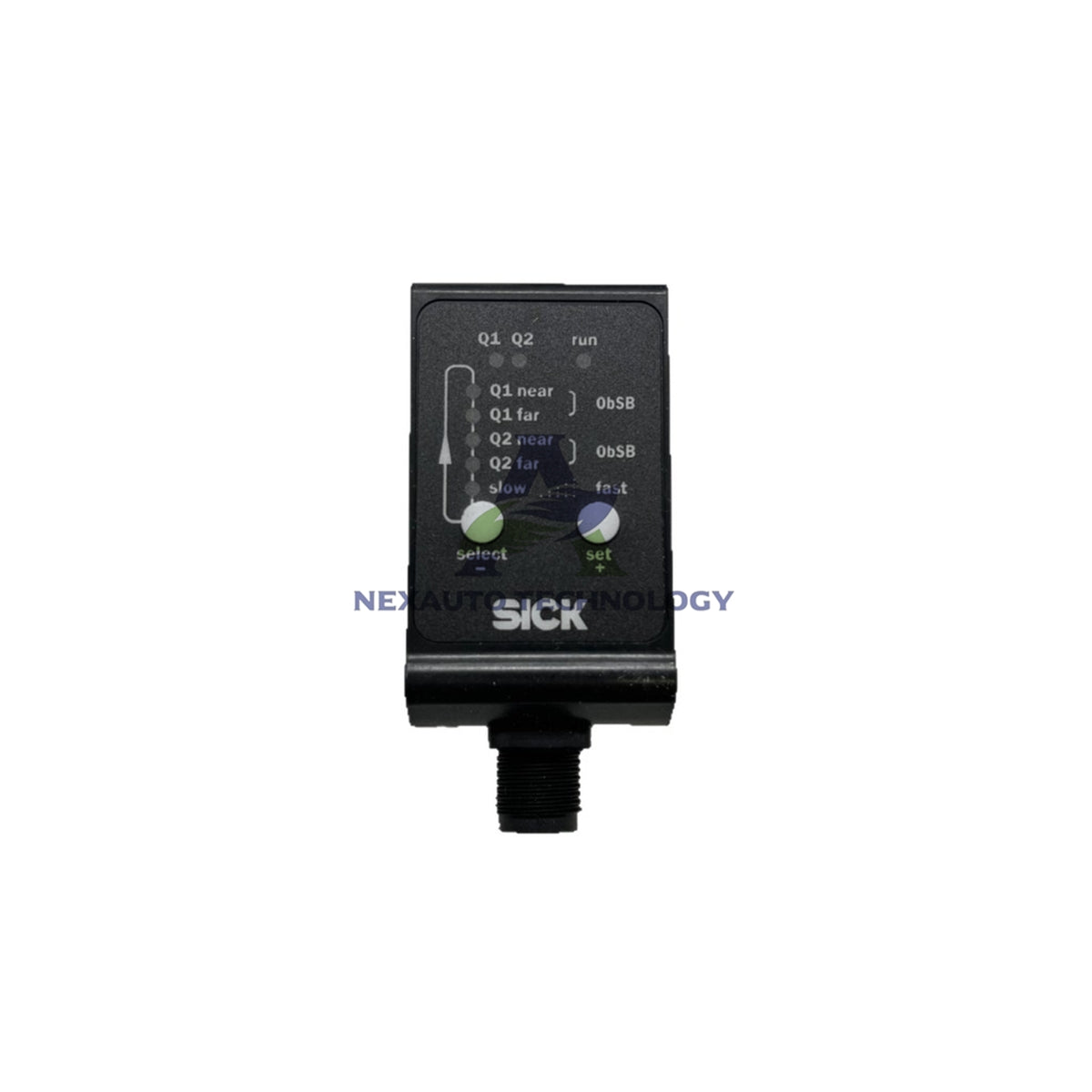

• Configure output Q2 as current, voltage, or digital via teach-in or IO-Link.
• Use the multifunctional input for laser off, external teach, or deactivation as needed.
• Select switching mode: distance to reflective tape (DtR), switching window (Wnd), or object between sensor and background (ObSB).
• Verify IP65/IP67 sealing by tightening the connector to the recommended torque.

Package Contents

• 1 x SICK DL35-B15552 distance sensor.
• 1 x M12 5-pin male connector (pre-installed).
• 1 x Quick start guide (printed).
• Packaging: protective carton, FedEx, UPS, or DHL shipping available.

Frequently Asked Questions (FAQ)

• Q: What is the measurement range of the DL35-B15552?
  A: It measures from 200 mm to 35,000 mm when you use diamond grade reflective tape.
• Q: What type of laser does this sensor use?
  A: It uses a visible red laser, class 1, with an average service life of 100,000 hours.
• Q: Can I adjust the response time?
  A: Yes, you can select 2.5 ms, 6.5 ms, 12.5 ms, 24.5 ms, or 96.5 ms.
• Q: Does the sensor support IO-Link?
  A: Yes, it supports IO-Link V1.1 at 38.4 kbit/s for process data and diagnosis.
• Q: What is the analog output resolution?
  A: The analog output provides 12-bit resolution for both current and voltage modes.
• Q: What is the operating temperature range?
  A: The sensor operates from –30 °C to +55 °C with supply voltage up to 24 V.
• Q: Is the DL35-B15552 in stock?
  A: Yes, we have new original stock available and ship within 5 days via DHL, FedEx, or UPS.
• Q: What is the return policy?
  A: We accept returns within 30 days of delivery for this product.
