DS200TCDAG1BDB Digital Input/Output Board - GE Mark V

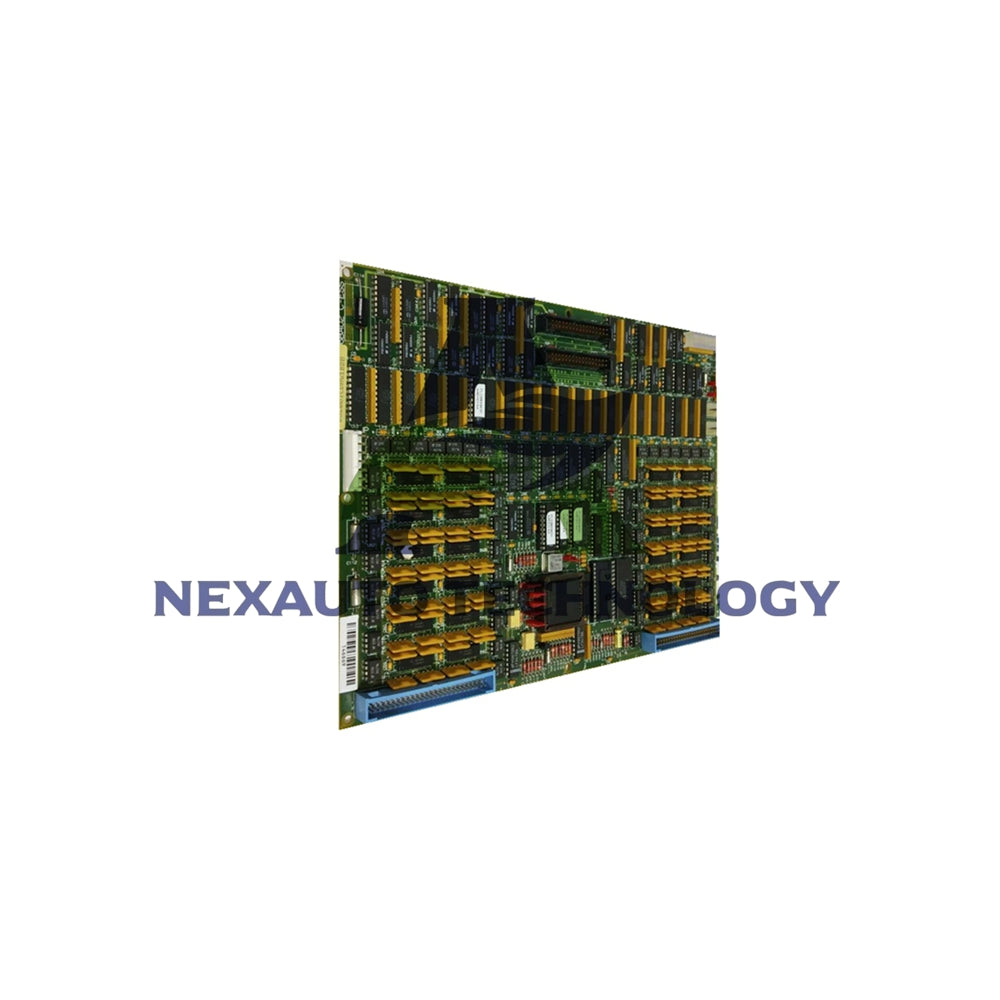

GE DS200TCDAG1BDB Digital I/O Board

The DS200TCDAG1BDB serves as a critical digital interface in GE's Mark V Speedtronic systems. This Digital I/O Board manages contact inputs and relay outputs for turbine control. It features triple modular redundancy for maximum reliability.

Technical Specifications

• Manufacturer: General Electric
• Part Number: DS200TCDAG1BDB
• Series: Mark V Speedtronic
• Weight:1.5kg
• Function: Digital I/O Board (TCDA)
• Power: +5V DC, 6A Requirement
• Relay Channels: 12 Output Channels
• Supply Voltage: 28V DC Operation
• Temperature: -30°C to +65°C Range
• Mounting: DIN-Rail System
• Manual: GEI-100182B Documentation

Hardware Features

• Eight configuration jumpers (J1-J8)
• LED status indicator panel
• Resistor network arrays
• Multiple pin connectors
• Integrated circuit components
• Vertical pin plug connectors
• Capacitor and relay arrays
• Surface mount technology
• Factory-drilled mounting holes

Jumper Configuration

• J1: Factory testing function
• J2-J3: IONET termination resistors
• J4-J6: IONET address setting
• J7: Stall timer enable
• J8: Test enable function
• Factory settings recommended

Connector Functions

• JP: Power distribution
• JQ: DTBA input signals
• JR: DTBB input signals
• JO1: Location 4 output
• JO2: Location 5 output
• JX1-JX2: IONET communication

System Integration

• Mark V Speedtronic control
• Triple modular redundant systems
• Gas and steam turbine management
• IONET network communication
• Digital contact input handling
• Relay output control

Compatible Boards

• TCEA control boards
• TCQE processor boards
• TCQA auxiliary boards
• UCPB communication boards
• STCA system boards

Frequently Asked Questions

• How many relay channels? 12 independent channels.
• What power supply needed? +5V DC at 6A.
• How many revisions available? Three total revisions.
• What temperature range? -30°C to +65°C operation.
• Compatible with earlier versions? First two revisions compatible.
• What mounting system? DIN-rail mounting standard.

Installation & Support

• Professional installation recommended
• Hardware jumper configuration required
• IONET address setting needed
• Software configuration support
• Technical documentation available
• Quick repair service offered
