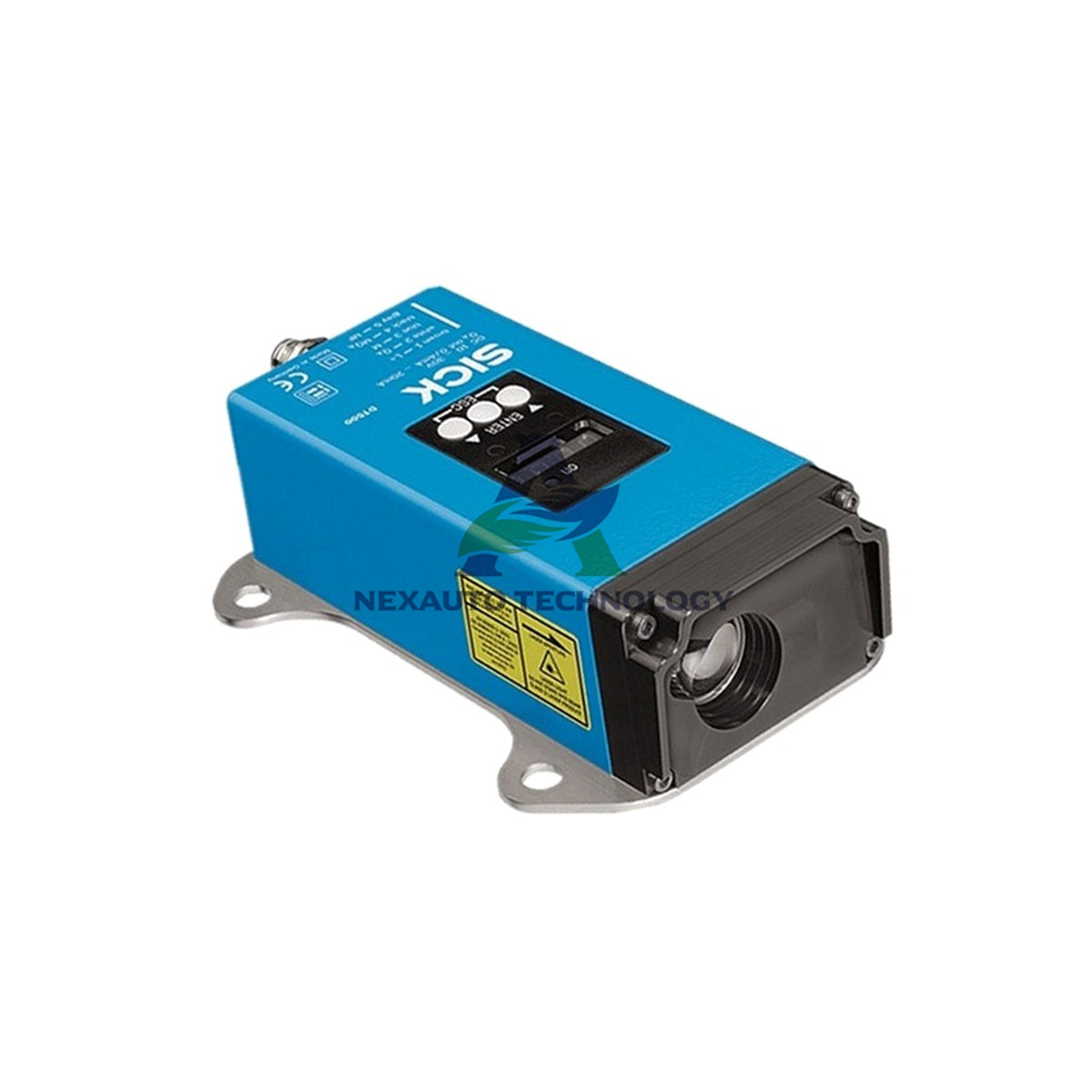

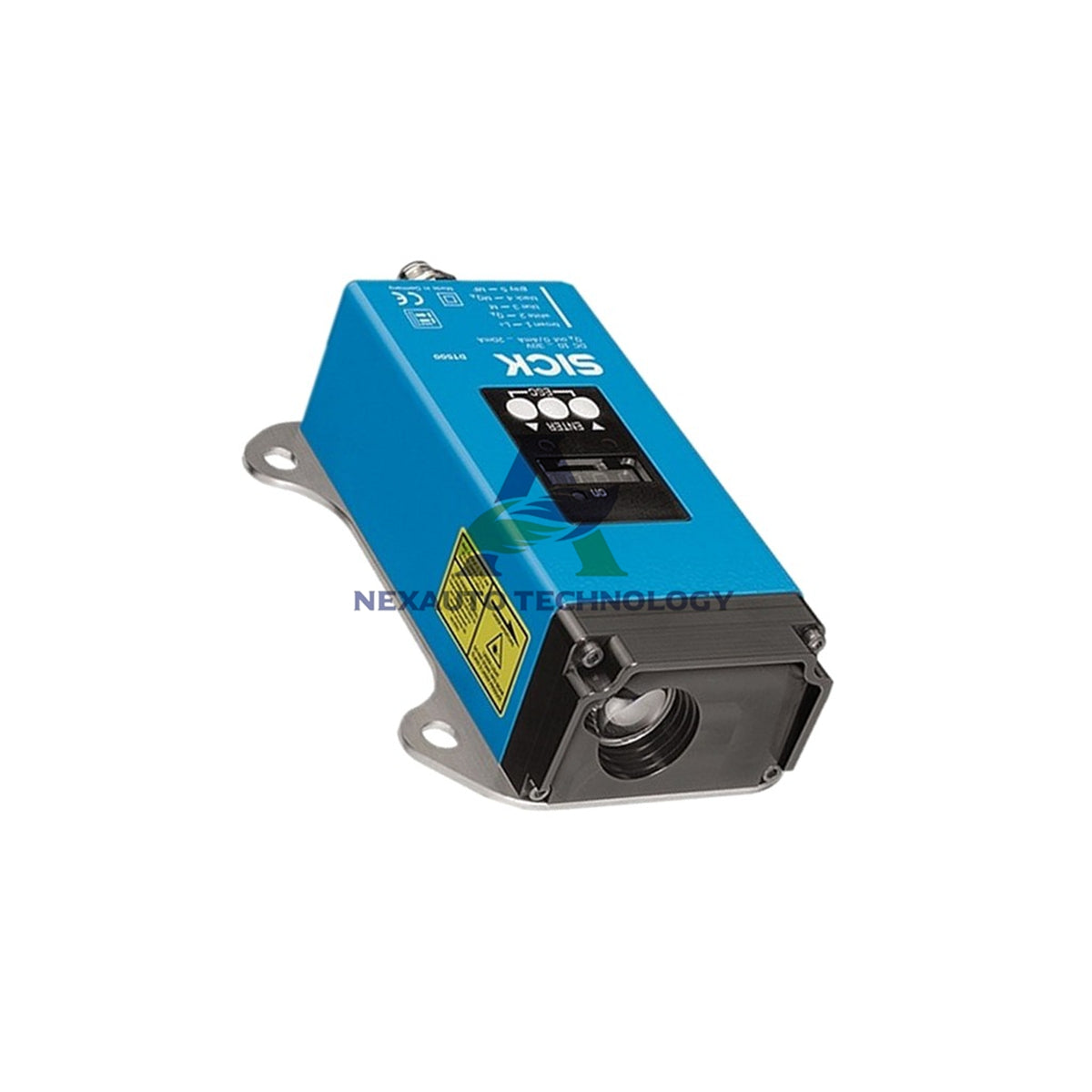

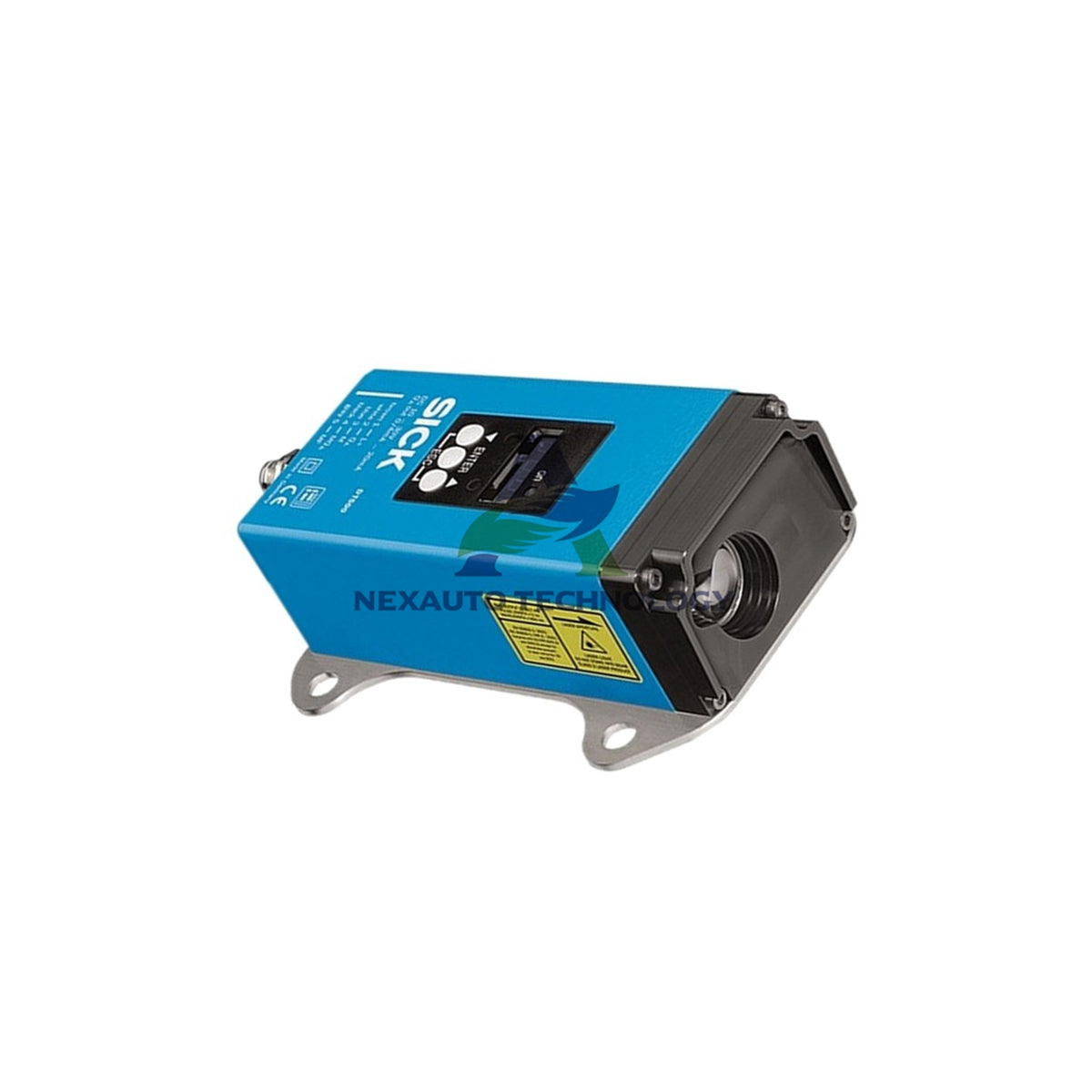

DT500-A311 SICK Long Range Distance Sensor

DT500-A311 | Dx500 SICK Long Range Distance Sensor – 0.2 m to 7 m Laser Measurement

Technical Specifications – DT500-A311

• Brand / Manufacturer: SICK
• Model: DT500-A311
• Series: Dx500
• Category: Long Range Distance Sensors
• Measuring range: 0.2 m to 7 m at 90% remission; 0.8 m to 7 m at 6% remission
• Resolution: 12 bit
• Repeatability: 1 mm
• Accuracy: ± 3 mm
• Response time / Output time: 150 ms each
• Light source: Visible red laser, laser class 2
• Supply voltage: 10 V to 30 V DC, reverse polarity protected
• Power consumption: Typically 3 W
• Analog output: 0 mA to 20 mA current output, configurable to 4 mA to 20 mA
• Multifunctional input: Above 12 V, includes laser-off control
• Housing: Die-cast aluminum, glass window
• Connection: M12 male connector, 5-pin
• Dimensions: 69 mm x 50 mm x 153 mm
• Weight: 1,000 g
• Enclosure rating: IP65, protection class II
• Operating temperature: –10 °C to +45 °C; with cooling case –10 °C to +75 °C
• Storage temperature: –25 °C to +75 °C
• Temperature drift: Typically 0.05 mm/K
• Ambient light immunity: Up to 3,000 lx
• EMC: EN 61000-6-2, EN 55011, EN 60947-5-7
• Light spot size: 10 mm at 7 m, 45 mm at 30 m, 100 mm at 70 m

Key Performance Highlights

• The DT500-A311 keeps 1 mm repeatability across the full measuring range.
• Accuracy stays within ± 3 mm for stable distance feedback in control loops.
• A 12-bit resolution gives fine steps for precise position tracking.
• The 150 ms response time suits moderate-speed automation and monitoring tasks.
• Visible red laser class 2 simplifies alignment during commissioning.
• Temperature drift of 0.05 mm/K supports consistent readings in changing conditions.
• Ambient light immunity to 3,000 lx limits interference from factory lighting.
• EMC compliance to EN 61000-6-2 and EN 55011 improves抗干扰能力 in industrial settings.

Installation Guide

• Mount the sensor on a rigid bracket using the 69 mm x 50 mm x 153 mm housing footprint.
• Keep the glass window clean and aim the laser spot squarely at the target surface.
• Connect the 5-pin M12 connector and confirm the 10 V to 30 V DC supply polarity.
• Set the analog output to 0 mA to 20 mA or 4 mA to 20 mA before startup.
• Use the multifunctional input above 12 V to switch the laser off when needed.
• Respect the –10 °C to +45 °C operating range, or add a cooling case for higher heat.
• Verify IP65 sealing by tightening the connector and checking the window seal.
• Test repeatability and accuracy against a known reference after mounting.

Packing List

• 1 x SICK DT500-A311 distance sensor
• 1 x Protective packaging
• 1 x Quick reference document
• Ships by FedEx, UPS, or DHL

FAQ

• Q: What is the measuring range of the DT500-A311?
  A: It covers 0.2 m to 7 m at 90% remission and 0.8 m to 7 m at 6% remission.
• Q: How accurate is this Dx500 sensor?
  A: Accuracy is ± 3 mm with 1 mm repeatability and 12-bit resolution.
• Q: Which output does the sensor provide?
  A: It offers a 0 mA to 20 mA current output, configurable to 4 mA to 20 mA.
• Q: What is the response time?
  A: Response time and output time are both 150 ms.
• Q: What operating temperature does it support?
  A: It runs from –10 °C to +45 °C, or up to +75 °C with a cooling case.
• Q: Is the sensor protected against dust and water?
  A: Yes, the die-cast aluminum housing carries an IP65 enclosure rating.
• Q: How do you connect the DT500-A311?
  A: It uses a 5-pin M12 male connector with a 10 V to 30 V DC supply.
• Q: What is the stock and delivery status?
  A: We stock brand new original units and ship within 5 days via DHL and similar carriers.
• Q: What is the return policy?
  A: We support returns within 30 days of delivery.
