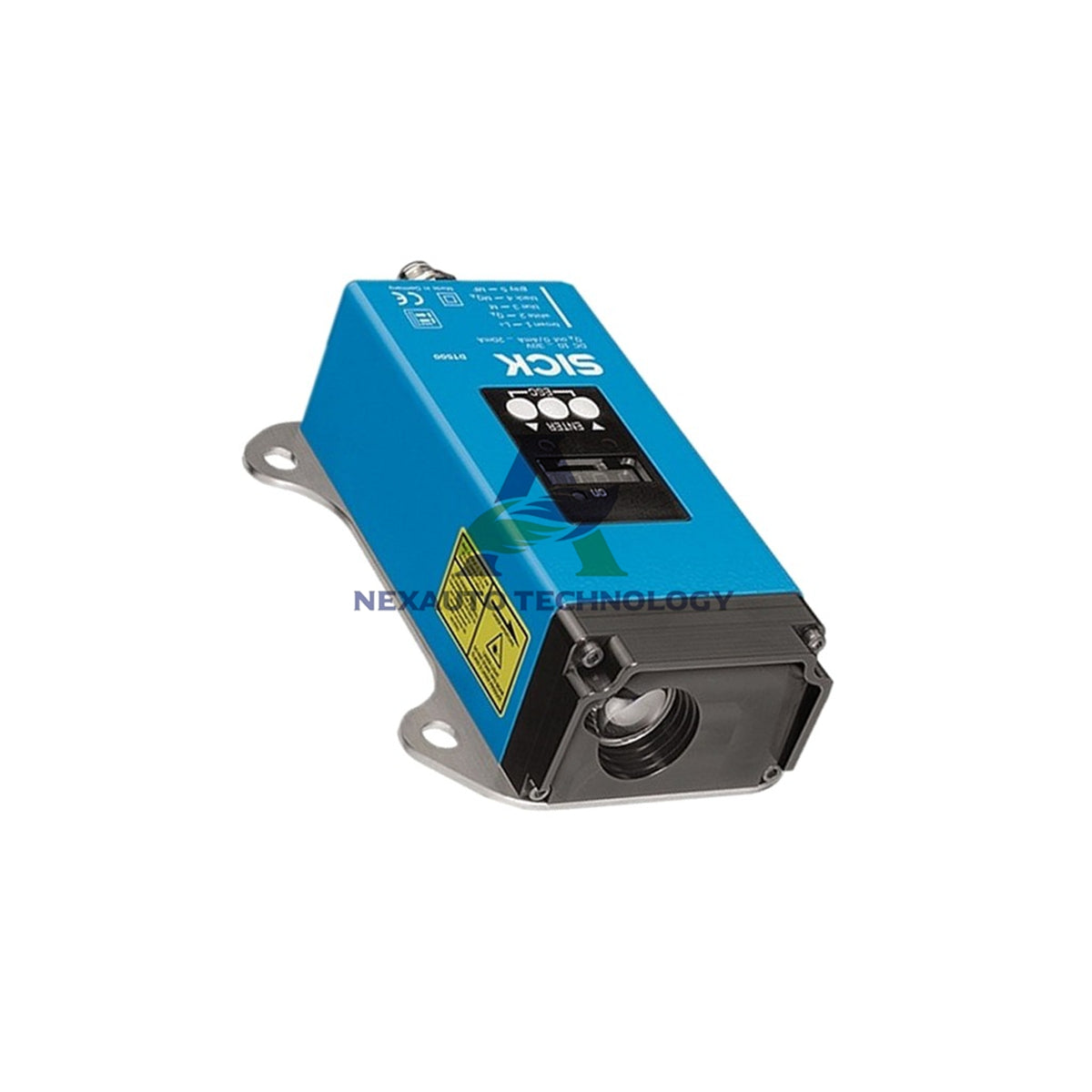

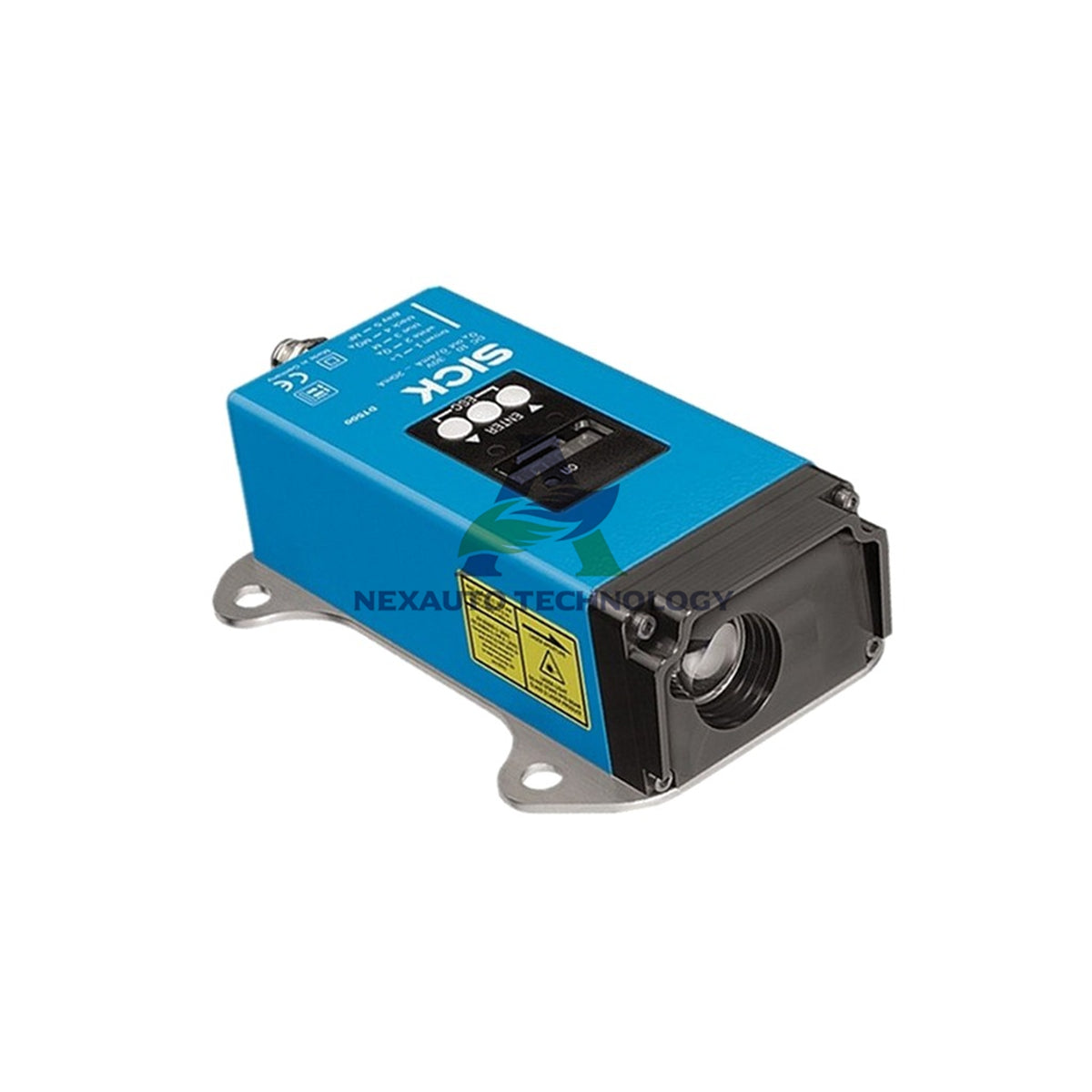

DT500-A511 SICK Long Range Distance Sensor 70 m Laser

DT500-A511 | SICK Long Range Distance Sensors – 0.2 m to 70 m Laser Measurement

Technical Specifications – DT500-A511

• Brand / Manufacturer: SICK
• Model: DT500-A511
• Series: Dx500
• Category: Long Range Distance Sensors
• Measuring range: 0.2 m to 70 m at 90% remission; 0.2 m to 30 m at 6% remission
• Target: Natural objects
• Resolution: 12 bit
• Repeatability: 1 mm
• Measurement accuracy: ± 3 mm
• Response time / Output time: 150 ms to 6,000 ms, configurable
• Light source: Visible red laser, laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
• Light spot size: 10 mm at 7 m, 45 mm at 30 m, 100 mm at 70 m
• MTTFD: 101 years; DCavg 0%
• Supply voltage: 10 V to 30 V DC, reverse polarity protected
• Power consumption: Typically 3 W; ripple 5 Vpp
• Initialization time: 500 ms
• Analog output: 0 mA to 20 mA current output, configurable to 4 mA to 20 mA
• Multifunctional input: PNP; laser-off input above 12 V
• Housing: Die-cast aluminum, glass window
• Connection: Male connector
• Dimensions: 69 mm x 50 mm x 153 mm
• Weight: 1,000 g
• Enclosure rating: IP65, protection class II
• Operating temperature: –10 °C to +45 °C; with cooling case –10 °C to +75 °C
• Storage temperature: –25 °C to +75 °C
• Temperature drift: Typically 0.05 mm/K
• Ambient light immunity: Up to 3,000 lx
• EMC: EN 61000-6-2 / EN 61000-6-3
• Mechanical load: Shock (EN 60068-2-27 / –2-29), sine (EN 60068-2-6), noise (EN 60068-2-64)

Key Performance Highlights

• The DT500-A511 reaches 70 m on 90% remission targets for wide coverage.
• Repeatability of 1 mm and accuracy of ± 3 mm keep readings dependable.
• Users can tune response and output time from 150 ms to 6,000 ms.
• A 12-bit resolution delivers fine measurement steps across the full span.
• The red laser class 2 beam simplifies aiming over long distances.
• EMC compliance to EN 61000-6-2 and EN 61000-6-3 strengthens抗干扰能力.
• Ambient light immunity to 3,000 lx reduces interference from strong lighting.
• MTTFD of 101 years reflects long-term reliability in fixed installations.

Installation Guide

• Fix the sensor on a solid bracket using the 69 mm x 50 mm x 153 mm body.
• Align the red laser spot with the target and confirm a clear optical path.
• Wire the male connector to a 10 V to 30 V DC supply with correct polarity.
• Select the analog range of 0 mA to 20 mA or 4 mA to 20 mA before operation.
• Set response and output time between 150 ms and 6,000 ms for your process.
• Use the PNP multifunctional input above 12 V to control the laser-off function.
• Keep the unit within –10 °C to +45 °C, or fit a cooling case for hotter sites.
• Check the IP65 seal and clean the glass window during routine maintenance.

Packing List

• 1 x SICK DT500-A511 distance sensor
• 1 x Protective packaging
• 1 x Quick reference document
• Ships by FedEx, UPS, or DHL

FAQ

• Q: What is the maximum measuring range of the DT500-A511?
  A: It measures 0.2 m to 70 m at 90% remission and 0.2 m to 30 m at 6% remission.
• Q: How accurate is this SICK Dx500 sensor?
  A: Accuracy is ± 3 mm with 1 mm repeatability and 12-bit resolution.
• Q: Can I adjust the response time?
  A: Yes, response time and output time range from 150 ms to 6,000 ms.
• Q: Which output does the sensor provide?
  A: It offers a 0 mA to 20 mA current output, configurable to 4 mA to 20 mA.
• Q: What is the multifunctional input type?
  A: The multifunctional input is PNP, and the laser-off input triggers above 12 V.
• Q: What operating temperature does it support?
  A: It runs from –10 °C to +45 °C, or up to +75 °C with a cooling case.
• Q: Is the sensor protected against dust and water?
  A: Yes, the die-cast aluminum housing carries an IP65 enclosure rating.
• Q: What is the stock and delivery status?
  A: We stock brand new original units and ship within 5 days via DHL and similar carriers.
• Q: What is the return policy?
  A: We support returns within 30 days of delivery.
