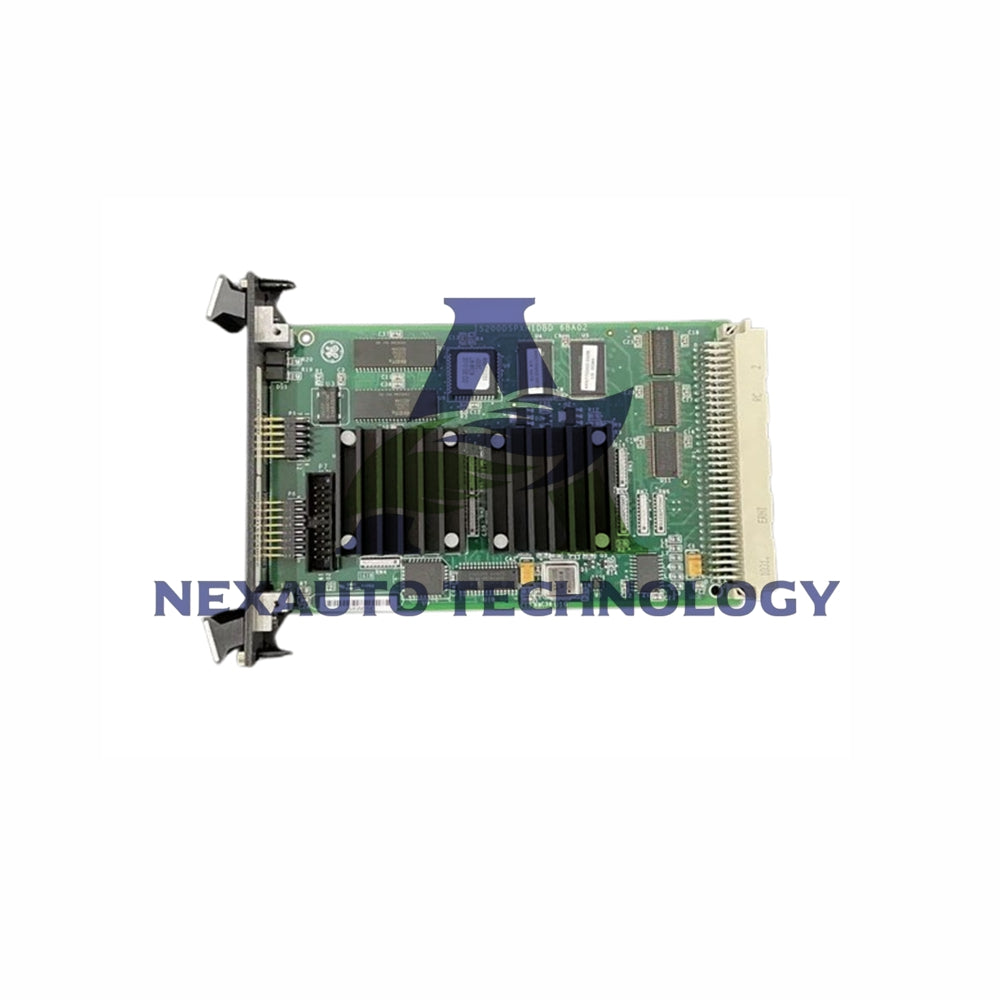

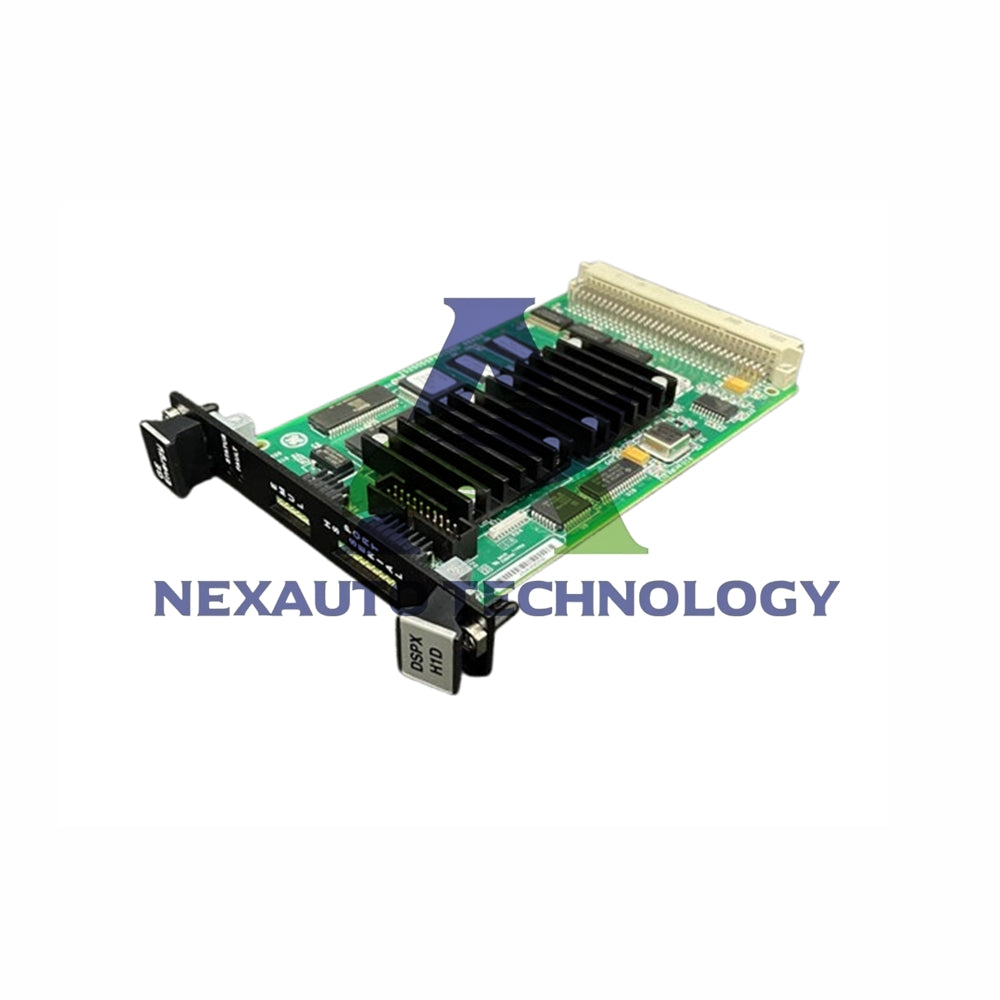

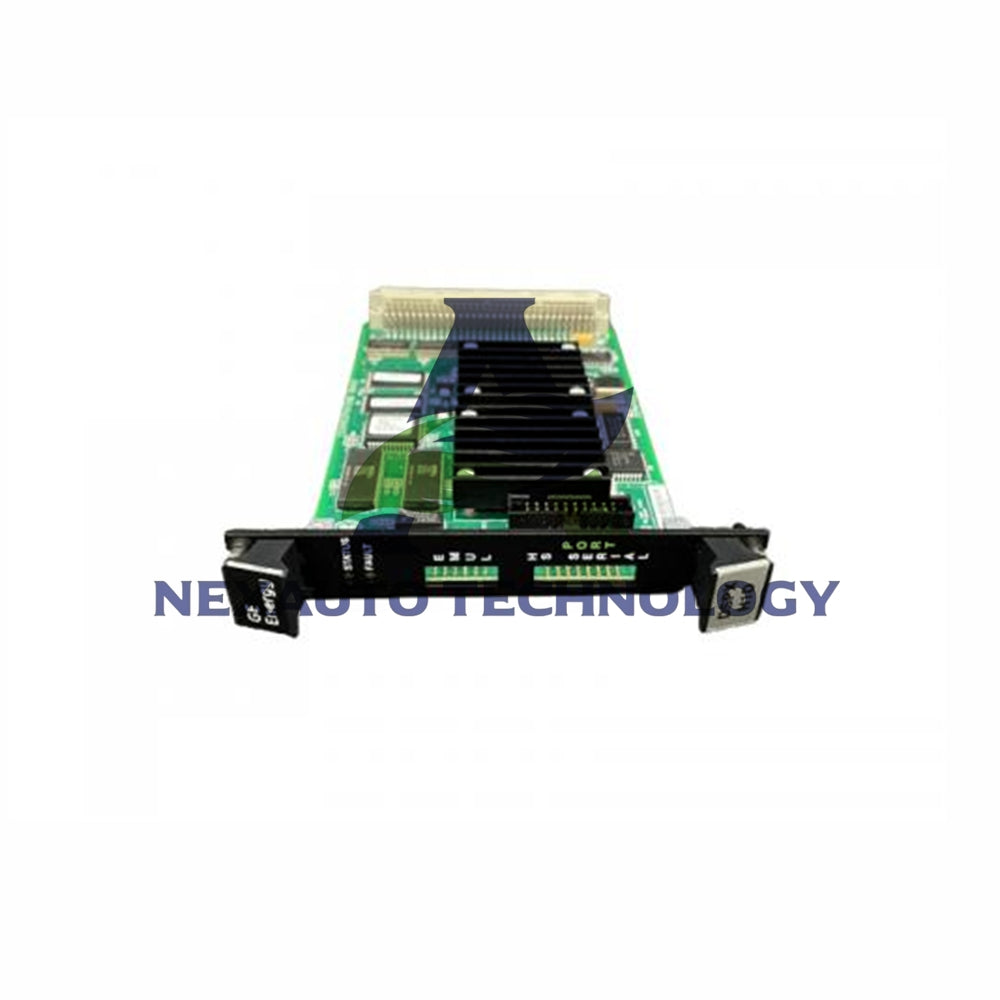

GE Innovation Series IS200DSPXH1DBC Processor Board

Product Overview

The IS200DSPXH1DBC is a Digital Signal Processor Control Board manufactured by General Electric for the EX2100 excitation control system. This advanced processor board serves as the central control unit for Innovation Series drives and EX2100 excitation control, providing precise regulation and gating functions.

Technical Specifications

• Manufacturer: General Electric (GE)
• Part Number: IS200DSPXH1DBC
• Product Type: Digital Signal Processor Control Board
• Functional Acronym: DSPX Processor Board
• Series: EX2100 Excitation Control System
• Operating Temperature: -30°C to 65°C (-22°F to 149°F)
• PCB Protection: Conformal Coating Application
• Processor Speed: 60 MHz DSP Clock Frequency
• Memory Types: FLASH, RAM, NVRAM, Add-Only Memory
• Manual Reference: GEI-100488 Technical Documentation
• Country of Origin: United States of America (USA)

Processor Architecture

• DSP Core: High-Performance Digital Signal Processor
• Clock Speed: 60 MHz Operating Frequency
• Interrupt System: Four External Interrupt Channels
• Interrupt Types: Stack Overflow, Inner Loop Load Pulse, Configurable Inputs
• Processing Power: Complex Control Algorithm Execution
• Real-Time Control: Critical System Function Management

Hardware Components

• Digital Signal Processor: High-Speed DSP Chip
• Standard Memory: Industrial-Grade Memory Components
• ASIC Integration: Application-Specific Integrated Circuit
• Custom Logic: Specialized Control Logic Functions
• Interface Circuits: System Communication Interfaces
• Processing Elements: Advanced Computational Capabilities

Onboard Firmware

• Boot Loader: Power-Up Sequence Initialization
• System Integrity: Stable Startup Process Management
• Field Protection: Boot Loader Non-Reloadable Design
• Application Code: Drive and Exciter Control Functions
• Algorithm Implementation: Control Logic and Regulation Algorithms
• Update Process: Tool Port Loading Capability

Configuration Parameters

• Performance Settings: System Operation Optimization
• Operation Modes: Multiple Mode Configuration Options
• System Configurations: Customizable Control Parameters
• Exciter Parameters: Unit Data Highway Loading
• Drive Parameters: Serial, ISBus, or Ethernet Loading
• Parameter Management: Efficient Communication Transfer

System Integration

• Innovation Series: Drive System Compatibility
• EX2100 System: Excitation Control Integration
• Control Unit: Central System Management Role
• Interface Functions: Seamless System Operation Support
• Communication Protocols: Multiple Interface Compatibility
• System Coordination: Multi-Function Control Management

Application Areas

• Primary Application: EX2100 Excitation Control Systems
• Drive Systems: Innovation Series Drive Control
• Generator Control: Field Excitation Regulation
• Power Conversion: Bridge and Motor Regulation
• Industrial Automation: Advanced Control Applications
• Power Generation: Excitation System Management

Key Features

• 60 MHz Digital Signal Processor for High-Speed Control
• Comprehensive Memory Architecture (FLASH, RAM, NVRAM)
• Four External Interrupt Channels for Responsive Operation
• Bridge and Motor Regulation Capabilities
• Generator Field Control Functions
• Conformal PCB Coating for Environmental Protection
• GEI-100488 Manual Documentation Support

Interrupt System Details

• INT0: Stack Overflow Interrupt Protection
• INT1: Inner Loop Load Pulse Interrupt
• INT2/INT3: Configurable Input Interrupts
• Responsiveness: Critical Event Handling Capability
• System Stability: Reliable Interrupt Management
• Event Processing: Timely System Response

Frequently Asked Questions

What is the primary function of this processor board?
The IS200DSPXH1DBC serves as the central Digital Signal Processor Control Board for EX2100 excitation systems, managing bridge regulation, motor control, and generator field functions.

What processor speed does it feature?
This board incorporates a high-performance 60 MHz Digital Signal Processor capable of executing complex control algorithms for precise system regulation.

What types of memory are included?
The board features FLASH memory for code storage, RAM for dynamic data, NVRAM for parameter retention, and add-only memory for revision identification.

What temperature range does it support?
It operates reliably from -30°C to 65°C (-22°F to 149°F) with conformal PCB coating for protection in harsh industrial environments.

What documentation covers this board?
Complete technical specifications and operational details are provided in the GEI-100488 manual from General Electric.
