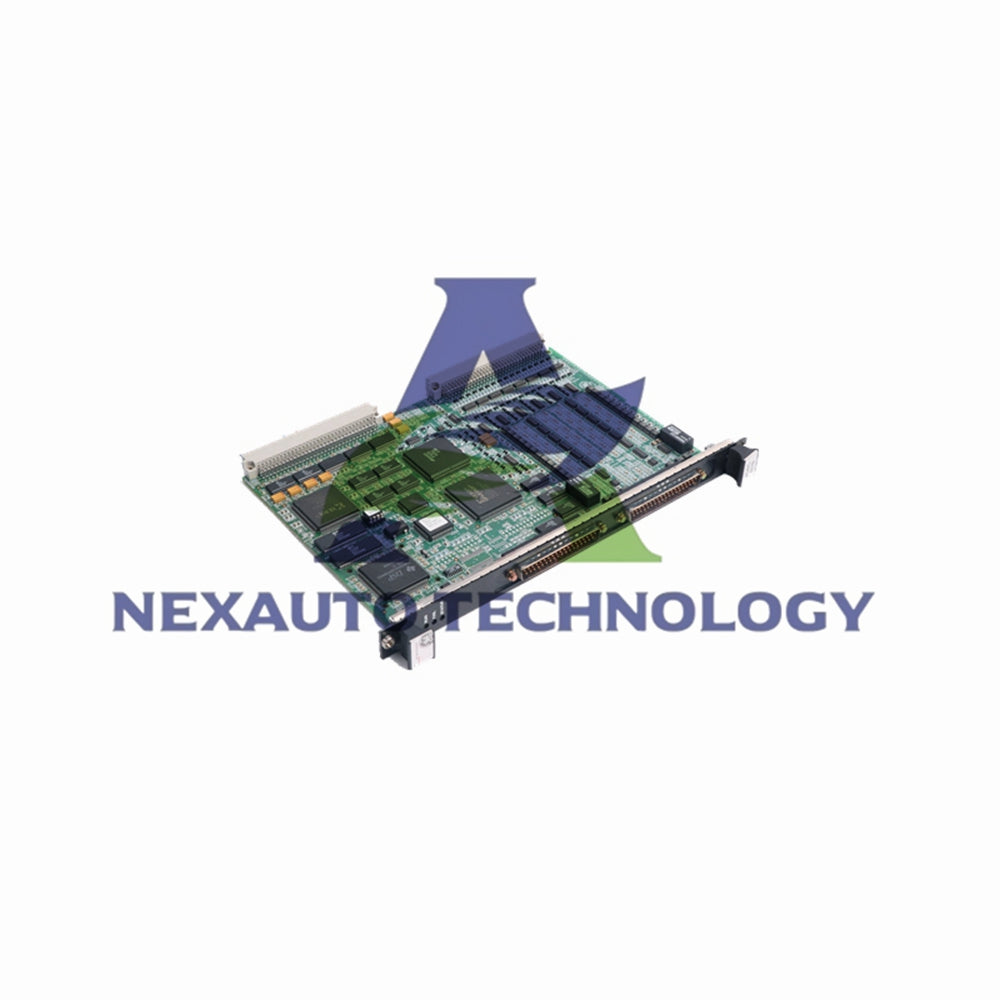

GE IS200ERIOH1AAA Exciter Regulator I/O Board

GE IS200ERIOH1AAA Exciter Regulator I/O Board – EX2100 Series

General Electric IS200ERIOH1AAA serves as the Exciter Regulator I/O Board within the EX2100 series. This board delivers critical I/O interface functions for both simplex and redundant regulator systems. It ensures reliable communication between customer equipment and internal control modules. Engineers rely on IS200ERIOH1AAA for precise signal handling and system integration.

Core Technical Specifications

• Brand: General Electric (GE)
• Model: IS200ERIOH1AAA
• Series: EX2100 Excitation Control
• Form Factor: Single-slot, double-height (6U)
• Backplane Connectors: Dual 96-pin P1 and P2
• External I/O: Two 25-pin sub-D receptacles
• Diagnostic Port: 9-pin sub-D “TEST” connector
• Mounting Location: Exciter Regulator Backplane (ERBP)
• Compatibility: EPCT, ECTBG2, ERDD, EROC boards
• Temperature Range: -30°C to +70°C industrial operation
• Noise Immunity: High common-mode rejection, shielded I/O paths
• Linearity: ±0.1% full scale across input range
• Isolation: 1500 Vrms optical isolation on digital inputs
• Humidity: 5% to 95% non-condensing
• Vibration Resistance: 2g continuous, 5g transient per IEC 60068-2

System Role and Interface Design

• P1 connector acts as a slave communication interface. It links IS200ERIOH1AAA with other EX2100 control modules.
• P2 connector serves as the primary I/O path. It connects directly to backplane-mounted boards like ERDD and EROC.
• Faceplate integrates two 25-pin sub-D ports. These establish direct links with ECTB and EPCT terminal boards.
• TEST port enables on-site diagnostics. Technicians can monitor signal integrity without removing the board.
• 6U form factor conserves panel space. It fits seamlessly into standard EX2100 rack systems.
• High noise immunity: Differential inputs reject industrial EMI.
• Fast transient response: Input filters settle within 2 ms.

Redundant and Simplex Versatility

• In simplex systems, IS200ERIOH1AAA mounts inside the ERBP. It manages customer I/O for excitation and contact terminal boards.
• For redundant configurations, the board maintains full I/O functionality. It supports hot-backup regulator setups without signal loss.
• Consistent role across both architectures. This reduces engineering complexity and spares inventory.
• Enhanced fault tolerance: Dual-connector layout isolates critical signals from general I/O.

Installation and Packaging

• Each IS200ERIOH1AAA ships in anti-static shielded packaging. ESD foam protects all connectors.
• Package includes one GE ERIO board. No cables, software, or hardware accessories included.
• Direct mechanical replacement. Matches existing EX2100 drill holes and keying.
• We ship via FedEx, UPS, or DHL. Tracking provided within 24 hours.
• Export packaging available. Double-boxed for international air freight.

Contact Information

• Email inquiries: sales@nex-auto.com
• WhatsApp support: +86 153 9242 9628
• Response time: Same business day for all technical and sales questions.

Frequently Asked Questions

Q: Can IS200ERIOH1AAA operate in both EX2100 and EX2100e systems?
A: Yes. This board supports legacy EX2100 and early EX2100e regulators. Check your backplane revision for full compatibility.

Q: What signals pass through the P2 connector?
A: P2 handles analog and digital I/O for regulator control. This includes firing pulses, feedback signals, and discharge commands.

Q: Do I need to configure jumpers before installation?
A: No. IS200ERIOH1AAA uses software-based addressing. Jumpers are not required for basic I/O mapping.

Q: Which terminal boards connect to the 25-pin ports?
A: Use ECTBG2 for contact I/O and EPCT for PT/CT signals. Both connect directly to the ERIO faceplate.

Q: How do I verify board operation without a full system test?
A: Use the TEST port with a standard serial adapter. You can poll status registers and measure reference voltages.

Q: Is this board a common failure point in EX2100 systems?
A: No. IS200ERIOH1AAA exhibits high field reliability. Most issues trace to external wiring or terminal board faults.

Q: Can I use this board as a spare for multiple cabinet types?
A: Yes. It fits all EX2100 cabinets using ERBP backplanes. One spare covers both simplex and redundant slots.

Q: What is the typical lead time?
A: In-stock orders ship within 48 hours. Volume orders require 3–5 business days.

Q: Does this board require calibration after installation?
A: No. Factory calibration remains stable over temperature and time. No field adjustment needed.
