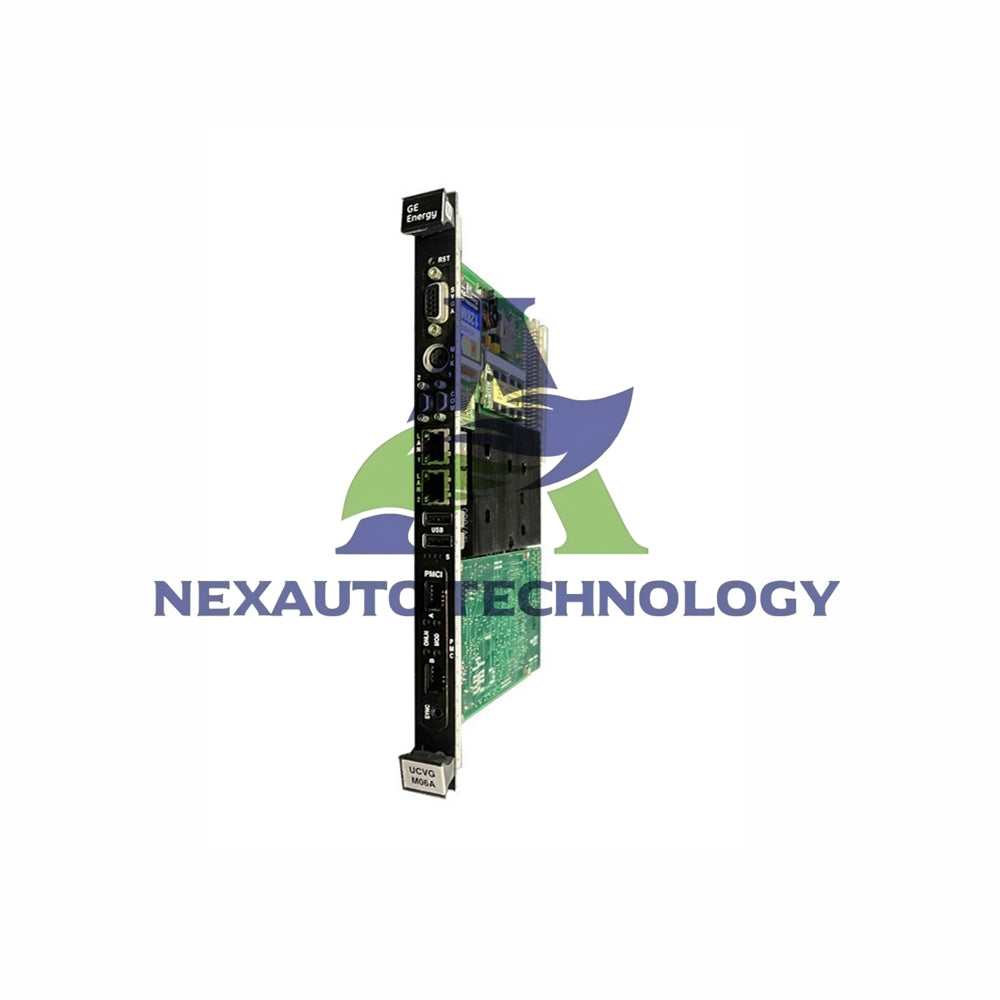

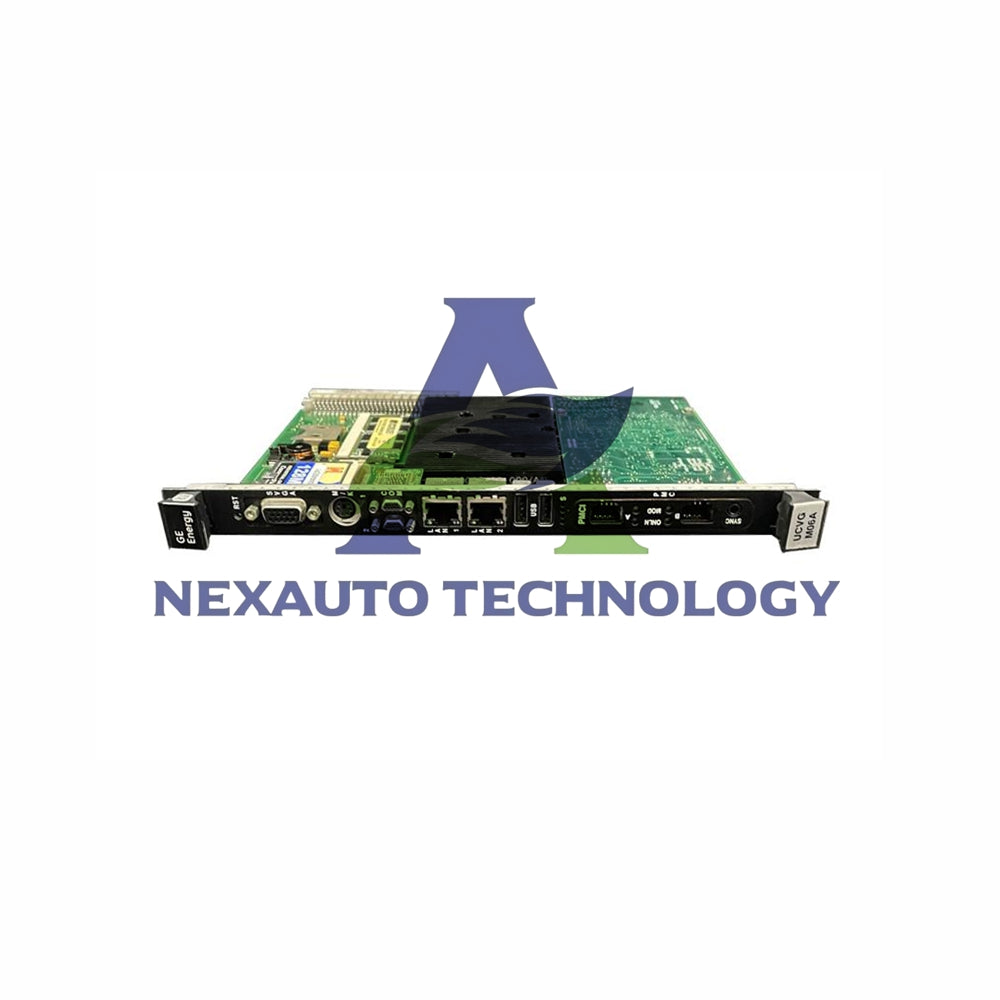

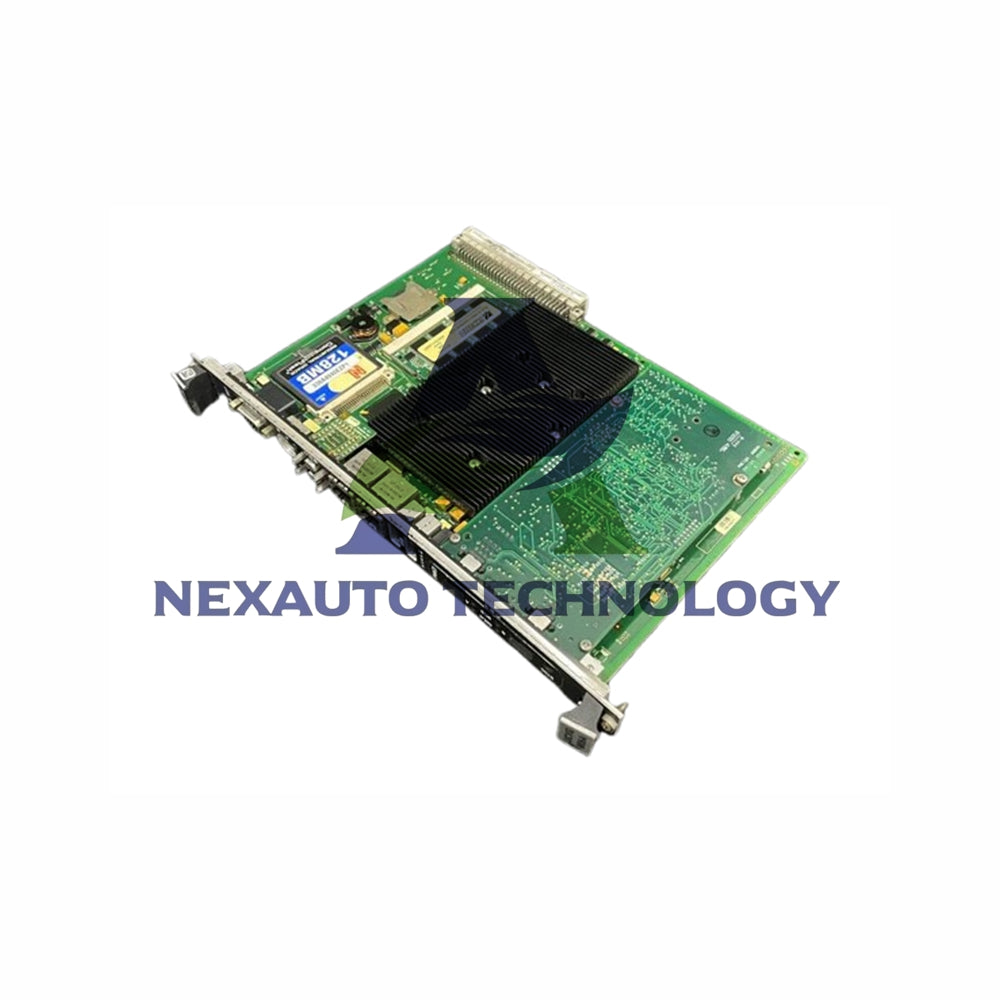

GE IS415UCCCH4A Mark VIe Controller Board

GE IS415UCCCH4A Mark VIe Single Slot Controller Board

The GE IS415UCCCH4A is a Single Slot Controller Board from the Mark VIe Series manufactured by General Electric. This UCCC controller runs application code for Distributed Control Systems using a 1.6 GHz Intel Pentium M processor. It mounts inside a CPCI enclosure and connects to I/O packs through dedicated I/O network interfaces.

Technical Specifications

• Part Number: IS415UCCCH4A
• Manufacturer: General Electric (GE)
• Series: Mark VIe
• Product Type: Single Slot Controller Board
• Microprocessor: Intel Pentium M processor 1.6 GHz
• Memory: 256 MB DDR SDRAM, 128 MB flash
• Operating System: QNX Neutrino real-time OS
• Programming: Boolean logic
• Power Requirements: +5 V dc
• Operating Temperature: 0°C to +50°C (32°F to +122°F)
• Dimensions: 6U CompactPCI standard
• Country of Origin: United States
• Availability: In Stock
• Manual: GEH-6721
• Repair Time: 3-5 Days

Communication Ports

• Unit Data Highway (UDH): Ethernet connection for HMIs and control devices
• I/O Networks: R, S, and T Ethernet connections for I/O packs
• COM1 Port: RS-232C connection for setup and configuration
• Ethernet Speed: 10/100/1000BaseTX on UDH and optional networks

Key Features

• Single-slot 6U CompactPCI form factor
• 1.6 GHz Intel Pentium M processor for high-speed control
• QNX Neutrino real-time multitasking OS
• 256 MB DDR SDRAM with 128 MB flash memory
• IEEE 1588 clock synchronization within 100 microseconds
• Supports Dual and Triple Modular Redundant configurations
• Five communication ports for versatile connectivity
• Injectors/ejectors for secure board installation

Redundancy Configurations

• Dual System: Handles I/O packets, internal status, initialization data, and synchronization
• Triple Modular Redundant (TMR): Handles I/O packets, voting state variables, and synchronization across three controllers

Installation Guidelines

• Install primary controller in leftmost slot (slot 1) of 4-slot CPCI rack
• Reinstall CMOS battery jumper before inserting board
• Position top ejector upward and bottom ejector downward before sliding
• Use injectors to fully seat board against backplane connector
• Pull up bottom ejector and press down top injector for insertion
• Tighten top and bottom injector/ejector screws for ground connection
• Power off rack before replacing any board

Power Removal Methods

• Single power supply: Use power switch to turn off outputs
• Dual power supply: Remove both power supplies safely
• Bulk power input: Unplug Mate-N-Lok connectors at CPCI enclosure bottom

Battery and CMOS Information

• CMOS battery disconnected via jumper during storage to preserve life
• Battery powers CMOS RAM settings, real-time clock, and internal date
• BIOS sets CMOS to default values automatically
• Only real-time clock requires reset after installation
• Set initial time and date using ToolboxST or NTP server

Package Contents

• 1x GE IS415UCCCH4A Single Slot Controller Board
• Anti-static protective packaging
• Ships via FedEx, UPS, or DHL

FAQ

• What is the function of this controller board?
  It runs application code for Mark VIe Distributed Control Systems, connecting to I/O packs via dedicated Ethernet networks.
• What processor and OS does it use?
  1.6 GHz Intel Pentium M processor with QNX Neutrino real-time operating system.
• How do I install the board correctly?
  Set injectors/ejectors to correct position, slide in, use injectors to seat firmly, and tighten screws for ground connection.
• What redundancy options are supported?
  Dual and Triple Modular Redundant (TMR) configurations for fault-tolerant operation.
• How do I set the real-time clock after installation?
  Use ToolboxST software or the system NTP server to set initial time and date.
