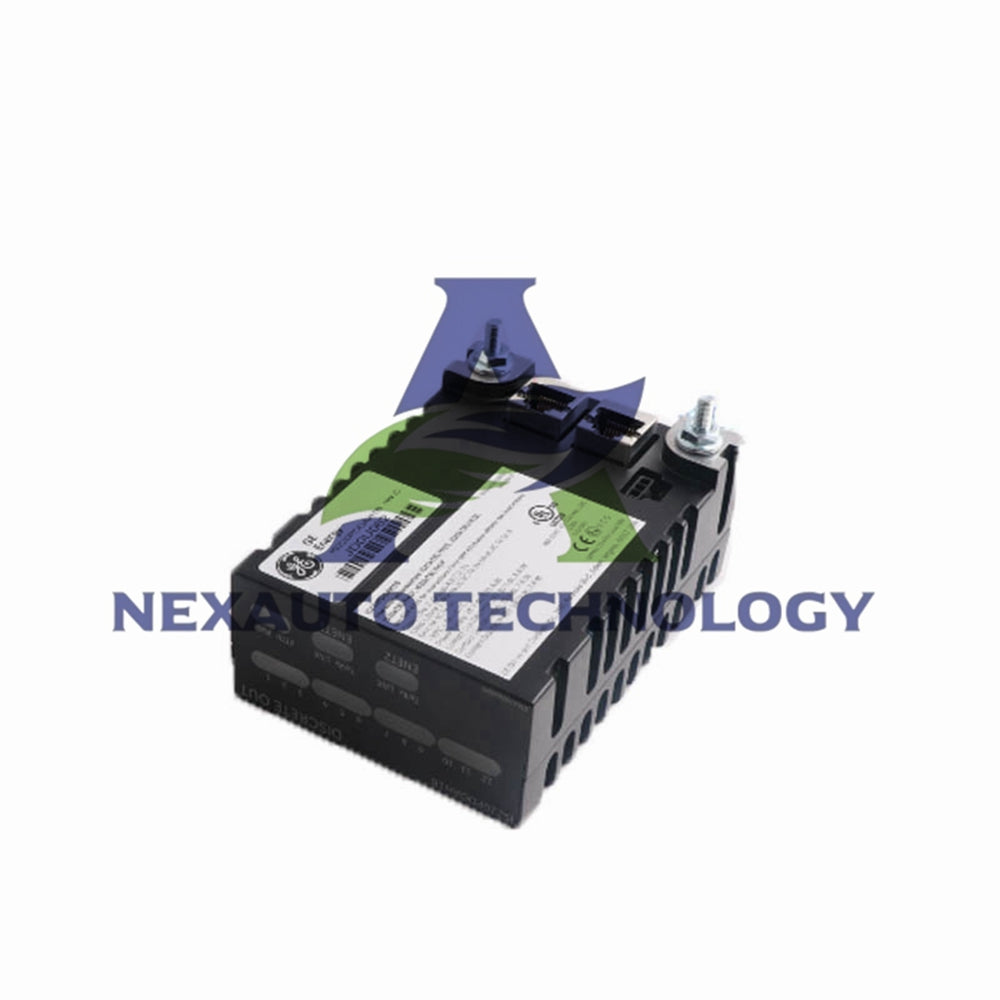

GE IS420PPNGH1A PROFINET Controller Gateway

GE IS420PPNGH1A PROFINET Controller Gateway Module

The GE IS420PPNGH1A is a PROFINET Controller Gateway Module from the Mark VIe Series manufactured by General Electric. This module connects Mark VIe controllers to PROFINET LAN for high-speed communication with PROFINET I/O devices. It is designed for gas, hydro, and steam turbine control systems within GE Distributed Control Systems.

Technical Specifications

• Part Number: IS420PPNGH1A
• Manufacturer: General Electric (GE)
• Series: Mark VIe / Mark VIeS
• Product Type: PROFINET Controller Gateway Module
• Functional Abbreviation: PPNG
• Processor: 1066 MHz Intel EP80579
• Operating System: QNX Neutrino
• Memory: 256 MB DDR2 SDRAM
• Voltage: 24 VDC
• Operating Temperature: -22°F to +149°F (-30°C to +65°C)
• Dimensions: 13.0 in x 4.0 in (330 mm x 102 mm)
• Weight: 2.4 lbs (1.09 kg)
• Manual: GEH-6725
• Country of Manufacture: United States (USA)
• Availability: In Stock

Performance Specifications

• Maximum PROFINET Data Rate: 6 KB per ms
• Network Compatibility: PROFINET LAN
• Required Software: ControlST V05.04 or higher
• Recommended Switches: ESWA 8-port or ESWB 16-port unmanaged switches
• Cable Length: 3 to 18 feet (0.9 to 5.5 meters)
• Cooling Method: Air-cooled, no fan or battery
• Mounting: Vertical panel mount required

Key Features

• PROFINET controller with gateway functionality
• Connects Mark VIe controllers to PROFINET LAN
• High-speed communication with PROFINET I/O devices
• 1066 MHz Intel processor for fast data processing
• QNX Neutrino real-time operating system
• 256 MB DDR2 SDRAM for reliable operation
• Air-cooled design with no moving parts
• Single-module component for easy installation

Network Requirements

• IONet and PROFINET cannot share the same switch
• Each network requires independent switch connection
• Use ESWA 8-port or ESWB 16-port unmanaged switches
• Maintain cable lengths between 3 and 18 feet
• PROFINET data rate up to 6 KB per ms

Installation Guidelines

• Mount vertically on panel for proper airflow
• Ensure fans are not blocked and airflow is unimpeded
• No battery or fan installation required
• Connect to independent switch for PROFINET network
• Use ControlST V05.04 or higher for configuration
• Verify cable connections between 3 to 18 feet length

Package Contents

• 1x GE IS420PPNGH1A PROFINET Controller Gateway Module
• Anti-static protective packaging
• Ships via FedEx, UPS, or DHL

FAQ

• What is the function of this module?
  It acts as a PROFINET controller and gateway connecting Mark VIe controllers to PROFINET LAN for high-speed I/O communication.
• What processor and OS does it use?
  1066 MHz Intel EP80579 processor with QNX Neutrino operating system and 256 MB DDR2 SDRAM.
