Honeywell 900H02-0102 DC Digital Output Module 16 Channel

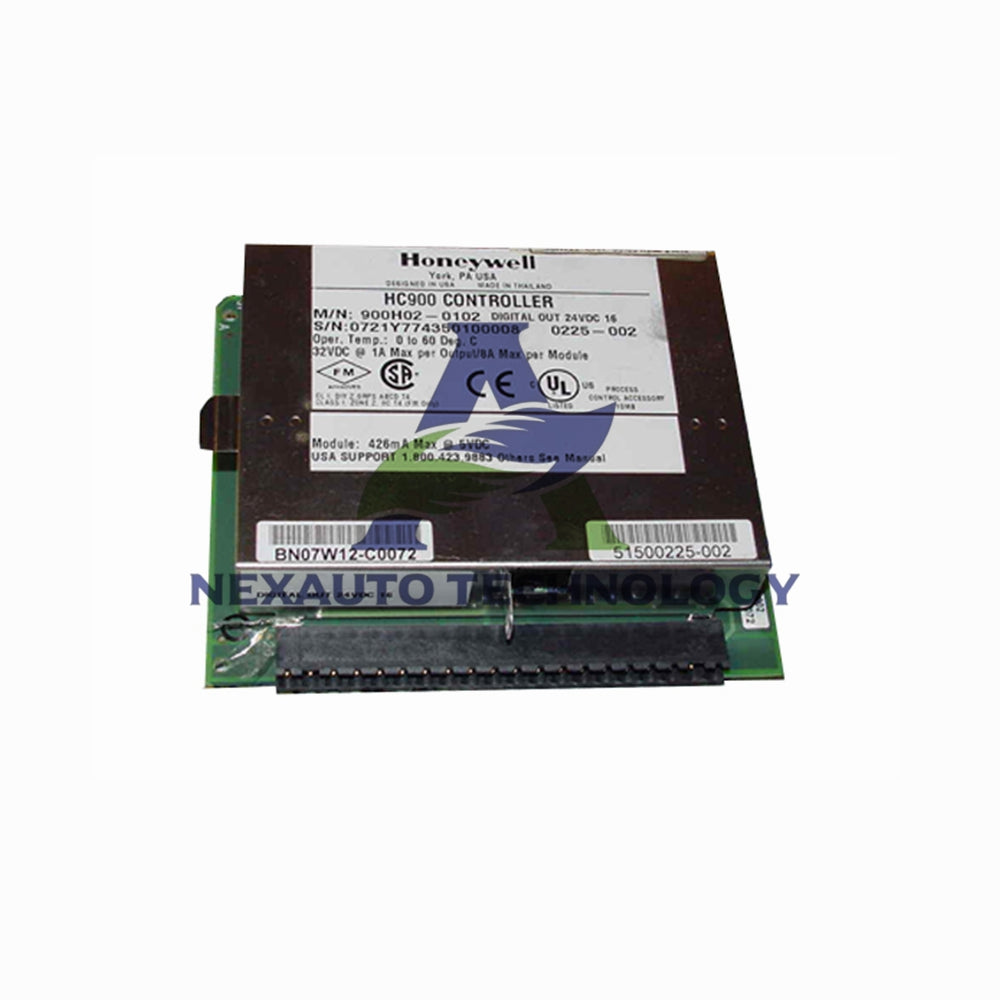

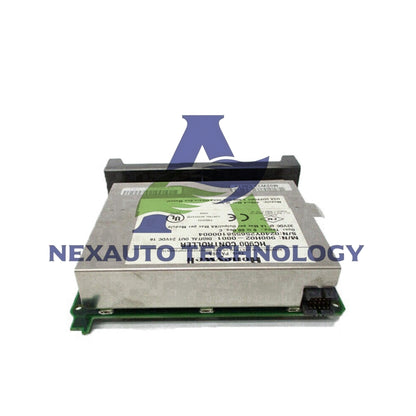

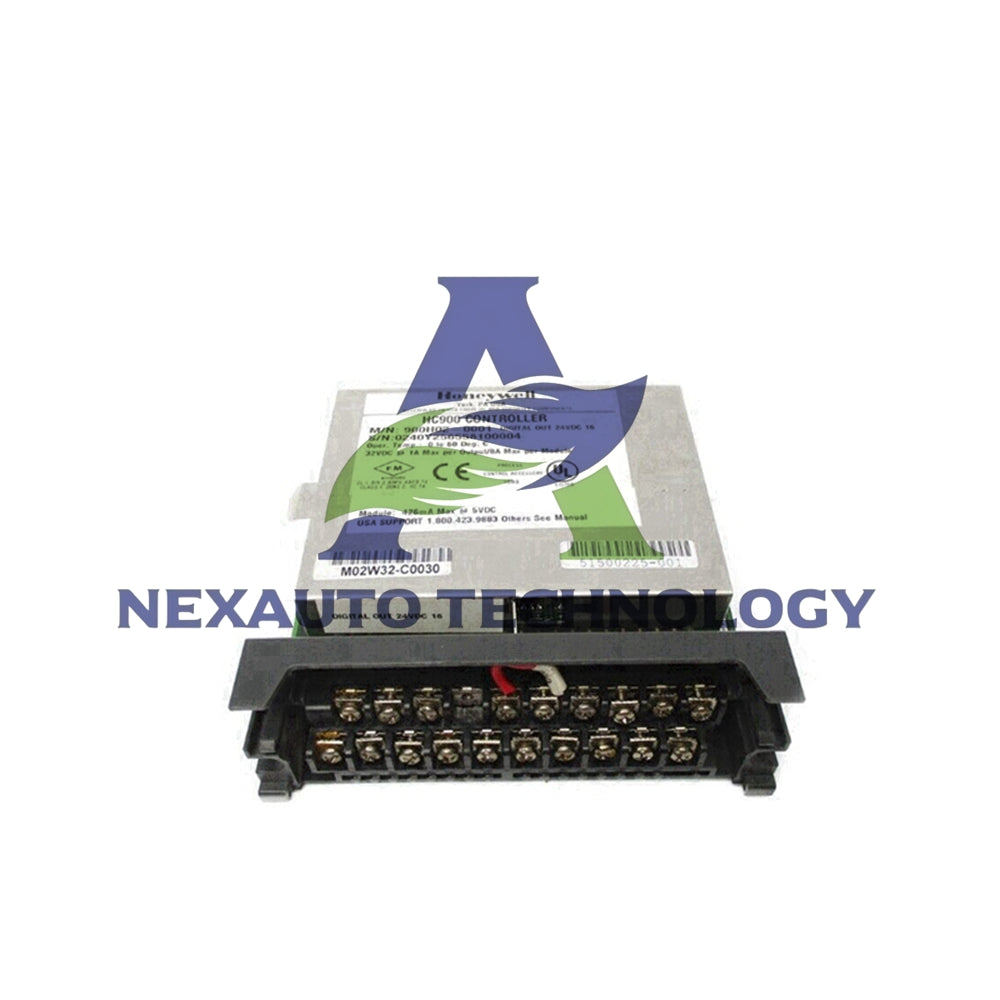

Honeywell 900H02-0102 DC Digital Output Module

The 900H02-0102 is a DC Digital Output module from Honeywell. It provides 16 current-sinking outputs for driving relays, solenoids, and indicators with built-in electronic protection.

Technical Specifications

• Brand & Model: Honeywell 900H02-0102
• Product Type: DC Digital Output Module
• Channels: 16 sinking outputs (low-side)
• Operating Voltage: 6.5-32 V DC (5.0-6.5V @ <0.5A)
• Current Capacity: 1 A per point, 8 A module max
• Isolation: 2 groups of 8 outputs
• Response Time: ≤6 ms (ON/OFF)

Electrical Characteristics

• ON Voltage Drop: 0.3 V DC @ 1 A load
• Maximum Leakage: 0.15 mA @ 32 V DC
• Inrush Current: 4 A for 10 ms maximum
• Load Types:
  • Resistive: 1 A per point
  • Inductive: 5 mH max
  • Lamp: 0.5 A per point incandescent
• Power Supply: 5V @ 340 mA, 24V @ 0 mA

Protection Features

• Overload Protection: Electronic high current & temperature limiting
• Reset Method: Requires field power cycling after trip
• Output Type: Intelligent Power Switch (IPS) technology
• Electronic Fusing: No replaceable fuses

LED Indicators

• Per-channel: Green LED for ON state
• Module Status:
  • Green blinking: Module scanning
  • Amber blinking: Channels forced
  • Red: Module diagnostics fault

Typical Applications

• Relay and contactor control
• Solenoid valve operation
• Indicator and lamp driving
• Alarm device activation

Packaging & Shipping

• New unit in factory packaging
• Worldwide shipping via FedEx, UPS, DHL

FAQ

• Output type? 16 low-side sinking outputs (connects load to ground when ON).
• Current rating? 1 A per channel, 8 A total module maximum.
• Overload recovery? Requires field power cycle to reset after protection trip.
• Force indication? Amber LED blinks when channels are forced from controller.
• Voltage range? Wide 6.5-32V DC operation (down to 5V at reduced current).
